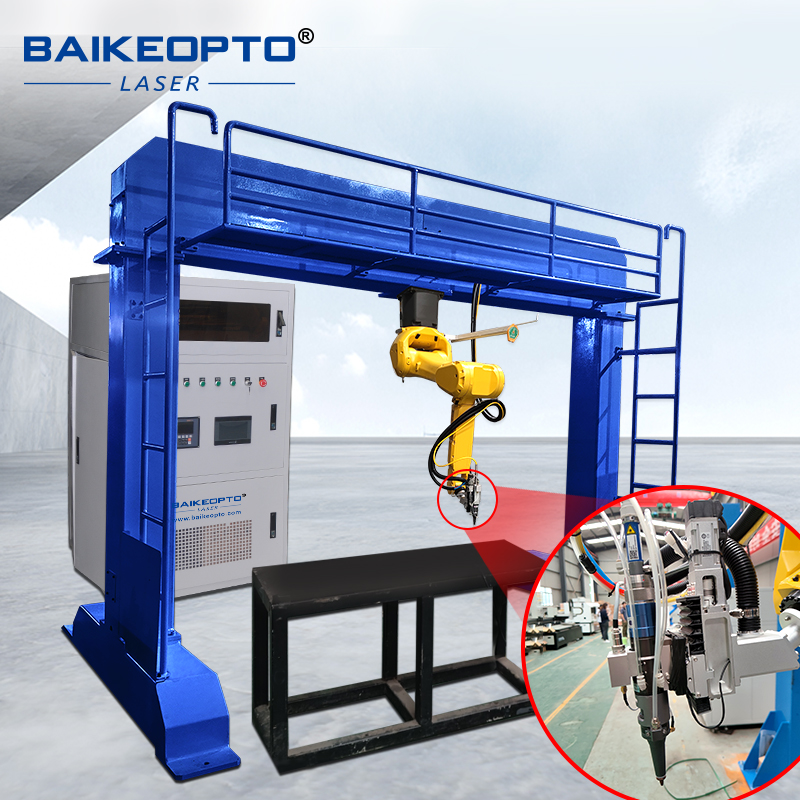

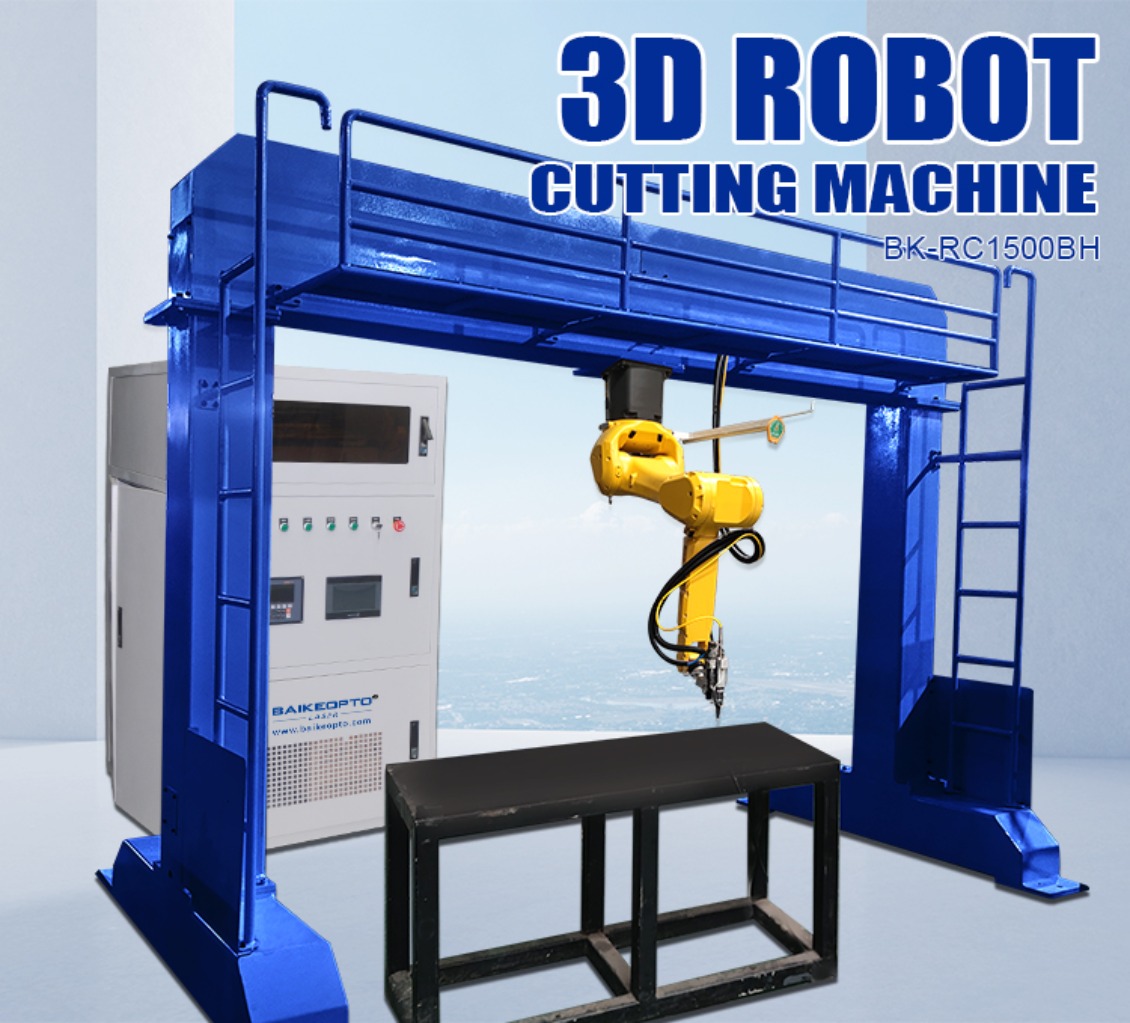

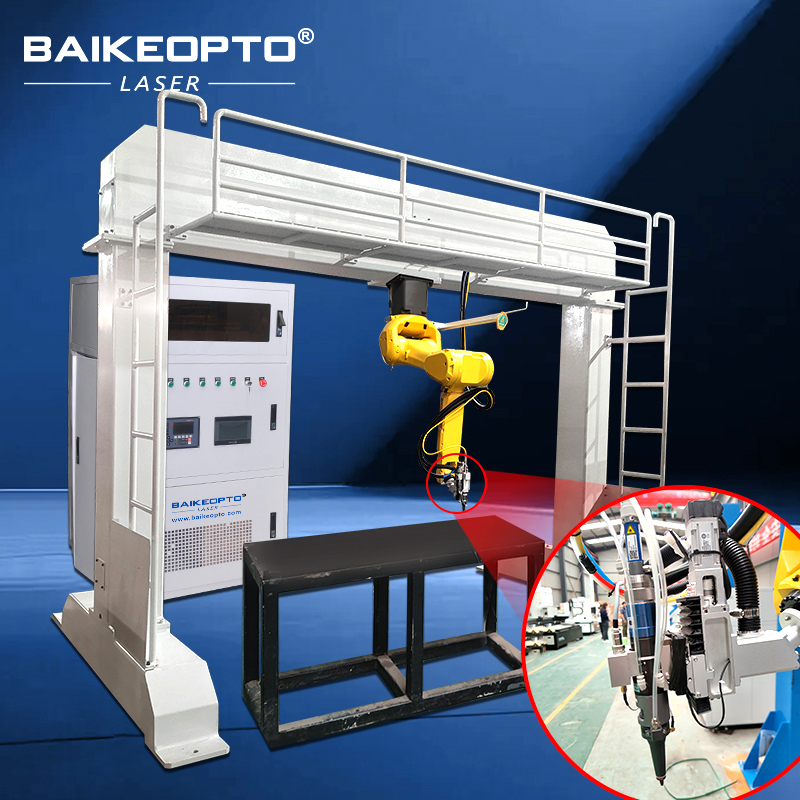

1500W High Precision 3D Laser Cutting Robot Arm Machine Flexible for Complex Geometries
1500W High Precision 3D Laser Cutting Robot Arm Machine Flexible for Complex Geometries
Model： BK-RC1500BH
Laser Power：1500W
Supply Voltage: Single phase 220V±10%、50/60Hz AC
$46,500.00 USD
$48,500.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Power
BK-RC1500BH，1500W
Quantity
Description
|
3D Fiber Laser Cutting Machine |
| 1.With "high precision, high flexibility and high efficiency" as the core, it reduces manual intervention through intelligent technology, and significantly improves the customization ability and production efficiency of the manufacturing industry.
2.The PLC system independently developed and designed, combined with the flexibleand fast action performance of industrial robots, can be programmed or off-line pro
3. Grammed for different products and different trajectories, especially for the spe-cial-shaped processing of locomotive three-dimensional parts. Therefore, it is widely used in locomotive parts, body, door frame, trunk, roof cover, door seat,fuel tank and various supports and other locomotive manufacturing industry.
|
|
NO.
|
Product name
|
Model
|
QTY (set)
|
Country of origin
|
|
1
|
Fiber laser Source
|
Raycus 1500W
|
1 SET
|
Raycus
|
|
2
|
Fiber laser specialized 3D cutting head
|
FR-1500
|
1 SET
|
Customization
|
|
3
|
Z-axis servo lifting mechanism
|
Stroke 60mm
|
1 SET
|
Japan THK
|
|
4
|
Height regulator control
|
CHC-1000L
|
1 SET
|
HYD THC
|
|
5
|
PWM 3D cutting control software and HMI screen
|
|
1 SET
|
Customized and developed by Baike Laser
|
|
6
|
TCP automatic calibration
|
|
1 SET
|
|
|
7
|
Power Control Module
|
|
1 SET
|
|
|
8
|
Fiber laser dedicated water cooling system
|
FR-1500
|
1 SET
|
Wuhan Hanli
|
|
9
|
3D robot
|
M20ib
|
1 SET
|
FANUC
|
|
10
|
Gantry
|
|
1 SET
|
Negotiate production
|
|
Features 1. Non contact cutting: Small workpiece deformation, no mechanical stress 2. High flexibility: Any process path of any workpiece is controlled by the topographic map 3. Fast cutting speed: The cutting speed can reach 12 meters per minute, which is more than three times that of CNC 4. Good cutting quality: The cutting surface is smooth without burrs and does not require post-processing 5. Stable and reliable performance: Continuous and stable operation tens of thousands of times long service life 6. Green and environmentally friendly process: almost no consumables, high output, no pollutants 7. Good cutting flexibility: 3D spatial images can be cut freely without the need for manual angle adjustment. 8. High production efficiency: No need for mold opening or secondary processing, it can replace traditional trimming and punching molds 9. High cutting accuracy: The laser spot is small, the incision is narrow, and it can reach ± 0.05mm 10. High economic benefits: greatly shorten the development cycle of new products, greatly reduce costs, and require no maintenance 11. Simple and fast operation: complete process library, simple process steps 12. Strong Scalability: Automated devices such as expandable locators greatly reduce the waiting time for material cutting 13. Support component customization services. |
Laser SourceUsing the domestic first-line brand Raycus fiber laser, with high anti-reaction,strong reliability, long service life equipped with 10m three-dimensional reinforced optical cable effectively ensure long-term stable work.
|

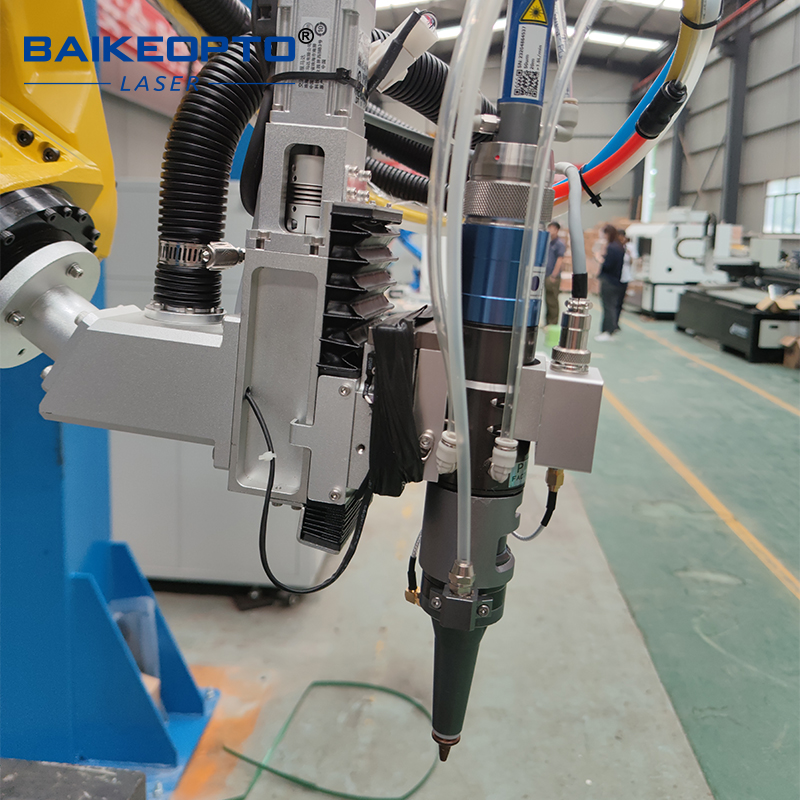

3D Cutting HeadThe lightweight 3D specialized anti-collision cutting head can achieve 3D metal thermal cutting of medical parts or irregular pipeline spatial curves. Modular design, high spatial freedom, and flexibility
|
Water cooler1.Provide cooling water cooling for the laser
2.Provide constant temperature water cooling for laser cutting heads
3.Efficient and environmentally friendly
4.There are flow and over temperature alarms
5.Laser with linkage signal protection
|
Control cabinetcontrol cabinet dustproof and anti-corrosion,man-machine operation panel, standard wiring structure the whole machine is highly integrated can be installed according to demand PWM control and special industrial air conditioning, to achieve perfect cutting
|

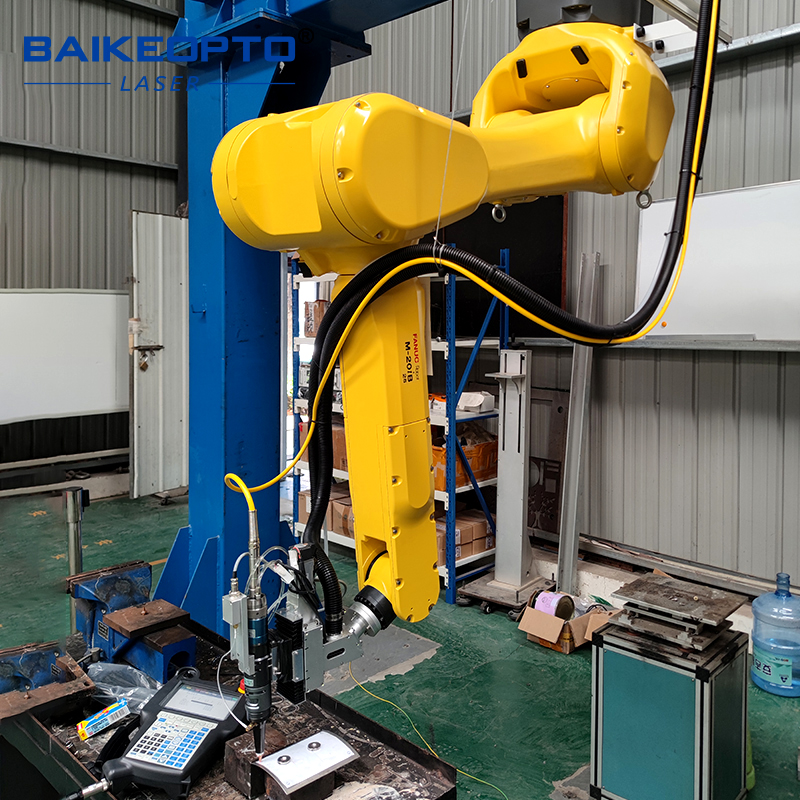

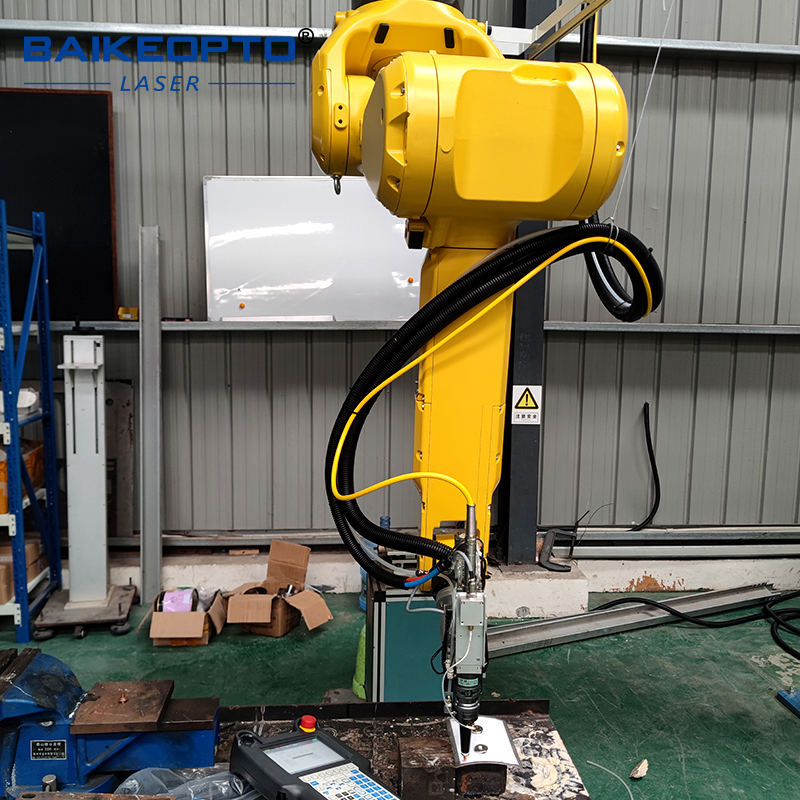

Six-axis industrial robotsRobots can be selected based on process requirements such as customer workpiece size and cutting accuracy requirements, and can be perfectly matched with PLC systems,offline mapping software, displacement machines,and protective rooms.
|
Simple cuttingReplace the traditional trimming die and punching die.Shorten the new product research and development cycle.Reduce manufacturing costs.Develop specialized displacement machines and supporting fixtures.The special-shaped pipe fitting for hole cutting and arc cutting.
|
 |
Robot foraml wear
|
|
Laser control system
|
 |
 |
3x work efficiency
Multi-process arbitrary space curve trajectory cutting,the work efficiency is more than 3 times higher than CNC machining, and it can basically replace CNC machining
|
|
Support customization
According to customer pipe fittings can develop different types of linkage or collaborative position-changer and supporting fixture can achieve precise and efficient cutting of different materials,shapes and sizes of special-shaped pipes
|
 |
| It's a hot formed part of an automobile, shaped pipe fittings and part of plastic hole cutting, edge cutting, arc cutting edge sharps can realize dynamic 2D and 3D cut-ting molding, basically can replace CNC machining |
| Wuhan Baike Intelligent Technology Co., Ltd., a wholly-owned subsidiary of Wuhan Baike Times Laser Technology Co., Ltd., was founded in 2008 as a professional supplier of laser machine.Wuhan Baike lntelligent Technology Co., Ltd., located in Optical Valley of china, has gathered the best R&Dproduction and marketing teams in the domestic laser industry. More than 100 kinds of industrial laserproducts,including pneumatic marking machine, laser marking machine, laser welding machine, laser cuttingmachine, developed by the company's technical team, have been widely used in 3C electronics, semiconduc-tor, new energy (including photovoltaic), metal processing, automobile manufacturing, electric power, textilemachinery, fashion FMCG, medical devices, instruments and meters, food processing and other industries. Theproduct quality and service have been highly praised by customers internationally. We has achieved strategic cooperation with dozens of domestic top 500 manufacturing enterprises. We'vebeen dedicated to provide our customers with the highest quality, the best cost performance, the mostsuitable laser equipment. lfyou have any needs, please call/mail us directly. All you need to do is just tell uswhat you need, we'l provide the most professional services. |
|
1.What materials can be cut by the 3D laser cutting machine? It's widely used in metal and non-metalic materials, such as stainless steel, carbon steel, aluminum alloy,brass, titanium alloy, rubber, plastic, etc. 2.What are the main components of this machine? The main components are: laser source, robot arm, water cooling system, control system, cutting headcutting platform, etc. 3.How about the cutting precision and speed? The accuracy is up to 0.05mm, and speed is 12m/min at most. 4.How to choose the right power of 3D laser cutting machine? It depends on the material and thickness, for example, the power of 1000w-3000w is suitable for cuttingstainless steel plate with 0-8mm, Please inform our personal consultant ofyour cutting needs and recom.mend the best solution for you. 5.What are the advantages of 3D laser cutting compared to traditional processing? High precision, fast effciency( 3-5 times faster than the traditional way), high flexibility, high cutting quality. 6.How about the shipment? It is packed in a stable and hard wooden case, with shockproof treatment, suitable for land or sea transporta. 7.How to install after receiving the goods? There are detailed product manuals, including detailed installation quides, and there are also engineers whocan teach the installation online and remotely in real time. 8.How long is the warranty period? It's one year. And don't be worry ,even after the warranty, there will be a special engineer to help. 9.Do you support customization or OEM/OED? Yes, we can tailor the service to your needs 10.What other products do we have? Fiber Laser Cutting Machine, Laser Cleaning Machine, Laser Welding Machine, Laser Marking Machine andWall Printing Machine. |
