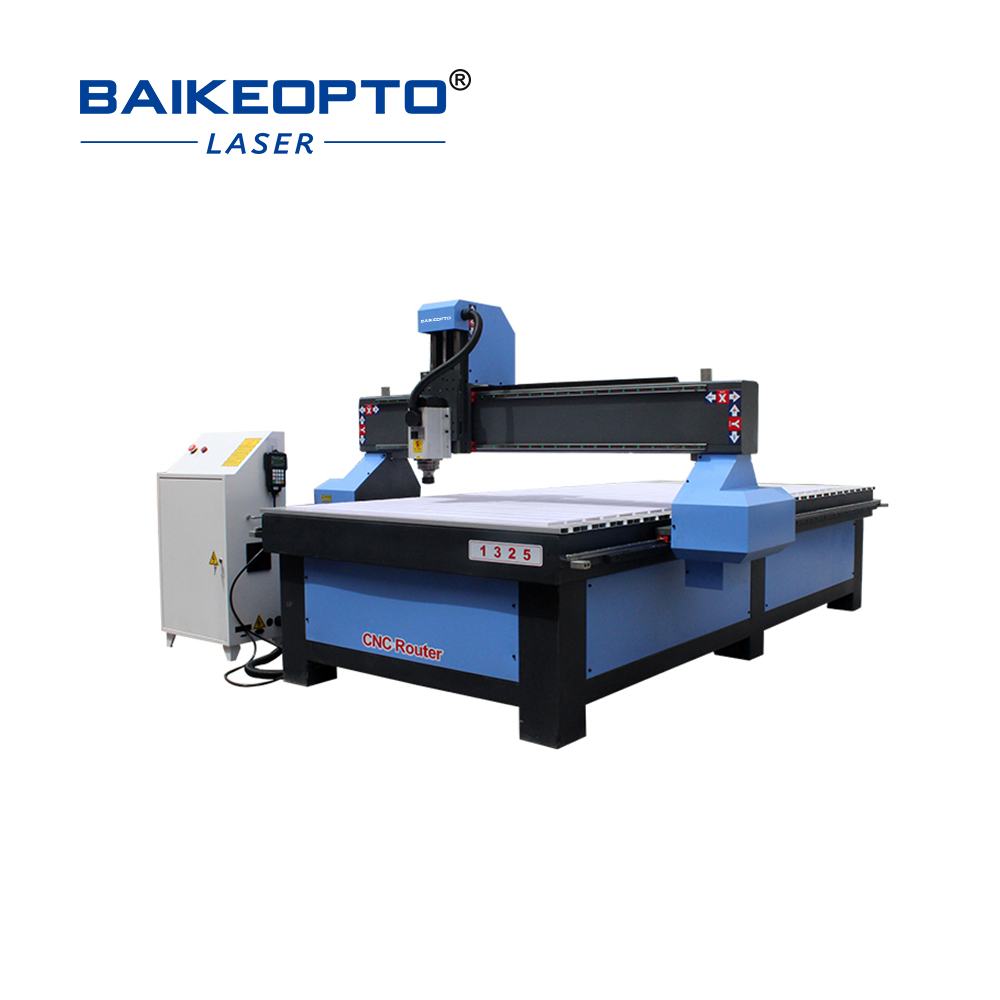

BK-C1325S-1500W【FOB】
Product details
Air-cooled spindle
Both inside and outside ,in addition to the appearance of more outstanding performance ,Fast heat dissipation ,bearing performance is better ,comes with cooling fan, The cooling effect is good ,and the service life of the main shaft is improved.
System
The system has stable performance and simple and stable work,The lines are soft, cold-resistant,anti-interference,not Because software problems bring you resistance
Ball screw
The high-quality silver double nut screw greatly improves the accuracy of the cutting and engraving operation.
High quality chain
High-quality line drag chain is neat and clean,simple and efficient.
Working table
Large-format aluminum profile countertop is strong and durable.
Main Component Diagram
Technical Data
| model: | BK-C1325S |
| Running speed: | 3m/min |
| Carving speed: | 3m/min |
| Material height: | ＜200mm |
| Resolution: | 0.005mm |
| Repeatability: | 0.01mm |
| Carving instructions: | HCP,G |
| Software operating environmenta: | Windows98/2000/xp |
| Operating Voltage: | 220V/110V,50HZ |
| Spindle power: | 1500W/2200/3200/4500W |
| Spindle speed: | 6000----24000rpm/min |
| Way of working: | Stepper motor/servo motor |
| Control System: | Weihong/DSP |
| Machine size: | 3120*2220*1580mm |
Thank You For Your Attention And Choice.
Machine Working Video
For more application videos, see the product videos or application videos in the Application column.
