BFL-CW2000【FOB】

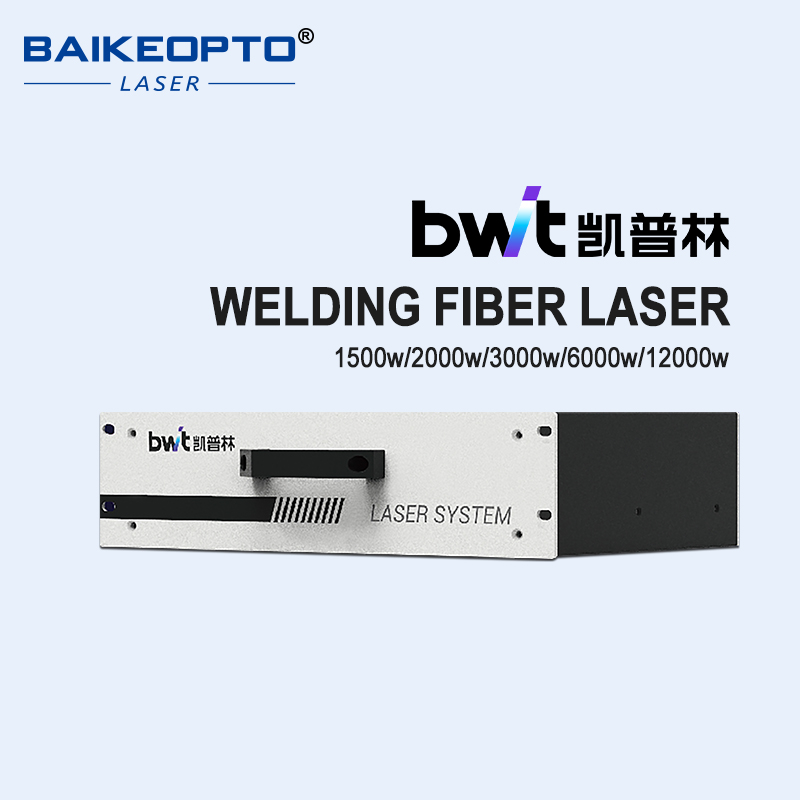

| BWT BFL-CW2000 2000W CW Fiber Laser Source Power for Laser Welding Machine |
 |
 |
| Features: |
|
BWT Lightning series fiber lasers have good beam quality, and the beam can be focused close to the diffraction limit, which makes them perfect choices for precision processing. The two operation modes, CW and modulation, minimize heat-affected zone. Reliable performance, modular and all-fiber design, and robust case enclosing all optical and electronic components ensure that they can be used under strict industrial conditions. |
| Application: |
| BWT Laser sources are widely used in multiple industries. such as maunfacturing industry, Automative industry , Aerospace, Petrochemical Industry, Rail Traffic, 3C Electrinic , Sheet metal working , Advertising Sign, Kitchen industry, Househeld appliance, fitness equipment, precision Machinery,etc. |
| Parameters: |
|
Model
|
BFL-CW2000
|
| Optical Character | |
| Power | 20000W |
| Wavelength | 1080±10 nm |
| Output Fiber Core Diameter | 34um, 50um or customized |
| Output Cable Length | 12m, 15m or customized |
| Output Cable Connector | QBH |
| Aiming Beam | Red |
| Operation Mode | CW or modulation |
| Polarization | Random |
| Power Stability (25°C) | <±1.5%(2h) |
| Power Adjustment Scope | 10%-100% |
| Max Modulation Frequency | 5kHz |
| Size and Weight | |

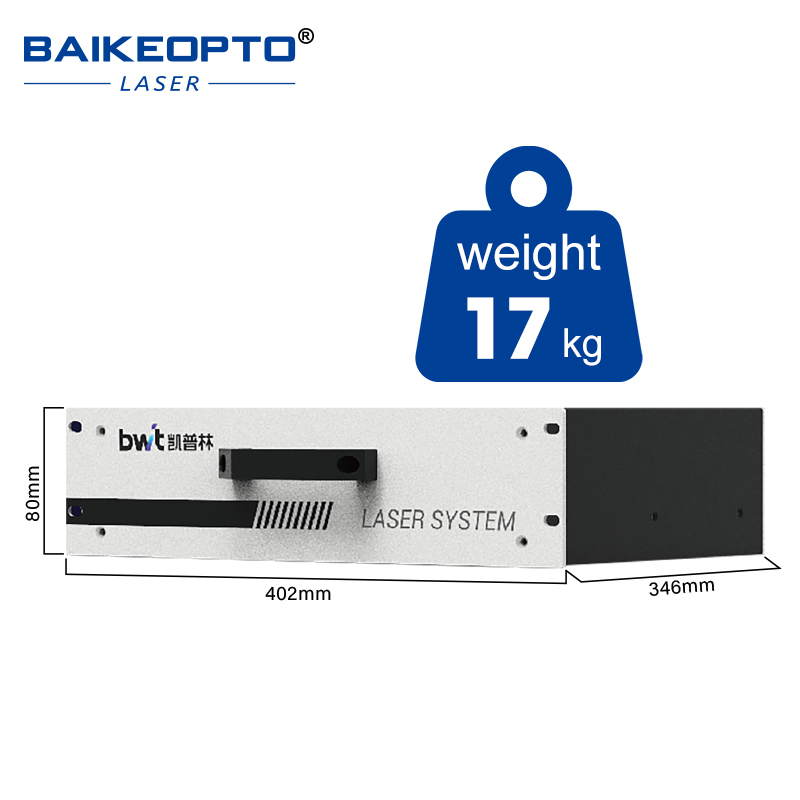

| Physical Size (HxWxD) | 80mm*402mm*346mm |
| Weight | 17 kg |
| Electronic Character | |
| Power Supply | 220+20 V, AC, PE, 50/60 Hz |
| Power Consumption | 6.0 kW |
| Control interface | RS232/AD |
| Water Cooling Parameters | |
| Minimum Water Cooling Capacity | 4.5 kW |
| Temperature Settings | 25℃(Laser Module),30°℃(QBH) |
| Cooling Tubes Size | 0.D. φ12 mm |
| Cooling Water Flow Rate (Laser) | >18 L/min |
| Cooling Water Flow Rate (QBH) | 1.5~2.0L/min |
| Details: |
 |
01. Good Beam Quality We excellent beam quality, the laser beam can be focused closed to the diffraction limit to achieve precision processing. |
|
02. Optimize Processing Quality There are two qworking modes available: continuous and modulated pulse, which can effectively reduce the processing heat-affected zone. |
 |
 |
03. Reliable Performance Reliable performance , modular all- fiber design, all optoelectronic devices are packaged in a sturdy chassis, able to withstand harsh industrial application conditions. |
|
04. Professional Technical Support We have professional laser application engineers dedicated to providing you with high-quality laser sstem solutions
|
 |
 |
05. Wide Application It can be widely used in precisoin machining, 3D printing, sheet metal processing, lithium electric processing, and can process various steel materials, aluminum-based and nickel-based alloys, titanium alloys, alumina ceramics, etc. |
