BK-C6090S-1500W【FOB】
Product details
High precision spindle
The main shaft is driven by dual motors and has a long bearing life and a long life.The equipment adopts double -tooth transmission for simpler operation and more user-friendly design.
System
The system has stable performance and simple and stable work,The lines are soft, cold-resistant,anti-interference,not Because software problems bring you resistance.
Ball screw
Standard positioning hole,convenient and fast positioning ,any adjustable position can achieve a variety of combinations,with software multi-station printing to improve work efficiency.
High quality chain
High-quality line drag chain is neat and clean,simple and efficient.
High quality limit
High-quality stoppers are safer,more responsive,more durable and more efficient.
Main Component Diagram
Technical Data
| model: | BK-C6090S |
| XYZ axis travel: | 600*900*100(mm)Z axis can be increased to 130mm |
| Running speed: | 4-4.5m/min |
| Carving speed: | 2-3m/min |
| Material height: | 130mm |
| Resolution: | 0.005mm |
| Repeatability: | 0.01mm |
| Carving instructions: | HCP,G |
| Software operating environmenta: | Windows98/2000/xp |
| Operating Voltage: | 220V/110V,50HZ |
| Spindle power: | 800W/1500W |
| Spindle speed: | 6000----24000rpm/min |
| Way of working: | Stepper motor/servo motor |
| Control System: | Weihong/DSP |

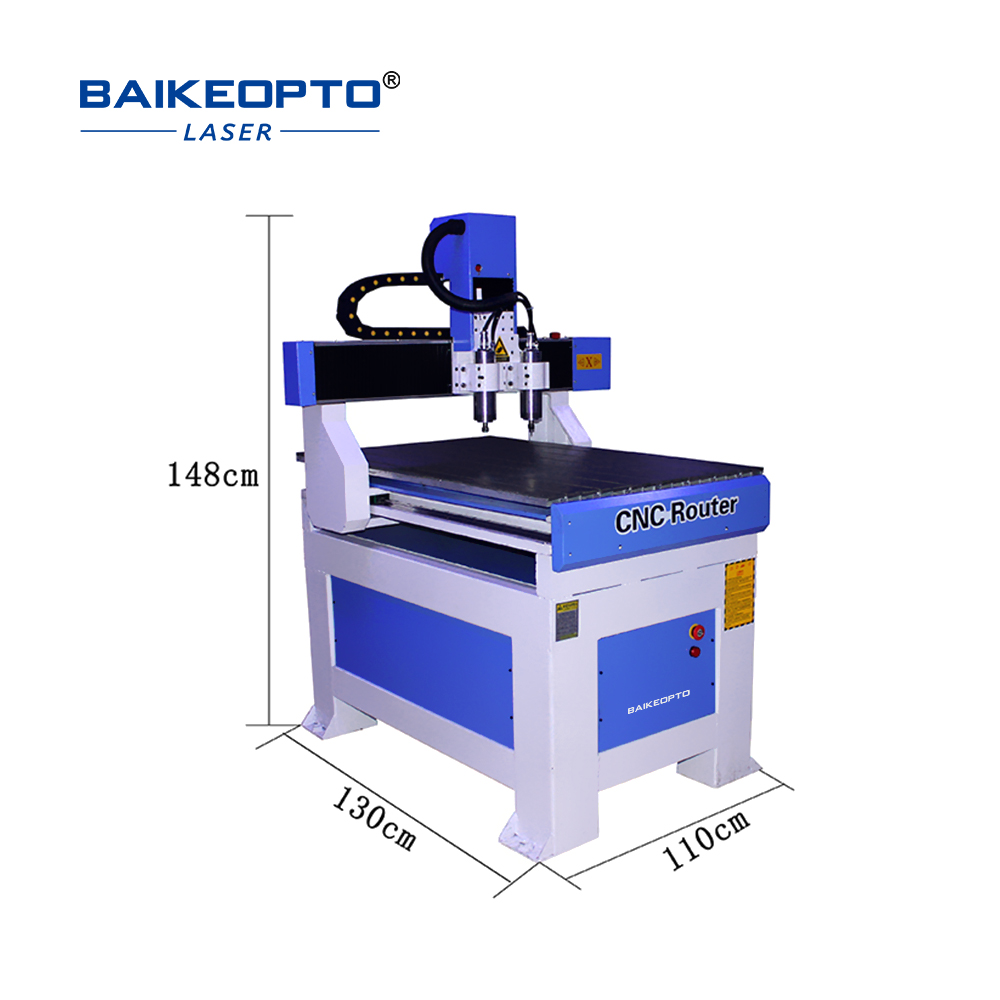

| Machine size: | 1100*1300*1480mm |
Thank You For Your Attention And Choice.
