Product Details Display

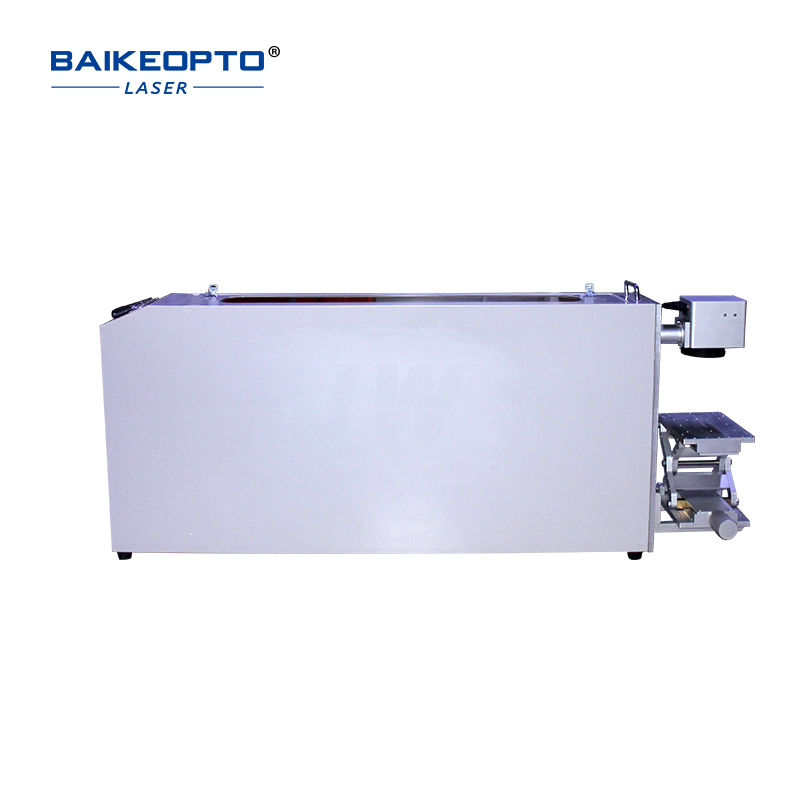

BK-CM-50E【FOB】
Product details
Galvanometer
The galvabometer is an important factor to determine the marking quality.The small size of the galvanometer is suitable for harsh enviroment.
Worktable
Standard positioning hole, convenient for fast positioning,
adjustable position can achieve a variety of combinations ,multi-station printing with software to improve work efficiency.
Field lens
The field lens scanning system adopts new technology,new materials,new technique and new working principle to design and manufacture.
Worktable
Humanized control system ,control switch,power switch,laser switch,USB interface with leakage protection.
The laser tube
High quality laser tube,high quality output power ,small spot,strong penetration ,high power,more stable output ,good heat resistance ,high temperature resistance .
Main Component Diagram
Technical Data
| Model: | CM-40E / CM-50E |
| Laser Power： | 40W/50W |
| Laser wavelength： | 1064nm |
| Laser quality: | M2＜1.4 |
| Output frequency: | 20KHZ-80KHZ |
| Marking area: | 110*110/150*150 (mm) |
| Min line width： | 0.01mm |
| Repetition accuracy: | ±0.0001mm |
| Electrical requirement: | AC 90-250V/50HZ 5A |
| Marking speed： | 0-5000mm/s |
| Cooling system: | Water-cooling |
| machine size（mm） | 1010*2200*1350（MM） |
Thank You For Your Attention And Choice.
