BK-FH3015C-1500W【FOB】

Product Information

Open type,single platform design,simple structure,easy installation,simple operation,low operating cost.
Arm rocker display screen,Arm swing type,can freely turn,more flexible,humanized design,free steering according to the position of the operator.

Application/Cutting Display
products have been widely used in sheet metal industry，advertising signs,oil pipes,fitness equipment ,kitchenware industry ,hardware tools,automobile industry ,household appliances,precision machinery ,environmental protection equipment and other industries.

Product advantages

1 Efficient operation

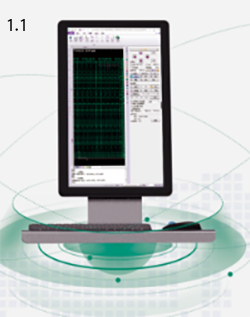

1.1 Medium power special FSCUT2000 CNC system
Automatic typesetting, high-speed edge finding, flying and cutting are highly intelligent and efficient
After the mapping of the processing preparation stage, the system can optimize the layout according to the position of the plate, save time and materials, and improve the utilization rate of the plate. When cutting, the user can choose whether to open capacitive edge finding, photoelectric edge finding and manual edge finding, one of the three ways of edge finding. In addition, when cutting ultra-thin sheet * can open the flight cutting mode, ultra-high speed operation, efficiency multiplier.

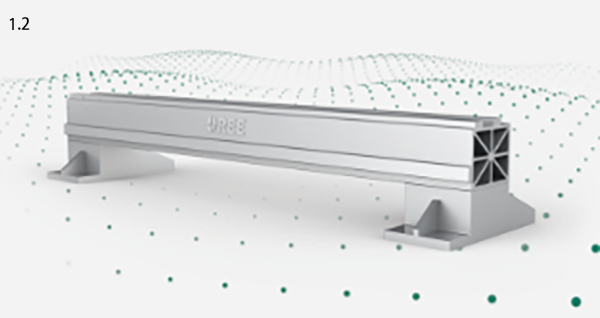

1.2 The 4th generation PLUS aviation aluminum alloy beam
The choice of high strength and light weight
High response high speed cutting
The use of lightweight aviation aluminum alloy beam, in order to ensure the stability of the structure, optimize to reduce its weight, to ensure the ultra-high response speed. At the same time, the special "stop structure", beam and fuselage integrated, improve the overall stability and robustness, to ensure that the long-term use of the beam does not shift, more firm.

2 Precision Cutting

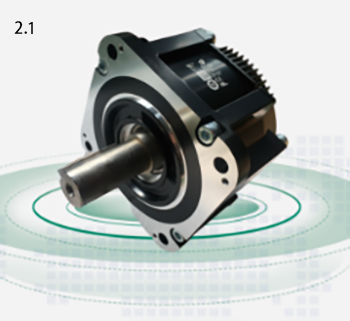

2.1 Yaskawa servo motor of Japan
Ultra-high dynamic velocity
Faster positioning speed and more accurate cutting
Servo motor can maximize the accuracy of the machine tool, fast moving speed and stability, high speed, generally rated speed up to 3000 RPM; The dynamic acceleration and deceleration time of the motor is short, generally within tens of milliseconds, which provides a guarantee for high-precision cutting.

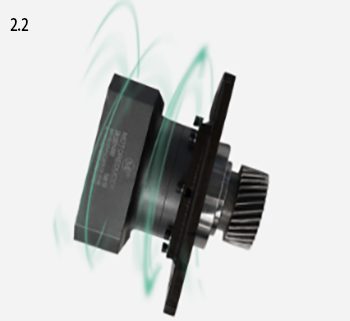

2.2 French Modoli Reducer
High helical structure with light dead weight and bearing capacity
Excellent dynamic performance ensures accurate positioning
Light dead weight, reduce the operating burden and operating inertia of the beam, optimize the dynamic performance, ensure accurate positioning; High bearing capacity can withstand the inertia of the beam under high-speed operation, accurate positioning; Reducer internal helical structure, precise position, high transmission efficiency; It provides guarantee for high precision cutting.

3 Worry free

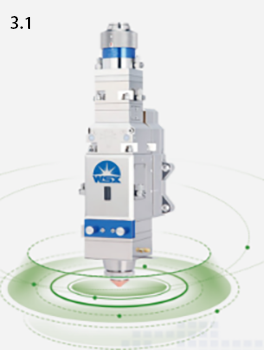

3.1 Automatic focus laser head
Two point adjustment import motor focus range is large, accurate and convenient
The laser head is adjusted by two points in the middle, and the focus is driven by imported motor. The adjustment is accurate and convenient, and the focus range is large. The laser head can adjust the focal length from + 10mm to -10mm, and the precision can reach 0.01mm.
Drawer type protection lens
The protective lens is installed in a pumping layer. Effective, reduce the loss caused by staff errors.
Closed light path protection
Laser head inside the completely sealed, avoid optical lens due to dust interference, use long life.
QBH connector is unlimited
Can be equipped with a variety of QBH connector laser, high compatibility, easy to replace.
Note: Under 6000W standard with Jiajiang laser head, 6000W standard with Wanshunxing laser head, above 6000W standard with Prezite laser head.

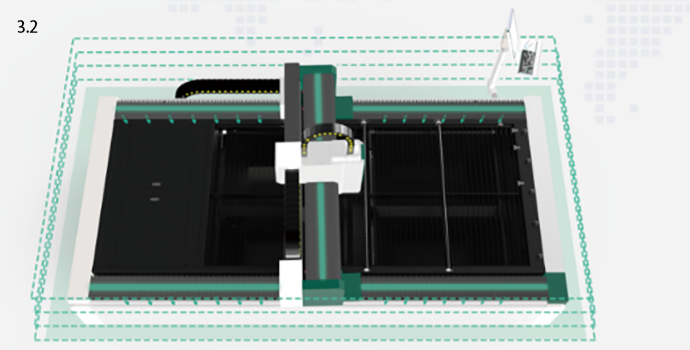

3.2 All-round automatic lubrication system
Whole body layout multi-point automatic lubrication
Prolonging service life is convenient and worrying
Software control oil pump automatic lubrication, lubrication times and time interval can be controlled manually, saving manual time. All-round lubrication, for guide rail, slide, lead screw, gear, rack and other points of automatic lubrication, reduce the strain rate of equipment.

4 Reduce cost and save energy

4.1 HyVision visual residue regeneration system
Waste recycling processing is more material saving
HyVision visual waste recycling system, to realize the recycling of waste, according to the minimum of 10 sheets per day, an average of each sheet can be used 8% more than 6 tail material, 250 days of work a year, and then discount 50% plate can not be recycled, an average of 100 sheets per year can be saved.

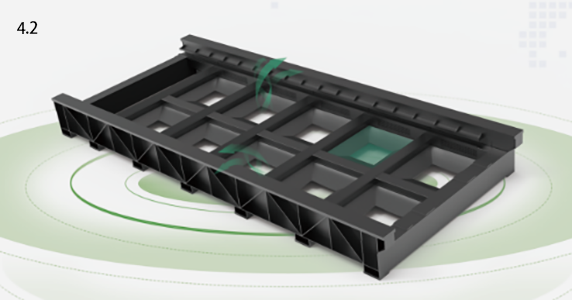

4.2 Divisional dust removal function

Area smoke condition smoke removal dust save operating costs
The dust removal function of the equipment is optimized, and the dust is removed according to the regional use condition, so as to save energy and reduce emissions.

5 Stable and reliable

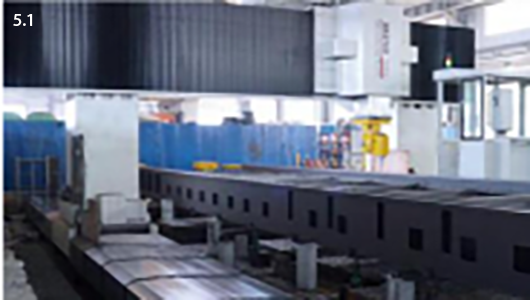

5.1 High-strength steel plug welding bed body
Equal strength welding secondary aging treatment is not easy to deform, strong and durable
The maximum load of the bed operating platform per square meter is 150KGS, and the load is strong. Not only the use of 8mm thick steel pipe and other strength welding, but also the pipe is equipped with reinforcing bars, the mechanical properties of the welding interface are equivalent to steel, sturdy and durable. 600 degrees high temperature annealing, secondary aging treatment, with high rigidity, good stability characteristics.

5.2 WIFI control System
Remote control to solve problems
Reduce the loss of downtime leads to direct order gains
WIFI control system can shoot problems online and solve equipment problems through remote control, reduce the downtime of enterprises due to equipment failure, reduce the loss of downtime, and bring the most direct order income.

Technical Data
