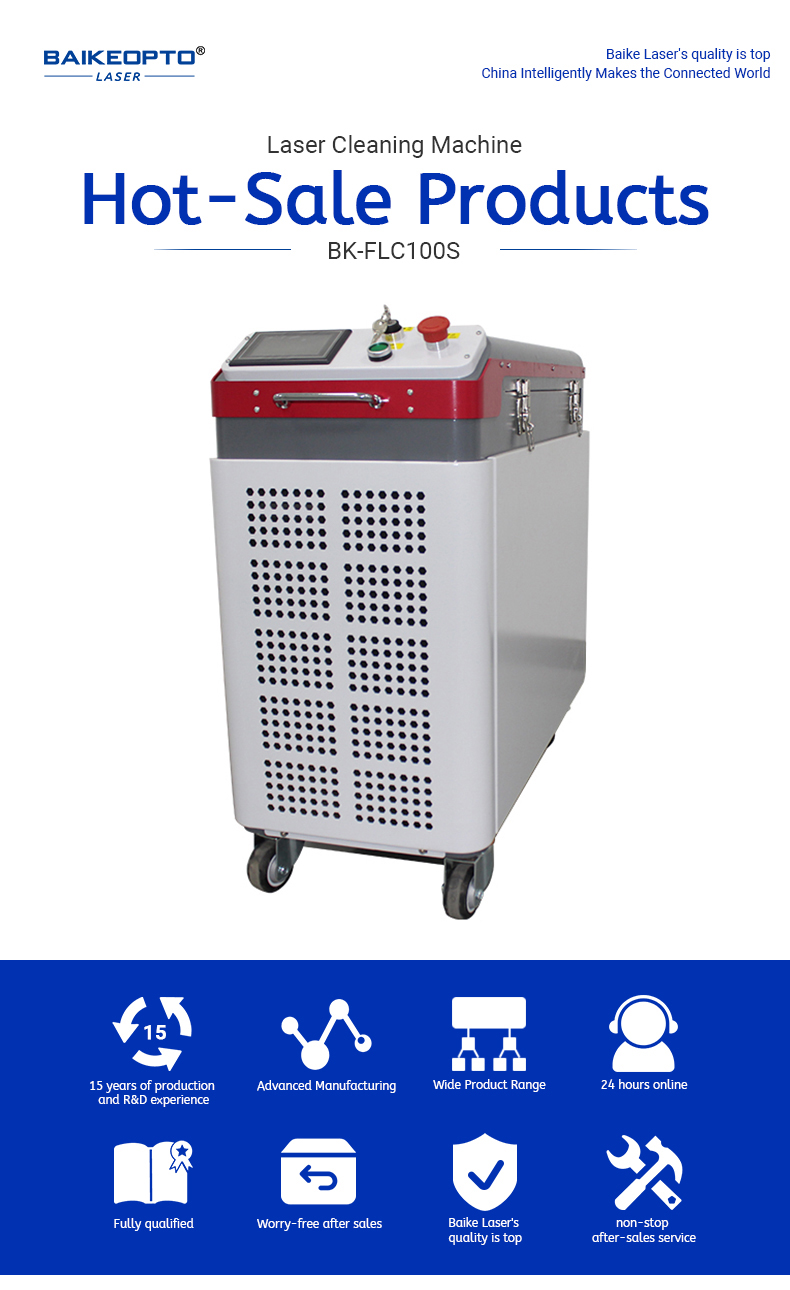

BK-FLC100S JPT 100W Energy-Efficient Pulse Laser Cleaning Machine Paint Oil Stains Dirt Rust Laser Cleaner
BK-FLC100S JPT 100W Energy-Efficient Pulse Laser Cleaning Machine Paint Oil Stains Dirt Rust Laser Cleaner
Model： BK-FLC100S
Laser Power：100W
Supply Voltage: Single phase220V±10%、50/60Hz AC
$5,799.00 USD
$6,099.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Power
BK-FLC100S，100W
Quantity
Description
BK-FLC100S Industrial Pulse Laser Cleaning Systems – For Optimal Performance and Results！
|
  |
| Key Features： |
- Non-contact cleaning without damaging the matrix of the parts;
- Accurate cleaning, can achieve precise position, accurate size selective cleaning;
- Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
- Simple operation, hand-held or with the manipulator to achieve automatic cleaning;
- Ergonomics design, operating labor intensity greatly reduced;
- Trolley design, with its own moving wheel, easy to move;
- Laser cleaning system is stable with little maintenance
- High cleaning efficiency, save time
| Applications: |
| Remove surface resin, paint, oil stains, dirt, rust, coatings, and oxidation layers from objects; this process is widely used in industries such as shipbuilding, auto repair, rubber molding, high-end machine tools, rail tracks, and environmental protection. |
| Products Parameters: |
| Operating environment | |
| Content | BK-FLC100S |
| Supply voltage | Single phase220V±10%、50/60Hz AC |
| Power consumption | ≤800W |
| Working environment temperature | 5℃～40℃ |
| Working environment humidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥100W |
| Power instability | ＜5% |
| Laser Working Mode | Pulse |
| Pulse width | 10-500ns |
| Maximum monopulse energy | 1.5mJ |
| Power regulation range（%） | 0-100( Gradient Adjustable) |
| Repeat frequency（kHz） | 1-3000（Gradient Adjustable） |
| Fiber length | 5m |
| Cooling mode | Air cooling |
| Cleaning Head Parameters | |
| Scan range (length * width) | Uniaxial :0mm-100mm, continuously adjustable; |
| Biaxial: supporting 8 scanning modes | |
| Scanning frequency | The maximum is not less than 300Hz |
| Field mirror focal length（mm） | 160mm（ Optional 210mm/254mm/330mm/420mm） |
| Depth of focus | About 5 mm |
| Mechanical parameters | |
| Machine size（Length, width and height） | About 756mm×336mm×774mm |
| Machine Weight | About 45KG |
| Cleaning head weight (including isolator) | ＜0.75Kg |
| Mode of operation | Handheld/automated |
| Product Introduction: |
| Advantage： |
| Packing and Delivery: |
| About US： |
| Wuhan Baike intelligent Technology Co., Ltd Founded in 2008. We are a professional laser manufacturing company under Wuhan Baike Times Laser Technology Co., Ltd. Our company has developed more 1000+ kinds of laser products, has been widely used in all walks of life, product quality and service has been praised by customers.Our product footprints are spread across all walks of life around the world, and our product quality and services have been 100% praised. Baike is committed to providing innovative industrial laser solutions to customers around the world！ Welcome to visit our factory at any time in Wuhan City, China! |
| FAQs： |
|
1. What are the advantages of using a Pulsed Laser Cleaning Machine over traditional cleaning methods?
Answer: Advantages include improved cleaning efficiency, precision targeting of contaminants without harming the underlying material, no requirement for chemical cleaning agents, and reduced long-term maintenance costs. |
|
2.Can Pulsed Laser Cleaning Machines be used on any type of material?
Answer: While pulsed laser cleaning works on a wide range of materials, it should be used with caution on certain substrates that may be sensitive to heat or light. It's important to check the compatibility with your specific material first. |
|
3.What are the advantages of using a Pulsed Laser Cleaning Machine over traditional cleaning methods?
Answer: Advantages include improved cleaning efficiency, precision targeting of contaminants without harming the underlying material, no requirement for chemical cleaning agents, and reduced long-term maintenance costs. |
|
4.How long do Pulsed Laser Cleaning Machines last?
Answer: With proper care and routine maintenance, pulsed laser cleaning machines can last for many years. The lifespan also depends on the frequency and intensity of their use.
|
| 5.How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
