BK-FLC100SL-JPT-100W【FOB】

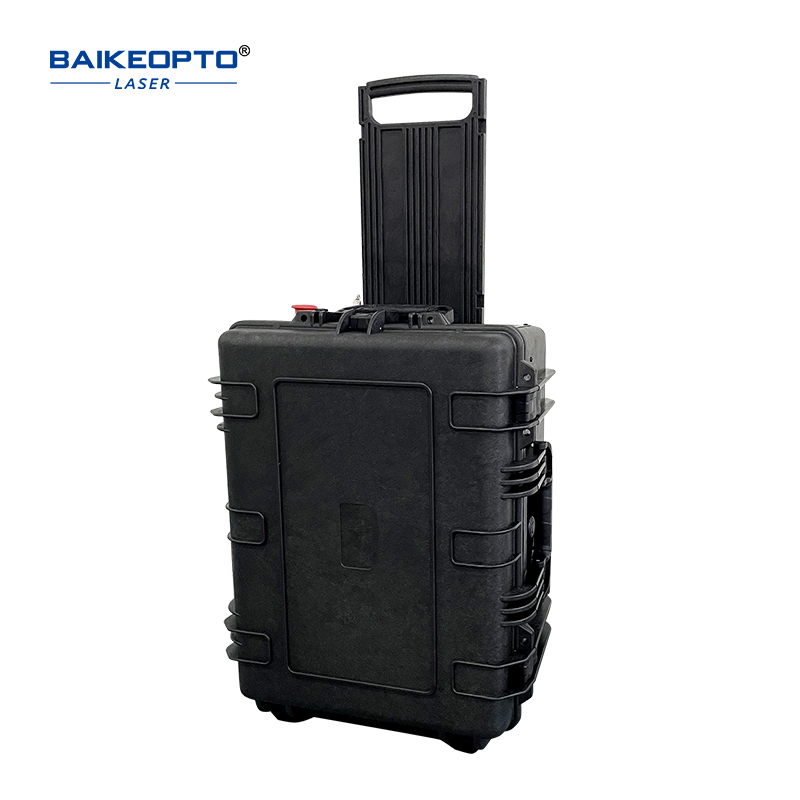

Model：Three-in-one welding, cleaning and cutting machine BK-FLC100SL-JPT-100W
Laser Power：1000W/1500W/2000W
Supply voltage：Single phase220V±10%、50/60Hz AC
$5,799.00 USD
$6,099.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description
Operating Environment/Technical Data
Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning ," green "environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.

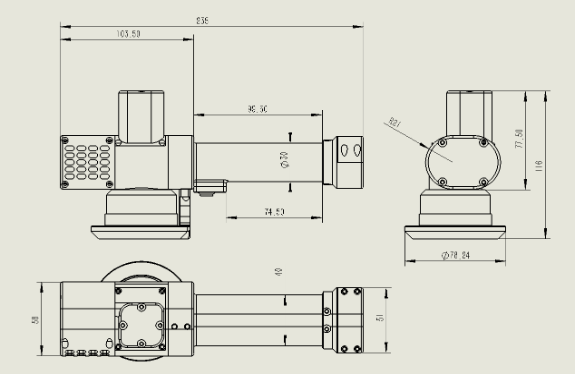

Main Component Diagram
Technical Data
| Content | BK-FLC100SL |
| Supply voltage | Single phase220V±10%、50/60Hz AC |
| Power consumption | ≤800W |
| Working environment temperature | 5℃～40℃ |
| Working environment humidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥100W |
| Power instability | ＜5% |
| Laser Working Mode | Pulse |
| Pulse width | 10-500ns |
| Maximum monopulse energy | 1.5mJ |
| Power regulation range（%） | 0-100( Gradient Adjustable) |
| Repeat frequency（kHz） | 1-3000（Gradient Adjustable） |
| Fiber length | 5m |
| Cooling mode | Air cooling |

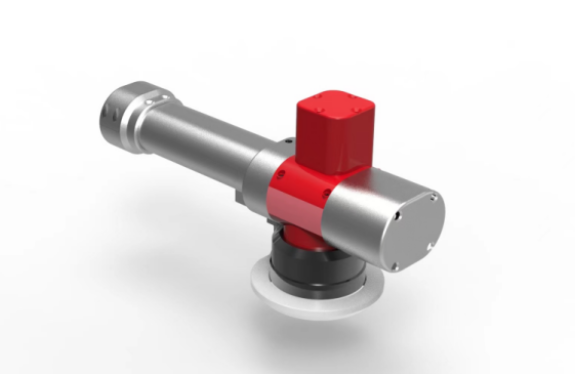

| Cleaning Head Parameters | |
| Scan range (length * width) | Uniaxial :0mm-100mm, continuously adjustable;Biaxial: supporting 8 scanning modes |
| Scanning frequency | The maximum is not less than 300Hz |
| Field mirror focal length（mm） | 160mm（ Optional 210mm/254mm/330mm/420mm） |
| Depth of focus | About 5 mm |
| Mechanical parameters | |
| Machine size（Length, width and height） | About 500mmx680mmx200mm |
| Machine Weight | About 45Kg |
| Cleaning head weight (including isolator) | ＜0.9Kg |
| Mode of operation | Handheld |
Thank You For Your Attention And Choice.
Machine Working Video
Wuhan Baike Times Laser Technology Co., Ltd., has a wholly-owned subsidiary, Wuhan Baike Intelligent Technology Co., Ltd.The picture on the right shows the video of machine work in the factory.
