BK-FLC100SZ GZTECH 100W Backpack Pulse Laser Cleaners Lightweight Pulsed Laser Cleaning Machine

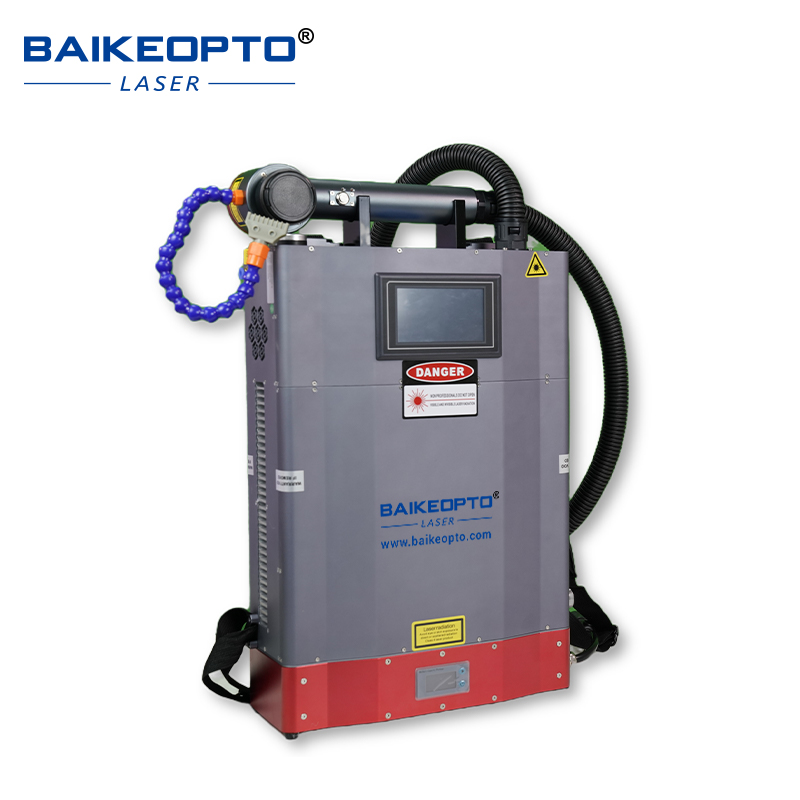

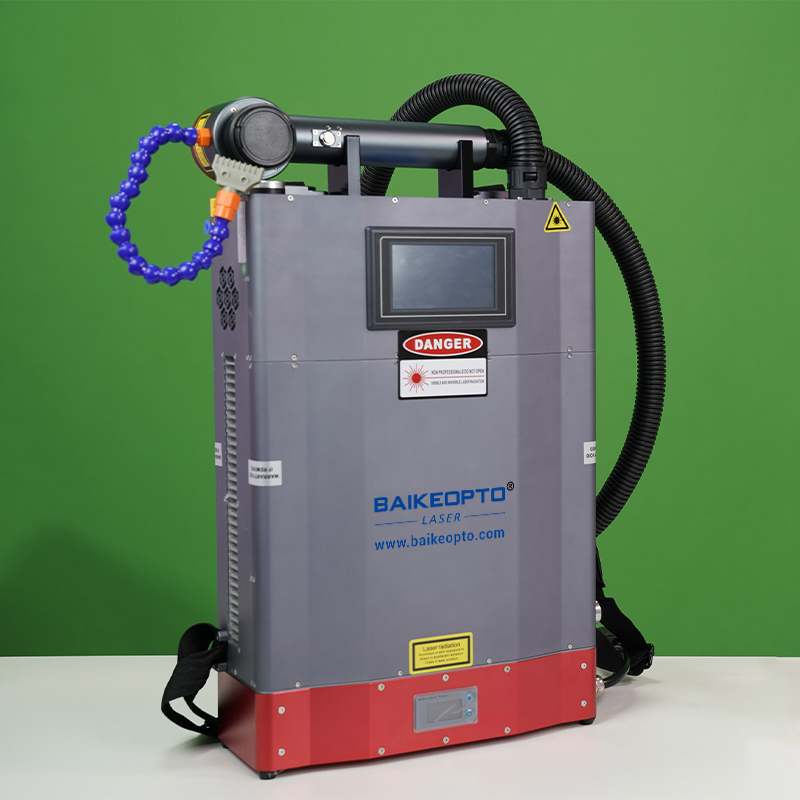

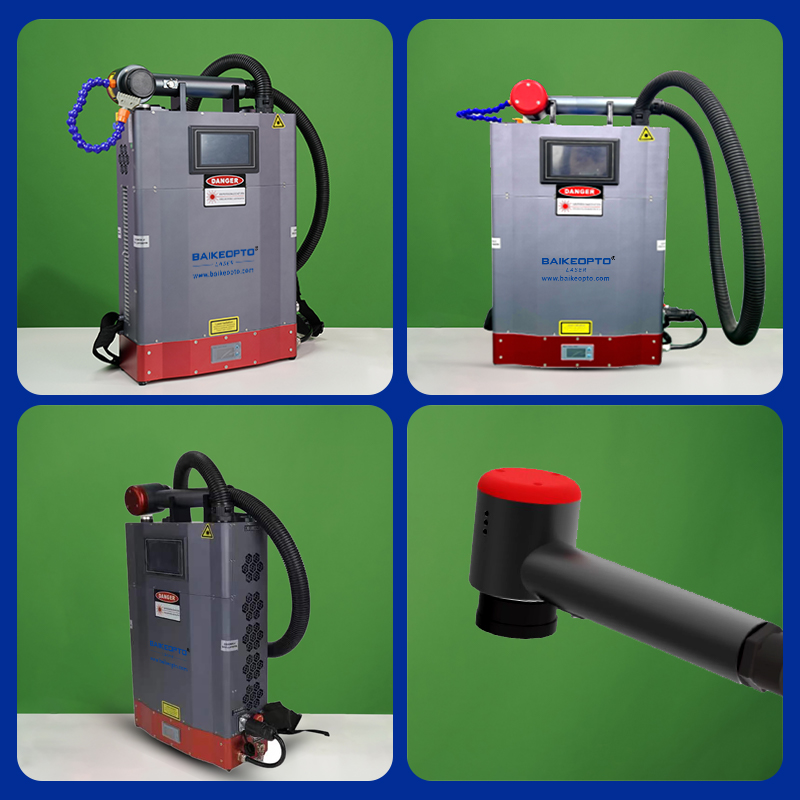

BK-FLC100SZ GZTECH 100W Backpack Pulse Laser Cleaners Lightweight Pulsed Laser Cleaning Machine
Model： BK-FLC100SZ
Laser Power：100W
Supply Voltage: Single phase220V±10%、50/60Hz AC
$5,799.00 USD
$6,099.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Power
BK-FLC100SZ，100W
Quantity
Description
BK-FLC100SZ Eco-Friendly Pulsed Laser Cleaning – Green Cleaning Without Chemicals!
 |
 |
| Key Features： |
- Non-contact cleaning without damaging the matrix of the parts;
- Accurate cleaning, can achieve precise position, accurate size selective cleaning;
- Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
- Simple operation, hand-held or with the manipulator to achieve automatic cleaning;
- Ergonomics design, operating labor intensity greatly reduced;
- Lightweight, easy to move; High cleaning efficiency, save time;
- Laser cleaning system is stable with little maintenance
- High cleaning efficiency, save time
| Applications: |
| Remove surface resin, paint, oil stains, dirt, rust, coatings, and oxidation layers from objects; this process is widely used in industries such as shipbuilding, auto repair, rubber molding, high-end machine tools, rail tracks, and environmental protection. |
 |
 |
| Products Parameters: |
| Operating environment | |
| Content | GY-FLC100SZ |
| Supply voltage | Optional single battery, 100W continuous work 1.5h |
| phase 220V±10%, 50/60Hz AC | |
| Power consumption | ≤800W |
| Working environment temperature | 5℃～40℃ |
| Working environment humidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥100W |
| Power instability | ＜5% |
| Laser Working Mode | Pulse |
| Pulse width | 10-500ns |
| Maximum monopulse energy | 1.5mJ |
| Power regulation range（%） | 0-100( Gradient Adjustable) |
| Repeat frequency（kHz） | 1-3000（Gradient Adjustable） |
| Fiber length | 1.5m |
| Cooling mode | Air cooling |
| Cleaning Head Parameters | |
| Scan range (length * width) | 0mm~100 mm, continuously adjustable; |
| Biaxial supporting 8 scanning modes | |
| Scanning frequency | 10Hz~300Hz Continuous Adjustable |
| Field mirror focal length（mm） | 160mm（ Optional 210mm/254mm/330mm/420mm） |
| Depth of focus | About 5 mm |
| Mechanical parameters | |

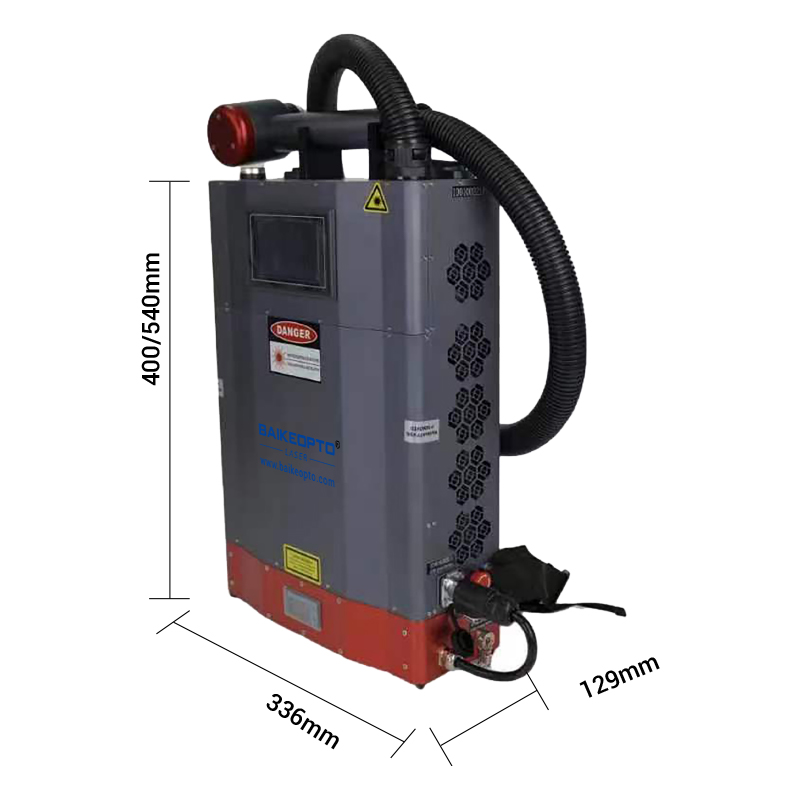

| Machine size（Length, width and height） | About 336mm×129mm×540mm |
| Machine Weight | About 18Kg（Do not contain batteries） |

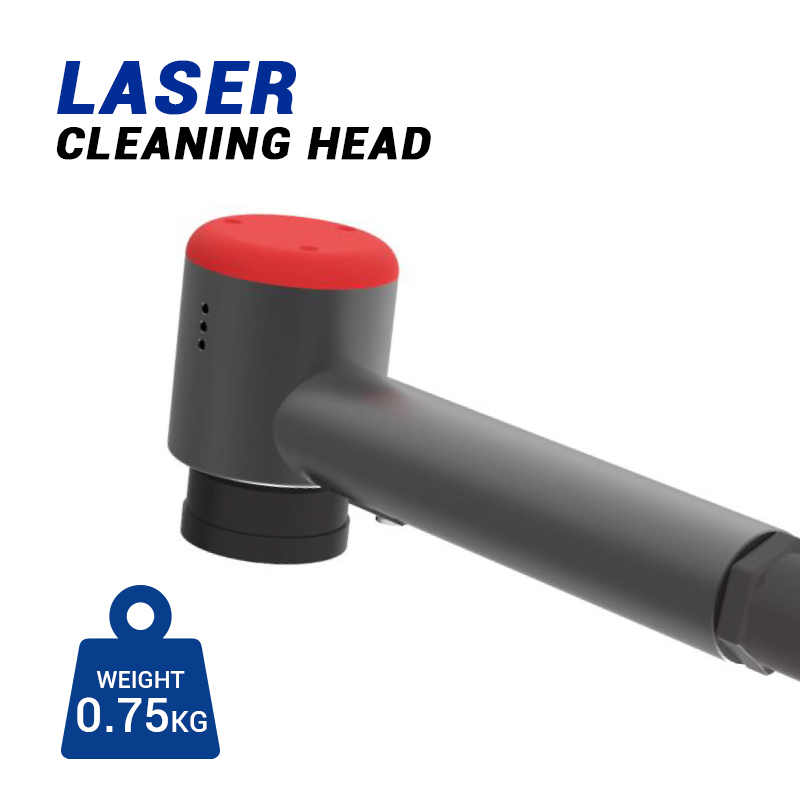

| Cleaning head weight (including isolator) | ＜0.75Kg |
| Mode of operation | Handheld/automated |
| Product Introduction: |
| Advantage： |
| More Choices: |
| We also have continuous laser cleaning machines, chassis pulse laser cleaning machines, and trolley case laser cleaning machines. There is always one machine that meets your needs. |
| Packing and Delivery: |
| About US： |
| Wuhan Baike intelligent Technology Co., Ltd Founded in 2008. We are a professional laser manufacturing company under Wuhan Baike Times Laser Technology Co., Ltd. Our company has developed more 1000+ kinds of laser products, has been widely used in all walks of life, product quality and service has been praised by customers.Our product footprints are spread across all walks of life around the world, and our product quality and services have been 100% praised. Baike is committed to providing innovative industrial laser solutions to customers around the world！ Welcome to visit our factory at any time in Wuhan City, China! |
| FAQs： |
|
1. What are the advantages of using a Pulsed Laser Cleaning Machine over traditional cleaning methods?
Answer: Advantages include improved cleaning efficiency, precision targeting of contaminants without harming the underlying material, no requirement for chemical cleaning agents, and reduced long-term maintenance costs. |
|
2.Can Pulsed Laser Cleaning Machines be used on any type of material?
Answer: While pulsed laser cleaning works on a wide range of materials, it should be used with caution on certain substrates that may be sensitive to heat or light. It's important to check the compatibility with your specific material first. |
|
3.What are the precautions during the use of the cleaning machine?
Answer: Electrical power supply of the cleaning equipment is 220 V 50Hz AC power supply; About 2m of ventilation must be left before and after the equipment. In the course of operation, labor protective equipment should be worn according to regulations, and protective glasses must be worn near the laser beam;Do not place flammable and explosive items near the cleaning machine! Such items should avoid direct or reflective laser. |
|
4.How long do Pulsed Laser Cleaning Machines last?
Answer: With proper care and routine maintenance, pulsed laser cleaning machines can last for many years. The lifespan also depends on the frequency and intensity of their use.
|
| 5.How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
Thank You For Your Attention And Choice.
Machine Working Video
Wuhan Baike Times Laser Technology Co., Ltd., has a wholly-owned subsidiary, Wuhan Baike Intelligent Technology Co., Ltd.The picture on the right shows the video of machine work in the factory.
