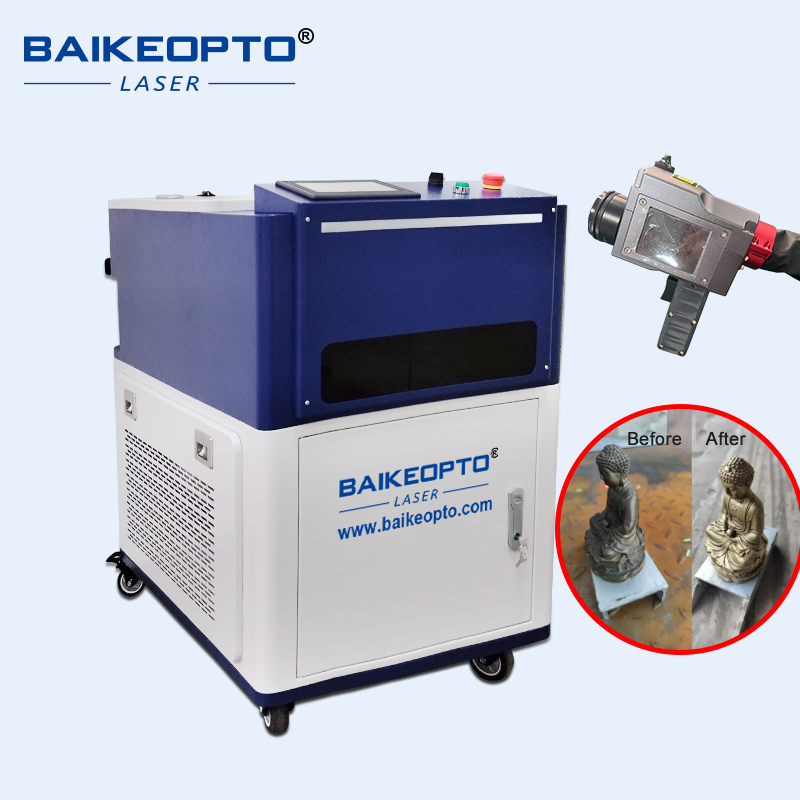

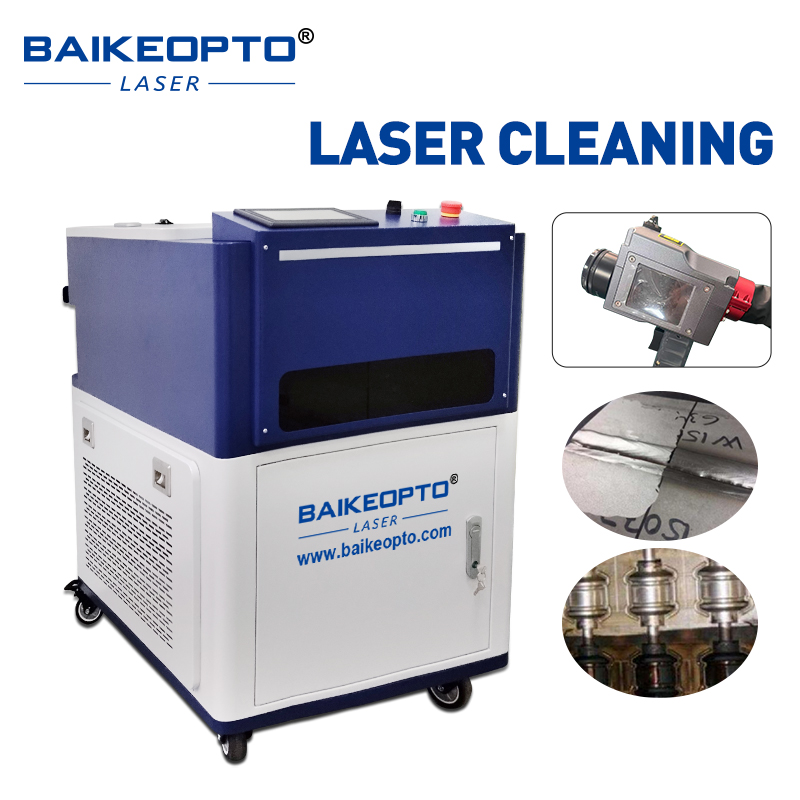

BK-FLC1500M New 1500W Automatic Laser Cleaning Machine, CNC System, Suitable for Mold/Weld/Tire Mold Cleaning, Efficient and No Consumables
BK-FLC1500M New 1500W Automatic Laser Cleaning Machine, CNC System, Suitable for Mold/Weld/Tire Mold Cleaning, Efficient and No Consumables
Model： BK-FLC1500M
Laser Power：1500W
Supply Voltage: Single phase220V±10%、50/60Hz AC
$48,000.00 USD
$48,300.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Power
BK-FLC1500M New，1500W
Quantity
Description
|

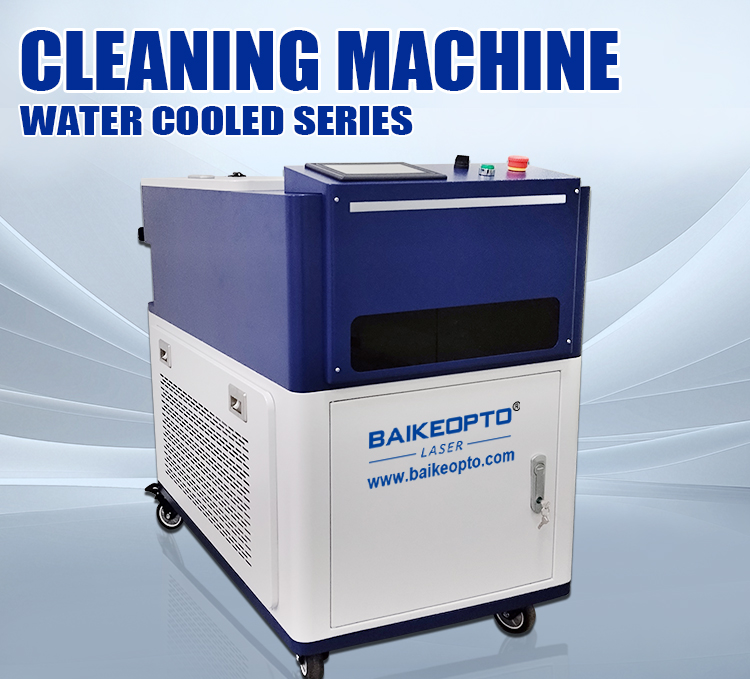

LASER CLEANING MACHINE |
 |
.jpeg?w=750&h=589) |
| Key Features： |
- Non-contact cleaning without damaging the matrix of the parts;
- Accurate cleaning, can achieve precise position, accurate size selective cleaning;
- Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
- Simple operation, hand-held or with the manipulator to achieve automatic cleaning;
- Ergonomics design, operating labor intensity greatly reduced;
- Trolley design, with its own moving wheel, easy to move; High cleaning efficiency, save time;
- Laser cleaning system is stable with little maintenance
- High cleaning efficiency, save time

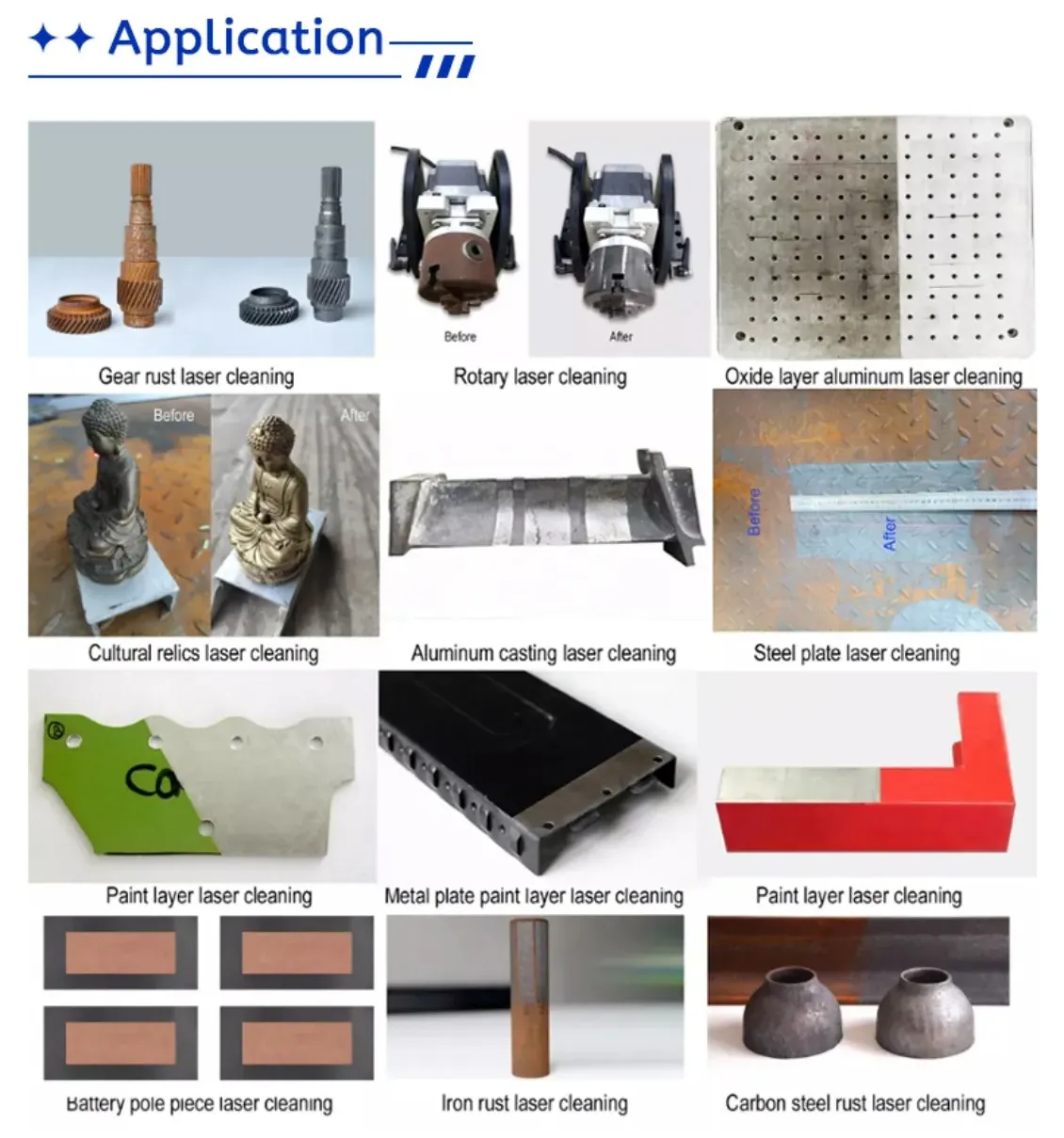

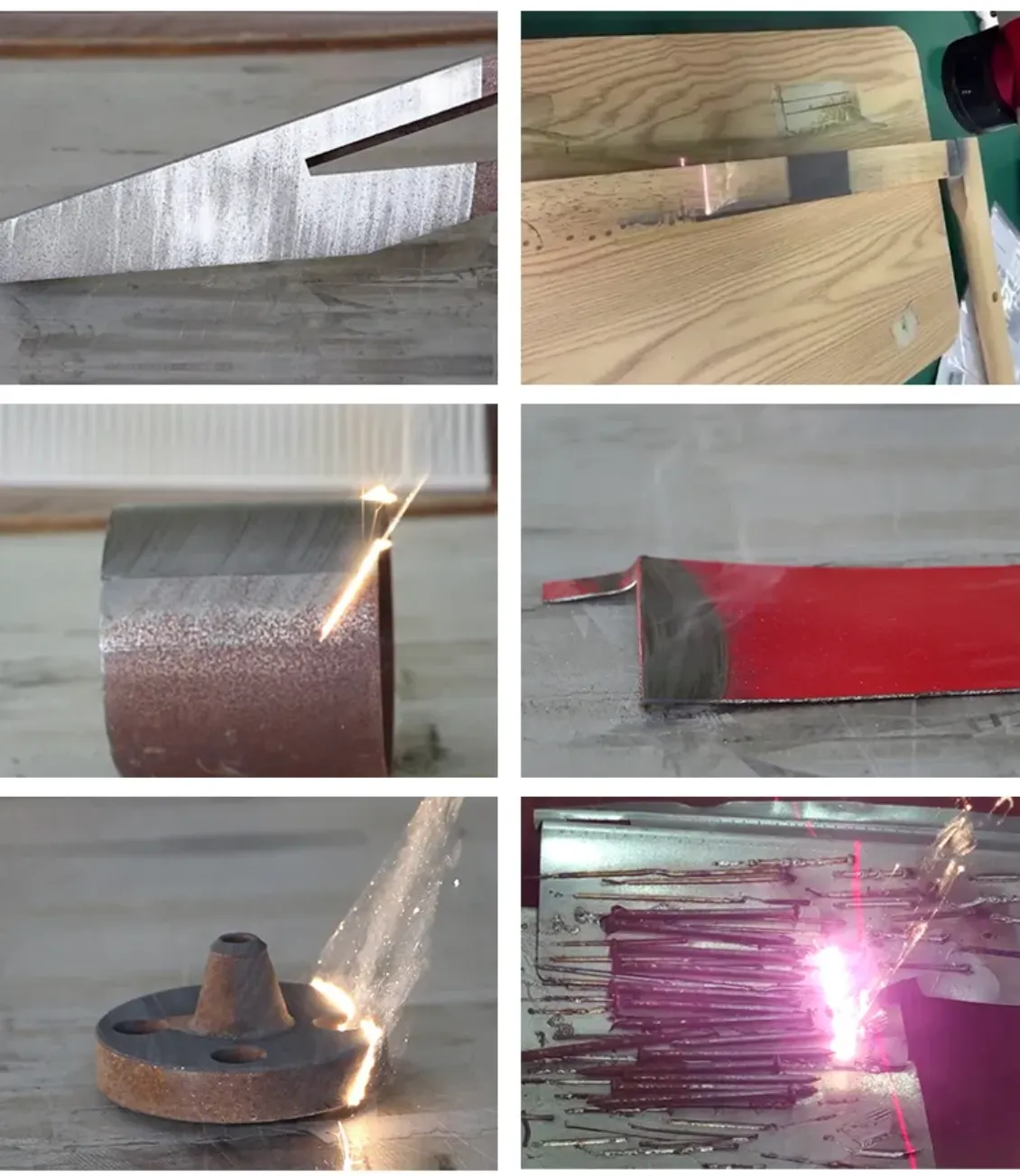

| Applications: |
| Remove surface resin, paint, oil stains, dirt, rust, coatings, and oxidation layers from objects; this process is widely used in industries such as shipbuilding, auto repair, rubber molding, high-end machine tools, rail tracks, and environmental protection. |
| Products Parameters: |
| Operating environment | |
| Content | TH-FLC1500M |
| Supply voltage | Single phase220V±10%、50/60Hz AC |
| Power consumption | ≤8000W |
| Working environment temperature | 5℃～40℃ |
| Working environmenthumidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥1500W |
| Power instability | ＜5% |
| Laser Working Mode | Pulse |
| Pulse width | 10-500ns |
| Maximum monopulse energy | 50-100mJ |
| Power regulation range（%） | 0-100( Gradient Adjustable) |
| Repeat frequency（kHz） | 1-3000（Gradient Adjustable） |
| Fiber length | 10m |
| Cooling mode | Water cooling |
| Cleaning Head Parameters | |

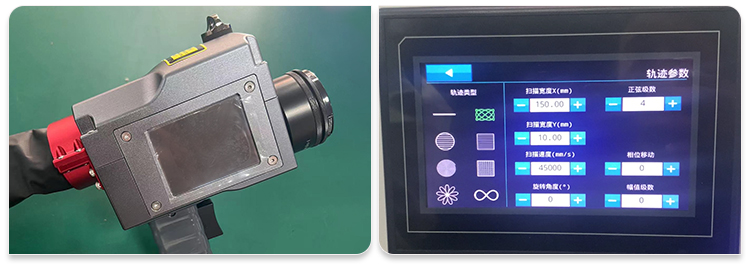

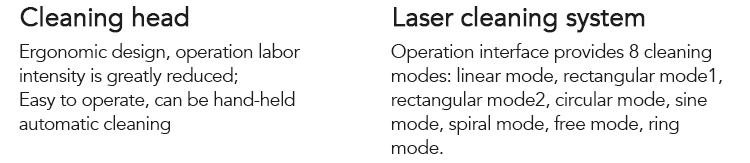

| Scan range (length * width) | 0mm~145 mm, continuously adjustable; supporting 8 scanning modes |
| Scanning frequency | The maximum is not less than 300Hz |
| Field mirror focal length （mm） | 210mm（ Optional 160mm/254mm/330mm/420mm） |
| Mechanical parameters | |
| Machine size（Length, width and height） | About 1055mm*623mm*1105mm |
| Size after packing（Length, width and height） | About 1230mm*750mm*1280mm |
| Machine Weight | About 250Kg |
| Weight after packing | About 275Kg |
| Cleaning head weight | ＜1.5Kg |
| Mode of operation | Handheld/automated |
| Languages |
Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc. |

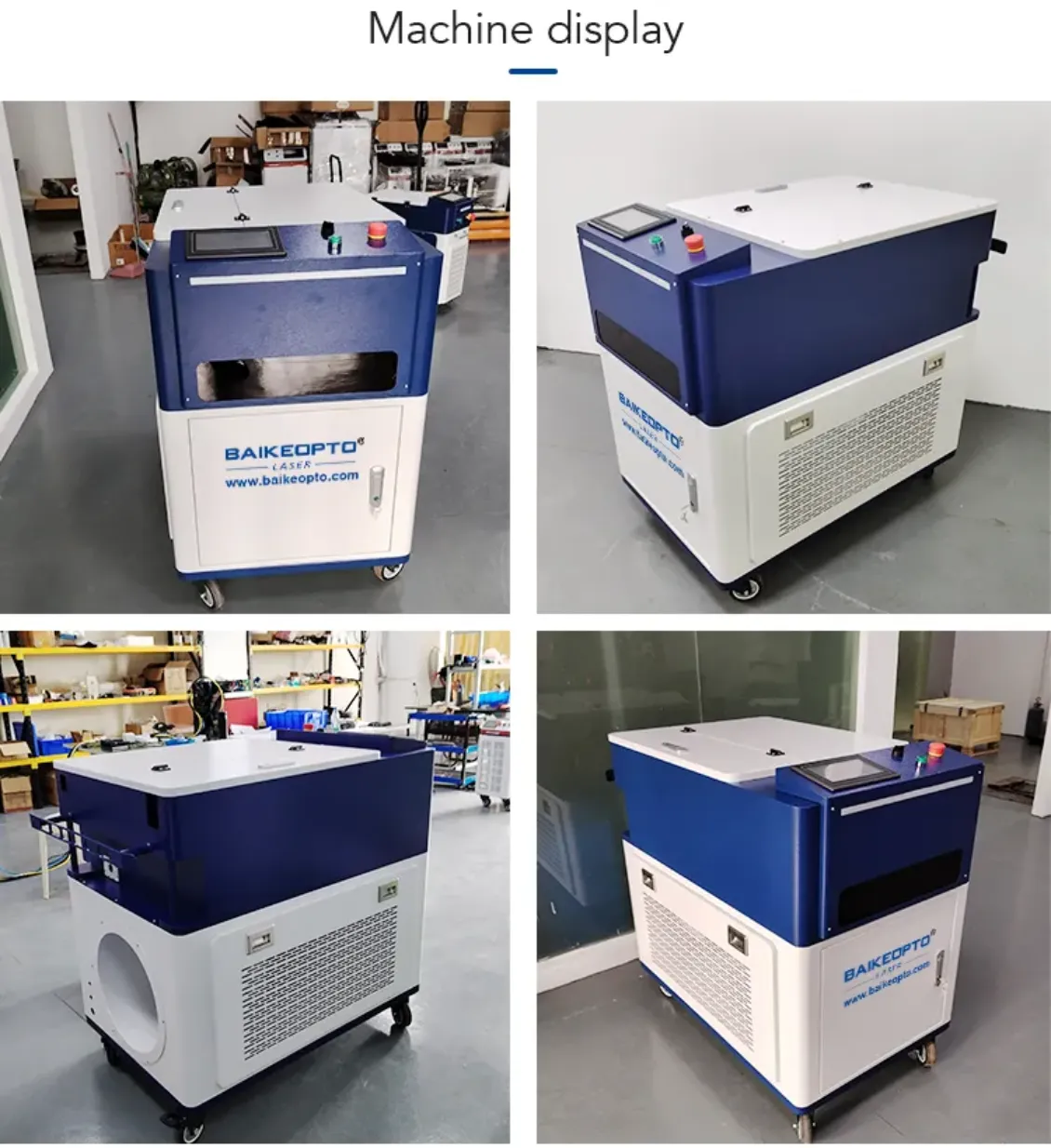

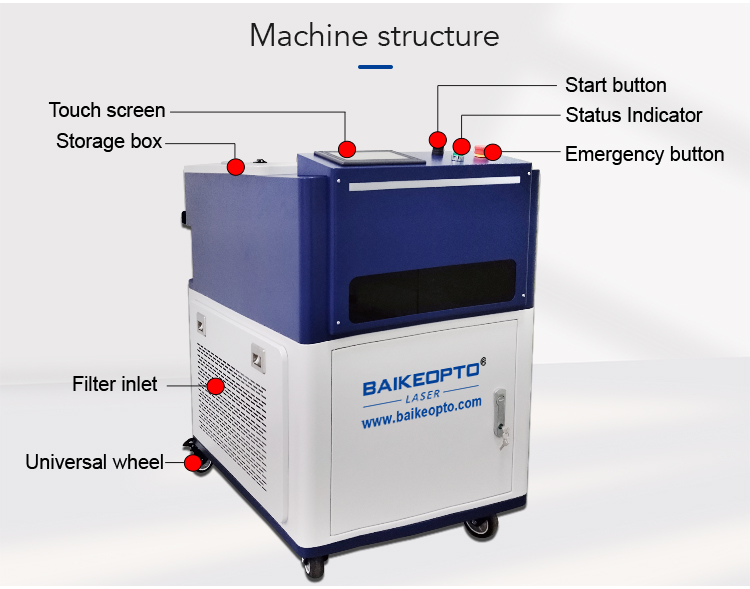

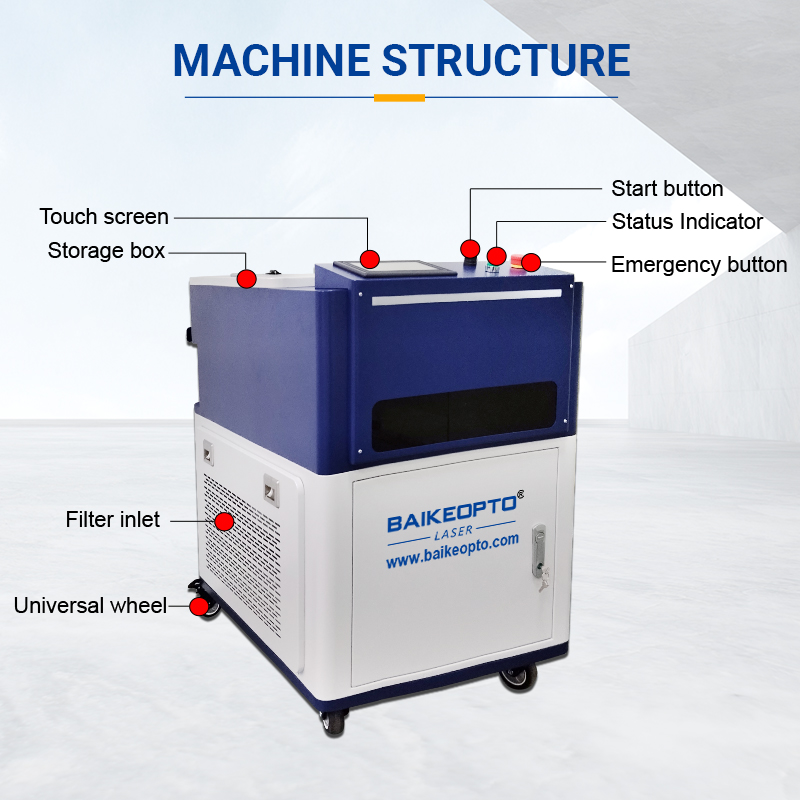

| Product Introduction: |
 |
.jpeg?w=750&h=261) |
.jpeg?w=750&h=163) |
.jpeg?w=750&h=138) |

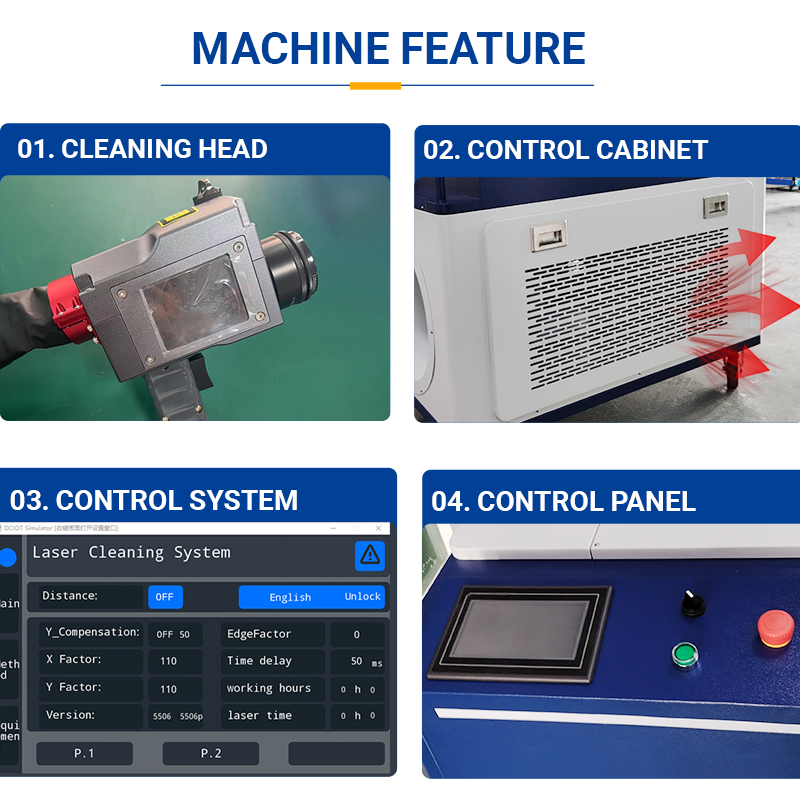

| Advantage： |
| Packing and Delivery: |
| About US： |
| Wuhan Baike Intelligent Technology Co., Ltd., a wholly-owned subsidiary of Wuhan Baike Times Laser Technology Co., Ltd., was founded in 2008 as a professional supplier of laser machine.Wuhan Baike lntelligent Technology Co., Ltd., located in Optical Valley of china, has gathered the best R&Dproduction and marketing teams in the domestic laser industry. More than 100 kinds of industrial laserproducts,including pneumatic marking machine, laser marking machine, laser welding machine, laser cuttingmachine, developed by the company's technical team, have been widely used in 3C electronics, semiconduc-tor, new energy (including photovoltaic), metal processing, automobile manufacturing, electric power, textilemachinery, fashion FMCG, medical devices, instruments and meters, food processing and other industries. Theproduct quality and service have been highly praised by customers internationally. We has achieved strategic cooperation with dozens of domestic top 500 manufacturing enterprises. We'vebeen dedicated to provide our customers with the highest quality, the best cost performance, the mostsuitable laser equipment. lfyou have any needs, please call/mail us directly. All you need to do is just tell uswhat you need, we'l provide the most professional services. |
| FAQs： |
|
1. What are the advantages of using a Pulsed Laser Cleaning Machine over traditional cleaning methods?
Answer: Advantages include improved cleaning efficiency, precision targeting of contaminants without harming the underlying material, no requirement for chemical cleaning agents, and reduced long-term maintenance costs. |
|
2.Can Pulsed Laser Cleaning Machines be used on any type of material?
Answer: While pulsed laser cleaning works on a wide range of materials, it should be used with caution on certain substrates that may be sensitive to heat or light. It's important to check the compatibility with your specific material first. |
|
3.What are the advantages of using a Pulsed Laser Cleaning Machine over traditional cleaning methods?
Answer: Advantages include improved cleaning efficiency, precision targeting of contaminants without harming the underlying material, no requirement for chemical cleaning agents, and reduced long-term maintenance costs. |
|
4.How long do Pulsed Laser Cleaning Machines last?
Answer: With proper care and routine maintenance, pulsed laser cleaning machines can last for many years. The lifespan also depends on the frequency and intensity of their use.
|
| 5.How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
