BK-FLC500M-GDLASER-500W【FOB】

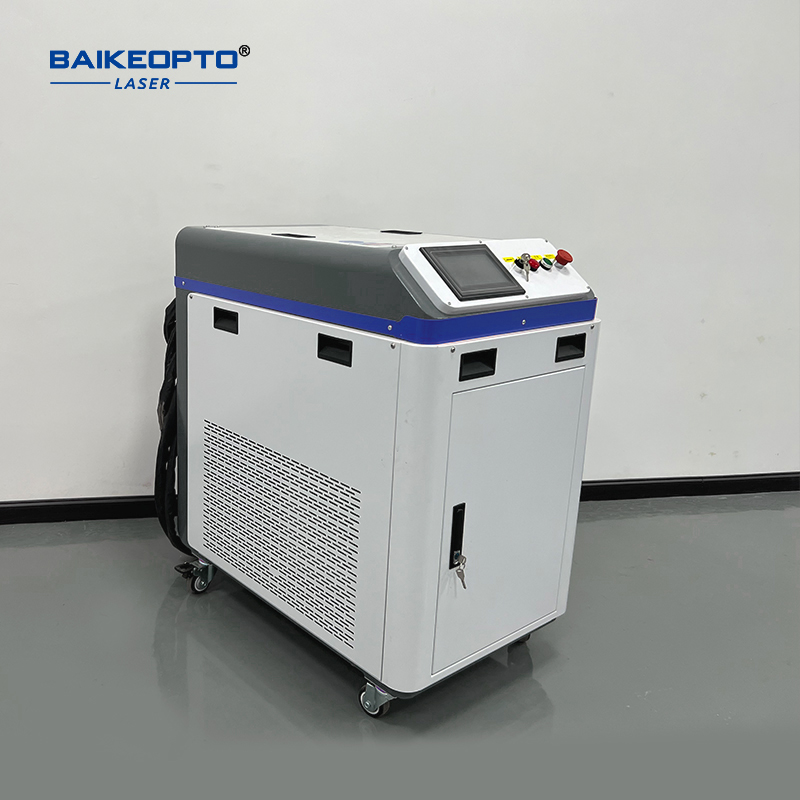

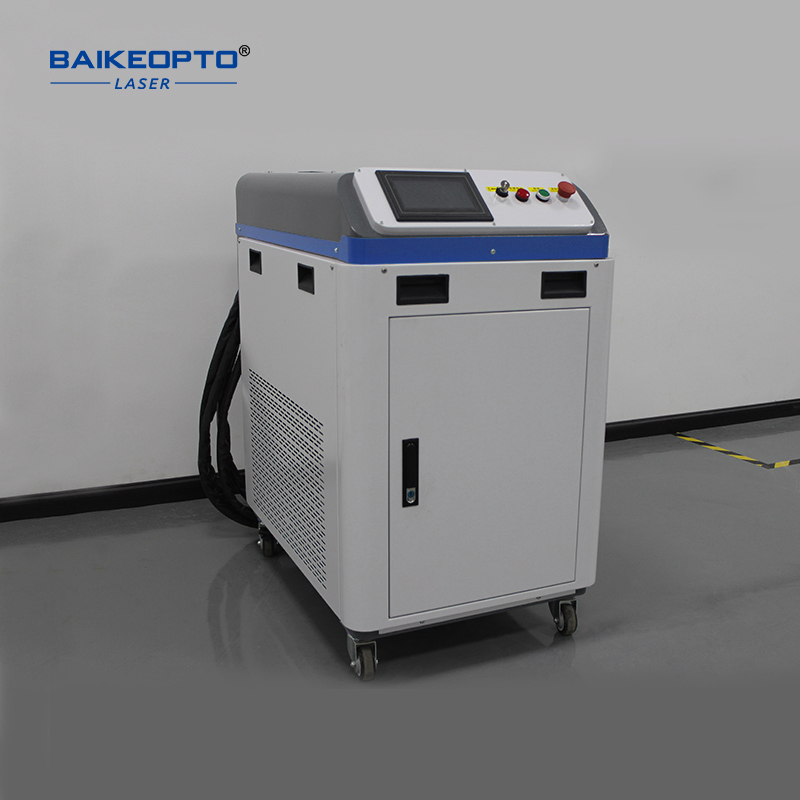

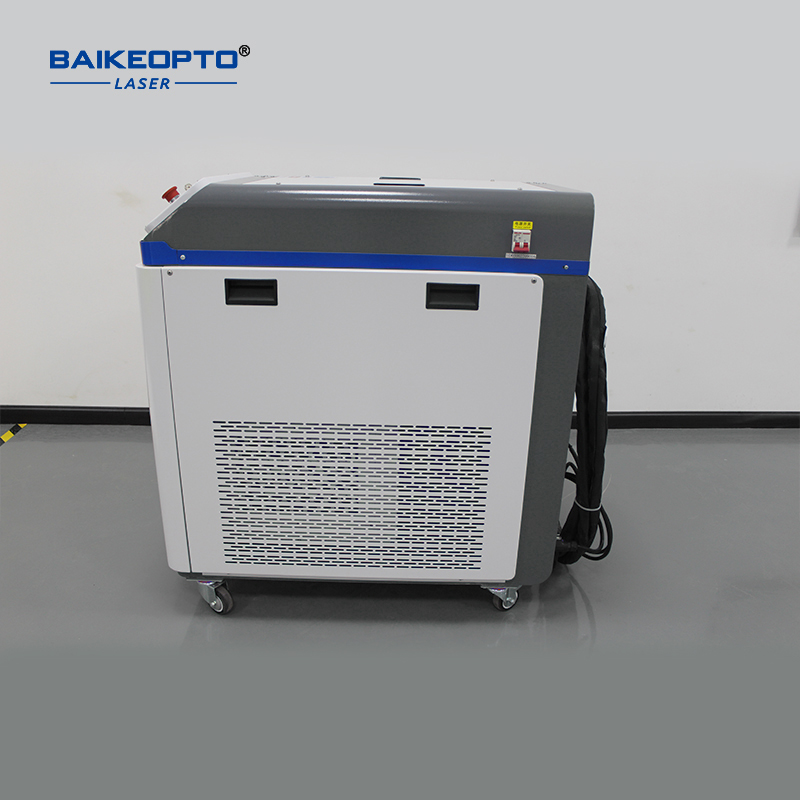

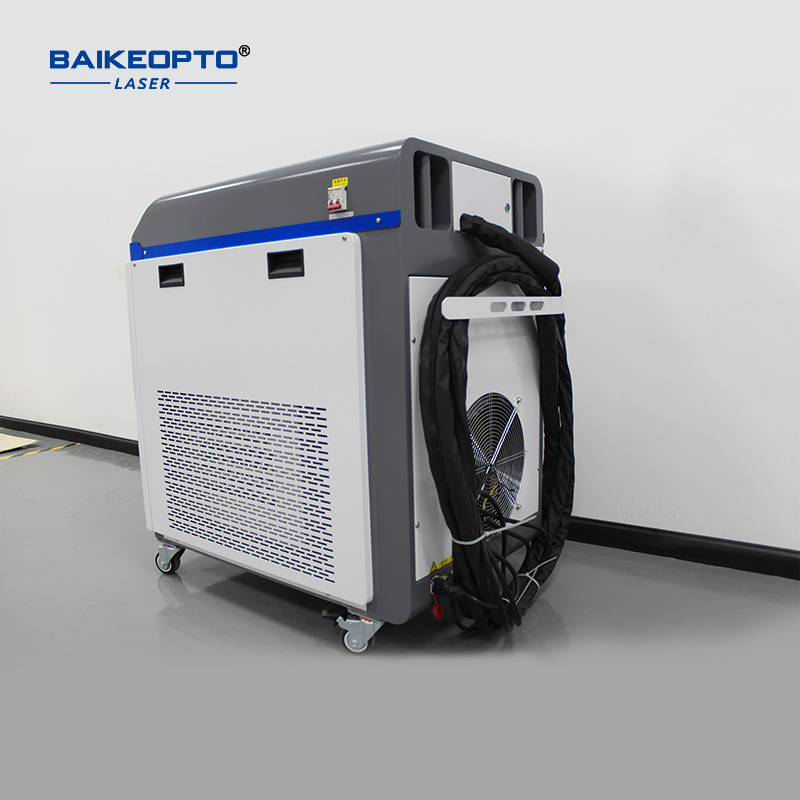

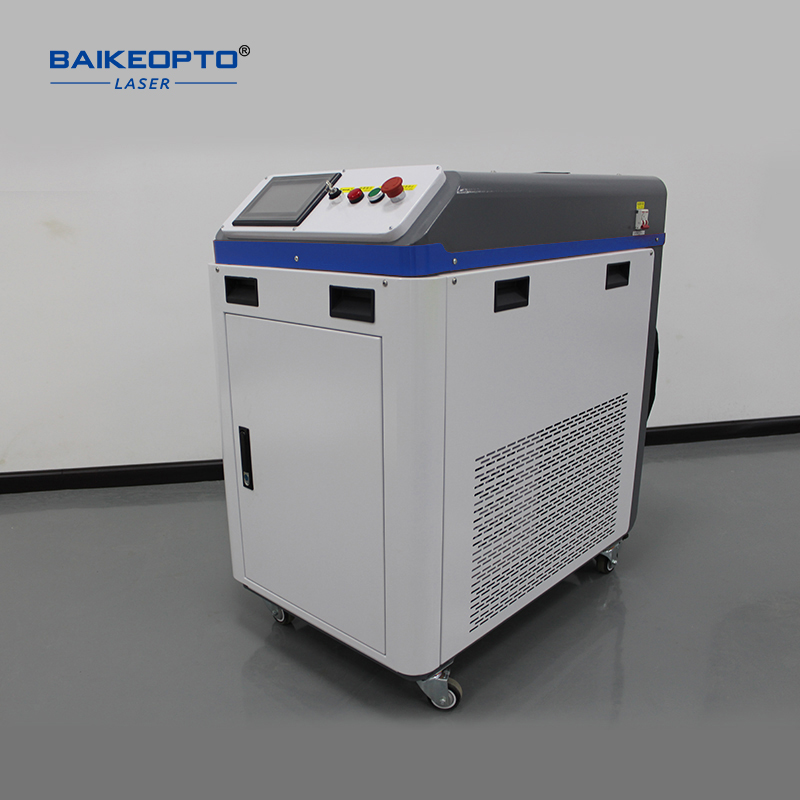

Model：Pulse laser cleaning machine BK-FLC500M
Laser Power：50W/100W/200W/300W/500W
Supply voltage：Phase 220V±10%、50/60Hz AC
$26,300.00 USD
$26,800.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Color
Blue

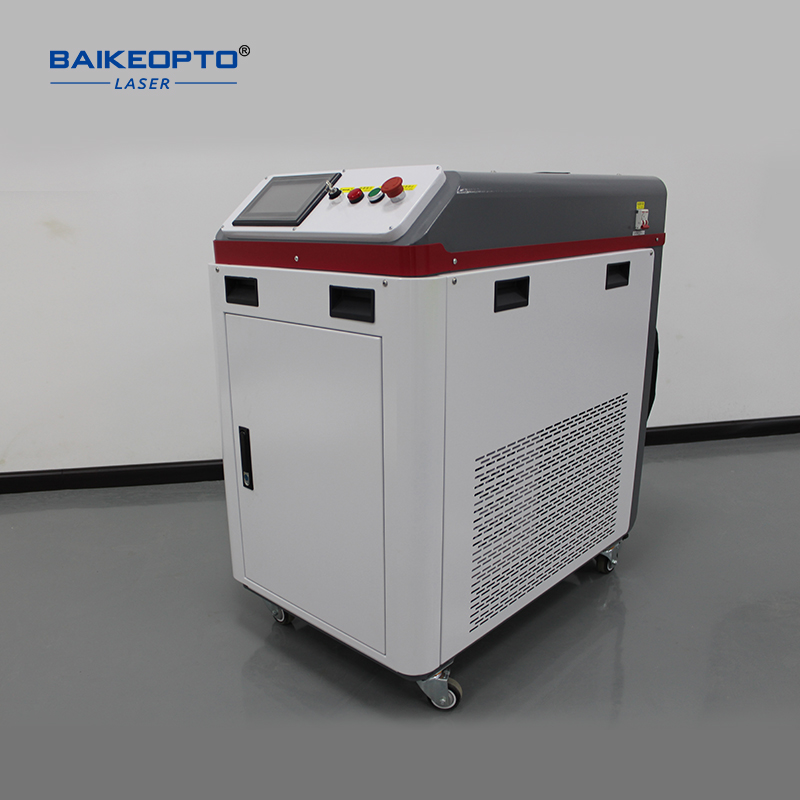

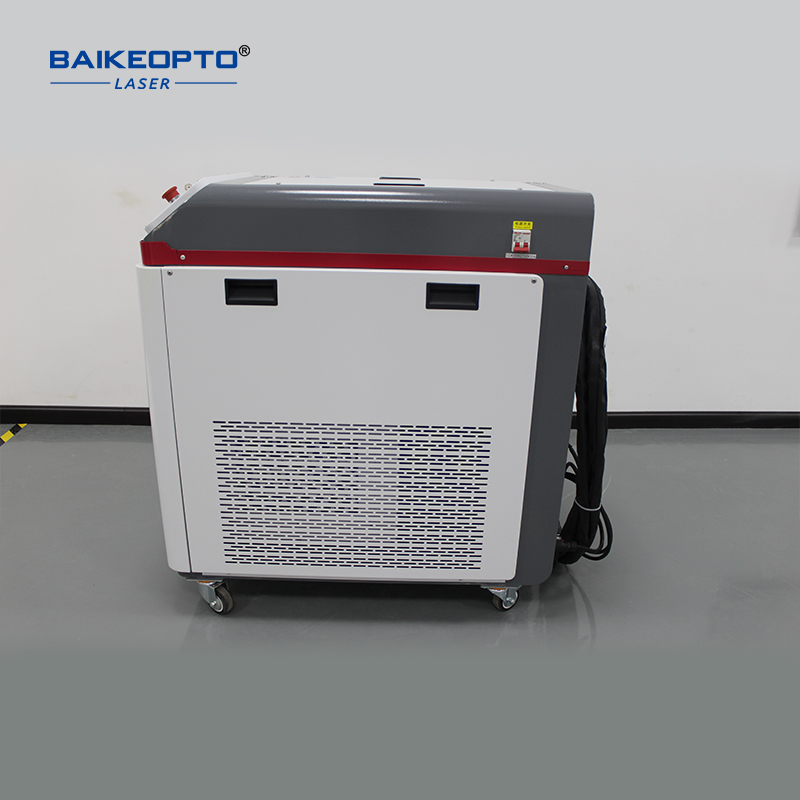

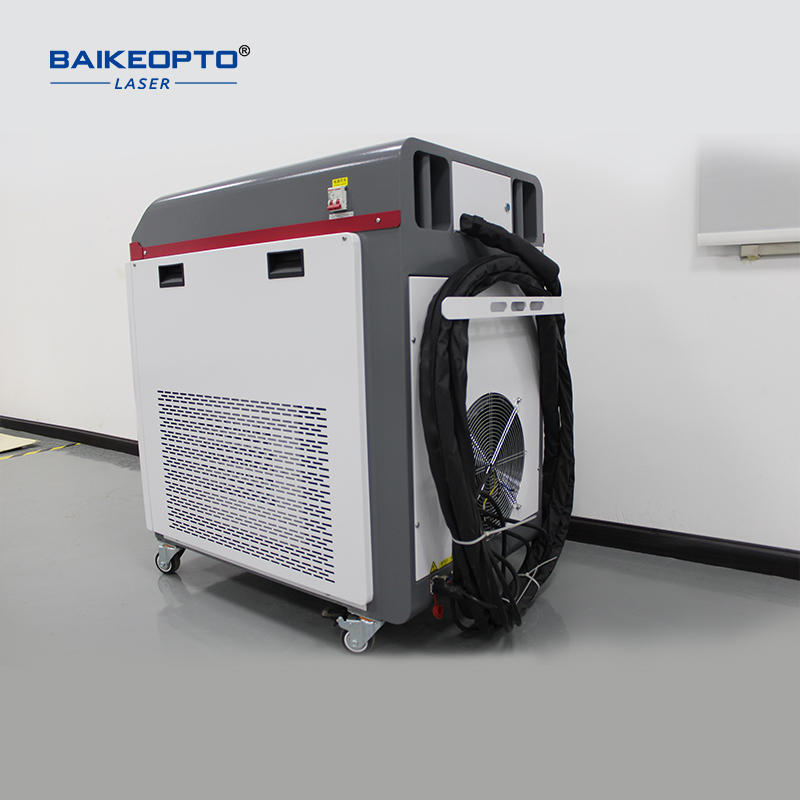

Red
Quantity
Description
Operating environment
Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning ," green "environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.
Main Component Diagram
| Name of name | Model specifications | Units | Quantity |
| Laser cleaning mainframe | BK-FLC500M | Table | 1 |
| Laser cleaning head | BK-QBFXYP500 | Sets | 1 |
| Process database | Built-in | Sets | 1 |
| Laser protective glasses | SD-3 | Payment | 1 |
| protect the lens | 48*3 | Pcs | 5 |
| Lens cleaning kit | Pcs | 10 |
Technical Data
| Content | BK-FLC500M |
| Supply voltage | Single phase220V±10%、50/60Hz AC |
| Power consumption | ≤5000W |
| Working environment temperature | 0℃～40℃ |
| Working environment humidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥500W |
| Power instability | ＜5% |
| Laser Working Mode | Pulse |
| Pulse width | 10-500ns |
| Maximum monopulse energy | 15mJ-50mJ |
| Power regulation range（%） | 0-100( Gradient Adjustable) |
| Repeat frequency（kHz） | 1-3000（Gradient Adjustable） |
| Fiber length | 10m |
| Cooling mode | Water cooling |
| Cleaning Head Parameters | |
| Scan range (length * width) | Uniaxial :0mm~145 mm, continuously adjustable; |
| Biaxial: supporting 8 scanning modes | |
| Scanning frequency | 10Hz~300Hz Continuous Adjustable |
| Field mirror focal length（mm） | 210mm（ Optional 160mm/254mm/330mm/420mm） |
| Mechanical parameters | |

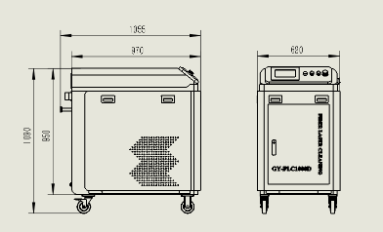

| Machine size（Length, width and height） | About 1055mm×620mm×1090mm |
| Machine Weight | About 240Kg |
| Cleaning head weight (including isolator) | ＜1.5Kg |
| Mode of operation | Handheld/automated |
