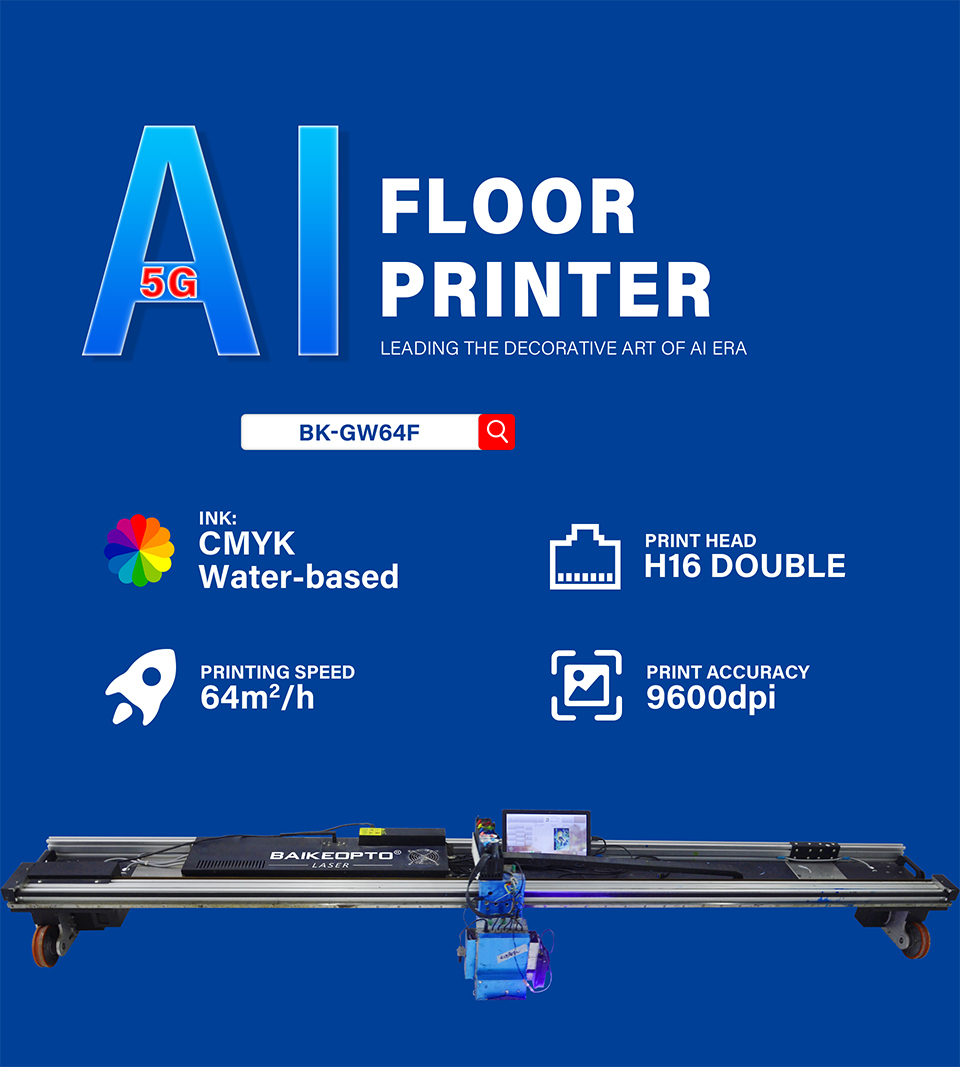

BK-GW64F Portable Floor Spraying Machine Industrial Print Nozzle 3D AI Intelligent Inkjet Ground Printer

It's not just printing, but also a perfect fusion of smart technology and art. Baikeopto 3D AI Intelligent inkjet ground printers redefine the aesthetic standards of the ground with precise color management and efficient printing speed.

It can be painted on epoxy floors, tile floors, glass floors, metal floors, paint floors, rubber floorscarpet floors, wooden floors, cement floors, asphalt floors and other floors.lt has a wide range of applications and unlimited market potential.

AI Intelligent Operating System

• independently developed software and hardware, no need for external computer

12 Inch Touchscreen Tablet

• Touch screen  response speed is fast
• Interface design is easy to operate
• Configure high-performance hardware
• Easy installation and maintenance
• Integrated design, system stability

Epson Custom Industrial Grade Print heads

• 4K HD output, 9600DPi accuracy

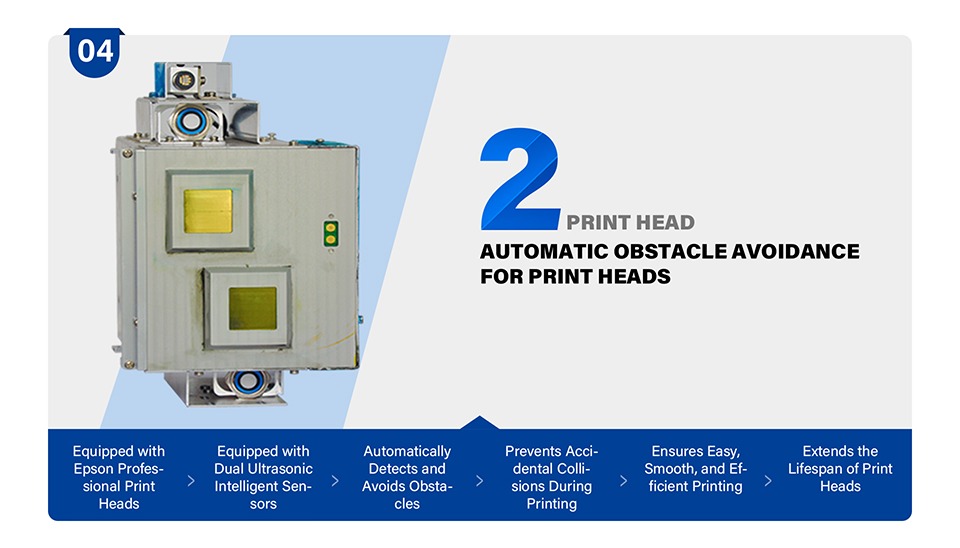

2pcs H16 Professional Print Head

• Equipped with dual Ultrasonic intelligent sensors
• Automatically detects and avoids obstacles
• Prevent accidental collisions during printing
• Ensures easy, smooth, and efficeint printing
• Extends the lifespan of print heads

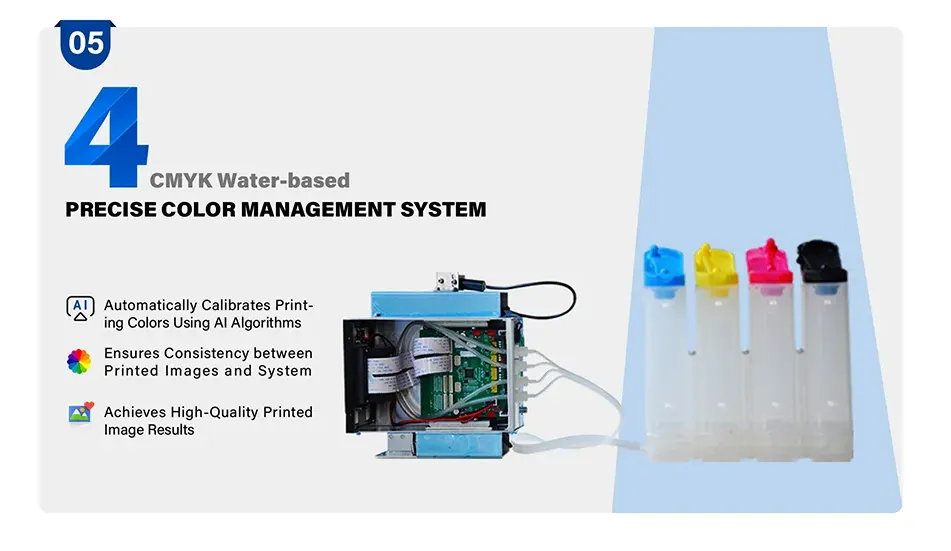

Precise Color Management System

• MYCK water-based Ink
• Automatically Calibrates Printing Colors Using AI Algorithms
• Ensures Consistency Between Printed Images and System
• Achieves High-Quality Print Image Results

Ink Stock Management System

• Real-time Monitoring of ink Levels
• Predictive analysis of ink consumption
• Prevents Emergency situations due to ink depletion
• Improves Printing Efficiency

Customizable System Languages and

• Supports Multilingual Customization, such as English, Chinese, Russian, French, Arabic, More

12 Hours extended battery life function

• Ultra-long 12-hour battery life
• Suitable for outdoor Large-area printing
• Automatically switches to battery power in case of power loss
• Offers strong flexibility and durability

Achieves 64㎡/h High Speed Printing

• High-Speed Data Transmission
• Bidirectional printing Technology
• Equipped with High-definition Print Heads
• Increases Printing Speed
• Reduces Printing Time

Achieves 9600 DPi Printing Accuracy

• Professional Image  Processing
• Equipped with High-Resolution Print Heads
• Achieves High-Precision Printing
• Suitable For Various Wall Surfaces

• When the image width is less than 2 meters(standard width is 2 meters)and the longth can be extended indefinitely, the Baike AI Intelligent Printer can create a perfect image in one go, without the need for partitioning or block printing. Printing length can be extended infinitely by looping the ground guide rail.

• 2.1 The System Automatically Segments pictures
  When the image width is more than 2 meters and the length can be extended indefinitely, the Baike AI Intelligent Printer can automatically segments pictures into N small images for printing. During Printing, the N small images can be automatically seamlessly connected to form a complete large image.
• 2.2 When printing in zones, start by printing the upper-left corner of the image (referred to as "Zone 1"). Afterwardyou can choose any area around "Zone 1" for printing. The Baike Al intelligent Printer can automatically recog.nize the starting point, achieving seamless full-scene printing.

• 2.3 When the image width exceeds 2 meters and the lenath can be extended indefinitely, and partitioned printingis necessary, the image can be divided into N zones (1, 2, 3.8, etc,), The Baike Al intelligent Printer can auto.matically seamlessly stitch the N zones together, achieving an automated, efficient, and complete printingresult.

• Automatic skipping  of white areas  for seamless printing
• During printing, the Baike Ai intelligetn printer can inteligently indentify white areas in the image, automatically skip them , ans seamlessly connect the non-white areas for printing without any damage to the images.This innovative technology can save ink, reduce printing time, and is suitable for printing on white walls.

• Automatic marking for seamless resumption of printing
• If printing is paused or interrupted, the Baike Ai Intelligent printer can automatically  mark with a "+". When resuming printing, align the machine's red crosshair(''+") with the wall's mark "+", and the system will automatically align and resume printing seamlessly, preserving the complete image.

Q1: Are you a factory or a trading company?
Answer: We are a factory. Our company was established in 2014, and our factory is located in Wuhan, Hubei, China. You are welcome to visit us anytime.

Q2: How long is the warranty period after purchasing the machine?
Answer: Our machines come with a free one-year warranty, as long as the damage is not caused by human factors.

Q3: How soon can the delivery be made after payment?
Answer: After payment, we will ship the machine within 7-14 days.

Q4: How long can the printed patterns remain on the wall?
Answer: The printed patterns can last for up to five years outdoors and about ten years indoors.

Q5: How much ink is consumed for printing patterns?
Answer: Approximately 500ml (one bottle) of ink can print around 100 square meters, while 500ml of white ink can print approximately 50 square meters.

Q6: What should I do if I no longer want the printed pattern on the wall?
Answer: You have a couple of options. One option is to directly cover the unwanted pattern with white ink and then replace it with a new design. Alternatively, you can cover the wall with a suitable material based on its original surface. For example, if it's a latex paint wall, you can use latex paint to cover and overwrite the existing pattern.

Q7: What language settings are available on the machine?
Answer: Multilingual， such as English, French, German, Arabic, Polish, Korean, Russian etc.

Q8: How do you handle uneven ground during printing?
Answer: The machine is equipped with adjustable feet that allow you to adjust the track according to the unevenness of the ground. This ensures stable and precise printing even on uneven surfaces.

Q9. How is the quality of the machine? Are there any components that are prone to damage?
Answer: Our machines have excellent quality, and each machine undergoes comprehensive quality inspection before leaving the factory. The print head is a component that may be more susceptible to issues. We recommend having spare print heads on hand in case of any malfunction.

Q10. Can one print head be used for printing four colors, while another print head is dedicated to printing white?
Answer: Yes, our machine can be configured to have one print head for printing four colors and another print head dedicated to printing white. This allows for efficient and precise printing of both color and white elements in your designs.
