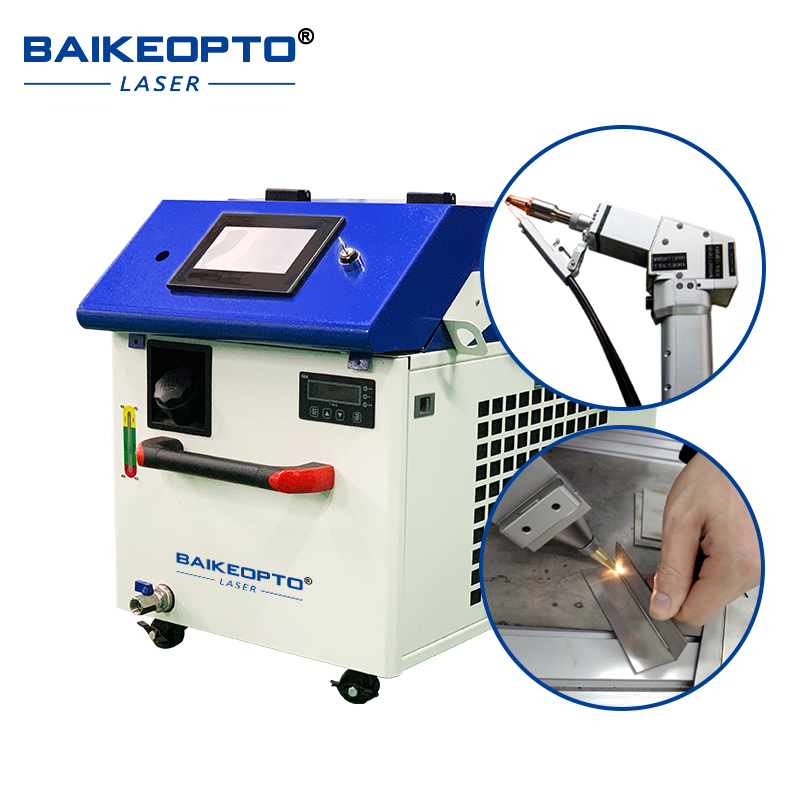

BK-HW1500F 【FOB】
Model： BK-HW1500F
Laser Power：Raycus 1500W/2000W (optional)
Supply Voltage: Single phase220V±10%、50/60Hz AC
$3,099.00 USD
$3,299.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Power
BK-HW1500F Raycus 1500W
Quantity
Description
| BK-HW1500D Industrial 3 in 1 Water Cooling Handheld Fiber Laser Welding Cutting Cleaning Equipment |
 |
  |
| Key Features： |
- Non-contact cleaning without damaging the matrix of the parts;
- Accurate cleaning, can achieve precise position, accurate size selective cleaning;
- Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
- Simple operation, hand-held or with the manipulator to achieve automatic cleaning;
- Ergonomics design, operating labor intensity greatly reduced;
- Trolley design, with its own moving wheel, easy to move;
- Laser cleaning system is stable with little maintenance
- High cleaning efficiency, save time
| Applications: |
| Remove surface resin, paint, oil stains, dirt, rust, coatings, and oxidation layers from objects; this process is widely used in industries such as shipbuilding, auto repair, rubber molding, high-end machine tools, rail tracks, and environmental protection. Baikopto Laser welding machine can be applied to weld stainless steel, carbon steel, aluminum alloys, Copper. Baikeopto Laser welding machine can weld at any angles: butt welding ,lap welding, stack welding,nail welding,crimp welding,T-type welding ,Overlap welding,edge Welding , etc. |
 |
 |
| Products Parameters: |
|
Model Number
|
TH-HW1500D
|
TH-HW2000D
|
||
|
Voltage & Frequency
|
AC 220V~240V 50hz
|
AC 220V~240V 60hz
|
AC 220V~240V 50hz
|
AC 220V~240V 60hz
|
|
Current
|
0.9-9.8A
|
0.9-7.7A
|
0.91-13.61A
|
0.91-12.81A
|
|
Machine power
|
1.59 KW
|
1.56 KW
|
2.31 KW
|
2.34KW
|
|
Cooling capacity
|
3700W
|
4100W
|
5574W
|
6140W
|
|
Tempe. control accuracy
|
±1℃
|
|||
|
Application environment
|
0℃
|
|||
|
Electric heating power
|
500W
|
|||
|
Refrigerant
|
R410a
|
|||
|
Rated flow of water pump
|
>2m³/h
|
|||
|
Max. pump lift
|
40M
|
40M
|
||
|
Tank volume
|
16L
|
|||
|
Rated output power
|
1500W
|
2000W
|
||
|
Laser nozzle interface
|
G1/2* φ12mm Quick connector
|
G1/2* φ20mm Pagoda connector
|
||
|
QBH head nozzle interface
|
G1/2*φ6mm Quick connector
|
|||
|
Machine weight
|
121KG
|
132KG
|
||
|
Machine size
|
910mm*490mm*690mm（ L*W*H ）
|
1080mm*490mm*690mm（ L*W*H ）
|
||
|
Functional characteristics
|
environmental protectiom.double temperature controls,flow & over temperature,Compressor overheat protection
|
|||
| Product Introduction: |
 |
  |
 |
Thick Sheet Metal Cabinet
|
|
Raycus Brand Laser
|
 |
 |
New laser welding gun
|
|
Refrigeration System
|
 |
|
|
New generation wire feeder
|
|
Intelligent Control Panel
|
 |
|
|
Laser Cleaning Head
|
|
Other Components
|
 |
| Advantage： |
High Effciency, simple to use
| Packing and Delivery: |
In order to protect the machine , we pack with wooden case
| About US： |
| Wuhan Baike intelligent Technology Co., Ltd Founded in 2008. We are a professional laser manufacturing company under Wuhan Baike Times Laser Technology Co., Ltd. Our company has developed more 1000+ kinds of laser products, has been widely used in all walks of life, product quality and service has been praised by customers.Our product footprints are spread across all walks of life around the world, and our product quality and services have been 100% praised. Baike is committed to providing innovative industrial laser solutions to customers around the world！ Welcome to visit our factory at any time in Wuhan City, China! |
| FAQs： |
|
1. What are the advantages of using a Pulsed Laser Cleaning Machine over traditional cleaning methods?
Answer: Advantages include improved cleaning efficiency, precision targeting of contaminants without harming the underlying material, no requirement for chemical cleaning agents, and reduced long-term maintenance costs. |
|
2.Can Pulsed Laser Cleaning Machines be used on any type of material?
Answer: While pulsed laser cleaning works on a wide range of materials, it should be used with caution on certain substrates that may be sensitive to heat or light. It's important to check the compatibility with your specific material first. |
|
3.What are the precautions during the use of the cleaning machine?
Answer: Electrical power supply of the cleaning equipment is 220 V 50Hz AC power supply; About 2m of ventilation must be left before and after the equipment. In the course of operation, labor protective equipment should be worn according to regulations, and protective glasses must be worn near the laser beam;Do not place flammable and explosive items near the cleaning machine! Such items should avoid direct or reflective laser. |
|
4.How long do Pulsed Laser Cleaning Machines last?
Answer: With proper care and routine maintenance, pulsed laser cleaning machines can last for many years. The lifespan also depends on the frequency and intensity of their use.
|
| 5.How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
