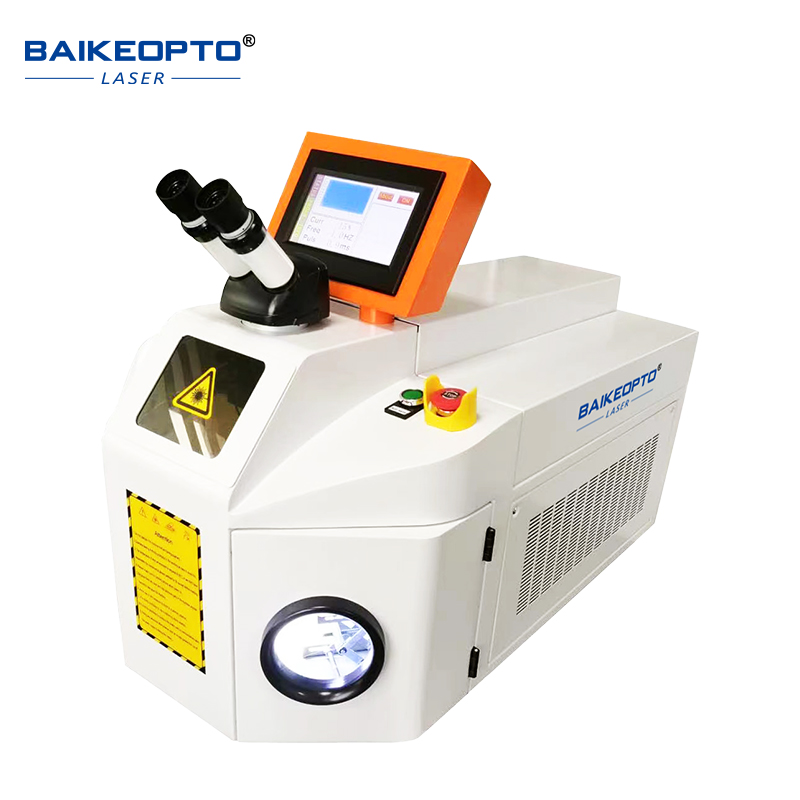

BK-JW150B 150W Professional YAG Laser Jewelry Welding Machine for Gold & Silver Repair
BK-JW150B 150W Professional YAG Laser Jewelry Welding Machine for Gold & Silver Repair
Model：150W YAG laser jewelry welding machine BK-JW150B
Voltage：110V/220V
Laser Type：1064nm YAG Laser
Small size Low weight Easy to operate
Stable quality Fine details
$3,100.00 USD
$3,300.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Color
BK-JW150B
Quantity
Description
Baikeopto BK-JW150B 150W Mini Desktop Jewelry YAG Laser Welding Machine
| Compared with other welding processes, laser welding can realize the welding of many materials which has advantages in comparison.The thermal deformation of welding components is smaland the ioint auality is hiaher. Laser welding has the advantage of being able to achieve locaheatina characteristicsin a small ranae, which is widely used with precision devices such asiewelry, batteries,automotive, aviation and other applications. This machine is especially suitable for jewelry industry, no special fixture is needed, can behand-heldmicromagnifying glass cross aiming positioning spot welding, filling material, filingsand holes, spotwelding freely, that is, spot. |
| Product Advantages: |
|
1.Energy, pulse width, frequency, spot size can be rapidly adjusted to achieve a variety of welding effects. 2.Capable of welding 1k~12k gold, copper alloy, zinc alloy, stainless steel, titanium alloy and other metals 3.Compact and practical light path design, light body and small footprint. 4.The service life of the spotlight cavity is more than 5 years, and the service life of the xenon lamp ismore than 6 million times. 5.The operation interface and observation interface are the same full-color touch LCD screen. 6.Stainless steel water tank welded by laser can effectively prevent scale from corroding the inner wall ofwater tank and optical components. 7.Support 12 hours of continuous work with stable performance, and no lamp replacement required within8000 hours. 8.Human-based design accords with ergonomics, avoiding fatigue after long time working9.-Slight deformation, small heat-effective area, high welding quality, pollution free, eco friendly. |
| Products Parameters: |
| Model | BK-JW100A/200B | |
| Power | 100W/200W | |
| Current regulation | 5--200A | |
| Frequency regulation | 0-35HZ | |
| Maximum single pulse energy | 45J/60J | |
| Spot diameter | 0.5--3mm | |
| Continuous working time | 16h ≥ | |
| Pulse width modulation | 0.1--20MS | |
| Laser wavelength | 1064nm | |
| Laser divergence angle | ≤5rad | |
| Laser instability | ≤±2% | |
| Welding focal length | F=110mm | |
| Cooling method | Water cooled | |
| Mainframe Dimensions (length * width* height) | 850*500*600mm 90KG | |
| Applicaitons: |
| The jewelry laser welding machine is suitable for precision casting and welding of multi heavy metals and their alloy materials such as gold, silver, platinum, stainless steel, titanium, and small hardware composed of various metal materials. It can be widely used in industries such as jewelry, dentures, clocks, medical, instrumentation, electronics, mechanical mold processing, and automobiles. It is particularly suitable for repairing holes in gold and silver jewelry, spot welding sand holes, repairing seam patterns, and welding claw feet of embedded components. |
| Machine Introduction: |
| Compared with other welding processes, laser welding can realize the welding ofmany materials, which has advantages in comparison. The thermal deformation ofwelding components is small and the joint quality is higher. Laser welding has theadvantage of being able to achieve local heating characteristics in a small rangewhich is widely used with precision devices such as jewelry, batteries, automotive.aviation and other applications. This machine is especially suitable for jewelry industry,no special fixture isneeded, can be hand-held, micromagnifying glass cross aiming positioning spotwelding, filling material, filling sand holes, spot welding freely, that is, spot. |
| Advantages: |
| Package: |
In order to protect the machine well during the shipping way, we use wooden box.
| About US： |
| Wuhan Baike inteligent Technology Co, Ltd, a wholly-owned subsidiary of Wuhan Baike Times Laser Technology Co,Ltd, was founded in 2008 as a professional supplier of laser machine.Wuhan aike Inteligent Technology Co,Ltd, located in Optical vaey of china, has gathered the best R&D,production and marketing teamsin the domesti.laser industry. More than 100 kinds ofindustrial laser products,including pneumatic marking machine, laser marking machine,laser welding machine,lasercuting machine, developed by the company's technical team,have been widely used in 3C electronics, semiconductor, new energy including photovoltaic)metalorocessina. automoble manwtactunng, electc power, textle machne, aslon twc, medical devces, nstuments ang meters, iood processing aneother industries, The product auality and service have been highly praised by customers internationaly. We has achieved strategic cooperation with dozens of domestic top 500 manufacturing enterprises,We've been dedicated to provide our customers with thehighest quaity,the best cost performance,the most suitable laser equipment.f you have any needs, please cal/mallus directly, All you need to do is just telus what you need, we'll provide the most professional services. |
| FAQs： |
|
1.What types of jewelry can be made or repaired using a laser welder?
Answer:Laser welders are suitable for a variety of jewelry materials, including gold, silver, platinum, and some alloys. They can be used to create intricate designs, join broken pieces, and add decorative elements to rings, necklaces, earrings, bracelets, and more.
|
|
2.What safety precautions should be taken when using a laser welder for jewelry?
Answer: Safety is paramount when using a laser welder. Always wear appropriate eye protection, such as laser-safe goggles, and ensure the work area is well-ventilated to avoid inhalation of fumes. Additionally, follow all operating instructions and keep flammable materials away from the machine.
|
|
3.Can a beginner use a jewelry laser welder, or does it require specialized training?
Answer: While laser welding can be learned by beginners, it does require some technical knowledge and practice to master. It's advisable to take a training course or watch tutorial videos to understand the fundamentals of operation, safety procedures, and best practices.
|
|
4.How much maintenance does a jewelry laser welder require?
Answer: Like any high-precision equipment, a laser welder requires regular maintenance to ensure optimal performance. This includes cleaning the lens, checking the laser tube and other components for wear, and performing software updates as needed.
|
| 5.How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
