BK-JW200X MAX 200W High Precision YAG Spot Laser Welder Silver Gold Soldering Dental Repairing Jewelry Welding Machine

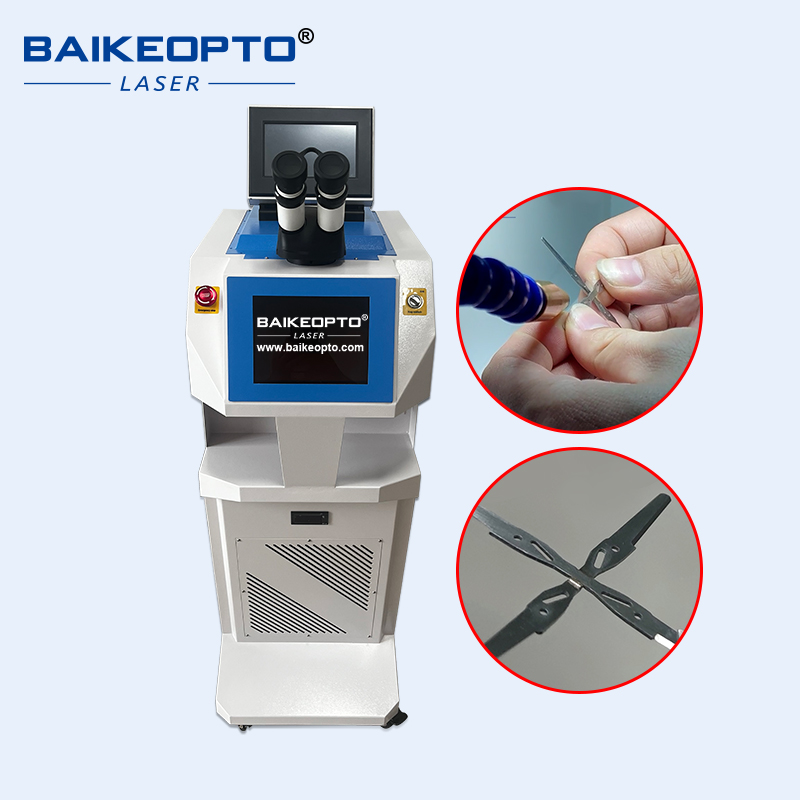

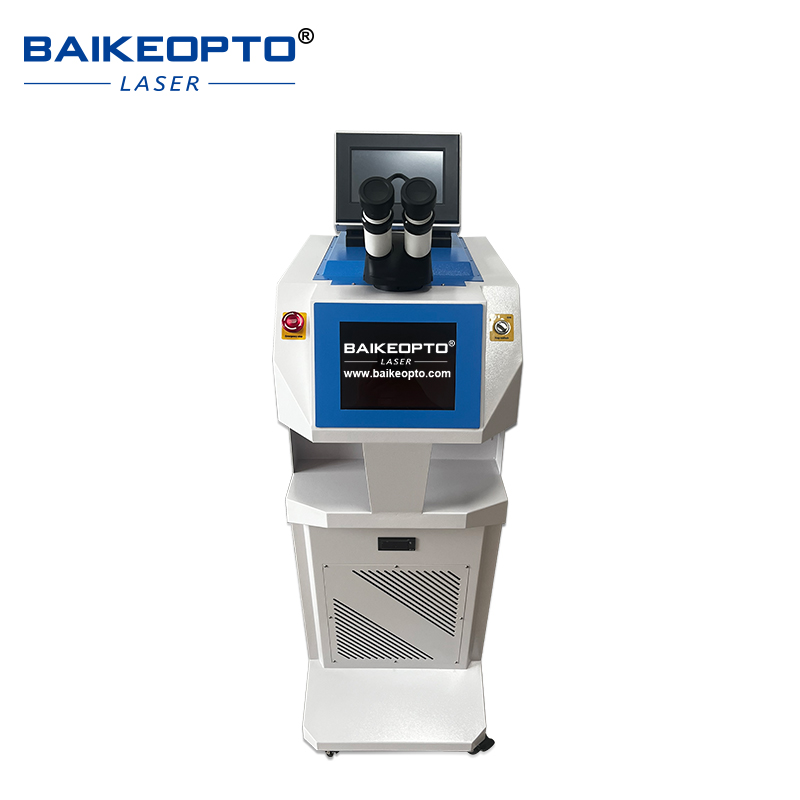

BK-JW200X MAX 200W High Precision YAG Spot Laser Welder Silver Gold Soldering Dental Repairing Jewelry Welding Machine
Model：200W YAG laser jewelry welding machine BK-JW200X Max
Voltage：110V/220V
Laser Type：1064nm YAG Laser
Small size Low weight Easy to operate
Stable quality Fine details
$3,700.00 USD
$3,900.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Color
BK-JW200X MAX
Quantity
Description

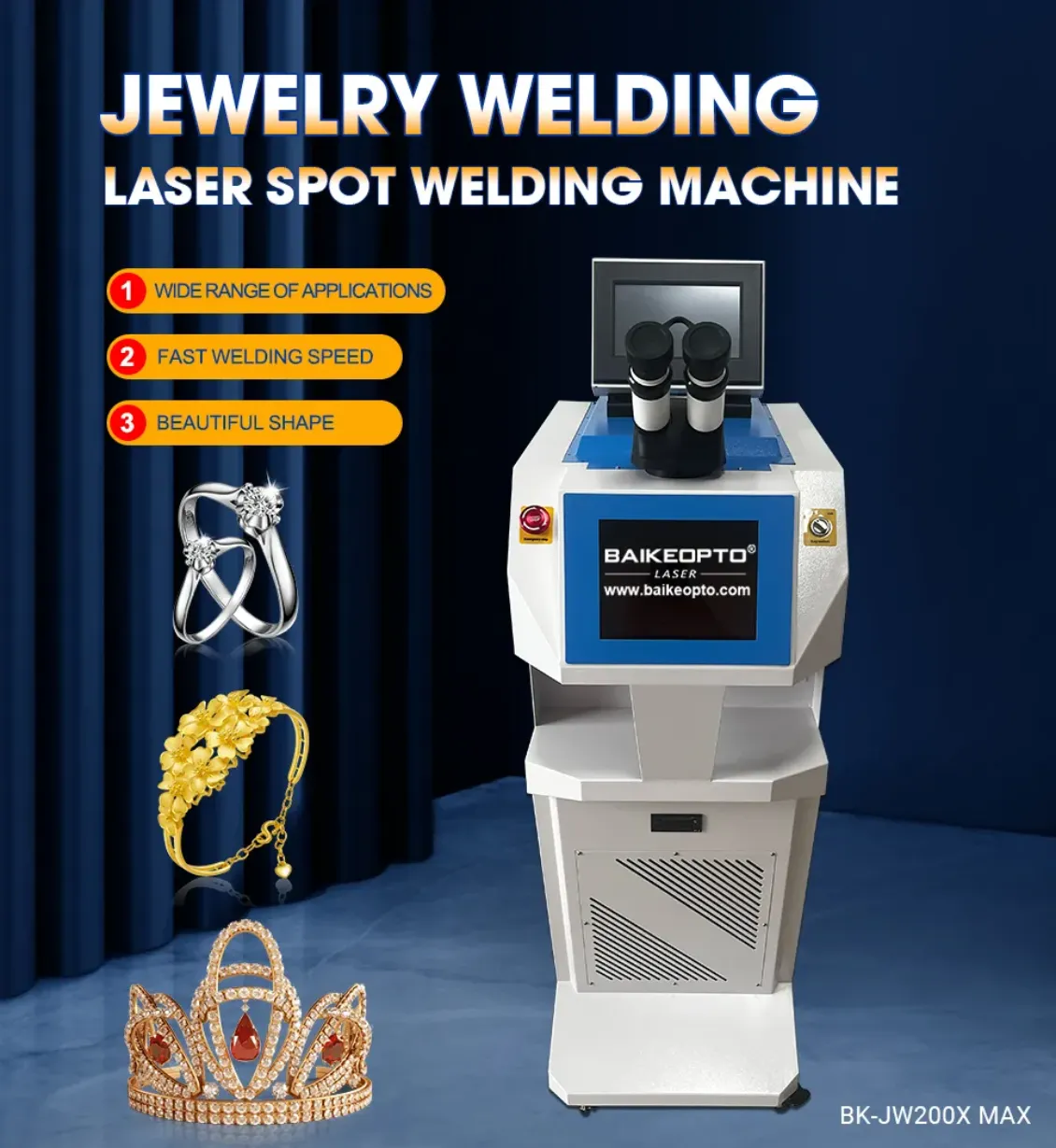

Baikeopto BK-JW200X MAX 200W Jewelry YAG Laser Welding Machine
| You don't have to break the bank to own a high-quality laser welding machine. Baikeopto YAG laser welding machine offers affordable excellence, combining top-notch performance with a reasonable price tag. It's the perfect choice for jewelry makers, repair shops, and DIY enthusiasts who want the best value for their money. With its low maintenance requirements and long service life, the YAG laser welding machine provides a cost-effective solution for all your welding needs. Invest in YAG laser welding and enjoy the benefits of affordable excellence. |
| Product Advantages: |
| 1. CCD+ mircro combined observation ,can watch the whole welding process; 2.Adjustable parameters (such as energy, pulse width, frequency, spot diameter), can achieve different requirements of welding; 3. Continuous working for 24 hours, the performance of the whole machine is stable; 4. The laser beam can realize the splitting of time and energy, and can process multiple beams at the same time. The welding speed is obviously improved, so that users can complete processing orders with high efficiency and high quality in a short time; 5.laser working hours can reach 100000 hours; 6. size is very small and portable .only 28kgs ,can save your space. Laser Sport Welding Machine Laser Welding Machine Portable Desktop Jewelry Laser Welding Machine System 1. Integration, built-in air-cooled, double-cycle cooling system,energy saving and environmental protection, power consumption save 10 @-50% than similar models; 2. Intelligent: current closed-loop automatic control,automatic wind speed adjustment, multi-level fault protection, accuracy and stability. 3. Intelligent multi-language control system,integrated control and monitoring, easy to operate, 5 minutes training can control the machine. 4. New exclusive patent laser cavity and optical circuit,high efficiency of electro-optic ,conversion, easy maintenance, replacement of xenon lamp. |
| Products Parameters: |
|
Wavelength
|
1064nm
|
|||
|
Laser type
|
YAG
|
|||
|
Maximum output power
|
200W
|
|||
|
Welding energy
|
100 joules
|
|||
|
Cavity
|
Ceramic cavity
|
|||
|
Xenon lamp
|
Single lamp
|
|||
|
Spot size
|
0.3-3.0mm
|
|||
|
Pulse width
|
0.1-10ms
|
|||
|
Pulse frequency
|
1-25Hz
|
|||
|
Aiming and positioning
|
Microscope+CCD monitor system
|
|||
|
Cooling system
|
Water cooling
|
|||
|
Type of water used
|
Purified water or distilled water
|
|||
|
Host power consumption
|
5KW
|
|||
|
Control panel
|
Touch screen
|
|||
|
Operation temperature
|
≤30℃
|
|||
|
Power supply
|
220V±5V, single phase, 50Hz/60Hz/ 40A
|
|||
|
Machine size
|
550*360*1170mm
|
|||
|
Machine net weight
|
82Kg
|
|||
|
Machine application
|
Welding & repairing jewelry, tiny metal parts
|
|||
| Applicaitons: |
| The jewelry laser welding machine is suitable for precision casting and welding of multi heavy metals and their alloy materials such as gold, silver, platinum, stainless steel, titanium, and small hardware composed of various metal materials. It can be widely used in industries such as jewelry, dentures, clocks, medical, instrumentation, electronics, mechanical mold processing, and automobiles. It is particularly suitable for repairing holes in gold and silver jewelry, spot welding sand holes, repairing seam patterns, and welding claw feet of embedded components. |
 |
 |

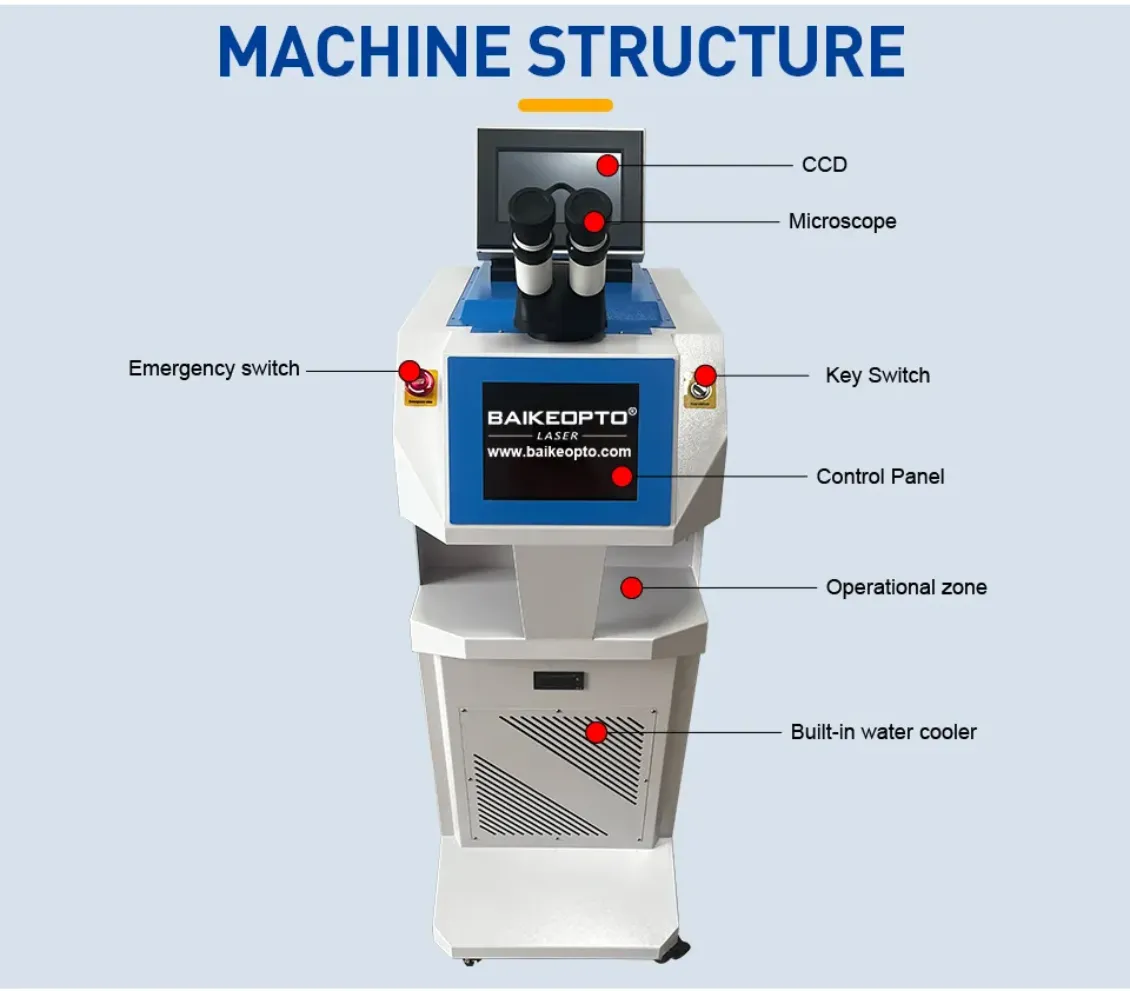

| Machine Introduction: |
 |

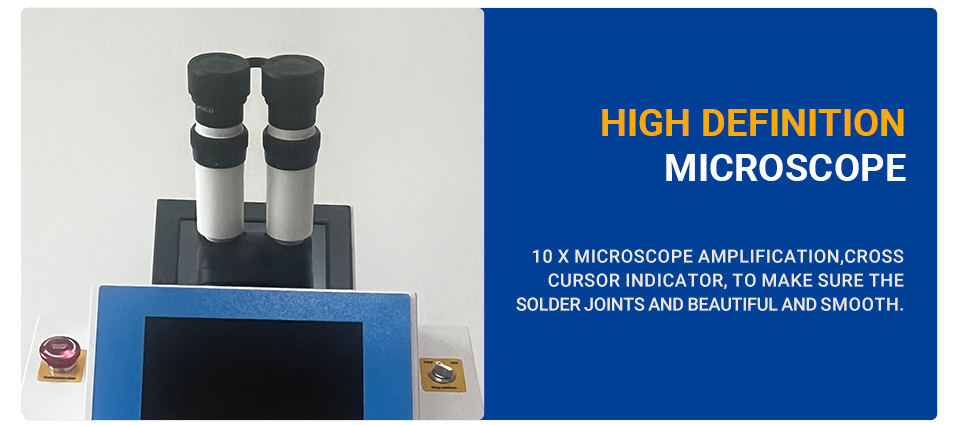

1. High Definition Microscope
|
|

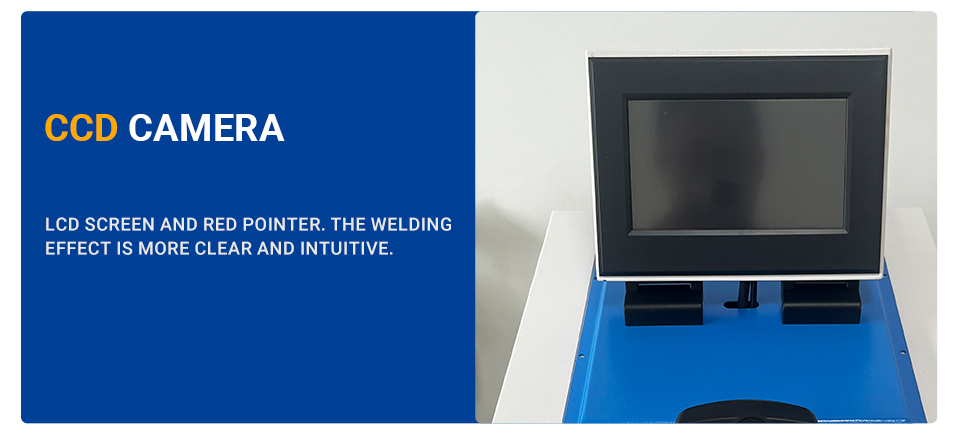

2. CCD Display Screen
|
 |
 |

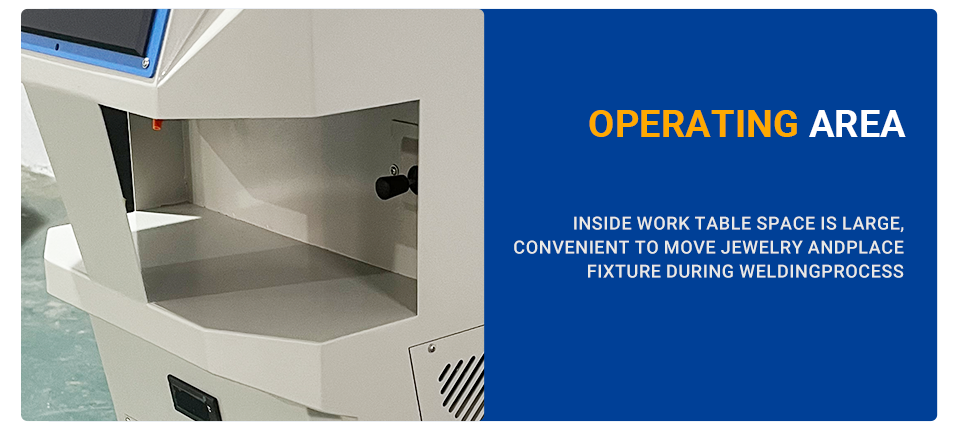

3.Operating Window
|
|
4. Build-in water chiller
|
 |
| Package: |
In order to protect the machine well during the shipping way, we use wooden box.
| About US： |
| Wuhan Baike intelligent Technology Co., Ltd Founded in 2008. We are a professional laser manufacturing company under Wuhan Baike Times Laser Technology Co., Ltd. Our company has developed more 1000+ kinds of laser products, has been widely used in all walks of life, product quality and service has been praised by customers.Our product footprints are spread across all walks of life around the world, and our product quality and services have been 100% praised. Baike is committed to providing innovative industrial laser solutions to customers around the world！ Welcome to visit our factory at any time in Wuhan City, China! |
| FAQs： |
|
1.What types of jewelry can be made or repaired using a laser welder?
Answer:Laser welders are suitable for a variety of jewelry materials, including gold, silver, platinum, and some alloys. They can be used to create intricate designs, join broken pieces, and add decorative elements to rings, necklaces, earrings, bracelets, and more.
|
|
2.What safety precautions should be taken when using a laser welder for jewelry?
Answer: Safety is paramount when using a laser welder. Always wear appropriate eye protection, such as laser-safe goggles, and ensure the work area is well-ventilated to avoid inhalation of fumes. Additionally, follow all operating instructions and keep flammable materials away from the machine.
|
|
3.Can a beginner use a jewelry laser welder, or does it require specialized training?
Answer: While laser welding can be learned by beginners, it does require some technical knowledge and practice to master. It's advisable to take a training course or watch tutorial videos to understand the fundamentals of operation, safety procedures, and best practices.
|
|
4.How much maintenance does a jewelry laser welder require?
Answer: Like any high-precision equipment, a laser welder requires regular maintenance to ensure optimal performance. This includes cleaning the lens, checking the laser tube and other components for wear, and performing software updates as needed.
|
| 5.How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
