Product Details Display
BK-K1810-100W【FOB】
Product details
Laser Head
High precision laser head has long service life.It is equipped with red light indication and easy to position.It is easy to cause fire break out while processing,so it is added a flame-retardant blowing device to stop burning.
Core Control System
Comprehensively improve the corresponding speed,the signal source is more stable and the work efficiency is improved fundamentally.
Automatic feeding rubber stick
Adopt rubber roller,high speed box bearing High precision mesh belt transmission,can achieve automatic feeding.
High Quality Stepping Motor
Special motor for equipment,long service life,large torque,57 stepper motor,low running noise,corrosion resistance,stable torque,superio performance,manufacture’s quality assurance.
Operating Panel
3.5 inch digital display color screen offline,high-speed data transmission,can be previewed in the software coating,support output of separated layer and separated color,continued engraving after blackout engraving and cutting at the same time,inserting USB disk or connecting to computer are both OK.

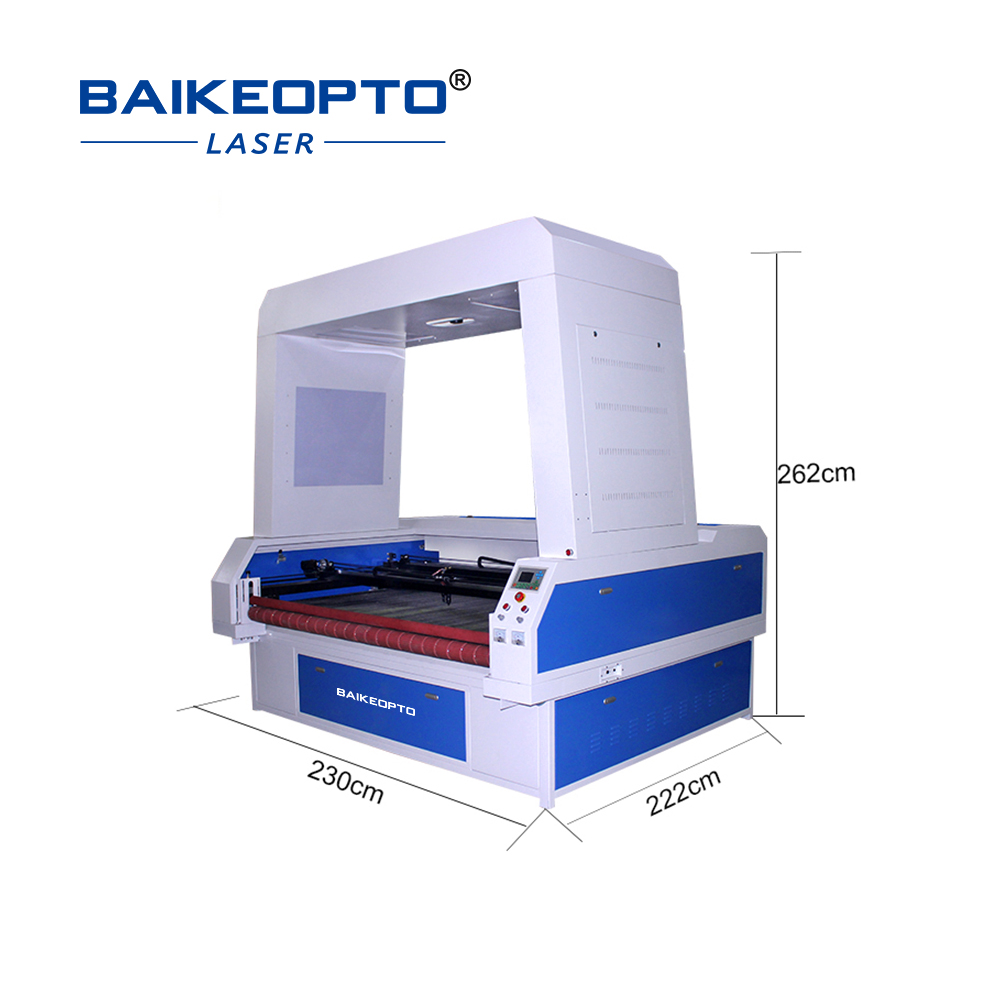

Main Component Diagram
Technical Data
| Model | BK-K1810B |
| Effective working area | 1800*1000mm |
| Platform | Automatic feeding mesh belt |
| Laser power | 150W Glass Sealed CO2 Laser |
| Laser power supply | 150W(customizable) |
| Motor | Stepper motor |
| driver | Step |
| Fan | 550W exhaust fan |
| guide | Double sliding linear sliding shaft |
| Control System | Offline system |
| cooling system | Chiller |
| Carving speed | 64000mm/min |
| Cutting speed | 36000mm/min |
| Minimum shaped text | Chinese characters 2*2mm,letters 1*1mm |
| Maximum scanning accuracy | 0.001mm |
| Repeatability | ≤±0.05mm |
| Resolution | ≤4000dpi |
| power supply | AC220V±10%,50HZ |
| positioning accuracy | ＜0.05mm |
| Total power | 2000W(varies according to laser power) |
| Operating temperature | 0℃-45℃ |
| Working humidity | 5-90%(no condensation) |
| Support graphic format | BMP,PLT,AI,DST,DXF |
