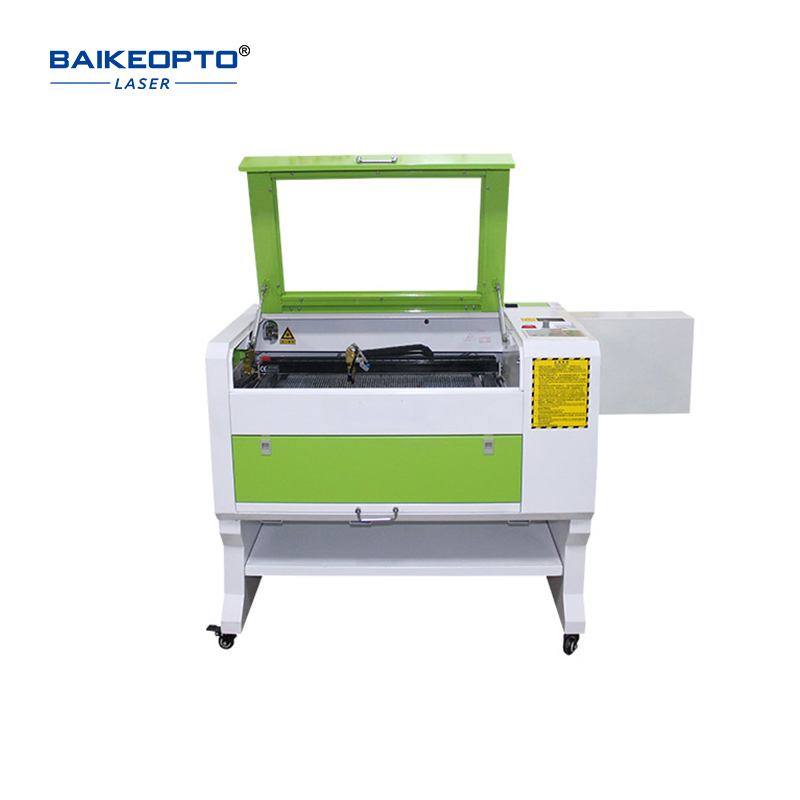

BK-K6040A-40W【FOB】
Product details
Operating Panel
Push-button control makes the operation of the controller more convenient,which makes the current adjustment more precise .The operation is simple and easy and the desigh is more user-friendly .
Laser Head
High precision laser head has long service life.It is equipped with red light indication and easy to position.It is easy to cause fire break out while processing,so it is added a flame-retardant blowing device to stop burning.
Precision Plotter
Plotter adopts linear guide rail,high precision Fast speed and wear resistance.
The laser tube
High quality laser tube,high quality output power,small spot,strong penetration,high power,more stable output ,good heat resistance ,high temperature resistance.
High Quality Mirror Frame
Being made specially for machine ,precise and durable thickened galvanized aluminum plate,antioxidant,durable and easy to adjust,precision hardware,long service life.
Main Component Diagram
Technical Data
| Model: | BK-K6040A |
| Laser type: | Hermetic CO2 glass tube |
| Laser power: | 40W/50W/60W/80W/100W/130W |
| Support software: | Ruida software support CAD output. |
| Working area: | 600*400mm |
| Working speed: | 0-800mm/s(adjustable) |
| cutting depth: | 0-5mm(According to material) |
| Location precision: | 0.01mm |
| Power supply: | AC220V/110V 50/60HZ |
| Min Carving Character: | words2*2mm/number1*1mm |
| Work enviroment: | 5-40℃ 5-95%（rh） |
| Cooling way： | Water cooling |
Thank You For Your Attention And Choice.
Machine Working Video
For more application videos, see the product videos or application videos in the Application column.
