Product Details Display

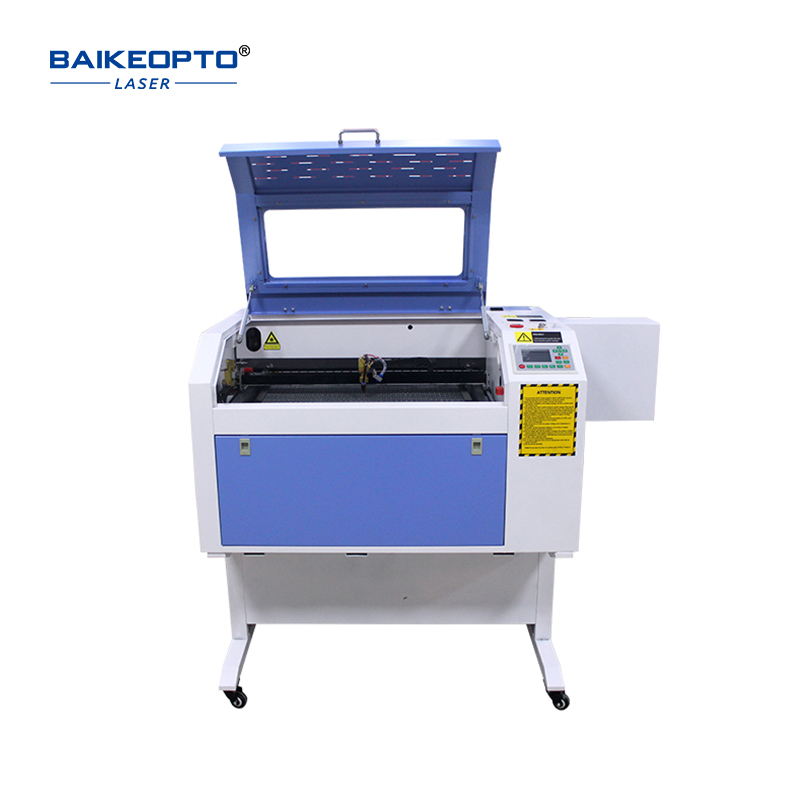

BK-K6040B-80/100/130W【FOB】
Product details
Laser Head
High precision laser head has long service life.It is equipped with red light indication and easy to position.It is easy to cause fire break out while processing,so it is added a flame-retardant blowing device to stop burning.
Core Control System
Comprehensively improve the corresponding speed,the signal source is more stable and the work efficiency is improved fundamentally.
Automatic feeding rubber stick
Adopt rubber roller,high speed box bearing High precision mesh belt transmission,can achieve automatic feeding.
High Quality Stepping Motor
Special motor for equipment,long service life,large torque,57 stepper motor,low running noise,corrosion resistance,stable torque,superio performance,manufacture’s quality assurance.
Operating Panel
3.5 inch digital display color screen offline,high-speed data transmission,can be previewed in the software coating,support output of separated layer and separated color,continued engraving after blackout engraving and cutting at the same time,inserting USB disk or connecting to computer are both OK.
Main Component Diagram
Technical Data
| Model: | BK-K6040B |
| Laser type: | Hermetic CO2 glass tube |
| Laser power: | 40W/50W/60W/80W/100W/130W |
| Support software: | Ruida software support CAD output. |
| Working area: | 600*400mm |
| Working speed: | 0-800mm/s(adjustable) |
| cutting depth: | 0-5mm(According to material) |
| Location precision: | 0.01mm |
| Power supply: | AC220V/110V 50/60HZ |
| Min Carving Character: | words2*2mm/number1*1mm |
| Work enviroment: | 5-40℃ 5-95%（rh） |
| Cooling way： | Water cooling |
Thank You For Your Attention And Choice.
