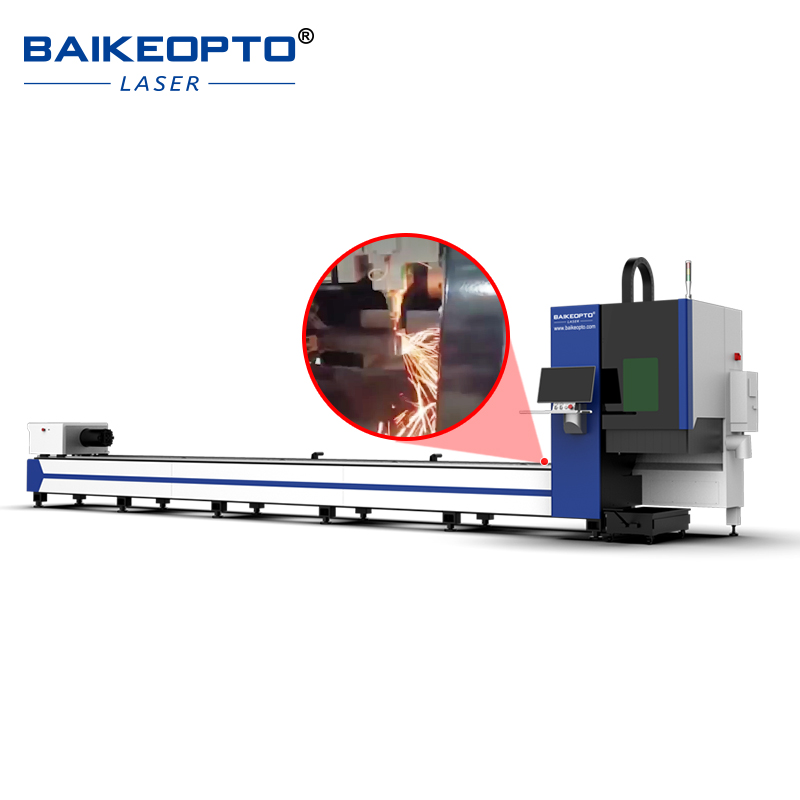

BK-TL6016-3000W【FOB】

FSCUT3000S Professional Pipe Cutting System

• high pricision realization of perforation
• support corner craft setting separately
• tube core real-time deviation compensation
• support cooling point, sharp angle cutting, release angle and other
• Wide processing range, high precision and high efficiency cutting
  FSCUT3000S supports high precision and high efficiency cutting of square pipe, round pipe, runway type, oval stretch pipe, Angle steel and channel steel. Wide area operation, wide processing range, strong processing ability.

Fiber Laser

• Max has stable and reliable performance, high photoelectric conversion rate, and the service life of key &components can reach 100,000 hours. Lasers can produce superior beam quality, finer cutting lines.flatter cutting sections, and higher cutting efficiency.

Automatic focus laser head

• The laser head is adjusted by two points in the middle, and the focus is driven by imported motor. The adjustment is accurate and convenient, and the focus range is large. The laser head can adjust the focal length from + 10mm to -10mm, and the precision can reach 0.01mm.
• Drawer type protection lens
  The protective lens is installed in a pumping layer. Effective, reduce the loss caused by staff errors.
• Closed light path protection
  Laser head inside the completely sealed, avoid optical lens due to dust interference, use long life.
• QBH connector is unlimited
  Can be equipped with a variety of QBH connector laser, high compatibility, easy to replace.

Cooling System and  professional chuck, improve processing efficiency

• Hanli Water cooling machine, the temperature control accuracy is +0.5. Environmentally friendly refrigerant can beselected;
  ModBus-485 communication support
• Precision gear transmission super clamping force cutting more accurate
  170mm automatic pneumatic chuck, precision gear transmission, transmission accuracy up to 0.01mm. Powerful automatic centering function, the speed is 3 times of electric chuck, convenient and effective. Pneumatic super clamping force, heavy pipe clamping more firmly, cutting precision and good quality.

High-precision linear module beams and T-win guide rail rack

• Linear modular precision mechanical motion platform
  Ensure high machining accuracy
  The high precision linear module beam is a precision mechanical movement platform driven by servo motor. The unit movement repetition accuracy is ±0.01mm to ensure ultra-high machining accuracy. The parallelism of the base datum is in < ±0.02mm.
• T-win guide rail rack system offers unparalleled precision and stability, ensuring smooth and accurate linear motion even under heavy loads, making it ideal for high-performance machinery and automation applications.

Leiser servo motor and Kofon reducer

• Ultra-high dynamic velocity
  Faster positioning speed and more accurate cutting
  Servo motor can maximize the accuracy of the machine tool, fast moving speed and stability, high speed, generally rated speed up to 3000 RPM; The dynamic acceleration and deceleration time of the motor is short, generally within tens of milliseconds, which provides a guarantee for high-precision cutting.
• High helical structure with light dead weight and bearing capacity
  Excellent dynamic performance ensures accurate positioning
  Light dead weight, reduce the operating burden and operating inertia of the beam, optimize the dynamic performance, ensure accurate positioning; High bearing capacity can withstand the inertia of the beam under high-speed operation, accurate positioning; Reducer internal helical structure, precise position, high transmission efficiency; It provides guarantee for high precision cutting.
