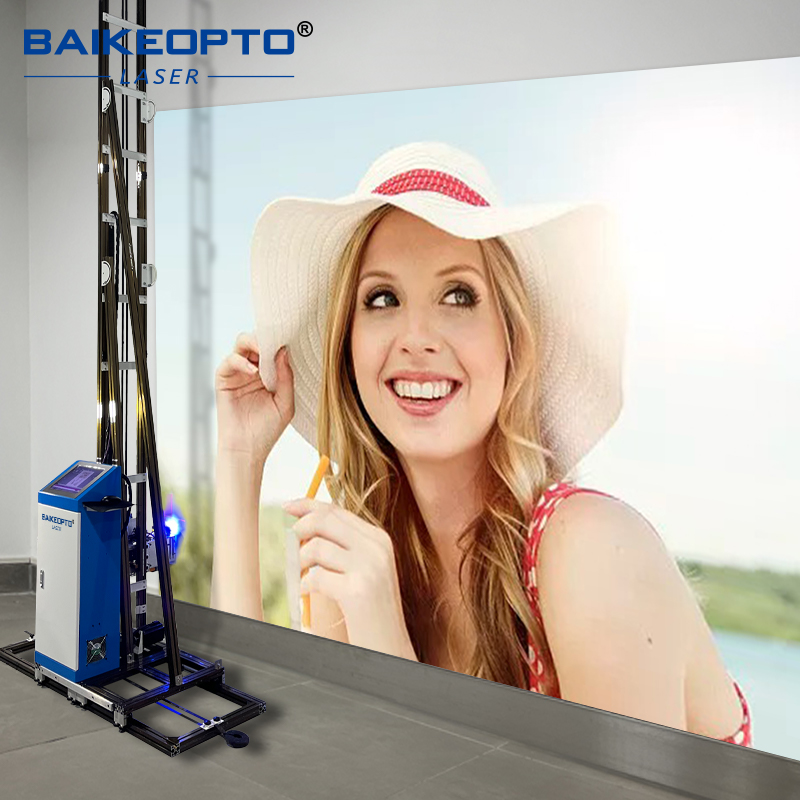

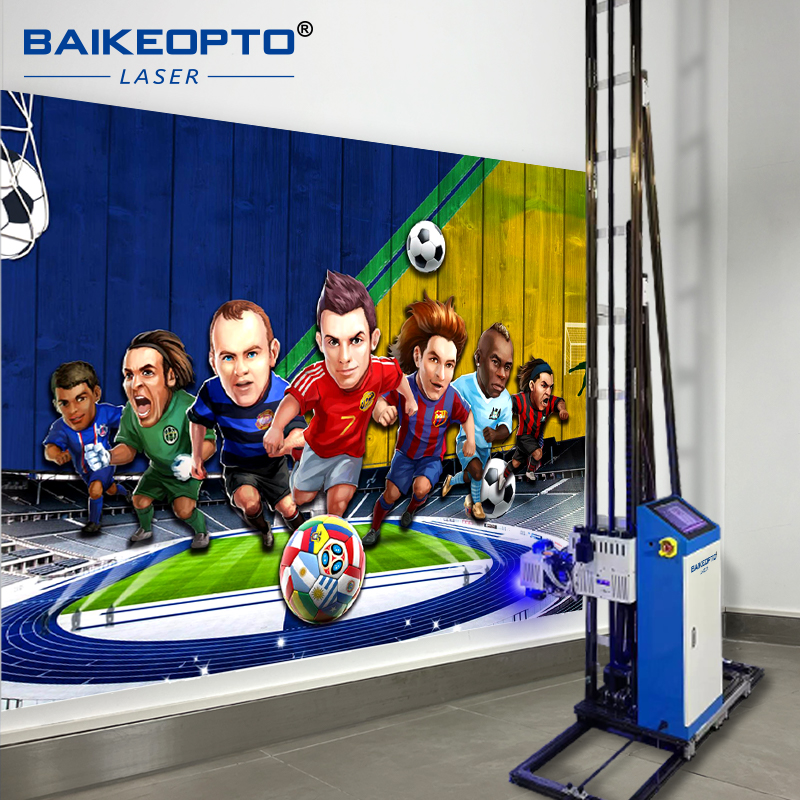

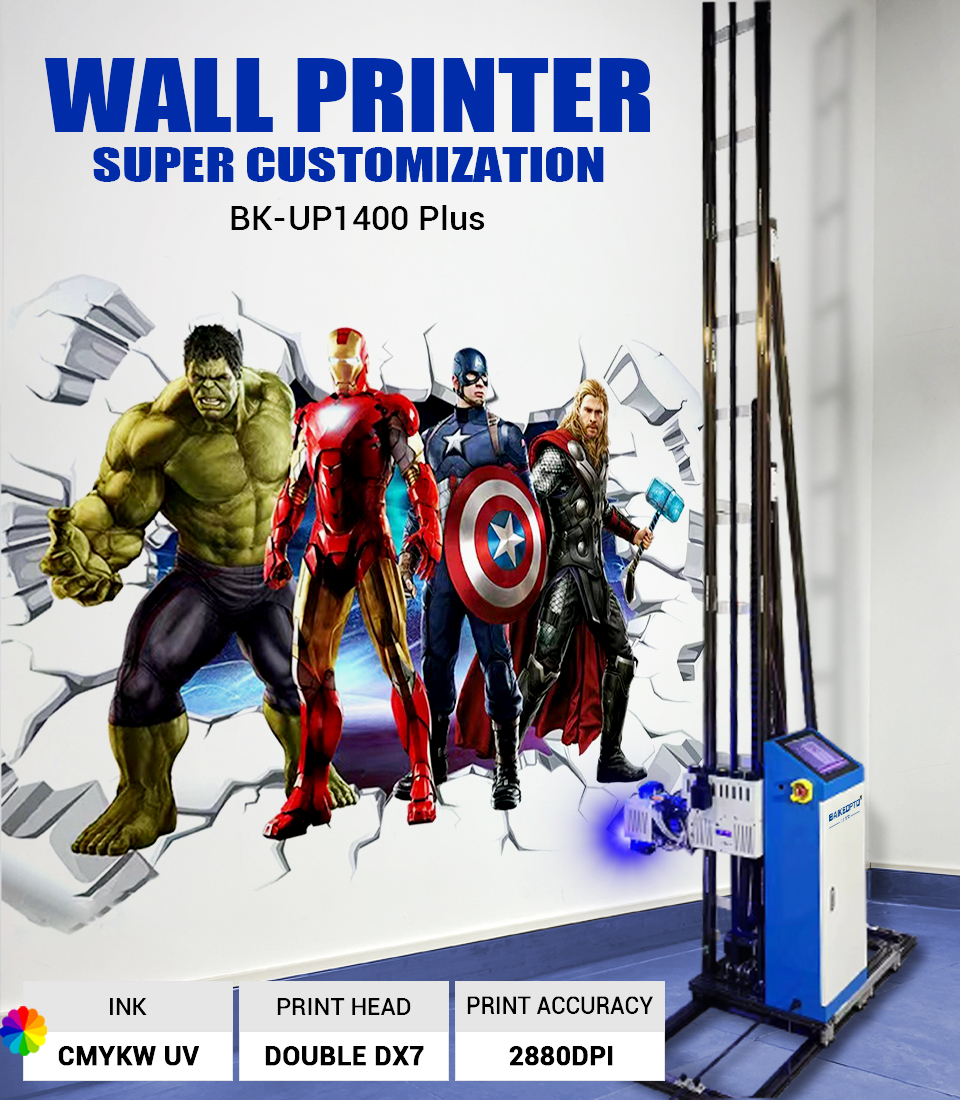

BK-UP1400 Plus 3D UV Inkjet Printing Machine for Effortless Wall Beautification!

Revolutionize the way you decorate your space with our cutting-edge Wall Printing Machine! Say goodbye to traditional wallpaper and hello to endless possibilities for customization and creativity. The emergence of wall printers is like a revolution in wall art. It makes the originally monotonous wall instantly become lively, interesting and creative. Whether it is a home, commercial place or public place, the wall printer can easily create a unique wall effect and open a new visual feast.

Product Advantages:

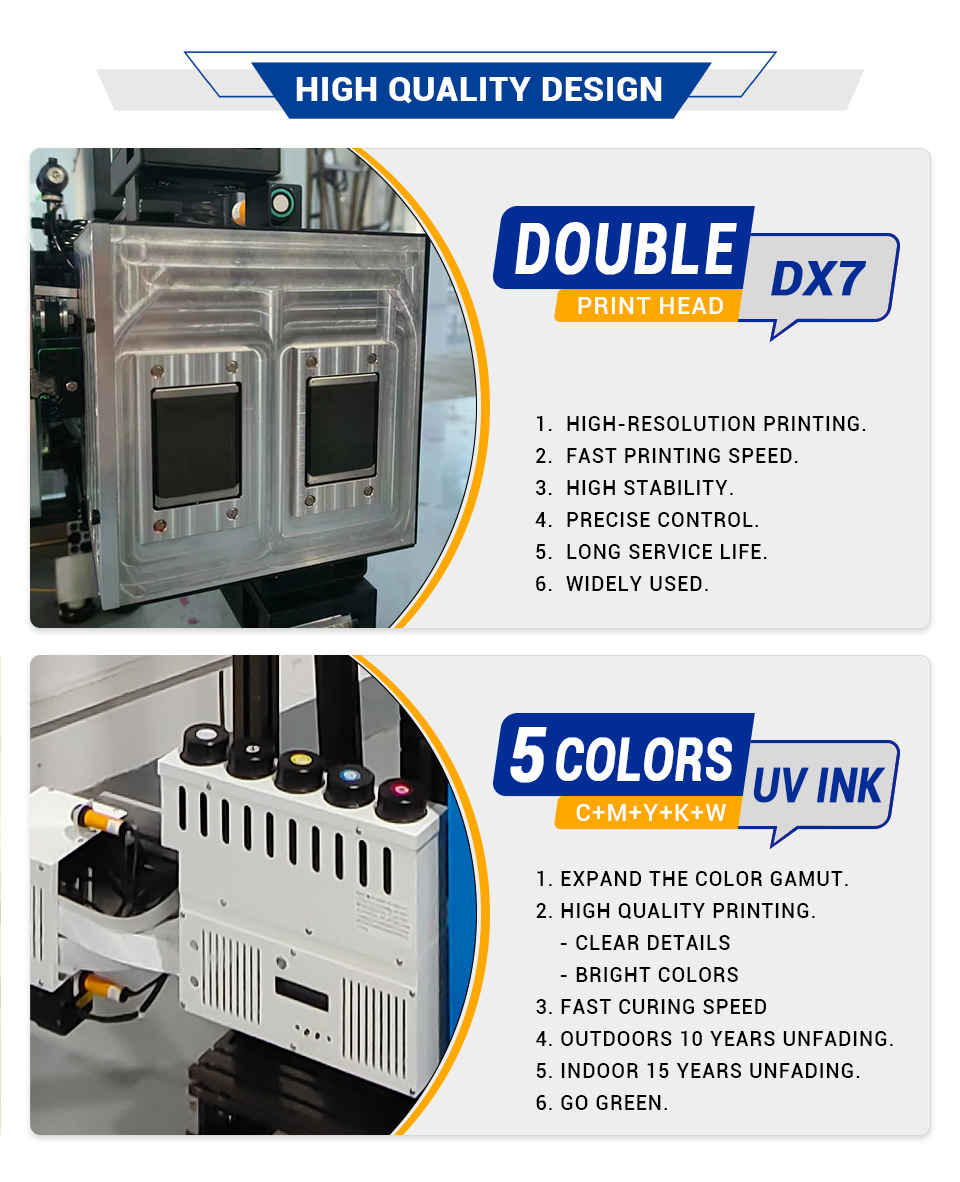

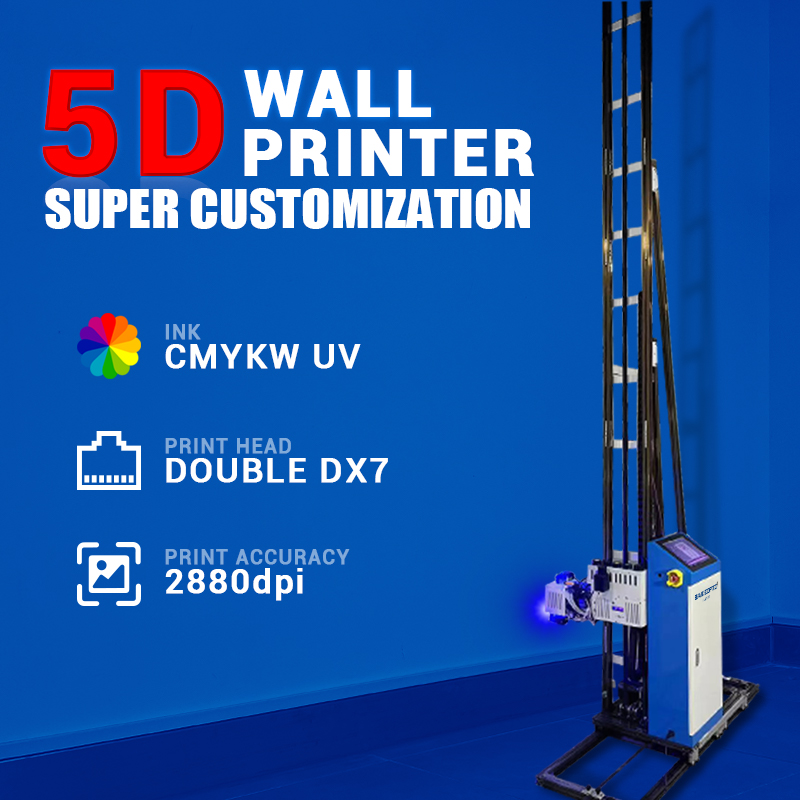

1. 2pcs DX7 Print Head, CMYKW UV ink, UV lamp
2.Waterproof,anti-corrosion,anti-scratch and anti-wear.
3.No fading outdoors for five years, no fading indoors for ten years.
4.Computer automatic color grading.
5.Environmentally friendly and durable.
6.Suitable forindoor and outdoor all kinds of walls.

Products Parameters:
Equipment model BK-UP1400 Plus
Printing software Genuine professional
Use ink MYCKW UV ink
Nozzle specification (Epson) Epson DX7 high precision nozzle 1pc
level Imported precision level
electric machinery 3 imported intelligent motors + reducers
Wall detection 2 ultrasonic distance detectors
Power off memory Power off memory function
UPS power supply Super strong uninterruptible power supply, power-off life of 3 hours (to be purchased)
Laser positioning Precise infrared laser positioning system

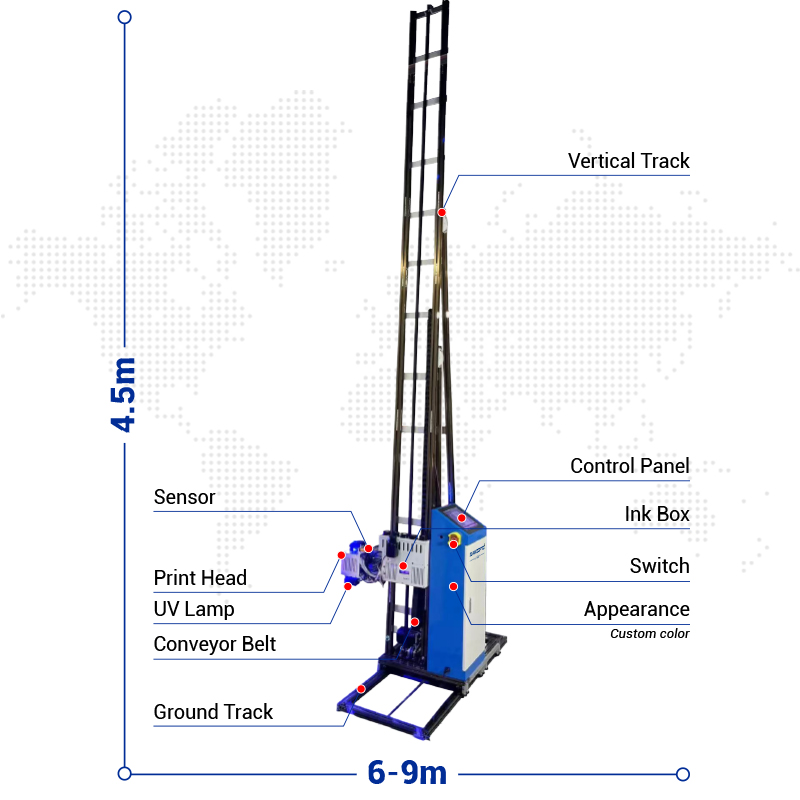

Ground rail High strength precision rail, 3 sections, 4.5m,
Shaft guide Imported linear drive module
Print operation platform Computer
Control mode Wired / wireless printing
Transportation carrying (folding)
Power consumption No load 20W, maximum 250W
Surface tracking Hyperboloid banner sensor,up-down bidirectional induction
Ink supply system Positive pressure system ink supply
Print size 4 meters high × Any width,more than 4m, can be seamlessly spliced
Construction noise Standby < 20dBA, drawing < 70dba
Support picture Photos taken by mobile phone / camera and online pictures
Power requirements Household power 220VAC or 380VAC
Applicable media White wall, putty wall, ceramic tile, glass, acrylic, metal plate, brick wall, etc
National film format Including psd.cdr, JPG, JPEG, PNG, BMP, tiff, EPS, AI, PDF and other formats
Color painting technology Micro piezoelectric jet technology, variable ink drop, high fault tolerance feathering technology, automatic memory recovery technology after construction interruption
Print Resolution 360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi
Operating environment -20°C-50°C(-4F-122F),10%-70% Relative humidity, non condensing state
Storage environment -21C-5o°C(-22F-140°F),10%-70% Relative humidity, non condensing state
Nozzle advantages You can work all day or choose any nozzle
Certification qualification Green environmental protection certification, national standard inspection qualification (GB18582-2001, GBT9756-2001), CE certification
Overall dimension Machine ruler (mm);Length 700x width 300X height 2600 Package size (mm): 1610L x 830W x 610 H
Machine weight Machine 55kg (4 guide rails) Packed in wooden cases, weighing 155kg
machine language Chinese / English
Applicaitons:
  • Non-White Walls,Glass Wall, Ceramic Tile Walls
  • Brick Walls, Rice Paper, Car body, Baffle Plates
  • Distribution Cabinet , Wardrobe and more
Print Technology:
A. When the height of the image is within 4 meters,No Partitioning required, one print done.  B. When you need to print images over 4 meters,the machine can to be raised by the scaffold for partition printing.
C. When you need to print oversize picture, the picture need to be divided into multiple areas(1,2,3,...8, etc.) for partition printing. D. Firstly you divide oversized images into multiple areas for printing, and achieve seamless splicing by identifying the starting point, presenting a complete image.
Packing and Delivery:

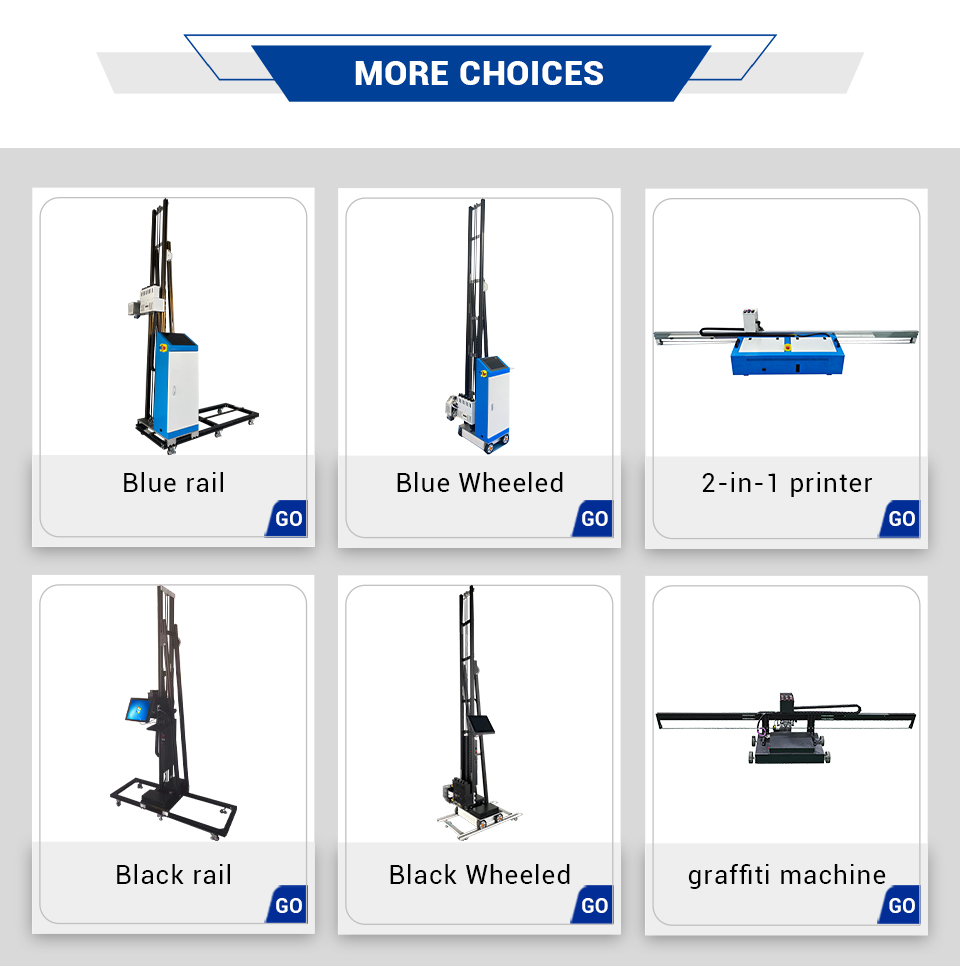

More Choices:
We provide more choices for you!
About US:
Wuhan Baike intelligent Technology Co., Ltd Founded in 2008. We are a  professional laser manufacturing company under Wuhan Baike Times Laser Technology Co., Ltd. Our company has developed more 1000+ kinds of laser products, has been widely used in all walks of life, product quality and service has been praised by customers. Our product footprints are spread across all walks of life around the world, and our product quality and services have  been 100% praised. Baike is committed to providing innovative industrial laser solutions to customers around the world!
Welcome to visit our factory at any time in Wuhan City, China!

FAQs:

Q1: Are you a factory or a trading company?
Answer: We are a factory. Our company was established in 2014, and our factory is located in Wuhan, Hubei, China. You are welcome to visit us anytime.

Q2: How long is the warranty period after purchasing the machine?
Answer: Our machines come with a free one-year warranty, as long as the damage is not caused by human factors.

Q3: How soon can the delivery be made after payment?Answer: After payment, we will ship the machine within 7-14 days.

Q4: How long can the printed patterns remain on the wall?
Answer: The printed patterns can last for up to five years outdoors and about ten years indoors.

Q5: How much ink is consumed for printing patterns?
Answer: Approximately 500ml (one bottle) of ink can print around 100 square meters, while 500ml of white ink can print approximately 50 square meters.

Q6: What should I do if I no longer want the printed pattern on the wall?
Answer: You have a couple of options. One option is to directly cover the unwanted pattern with white ink and then replace it with a new design. Alternatively, you can cover the wall with a suitable material based on its original surface. For example, if it's a latex paint wall, you can use latex paint to cover and overwrite the existing pattern.

Q7: What language settings are available on the machine?
Answer: Typically, the machine supports English and Chinese. If you require other languages, we provide free translation services.

Q8: How do you handle uneven ground during printing?
Answer: The machine is equipped with adjustable feet that allow you to adjust the track according to the unevenness of the ground. This ensures stable and precise printing even on uneven surfaces.

Q9. How is the quality of the machine? Are there any components that are prone to damage?
Answer: Our machines have excellent quality, and each machine undergoes comprehensive quality inspection before leaving the factory. The print head is a component that may be more susceptible to issues. We recommend having spare print heads on hand in case of any malfunction.

Q10. Can one print head be used for printing four colors, while another print head is dedicated to printing white?
Answer: Yes, our machine can be configured to have one print head for printing four colors and another print head dedicated to printing white. This allows for efficient and precise printing of both color and white elements in your designs.





Thank You For Your Attention And Choice.

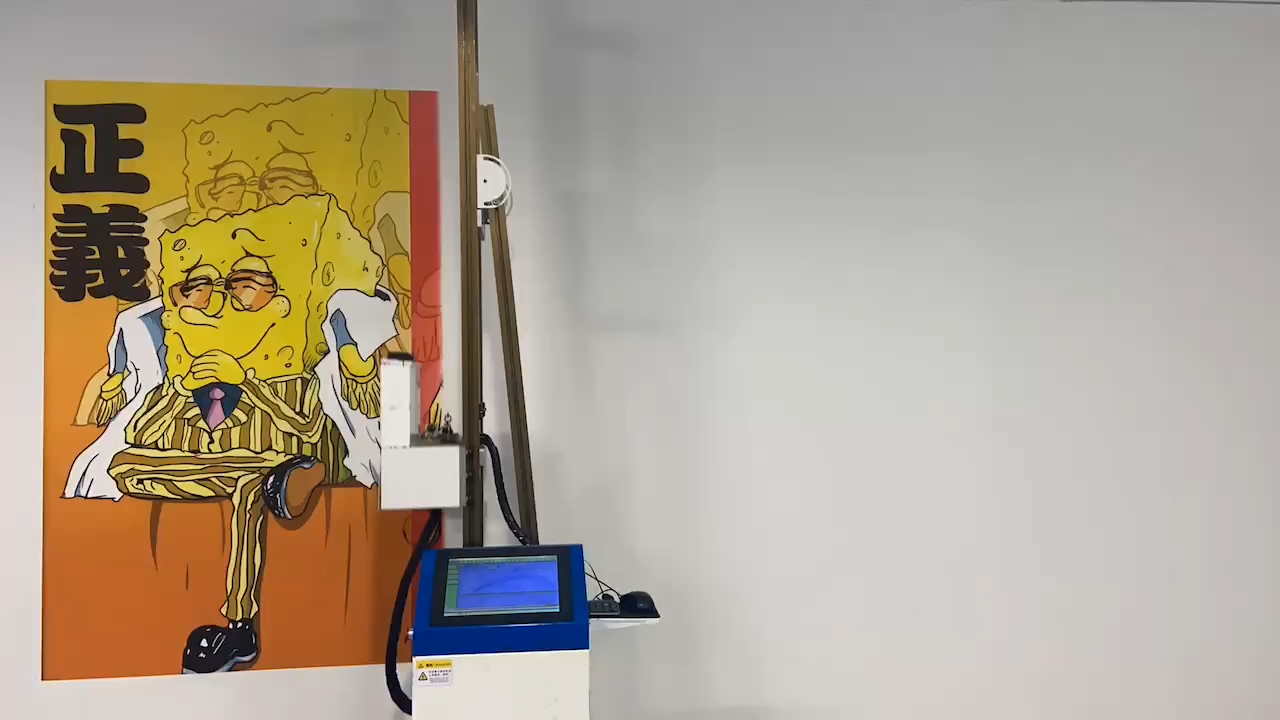

Machine Working Video
