In commercial space, wall printers can be a weapon to attract customers. Unique and creative wall designs can enhance brand image, leave a deep impression on customers, and contribute to business success. If you are worried about renovating old walls, wall printers are your best choice. It can easily cover the flaws of old walls, give them a new look, and give old walls new vitality. |
![]() |
![]() |
Product Advantage: |
1.Intelligent operation no technician required.
2.Waterproof,anti-corrosion,anti-scratch and anti-wear.
3.No fading outdoors for five years, no fading indoors for ten years.
4.Computer automatic color grading.
5.Environmentally friendly and durable.
6.Suitable forindoor and outdoor all kinds of walls.
7. CMYKW UV ink, UV Lamp
8.Double DX7 print heads
9. Up to 2880DPi accuracy
Product Parameters: |

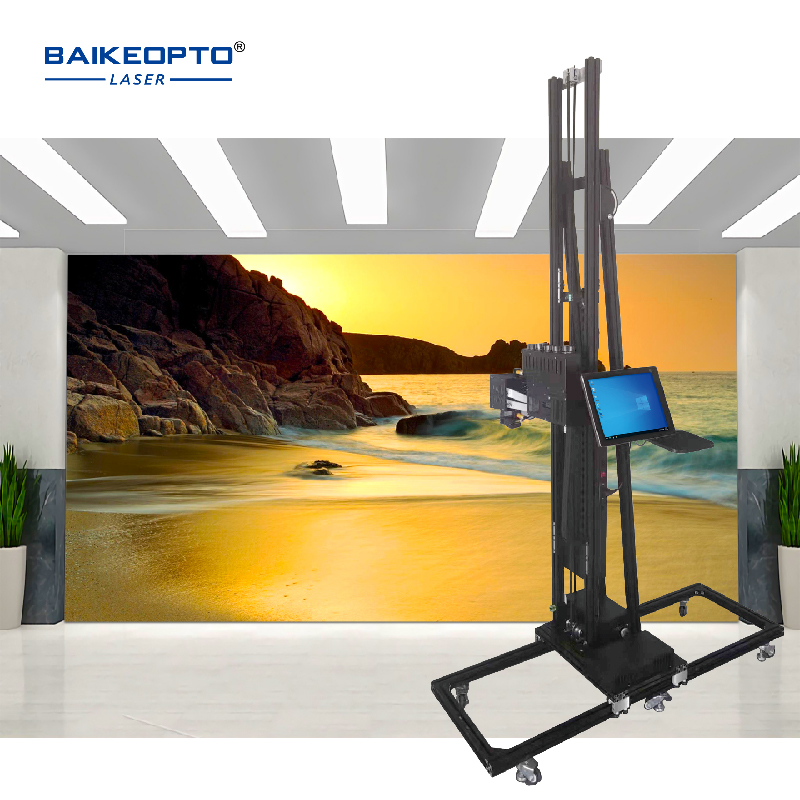

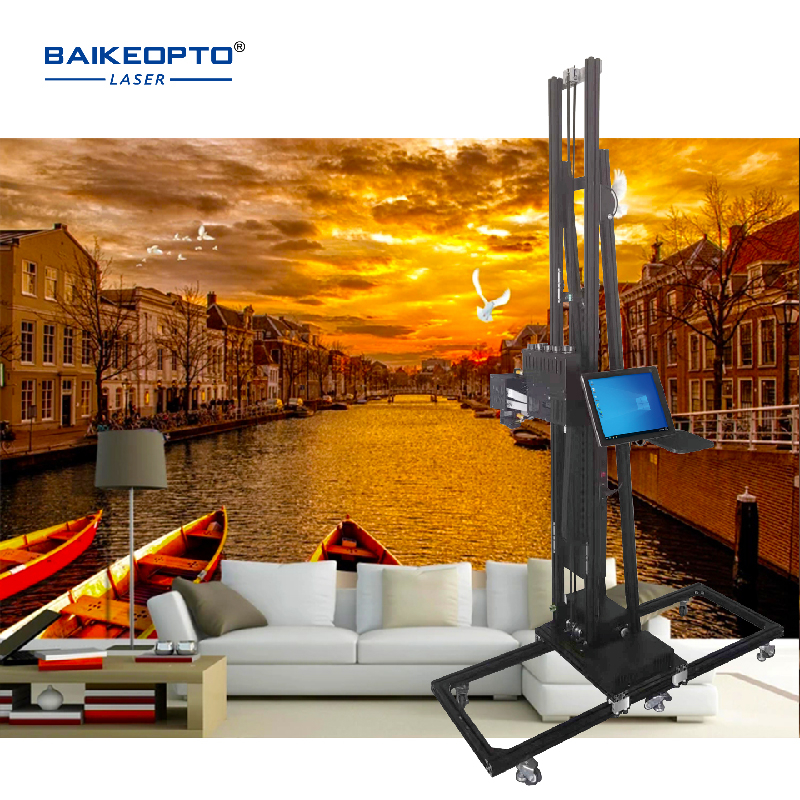

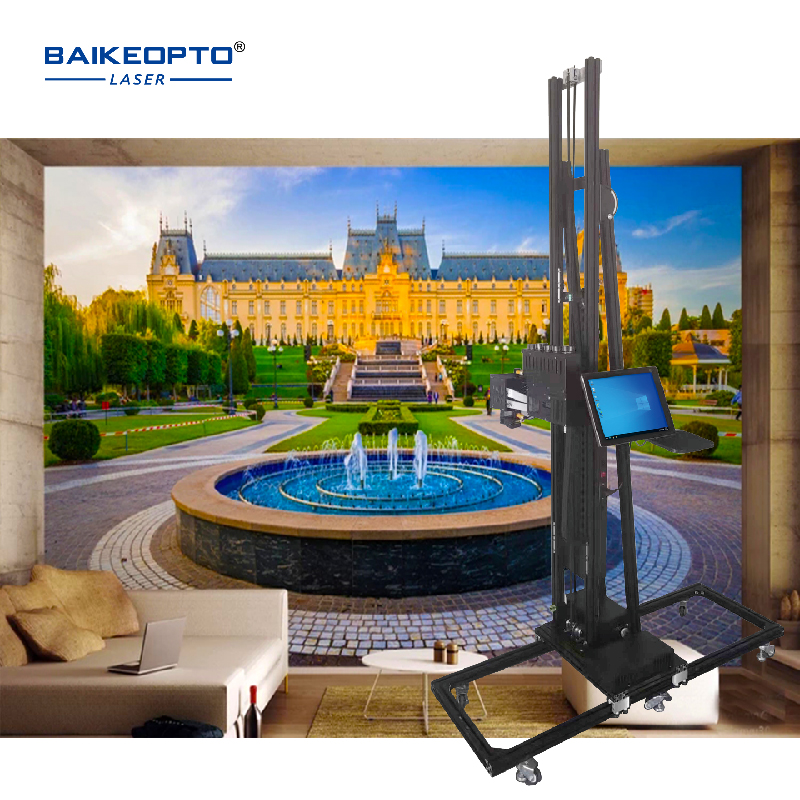

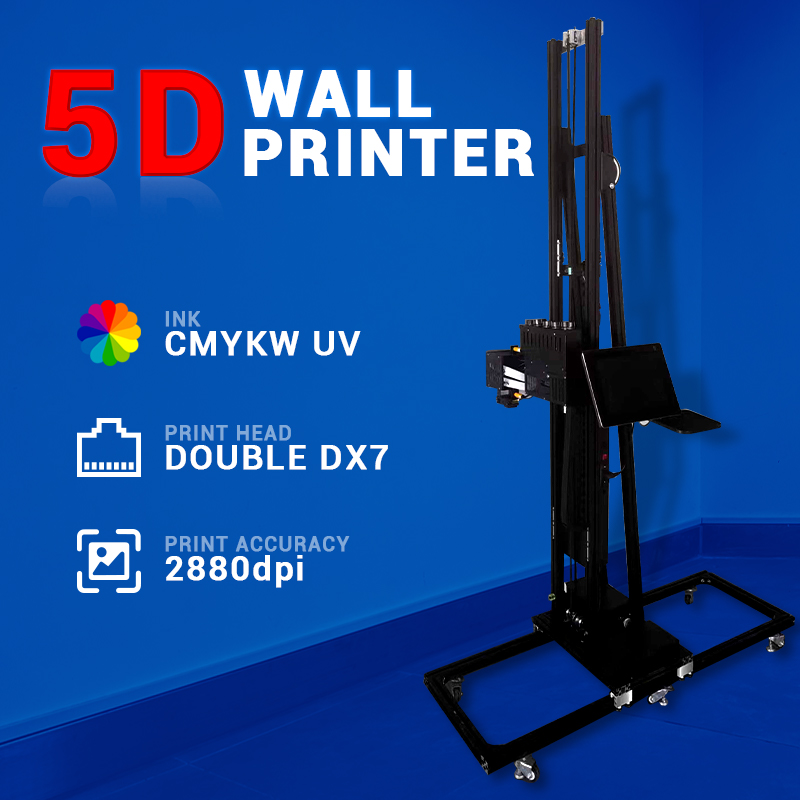

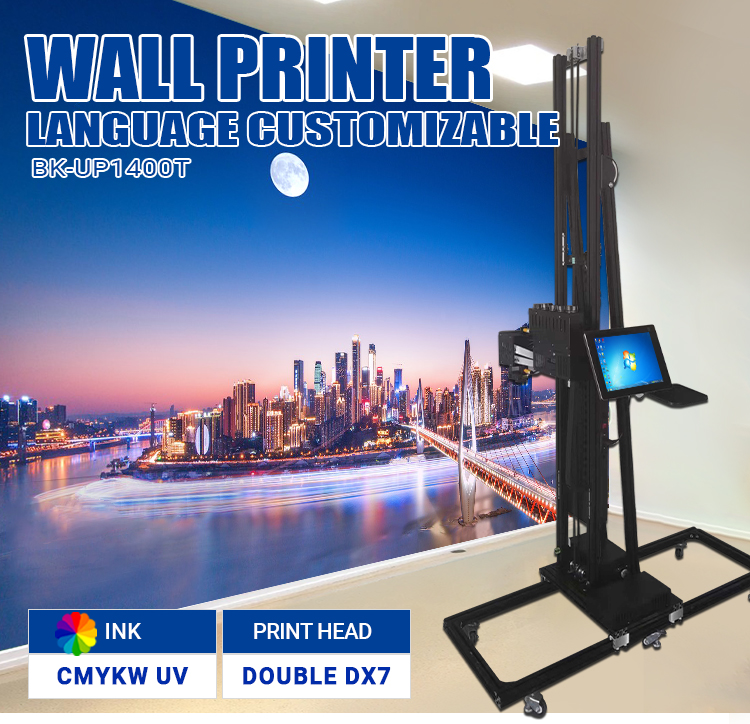

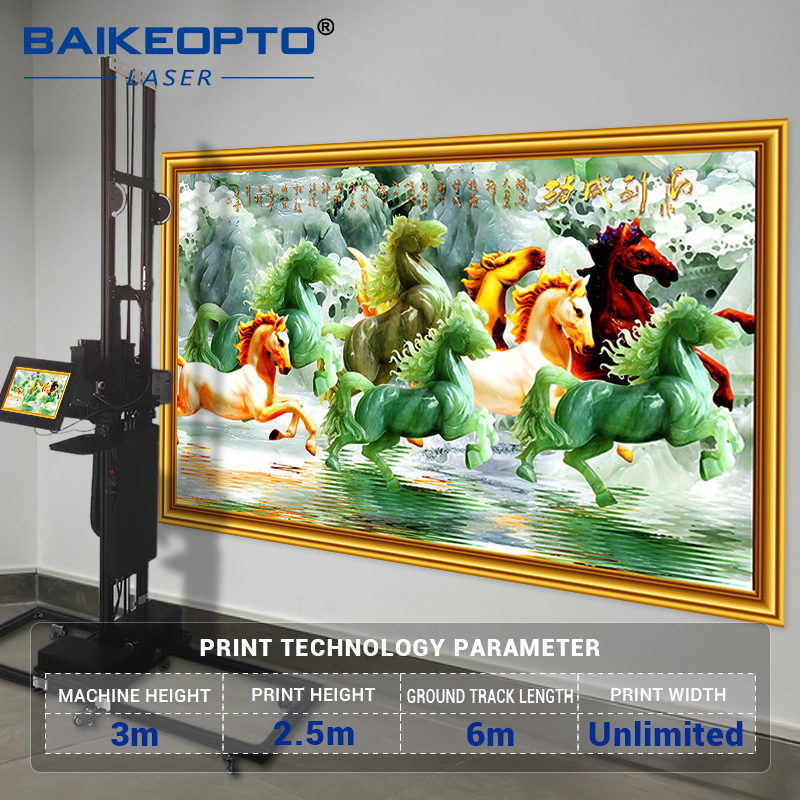

Machine name | Portable wall machine BK-UP1400T |
Print size | 2.5m high * 6m long (Unlimited length) |
Nozzle model | Epson, JapanDX7 |
Nozzle selection | dx7,dx10,4720optional |
Machine power | 350W |
Voltage | 110V-220V(mobile power can be used) |
accuracy | 360*720*1440*2880dpi |
Ink color | C-M-Y-K-W UV ink |
speed | 6-14 m2 / h |
Picture format | PSD、JPG、JPEG、PNG、TIF、AI-PDF |
Machine weight | Main machine 15kg, guide rail 4 * 8kg, base shaft 15kg |
Output mode | Wired transmission, printing controlled by computer |
Key components | 6 sections of 1m track, 2 ultrasonic probes, 3 motors and 1 reducer |
apply | Lime wall, emulsion paint wall, putty powder wall, ceramic tile, metal, wallpaper |
3D/5D | Yes (can simulate printing) |
Detection function | Up and down two-way detection of concave convex, with an accuracy of 1mm |
Power failure recovery | There is software to store data in real time |
Nozzle inspection | Yes (software detects nozzle condition) |
Color calibration | Yes (software color correction) |
Distance adjustment | Yes (print size and distance can be adjusted by software) |
Power failure endurance | Yes (self provided UPS mobile power supply is required) |
Print positioning | Yes (the laser cross locator makes the picture print to the specified position) |
Horizontal adjustment | Yes (equipment track has horizontal adjustment function) |
Stack disassembly | One meter after folding, it can be disassembled into three parts for convenient handling |
Picture splicing | Yes (seamless splicing of pictures can be realized) Subject to actual conditions。 |

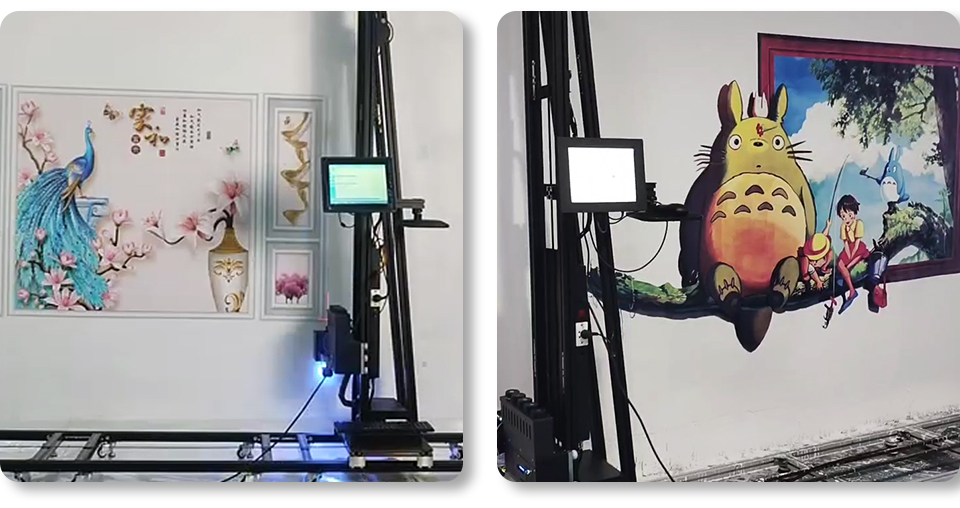

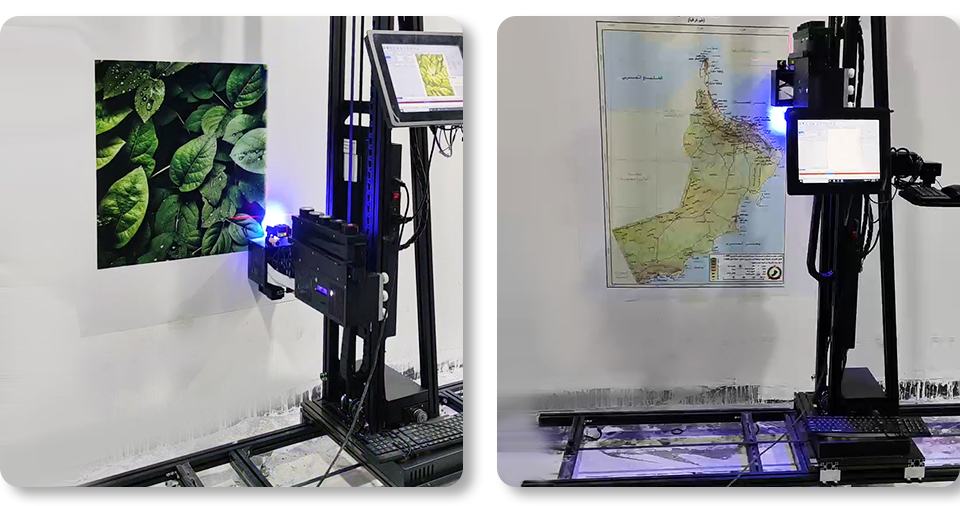

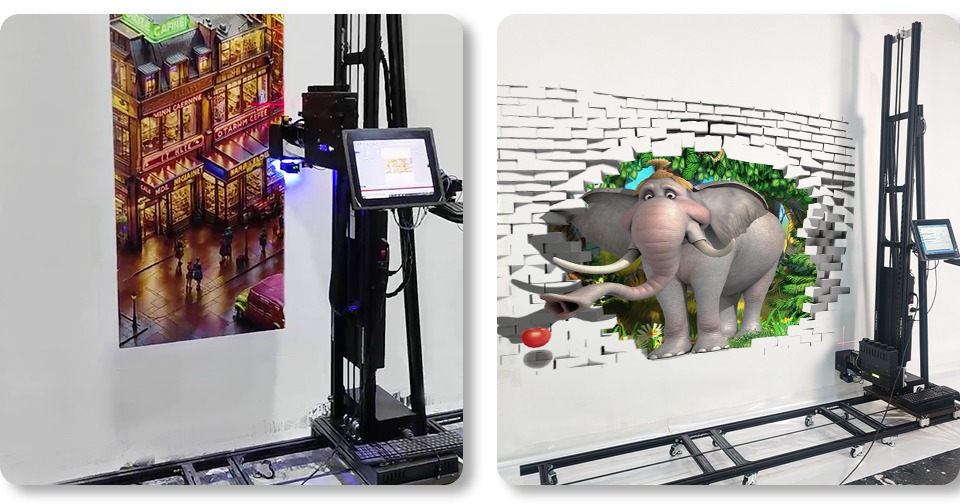

Application: |
![]() ![]() |
![]() ![]() |

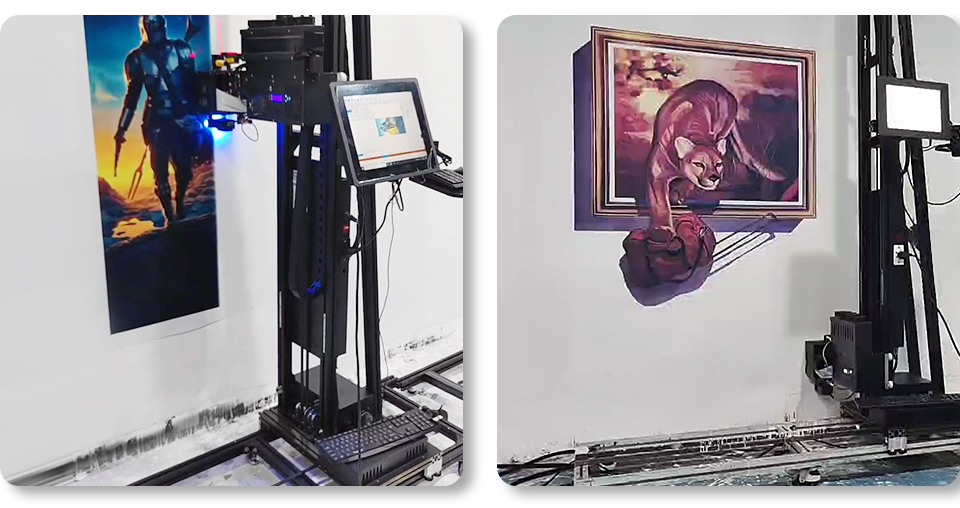

Print Renderings: |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

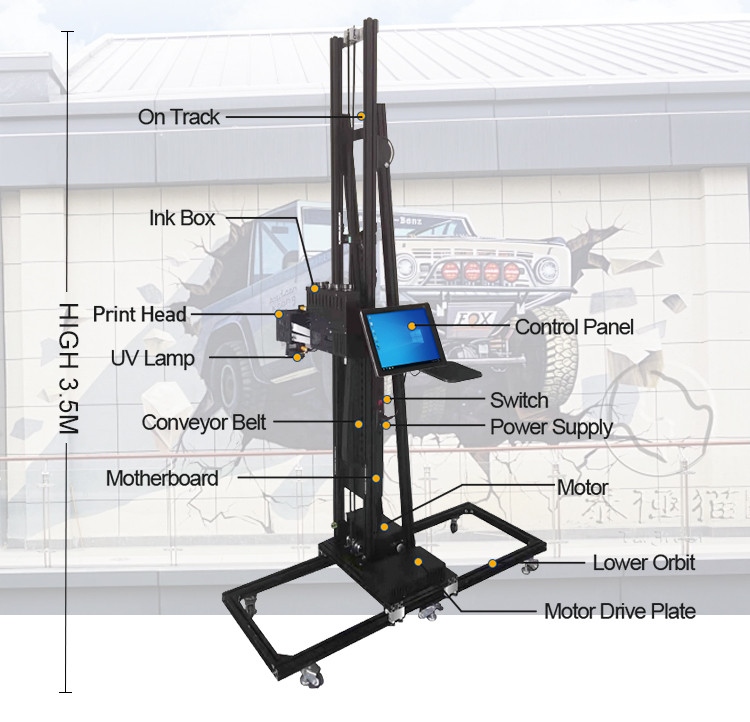

Product Introduction: |
![]() |
![]() |
||

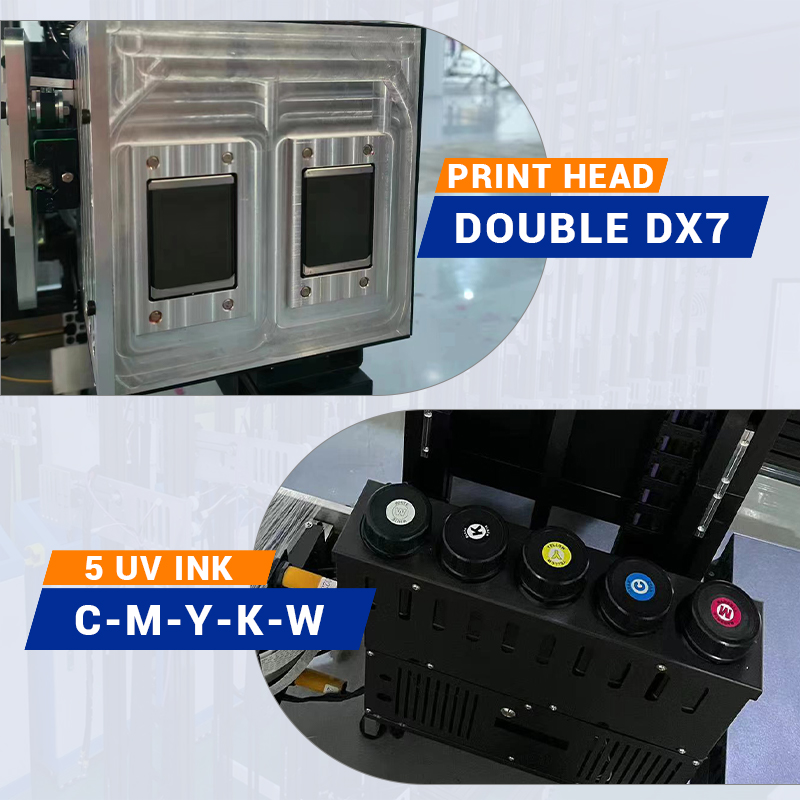

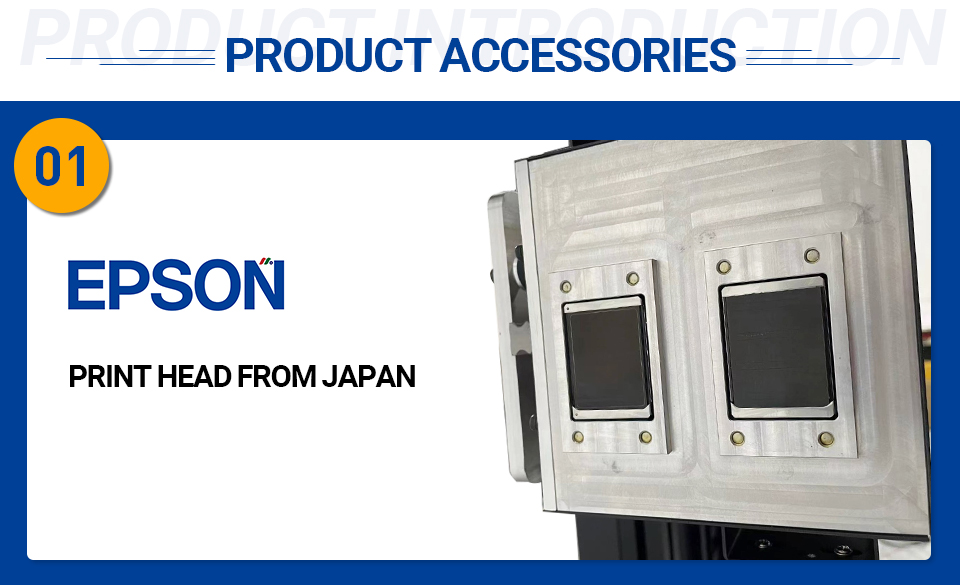

Double DX7 Print Head |
10.9 inch Control Panel |

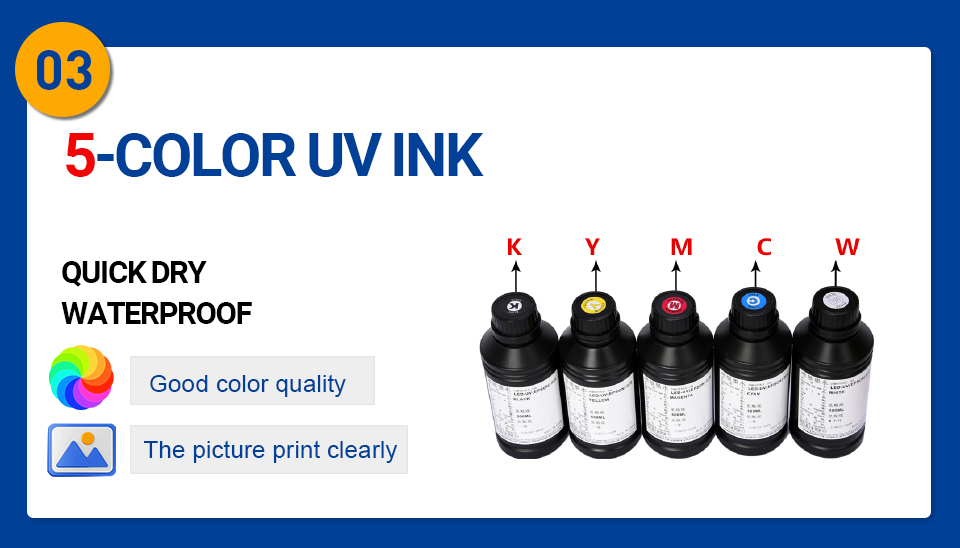

Ink Supply System |
Transmission System |
![]() |
![]() |
||
Laser Positioning System |
Digital Stepping motor |
High quality UV Light |
Double Distance Sensor |
Print Technology: |
![]() |
![]() |

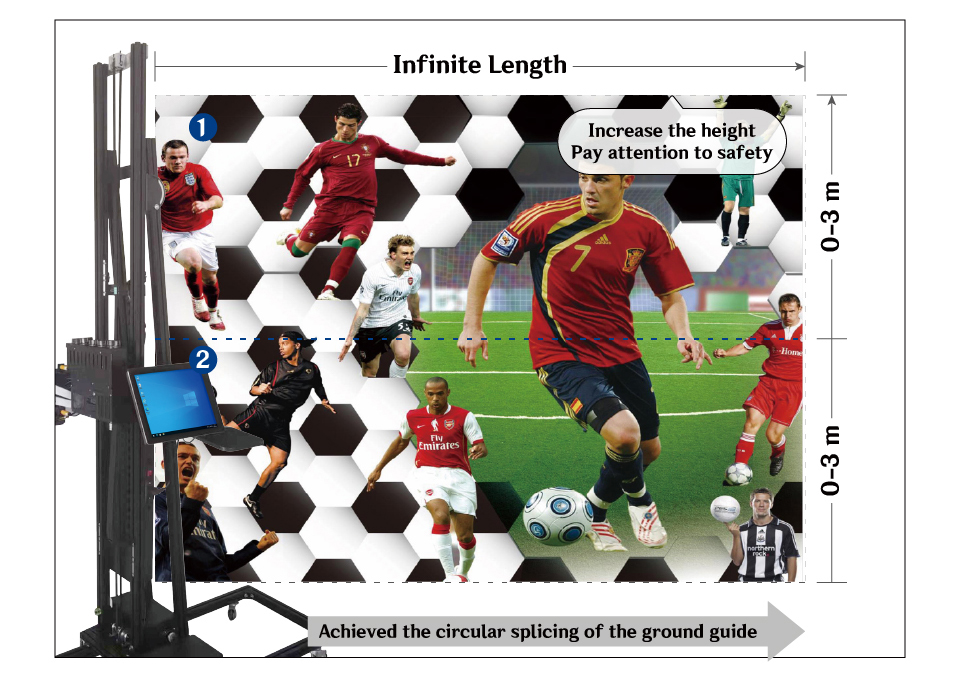

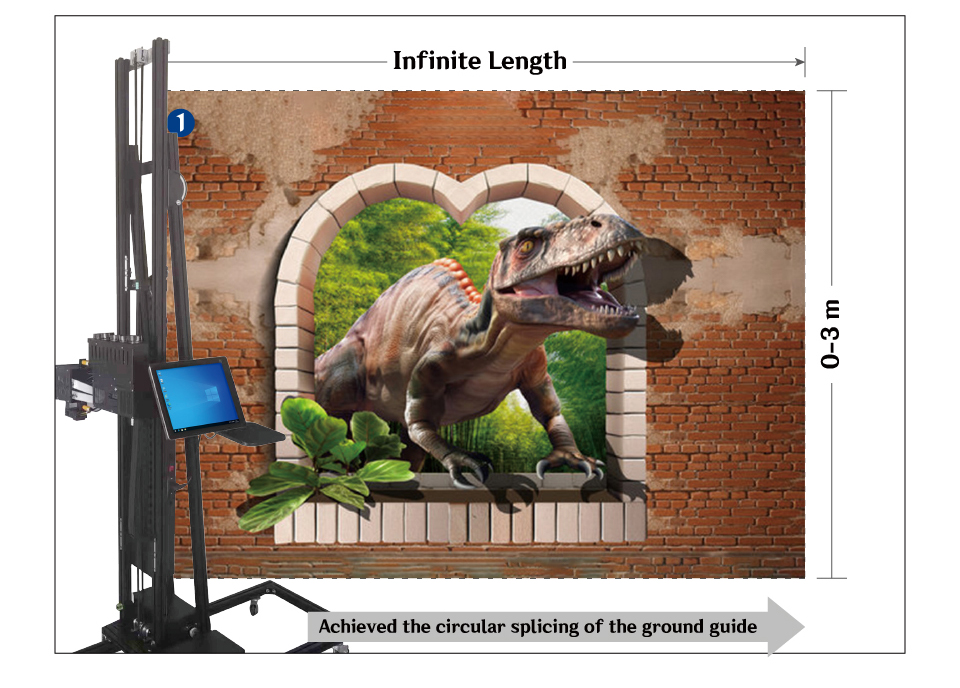

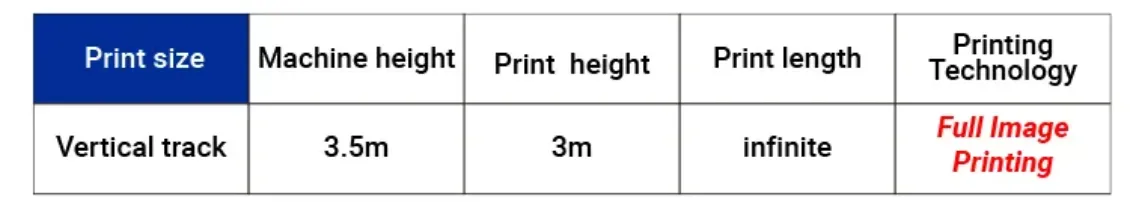

A. When the height of the image is within 4 meters,No Partitioning required, one print done. | B. When you need to print images over 4 meters,the machine can to be raised by the scaffold for partition printing. |
![]() |
![]() |

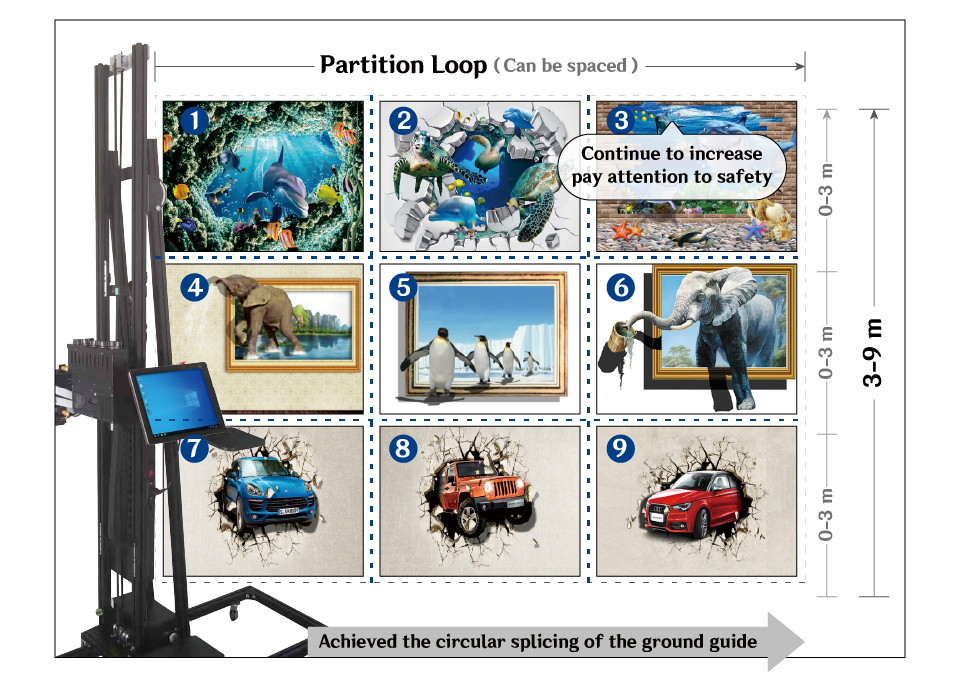

C. When you need to print oversize picture, the picture need to be divided into multiple areas(1,2,3,...8, etc.) for partition printing. | D. Firstly you divide oversized images into multiple areas for printing, and achieve seamless splicing by identifying the starting point, presenting a complete image. |
More Chioces: |
![]() |
![]() |

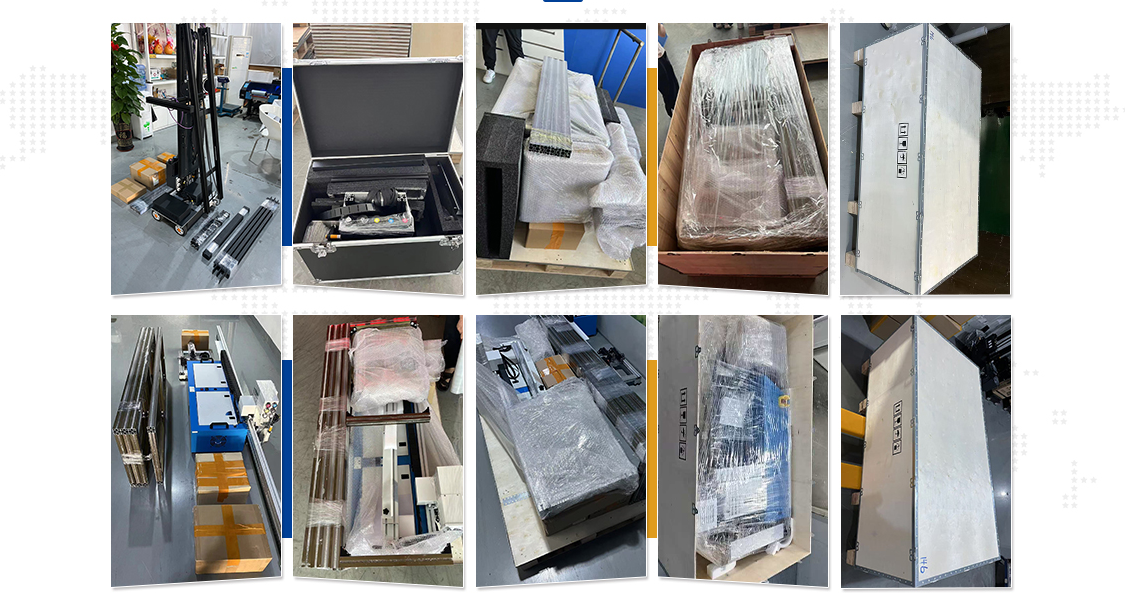

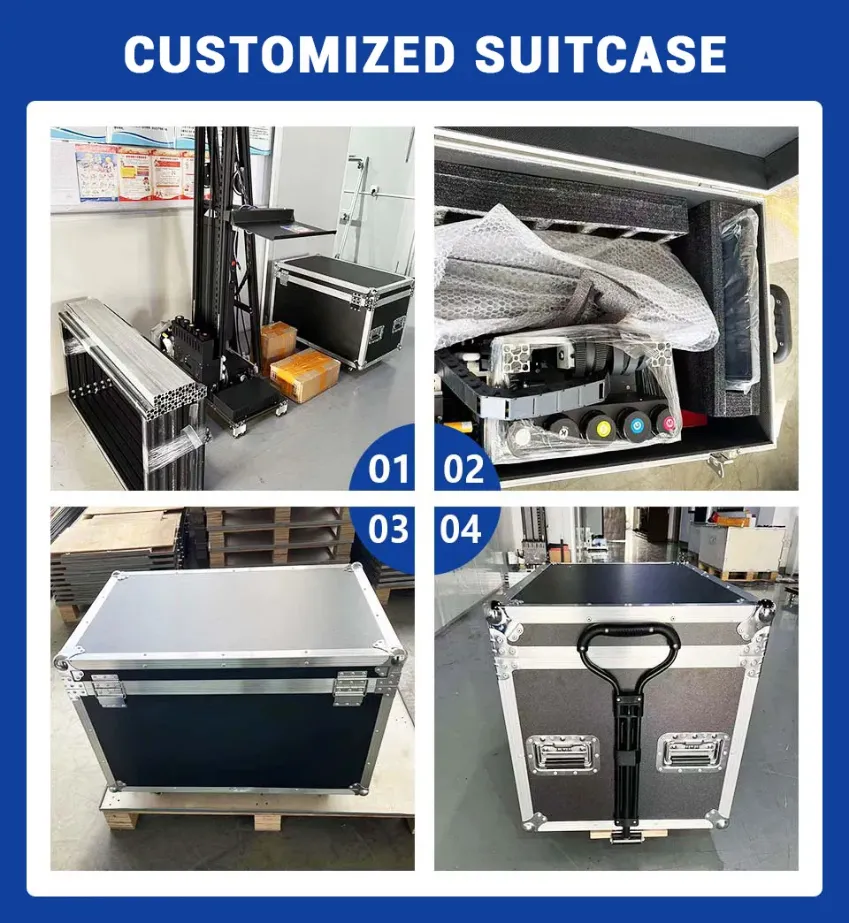

Packing and Delivery: |
About US: |

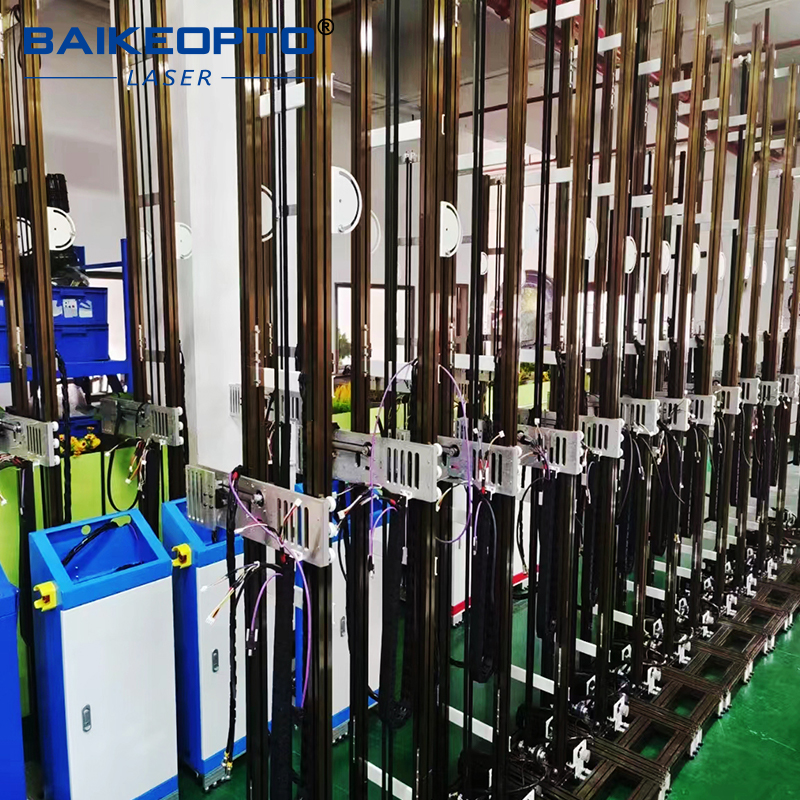

Wuhan Baike intelligent Technology Co., Ltd Founded in 2008. We are a professional laser manufacturing company under Wuhan Baike Times Laser Technology Co., Ltd. Our company has developed more 1000+ kinds of laser products, has been widely used in all walks of life, product quality and service has been praised by customers.Our product footprints are spread across all walks of life around the world, and our product quality and services have been 100% praised. Baike is committed to providing innovative industrial laser solutions to customers around the world! Welcome to visit our factory at any time in Wuhan City, China! |
FAQs: |
Q1: Are you a factory or a trading company? Q2: How long is the warranty period after purchasing the machine? Q3: How soon can the delivery be made after payment?Answer: After payment, we will ship the machine within 7-14 days. Q4: How long can the printed patterns remain on the wall? Q5: How much ink is consumed for printing patterns? Q6: What should I do if I no longer want the printed pattern on the wall? Q7: What language settings are available on the machine? Q8: How do you handle uneven ground during printing? Q9. How is the quality of the machine? Are there any components that are prone to damage? Q10. Can one print head be used for printing four colors, while another print head is dedicated to printing white? |
