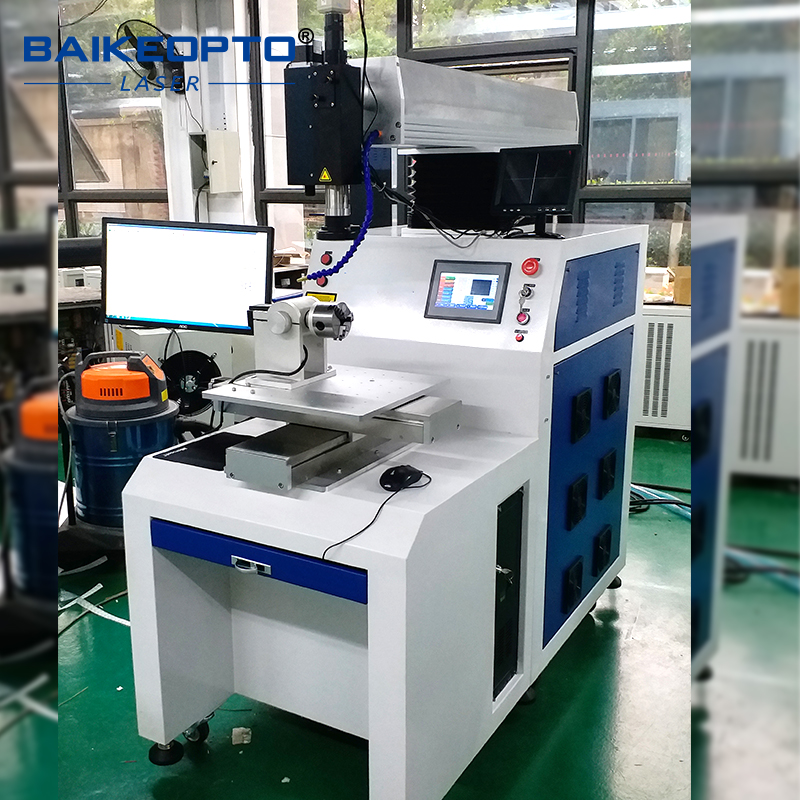

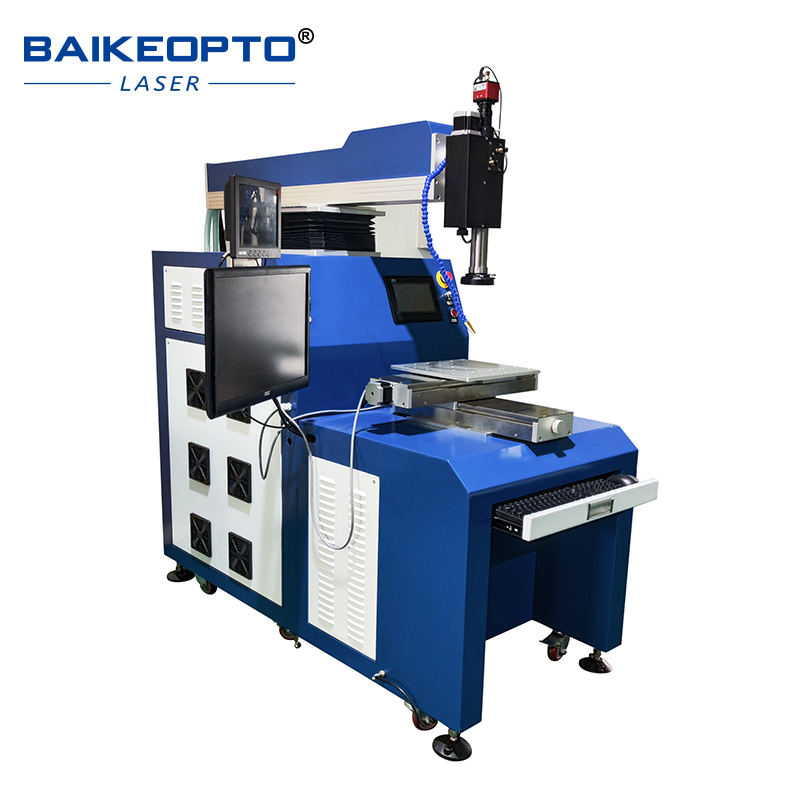

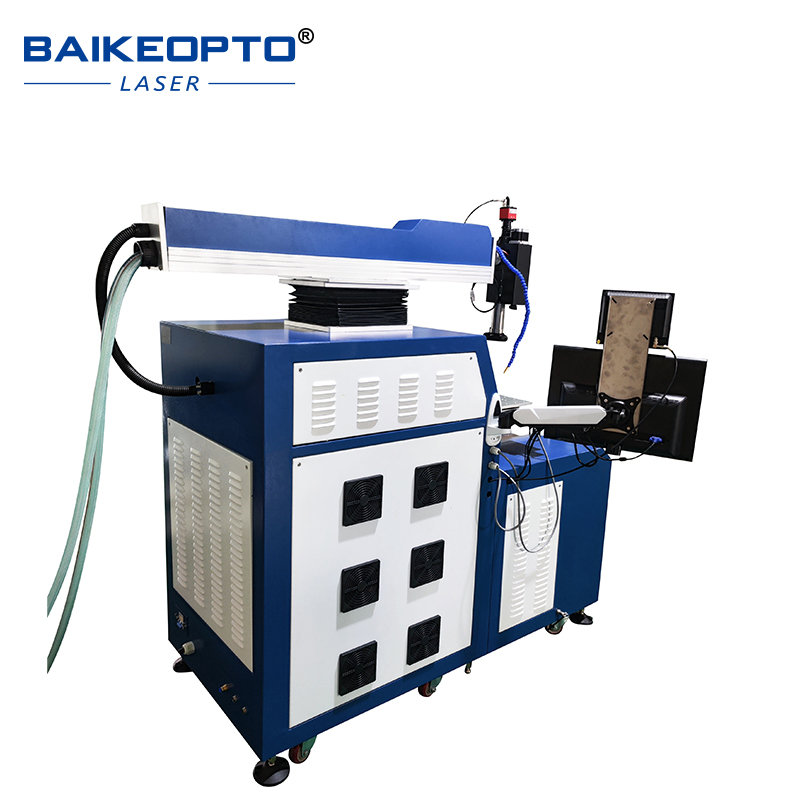

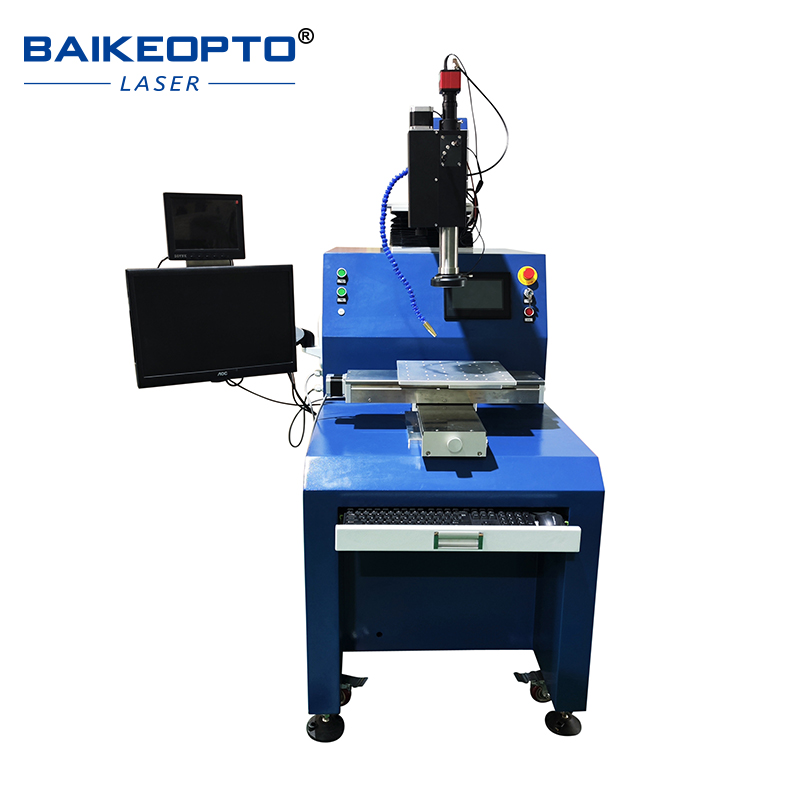

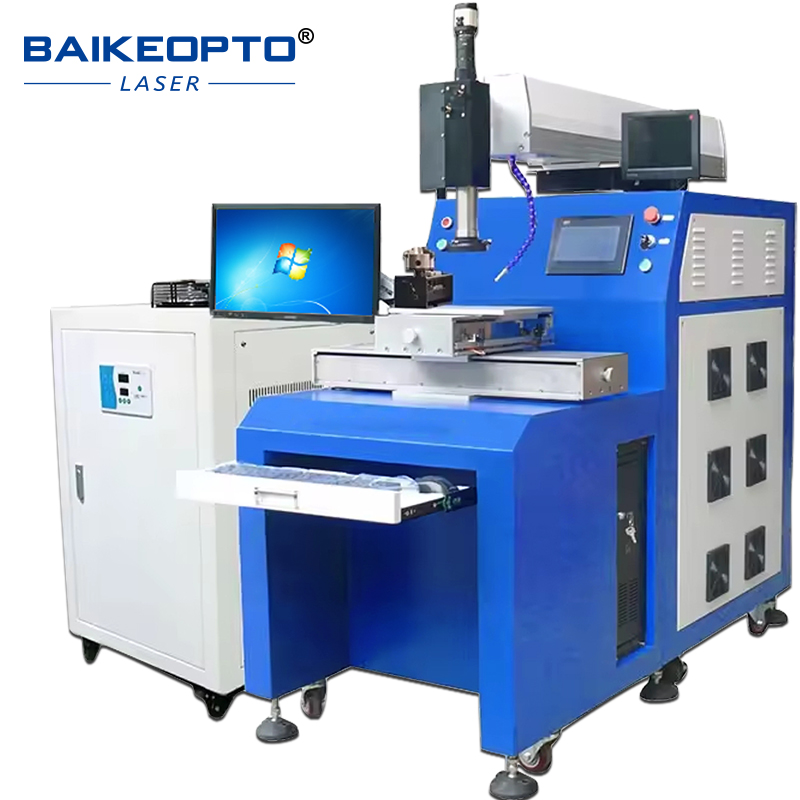

BK-WD400 400W Multi-axis High Precision 2D 3D YAG Laser Welding Machine for Mold Repair, Bearings, Gears and Other Irregular Shapes Metal

YAG WELDING MACHINE
3D work bench and the master unit are highly integrated which ensures mechanical stability. Able to weld spots, seams, squares, any 2D or 3D curve automatically with smooth and even finishing Especially suitable for mass production of one single product in a certain period

1. High conversion efficiency, high energy stability, good beam mode. the overall performance of the device has significantly improved, which enhanced the operation of the equipment ductility. Wide range of applications, and easy to operate.
2. Integrated designs, beautiful and gorgeous appearance, compact and reasonablestructure.
3. Double pulse xenon lamp, constant current switching power supply, programmable pulse and intelligent system management, and it has a misuse and over-temperature water flow automatic protection.
4. Three-axis table system and light guide system by the lPC or CNC control, so it can achieve three or four-axis movement.
5. HD low-shimmering CCD observation system helps the operator to monitor welding process easily and comfortably.

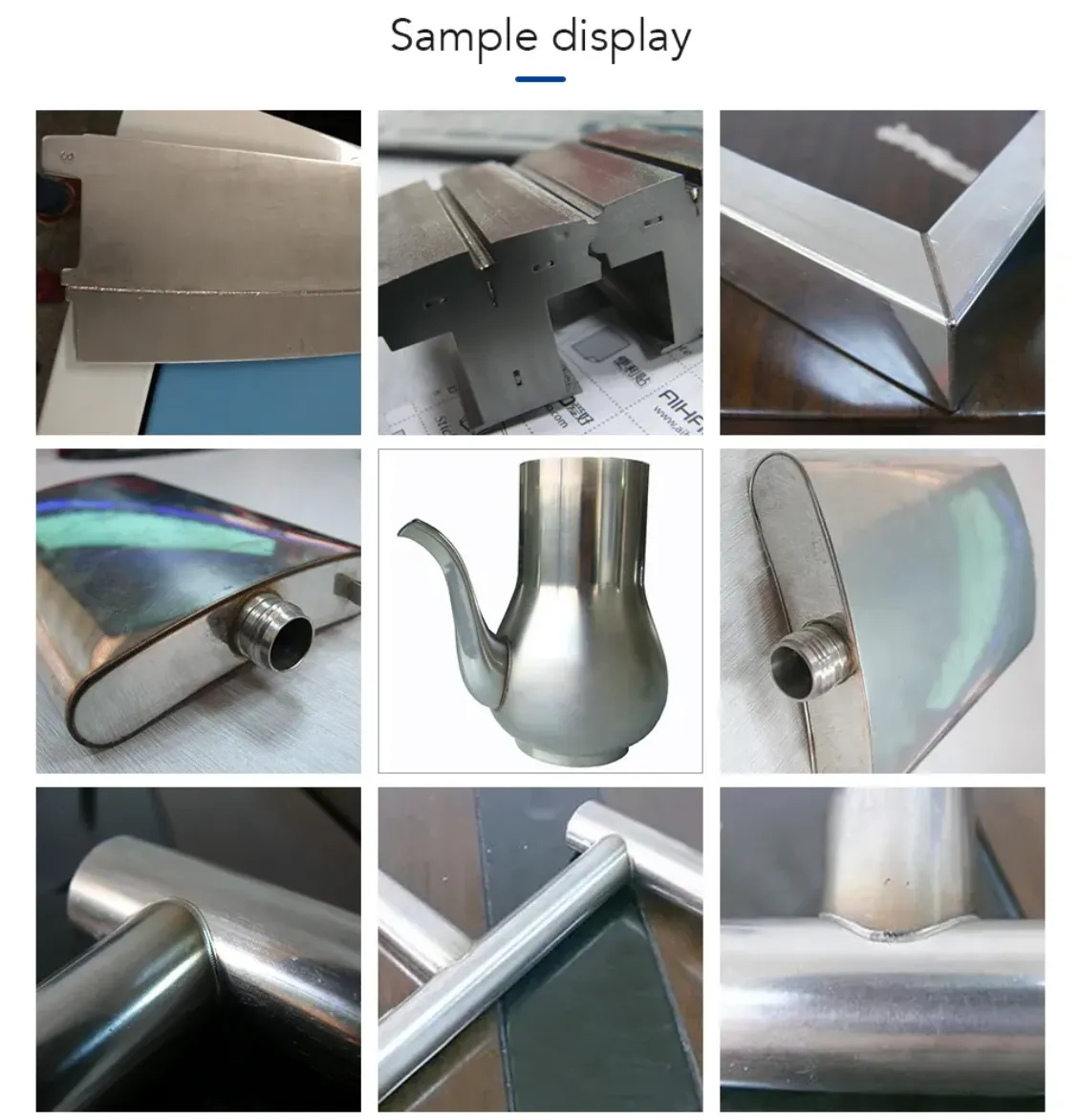

6. The width of the weld is small, the heat affected area is small, Also the deformation is small, and the welding speed is fast and so on.
7. Welding groove is smooth and beautiful, no need to deal with anything after welding, high welding quality, no pores, this can reduce or optimize the base metal impurities, welding can be refined after welding.
8. lt can achieve precise automatic control, little laser output power changes, and focus spot is small, high precision positioning.
9. lt comes with a rotating fixture, and can weld the round tube and other special parts. Automatically welding or manual welding can be selected to rapidly weld all kinds of components.

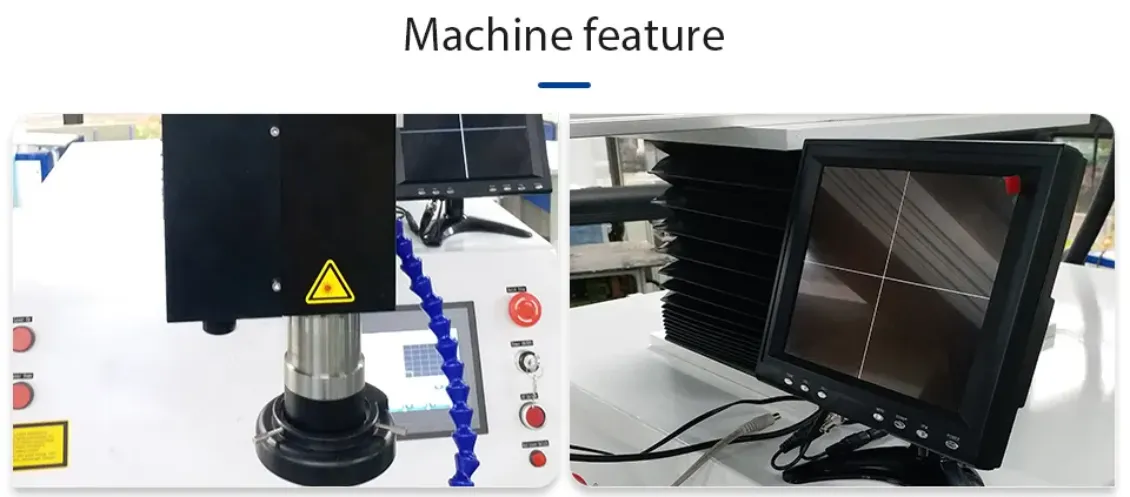

Laser head

It is equipped with a high-power collimated laser welding head, which can accurately focus the laser beam onto the welding area of the workpiece.

CCD observing system

High precision ,CCD camera can tracethe welding path and points clearly Watching from CCD camera and LCD screen, detect the welding process easily.

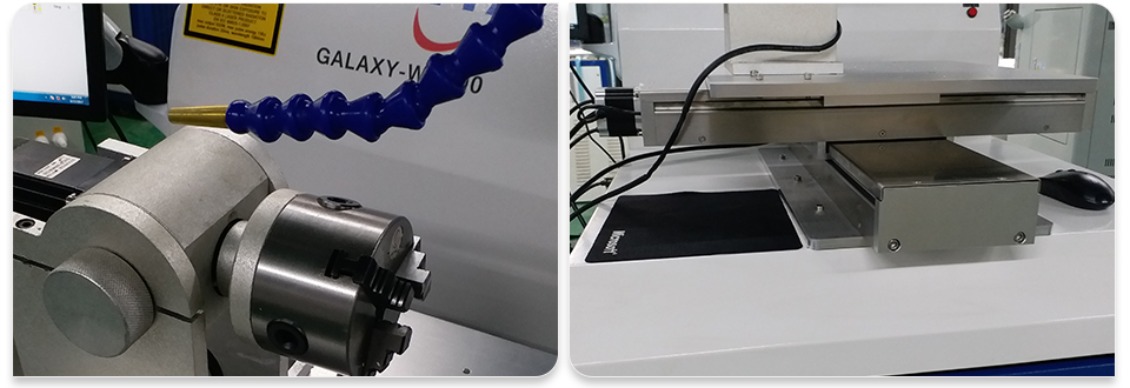

Rotation Axis

The welded workpieces are fixed on theworkbench by special fixtures to preventthe accuracy from being affected byvibration or thermal deformation duringthe welding process

XY axis

The equipment is equipped with a multi-axis motion platform. Through mechanical components such as servo motors, guide rails, and lead screws, it enables the precise movement and Angle adjustment of the welding joint in three-dimensional space.

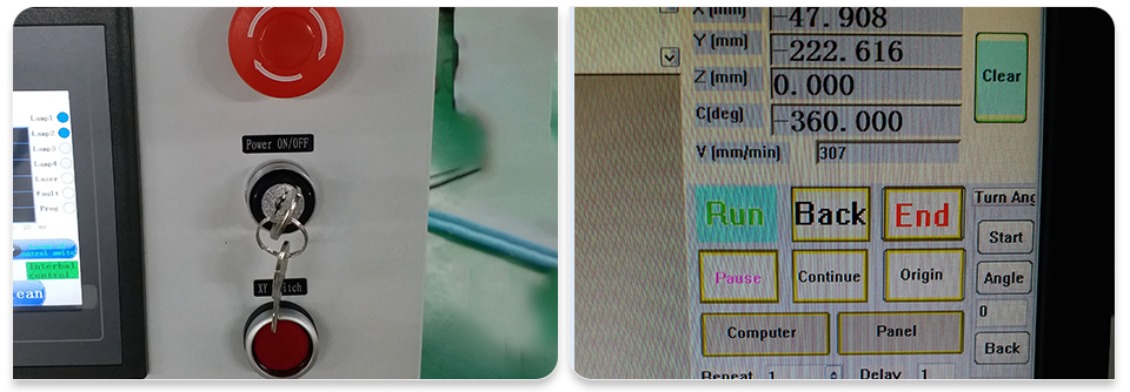

Control Switch

Through precise operation on the contro!panel, the YAG laser welding machinecan achieve full-process control fromparameter debugging to automatedproduction.

Operating Software

Through software programming, parameters such as the pulse width, energy, peak powerand repetition frequency of the laser can beprecisely controlled. At the same time, the actions of the motion control system can be coordinated to achieve the automation and intelligence of the welding process.
