Product Details Display

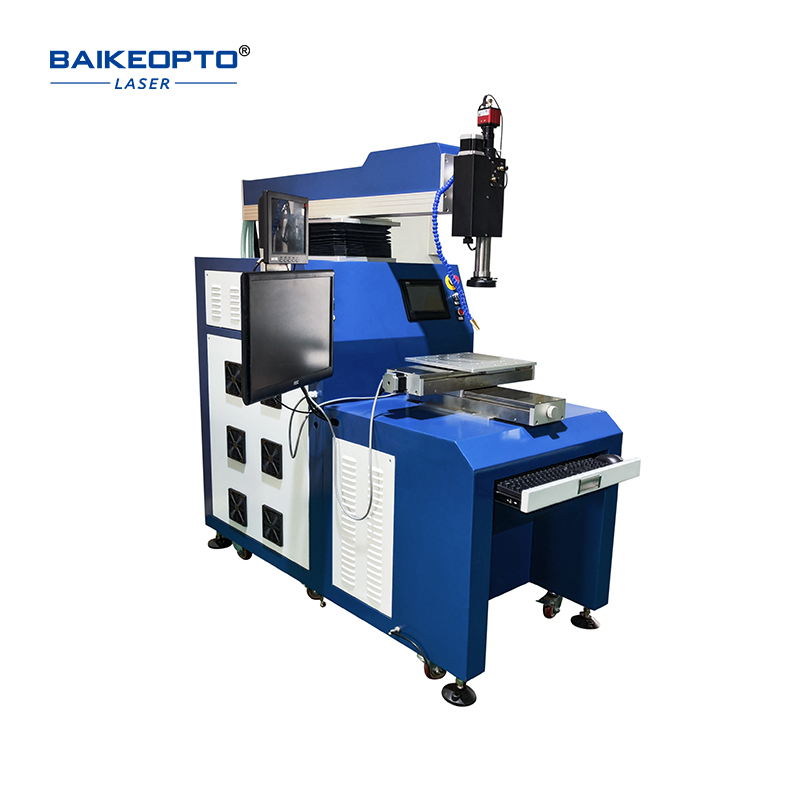

BK-WD500【FOB】
Product Information
Performance：
3D work bench and the master unit are highly integrated which ensures mechanical stability
Able to weld spots,seams,squares,any 2D or 3D curve automatically with smooth and even finishing
Especially suitable for mass production of one single product in a certain period
Optional servo motor and fixture can improve processing efficiency and accuracy significantly
HD low-shimmering CCD observation system helps the operator to monitor welding process easily and comfortably
Applications：
Welding and manufacturing of sealed container, sensors,instruments and apparatuses, motor rotor, battery, filter nozzle and other auto parts, medical equipment, stainless steel kitchenware, hardware products, metal eyewear frame, golf head, alloy crafts, etc.
Main Component Diagram
Technical Data
| Model No. | BK-WD300 | BK-WD400 | BK-WD500 |
| Laser Power | 300W | 400W | 500W |
| Power Stability | standard power:±5% , energy negative-feedback power:±2% | ||
| Laser Wavelength | 1064nm | ||
| Pulse Width | ≤20ms | ||
| Pulse Frequency | ≤100Hz | ||
| Welding Spot Diameter | 0.2-2mm | ||
| Max Welding Depth | ≤1.5mm | ||
| Welding Wires Diameter | 0.4~1.2mm | ||
| Power Consumption | 6KW | 14KW | 16KW |
| Power Supply | AC220V single phase | AC380V three phase | |
| Bench Load | ≤100Kg | ||
| Bench Stroke | Standard 300*300mm,Other sizes can be customized | ||
| Control System | Industrial PC and CNC motion control software | ||
| Operation Interface | 7” LED touch control interface,Chinese/English available | ||
| Lifting Stroke | Electrical lifting 250mm,manual lifting 100mm | ||
| Repeating precision | ±0.01mm | ||
| Positioning Precision | ±0.02mm | ||
| Locating System | red laser, CCD monitor system,optional fixture | ||
| Cooling Method | external water cooling | ||
| Host Dimensions | 1600*700*1350mm | ||
| Ambient Environment | temperature0~35℃,humidity5~85% | ||
