BK-WF1000B-Raycus1000W【FOB】

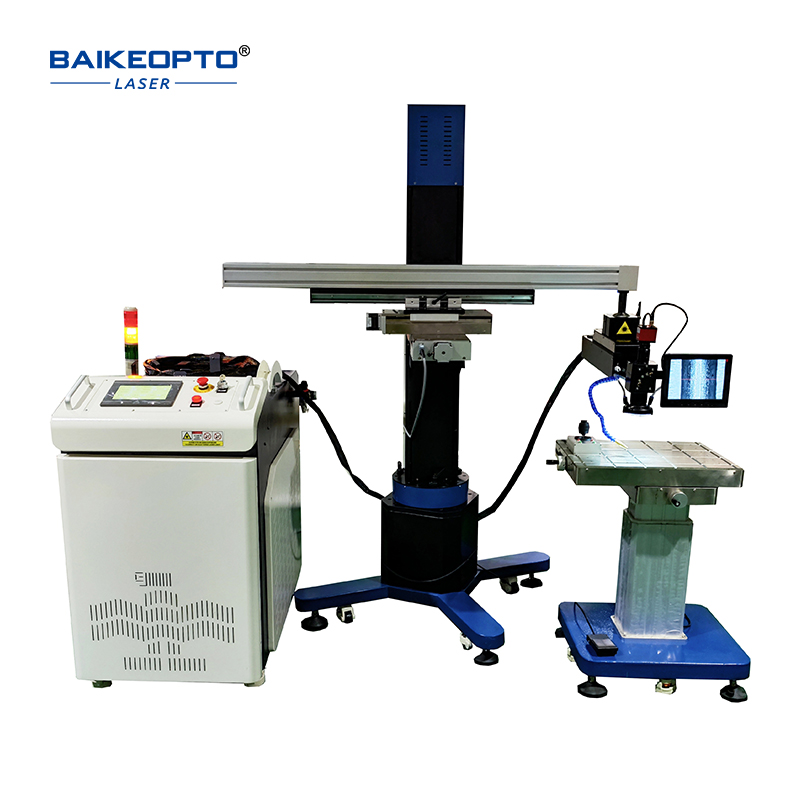

Model：Cantilever Type Mold Repair Welding Machine BK-WF1000B
Laser Power：1000W/1500W/2000W
Electric stroke：X/Y axis：100mm、Lifting z-axis：600mm，The cantilever base can rotate 360 degrees horizontally
$10,299.00 USD
$11,399.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description
Product Information
| Main component | Brief description | remarks |
| LASER RESOURCE | raycus 1500W/2000W Continuous fiber laser，The optical fiber has a total length of 10 meters, a core diameter of 50μm, and a red light indicator | Two-year warranty |
| Welding joint | BAIKE OPTO self-made YAGWater cooled welding joint，Focal length 150mm，Spot size can be manually adjusted | One-year warranty |
| Cantilever three-dimensional platform | Triaxial motor，X=100mm, Y=100mm, Z=600mm，The base rotates 360 degrees horizontally | One-year warranty |
| Cooling System | 220V/50HzHorizontal built-in fiber laser special water cooler，Double temperature double cycle，Low noise，Overtemperature alarm，Flow protection、Water level protection | One-year warranty |
| Electronic control system | BAIKE OPTO self-made，Schneider Chint and other high-quality components are used | One-year warranty |
| Control System | BAIKE OPTO Self-developed system，7 inch color touch screen operation，With slow energy rise and fall function | One-year warranty |
| Observation system | High definition low flash coaxial CCD camera，8 "LED monitor，Blue LED lighting | One-year warranty |
| Auxiliary blowing | Quick plug joint，Plastic spring gas pipe | One-year warranty |
Main Component Diagram
Technical Data
| Mode | BK-WF1000M | BK-WF2000M |
| Laser type | fiber laser | |
| Laser power | 1000W | 2000W |
| Laser wavelength | 1064~1080nm | |
| Power regulation range | 1~100% | |
| Frequency adjustment range | 1~100Hz | |
| Range of pulse width adjustment | 1~10ms | |
| Spot adjustment range | 0.1~3mm | |
| Output focal length | 150mm | |
| Maximum penetration | ≦3mm | ≦4mm |
| Fuse welding wire | Φ0.3~1.2mm | Φ0.3~1.6mm |
| Power supply demand | 220V 50~60Hz | 380V 50~60Hz |
| Electric stroke | X/Y axis：100mm、Lifting z-axis：600mm，The cantilever base can rotate 360 degrees horizontally | |
| Cantilever size | L800*W800*1600mm，Arm length1300 | |
| Distance between welding joint and ground | The highest 1150mm，lowest400mm | |
| Positioning system | Red light visual localization、CCD pass monitoring system | |
| Control panel | Touch control operation | |
| Outgoing light control mode | Foot control out light | |
| Cantilever control | Electric remote control | |
| Cooling mode | Water cooling | |
| Environmental requirements | temperature 5~30℃；humidity 5~85% | |
| Size of main control cabinet | L1080*W620*H1000 (mm) | |
| Welding table size | L620* W 468* H691 (mm) | |
| Total weight of equipment | 400KG | |
Thank You For Your Attention And Choice.
Machine Working Video

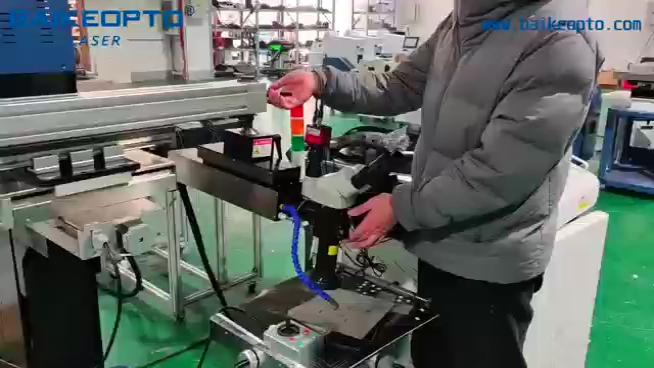

Wuhan Baike Times Laser Technology Co., Ltd., has a wholly-owned subsidiary, Wuhan Baike Intelligent Technology Co., Ltd.The picture on the right shows the video of machine work in the factory.
For more application videos, see the product videos or application videos in the Application column.
