BK-WF1500B-Raycus1500W【FOB】
Model：Cantilever Type Mold Repair Welding Machine BK-WF1500B
Laser Power：1000W/1500W/2000W
Electric stroke：X/Y axis：100mm、Lifting z-axis：600mm，The cantilever base can rotate 360 degrees horizontally
$11,000.00 USD
$12,100.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description
Product Information
| Main component | Brief description | remarks |
| LASER RESOURCE | raycus 1500W/2000W Continuous fiber laser，The optical fiber has a total length of 10 meters, a core diameter of 50μm, and a red light indicator | Two-year warranty |
| Welding joint | BAIKE OPTO self-made YAGWater cooled welding joint，Focal length 150mm，Spot size can be manually adjusted | One-year warranty |
| Cantilever three-dimensional platform | Triaxial motor，X=100mm, Y=100mm, Z=600mm，The base rotates 360 degrees horizontally | One-year warranty |
| Cooling System | 220V/50HzHorizontal built-in fiber laser special water cooler，Double temperature double cycle，Low noise，Overtemperature alarm，Flow protection、Water level protection | One-year warranty |
| Electronic control system | BAIKE OPTO self-made，Schneider Chint and other high-quality components are used | One-year warranty |
| Control System | BAIKE OPTO Self-developed system，7 inch color touch screen operation，With slow energy rise and fall function | One-year warranty |
| Observation system | High definition low flash coaxial CCD camera，8 "LED monitor，Blue LED lighting | One-year warranty |
| Auxiliary blowing | Quick plug joint，Plastic spring gas pipe | One-year warranty |
Main Component Diagram
Technical Data
| Mode | BK-WF1500M | BK-WF2000M |
| Laser type | fiber laser | |
| Laser power | 1500W | 2000W |
| Laser wavelength | 1064~1080nm | |
| Power regulation range | 1~100% | |
| Frequency adjustment range | 1~100Hz | |
| Range of pulse width adjustment | 1~10ms | |
| Spot adjustment range | 0.1~3mm | |
| Output focal length | 150mm | |
| Maximum penetration | ≦3mm | ≦4mm |
| Fuse welding wire | Φ0.3~1.2mm | Φ0.3~1.6mm |
| Power supply demand | 220V 50~60Hz | 380V 50~60Hz |
| Electric stroke | X/Y axis：100mm、Lifting z-axis：600mm，The cantilever base can rotate 360 degrees horizontally | |
| Cantilever size | L800*W800*1600mm，Arm length1300 | |
| Distance between welding joint and ground | The highest 1150mm，lowest400mm | |
| Positioning system | Red light visual localization、CCD pass monitoring system | |
| Control panel | Touch control operation | |
| Outgoing light control mode | Foot control out light | |
| Cantilever control | Electric remote control | |
| Cooling mode | Water cooling | |
| Environmental requirements | temperature 5~30℃；humidity 5~85% | |
| Size of main control cabinet | L1080*W620*H1000 (mm) | |
| Welding table size | L620* W 468* H691 (mm) | |
| Total weight of equipment | 400KG | |
Thank You For Your Attention And Choice.
Machine Working Video

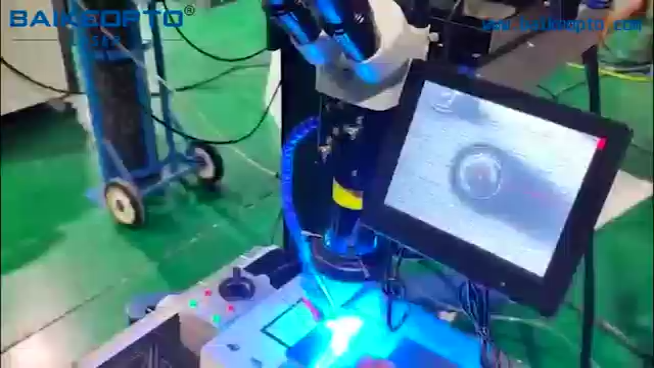

Wuhan Baike Times Laser Technology Co., Ltd., has a wholly-owned subsidiary, Wuhan Baike Intelligent Technology Co., Ltd.The picture on the right shows the video of machine work in the factory.
