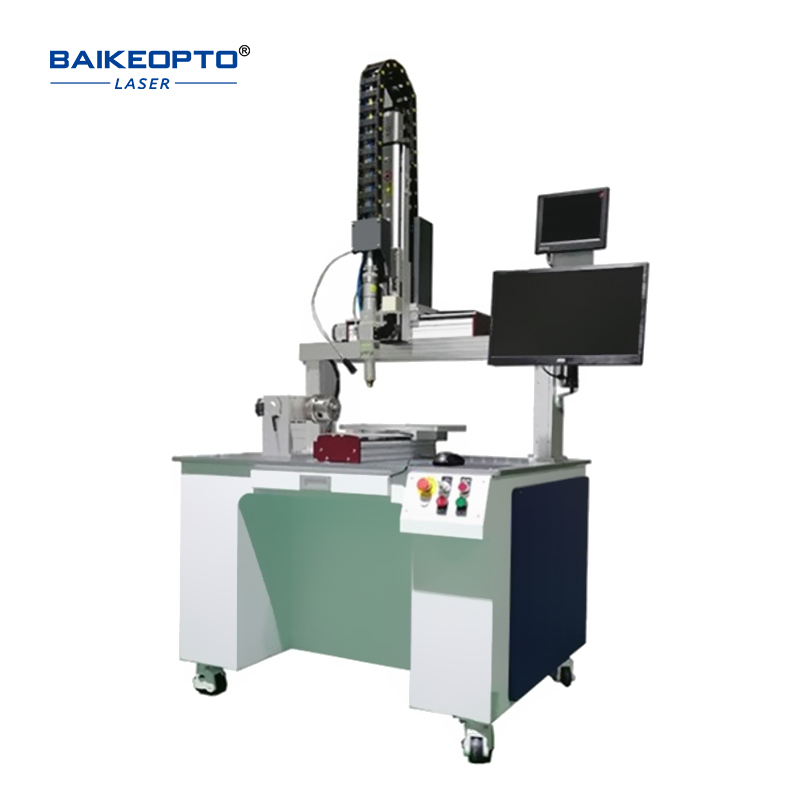

BK-WF1500D-Raycus1500W【FOB】
Product Information
MACHINE CABINET：aluminum gantry design and 10mm aluminum table top ensure structrial stability
LASER SOURCE：adopt Chinese best Raycus CW fiber laser source，low maintenance and long service time
MOTION SYSTEM： X=300mm，Y=300mm，Z=200mm， guided by CCTL linear and driven by Panasonic servor motor，location precision±0.05mm. Y manal adjustment with travel distance to be customized
OPTICAL SYSTEM：Swiss Raytools BW210 fiber laser welding head adopted，fully water cooled support 24/7 work
CONTROL SYSTEM：Adopt industrial fiber laser control system with eco-friendly interface and energy ramp up
COOLING SYSTEM：Adopt top quality Doluyo brand high precision dual-temp water chiller
AUXILIARY SYSTEM：Coaxial CCD observation attached; coacial blowing and side shaft blowing both offered
* JIG：Optional device; 2 or 3 jigs can be set on the same table to enhance work effeciency significantly
Main Component Diagram
Technical Data
| No. | Item | Parameter |
| 1 | Model No. | BK-WF1000 / BK-WF1500 / BK-WF2000 |
| 2 | Laser Power | 1000W / 1500W /2000W |
| 3 | Power Stability | ±1.5% |
| 4 | Laser Wavelength | 1064nm |
| 5 | Laser Mode | Pulsed or CW |
| 6 | Frequency | 1~5000Hz |
| 7 | Weld Bead Width | 0.2~1.2mm |
| 8 | Weld Bead Depth | 0.2~2mm / 0.2~3mm /0.2~5mm (depends on material) |
| 9 | Power Consumption | ≤7KW / ≤8KW /9KW |
| 10 | Power Supply | Single phase, AC220V @50Hz/60Hz |
| 11 | Location | red laser, jig |
| 12 | Cooling Type | Independent water cooling |
| 13 | Dimensions | laser:1140*890*1540, chiller:612*463*864 |
| 14 | Work Environment | 5~40℃, humidity 5%~75% |
Thank You For Your Attention And Choice.
