Product Details Display

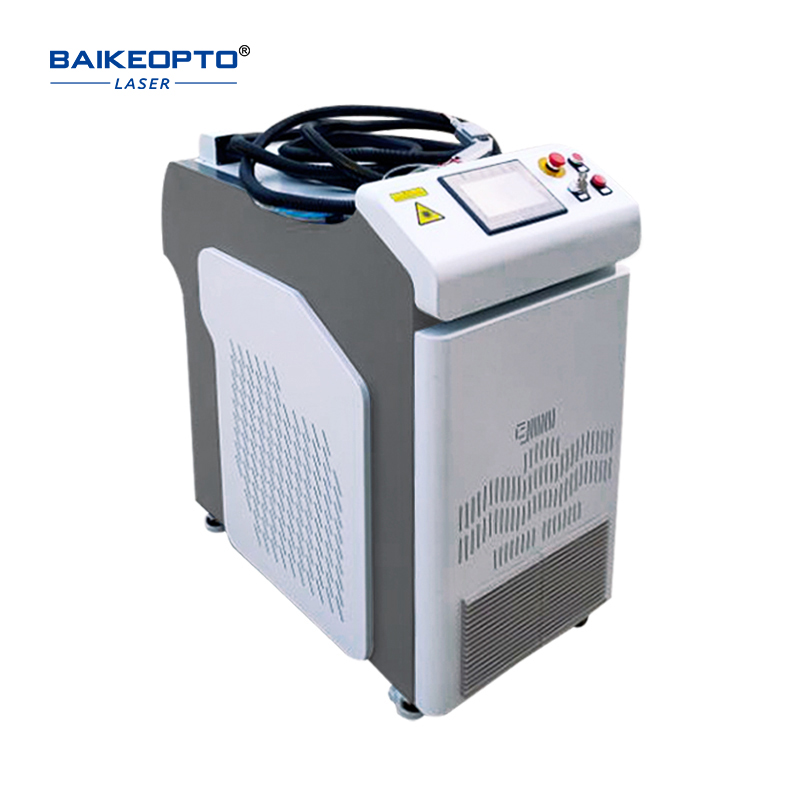

BK-WF2000S-Raycus2000W【FOB】
Product Information
Long life fiber laser adopted, high photo-electronic conversion efficiency, low maintenance yet easy operation
Compact design and built-in water cooling technology save its footprint and ensure greatest mobility
1000W/1500W/2000W available to meet different demands for welding depth and work efficiency
Standard water-cooled welding gun support shield gas; Optional wobble welding gun can realize 4mm big spot welding, which allows wider seam or rough edge
Nice and smooth finishing,repeat welding acceptable,slight polishing after welding is suggested but not necessary
Classic nozzle kit available for various application sceneries
Widely applied in welding and forming of different sheet metal pieces, AD signs, commercial kitchen, stove, crill cart, food cart, doors, windows, frames, metal furniture, lamp covers, power cases, fire boxes, pipes and etc.
Main Component Diagram
Technical Data
| Model | CY-WF1000S | CY-WF1500S | CY-WF2000S |
| Laser Source | Fiber Laser 1070nm | ||
| Laser Power | 1000W | 1500W | 2000W |
| Modulation Frequency | <10k Hz | ||
| Energy Stability | ±1.5% | ||
| Work Mode | Continuous & Pulsed | ||
| Input Voltage | AC 220V | AC 380V | |
| Power Consumption | 6KW | 7KW | 8KW |
| Penetration Depth | 2mm | 3mm | 4mm |
| Cooling Unit | Built-in chiller | ||
| Fiber Cable Length | 10 meters, 50μm | 10 meters,100μm | |
| Ambient Temp | 10-40℃ | ||
| Control Interface | 7” LED Touch Screen | ||
| Language Option | English/Chinese/Korean/Spanish | ||
| Dimention | 1080*600*1300 (mm)/ | ||
| 42.52*23.6*51.18 (inch) | |||
| Gross Weight | 240KG | 255KG | 270KG |
Thank You For Your Attention And Choice.
Machine Working Video
For more application videos, see the product videos or application videos in the Application column.
