BK-WF3000R【FOB】
Product Information
1. The optical fiber laser welding machine and the manipulator can realize six-axis linkage to complete the welding of any track in space and meet the needs of various automatic production,
2. The height of the laser welding head and the working platform can be adjusted to facilitate the loading and unloading of the fixture and the processed parts;
3. The intelligent protection device of the whole machine automatically cuts off the power supply to protect the laser in case of failure
4. The equipment has stable quality and reliable performance, and can be processed continuously and stably for 24 hours to meet the needs of industrial mass production and processing
5. Non-standard customization can be carried out according to customer requirements, such as dual-station or multi-station design.
6. Improve labor productivity and labor intensity.
| Item | Standard Configuration | Quantity | Brand |
| 1 | laser (brand optional) | 1 | Raycus laser 3000W |
| 2 | Six-axis Industrial robot (brand optional) | 1 | ESTUN ER8-1450 |
| 3 | Welding joint | 1 | Kirin BWT30 |
| 4 | Wire feeder (optional) | 1 | Kirin SST30 |
| 5 | Control system (with touch screen) | 1 | Kirin BT30 system |
| 6 | Hanli Water Cooling system (installed in the cabinet) | 1 | SCH3000 |
| 7 | plc amplifier board integrated board | 2 | 4 way |
| 8 | 24V switching power supply | 1 | 350W 24V |
| 9 | Protective lens (Special for Kirin) | 1 | |
| 10 | contactor | 3 | 32A 4P |
| 11 | Solenoid valve | 1 | |
| 12 | Air switch | 1 | 4P 63A |
| 13 | Hand welding cabinet | 1 | |
| 14 | 12V switching power supply | 1 | 75W 12V |
| 15 | Tricolor lamp | 1 |

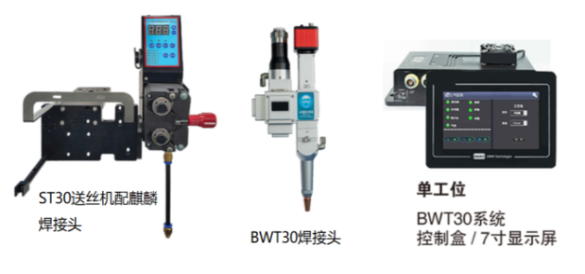

Main Component Diagram
Technical Data
Subsequent supplement。
