BK-WF400HZ【FOB】

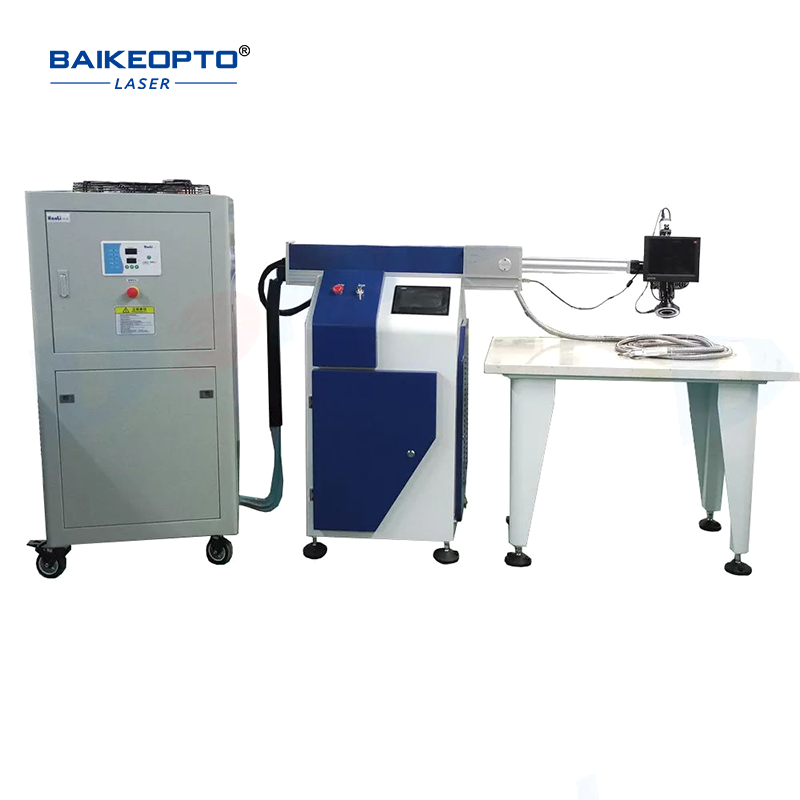

Model：YAG double-light advertising welding machine BK-WF300HZ
Laser Power：300W/400W/500W
Table Size：W1000*L750mm
$7,899.00 USD
$8,199.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description
Product Information
1.red dot fast locating 2.2019 new welding pen 3.LED touchscreen HMI
4.Best YAG rod made in China 5.Doluyo chiller 6.Optics fully sealed by acrylic cover
7.HD CCD observation 8.adjustable locating pin 9.Reliable laser power
10.4 exaust fan
Main Component Diagram
Technical Data
| Laser Source | Nd3+: YAG bar Φ7*145mm | Nd3+: YAG bar Φ8*155mm |
| Laser Wavelength | 1064nm | |
| Laser Tube Qty’ | 1 pc | 2 pcs |
| Single-pulse Energy | 80J | 120J |
| Pulse Duration | 0.2~20ms | |
| Frequency Range | 0.1~50Hz | 0.1~100Hz |
| Workable Current | 50~200A | 50~200A |
| Welding Spot Diameter | 0.3~1.0mm | 0.3~1.2mm |
| Table Size | W1000*L750mm | |
| Laser Arm Stretch | total length 1370mm,strech distance 750mm | |
| Fiber Cable Length | 5 meters (max work distance of pen mode) | |
| Settings Memory | 100 groups | |
| Control Panel | 7” color LED touch screen | |
| Language Option | English/Chinese | |
| Power Supply | 220V/50Hz (220V/60Hz optional) | 380V/50Hz (380V/60Hz optional) |
| Power Consumption | Laser: 8KW , Chiller:1KW | Laser:16KW , Chiller:4KW |
| Dimensions(mm) | Laser &table: 1730*750*1250 | Laser & table: 1730*750*1250 |
| Chiller: 480*580*800 (1HP) | Chiller: 1100*650*1350 (3HP) | |
| Net Weight | 305KG | 400KG |
| Package Volume | 2.5CBM | 3CBM |
| Package Weight | 345KG | 450KG |
| Applicable Materials | Stainless Steel, Titanium, Iron, Galvanized sheet | Stainless Steel, 1000 Serial Aluminum, Copper Alloy, Titanium, Iron, Galvanized sheet |
| Material Thickness | ≦2mm | ≦3mm |
