BK-WY300HZ【FOB】

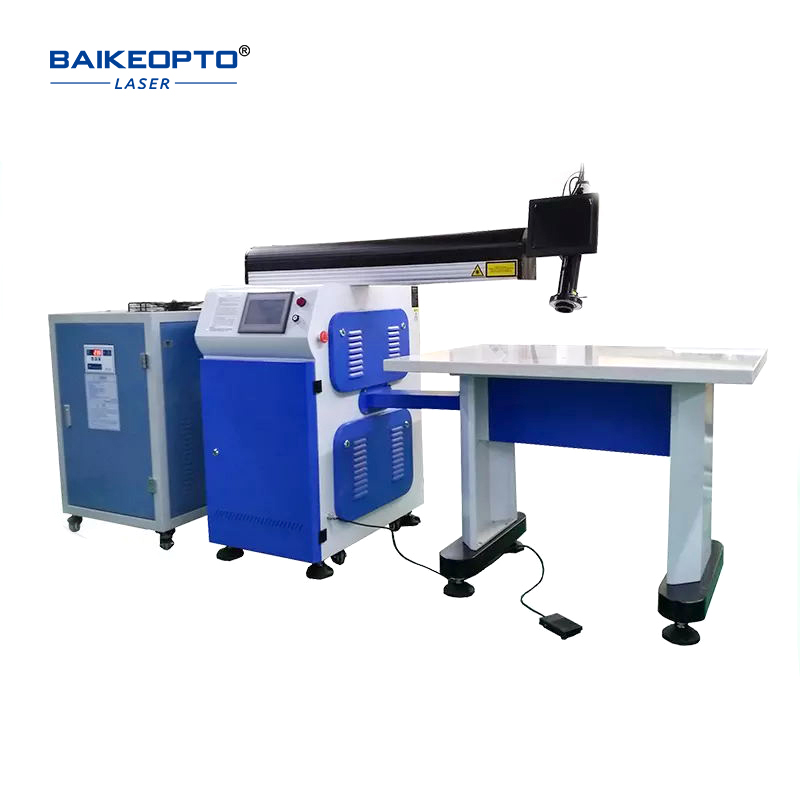

Model：YAG single optical path advertising soldering machine BK-WY300HZ
Laser Power：200W/300W/400W/500W
Table Size：W1100*L750mm
$4,899.00 USD
$5,199.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description
Product Information
Removable & Adjustable ocating pin,easy to replace.
Toughened glass table Protect material from scratches.
HD CCD observation gives operator a better view.
CE approved with safty labels.
Red dot helps locating faster &easier.
LED touch screen,more friendly to users.
YAG barof military quality.
long-life power supply less aftersales problem.
4 exhaust fans for better cooling.
Acrylic sealing cover for dust-proof of optics.
Touch control water chiller better cooling & less noise.
Main Component Diagram
Technical Data
| Model No. | WY300HZ | WY400HZ |
| Laser Power | 300W | 400W |
| Laser Source | Nd3+: YAG bar Φ7*145mm | Nd3+: YAG bar Φ8*145mm |
| Laser Wavelength | 1064nm | |
| Laser Tube Qty’ | 1 pc | 2 pcs |
| Single-pulse Energy | 80J | 100J |
| Pulse Duration | 0.2~20ms | |
| Frequency Range | 0.1~50Hz | 0.1~100Hz |
| Workable Current | 50~200A | 50~300A |
| Welding Spot Diameter | 0.3~1.0mm | 0.3~1.2mm |
| Table Size | W1100*L750mm | |
| Laser Arm Stretch | 750mm (means max diameter of work piece is 1500mm) | |
| Settings Memory | 100 groups | |
| Control Panel | 7” color LED touch screen | |
| Language Option | English/Chinese | |
| Power Supply | 220V/50Hz (60Hz optional) | 380V/50Hz (60Hz optional) |
| Power Consumption | Laser: 8KW , Chiller:1KW | Laser:12KW , Chiller:2KW |
| Dimensions(mm) | Laser &table: 1730*750*1250 | Laser & table: 1730*750*1250 |
| Chiller: 480*580*800 (1HP) | Chiller: 590*800*940 (2HP) | |
| Net Weight | 305KG | 360KG |
| Package Volume | 2.5CBM | 2.7CBM |
| Package Weight | 345KG | 400KG |
| Applicable Materials | Stainless Steel, Titanium, Iron, Galvanized sheet | Stainless Steel, 1000 Serial Aluminum, Copper Alloy, Titanium, Iron, Galvanized sheet |
| Material Thickness | ≦1.5mm | ≦2mm |
Thank You For Your Attention And Choice.
