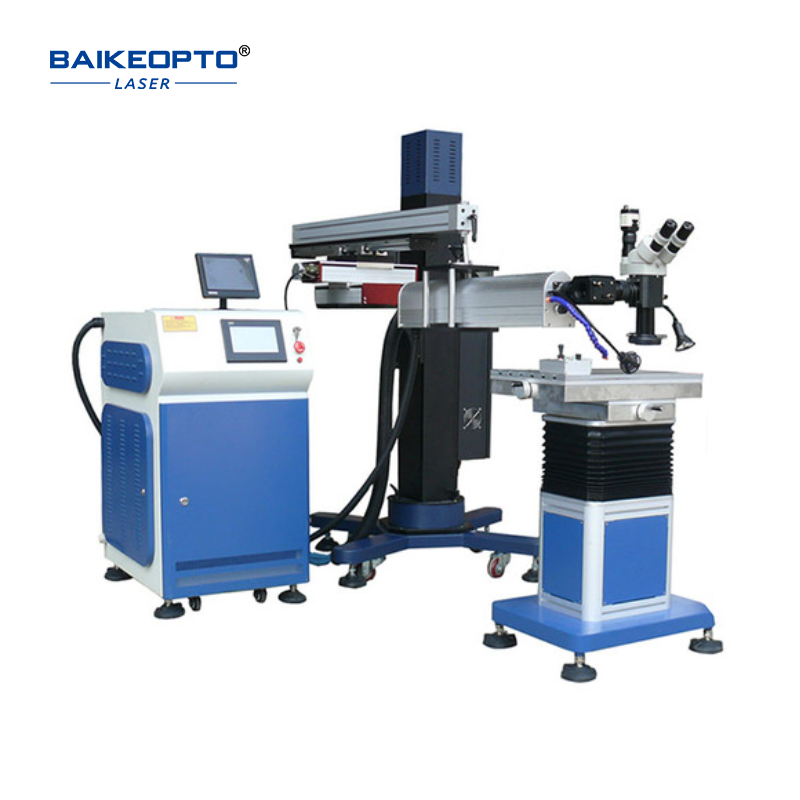

BK-WY200B【FOB】
Product Information
Performance：
1.Converging cavity made in UK: corrosion resistant and high temperature resistant, with 8-10 years service life. The life of xenon lamp bears more than 8 million times flashing.
2.Advanced light shielding system can eliminate the irritation to operator’s eyes from laser during work.
3.The laser head can rotate for 360°, lift up and down, move left and right, go forward and backward
4.The parameters are controlled by intelligent remote controller, which is simple and convenient for the operator
5.The work bench can be lifted, and moved in three dimensions.
6.The size of light spot can be adjusted automatically per different application
7.Extensional hand-held welding pen available
Applications:
Universal laser welding& repairing system was originally designed for mould industry for repairing precision molds, such as mould of digital products, mobile phone, toy, automobile and motorcycle. By applying suitable soldering wires, it is possible to fill the crack or blowholes and reuse the mould which saves production cost and improves working efficiency significantly. This laser welding system also can be used in metal sheet stitching welding, pipe/ tube conjunction welding, and manufacturing of sensor, level switch and fine auto parts, etc.

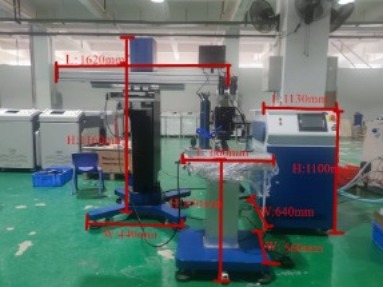

Main Component Diagram
Technical Data
| Model No. | BK-WY200B | BK-WY400B | |
| Laser Power | 200W | 400W | |
| Power Stability | ±5% , ±2%Standard :±5%, optional energy negative-feedback power:±2% | ||
| Laser Wavelength | 1064nm | ||
| Pulse Width | ≤20ms | ||
| Pulse Frequency | ≤100Hz | ||
| Welding Spot Diameter | 0.2-1.5mm | ||
| Max Welding Depth | ≤1.2mm | ||
| Filler Wires Diameter | 0.4~1.0mm | ||
| Power Consumption | 8KW | 15KW | |
| Power Supply | AC220V | AC380V | |
| Bench Load | ≤100kg | ||
| Bench Stroke | 250*150mm | ||
| Arm Stroke | 200*200mm， optional：200*200mm, arm rotates for 360° horizontally | ||
| Operation Interface | 7” LED touch control interface,Chinese/English available | ||
| Lifting Stroke | Electrical lifting 250mm | ||
| Repeating Accuracy | ±0.01mm | ||
| Positioning Accuracy | ±0.02mm | ||
| Locating System | red laser, CCD monitor system,optional fixture | ||
| Cooling Method | water cooling 1HP chiller | water cooling 2HP chiller | |
| Ambient Environment | 5℃-30℃, 5%-75% humidity | ||
