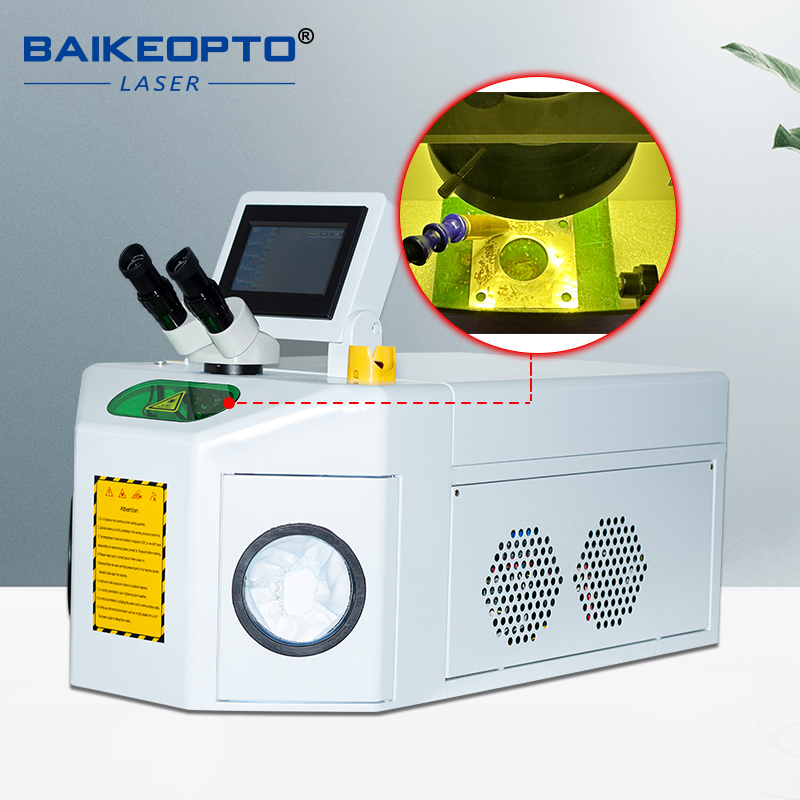

BK-YJW200H 200W Eco-Friendly YAG Laser Jewelry Spot Welder Machine for Platinum/Titanium/Precious Metals
BK-YJW200H 200W Eco-Friendly YAG Laser Jewelry Spot Welder Machine for Platinum/Titanium/Precious Metals
Model：200W YAG laser jewelry welding machine BK-YJW200H
Voltage：110V/220V
Laser Type：1064nm YAG Laser
Small size Low weight Easy to operate
Stable quality Fine details
$3,600.00 USD
$3,850.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Color
BK-YJW200H
Quantity
Description

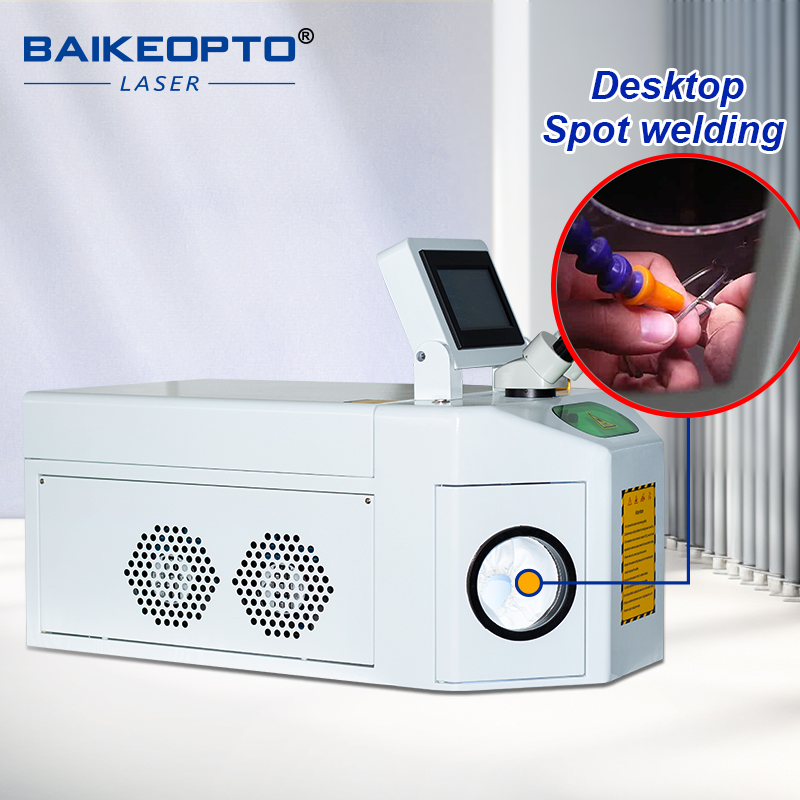

Mini Desktop Jewelry YAG Laser Welding Machine
| Jewelry laser welding machine adopts ergonomic design, suitable for professionaappearance design of jewelry laser welding industry, equipped with a dedicatedcross cursor microscope observation system, equipped with high-speed elec-tronic filter device, which can protect the eyes of the operator. The high-powerbeam expansion system can obtain more fine spots to meet the needs of finelaser spot welding; the whole machine is small in size, convenient to carry andtransport, simple to operate, good welding effect, stable and reliable equipment,and low failure rate. |
Product Advantages:
|
1.Energy, pulse width, frequency, spot size can be rapidly adjusted to achieve a variety of welding effects. 2.Capable of welding 1k~12k gold, copper alloy, zinc alloy, stainless steel, titanium alloy and other metals 3.Compact and practical light path design, light body and small footprint. 4.The service life of the spotlight cavity is more than 5 years, and the service life of the xenon lamp ismore than 6 million times. 5.The operation interface and observation interface are the same full-color touch LCD screen. 6.Stainless steel water tank welded by laser can effectively prevent scale from corroding the inner wall ofwater tank and optical components. 7.Support 12 hours of continuous work with stable performance, and no lamp replacement required within 8000 hours. 8.Human-based design accords with ergonomics, avoiding fatigue after long time working9.-Slight deformation, small heat-effective area, high welding quality, pollution free, eco friendly. |
|
Product
|
BK-YJW200H Laser Welder
|
|
Manufacturer
|
Baikeopto
|
|
Laser Type
|
1064 YAG Laser
|
|
Nominal Laser Power
|
200W
|
|
Beam diameter
|
0.5--3mm
|
|
Pulse width
|
0.1--20MS
|
|
Max. Laser Pulse Energy
|
70J
|
|
Frequency
|
0-35HZ
|
|
Magnification
|
10x, with cross center
|
|
Voltage
|
220V/110V
|
|
Language
|
English, Russian, French, Korean, Portugal, etc
|
|
Machine dimension
|
850*500*600mm
|
|
Machine Net weight
|
60kg
|
|
Gross weight
|
80kg
|
|
Cooling system
|
Built-in Water Cooling
|
|
Laser beam divergence
|
≤5rad
|
|
Laser instability
|
≤±2%
|
|
Continuous working hours
|
16h ≥
|
|
Welding focal length
|
F=110mm
|

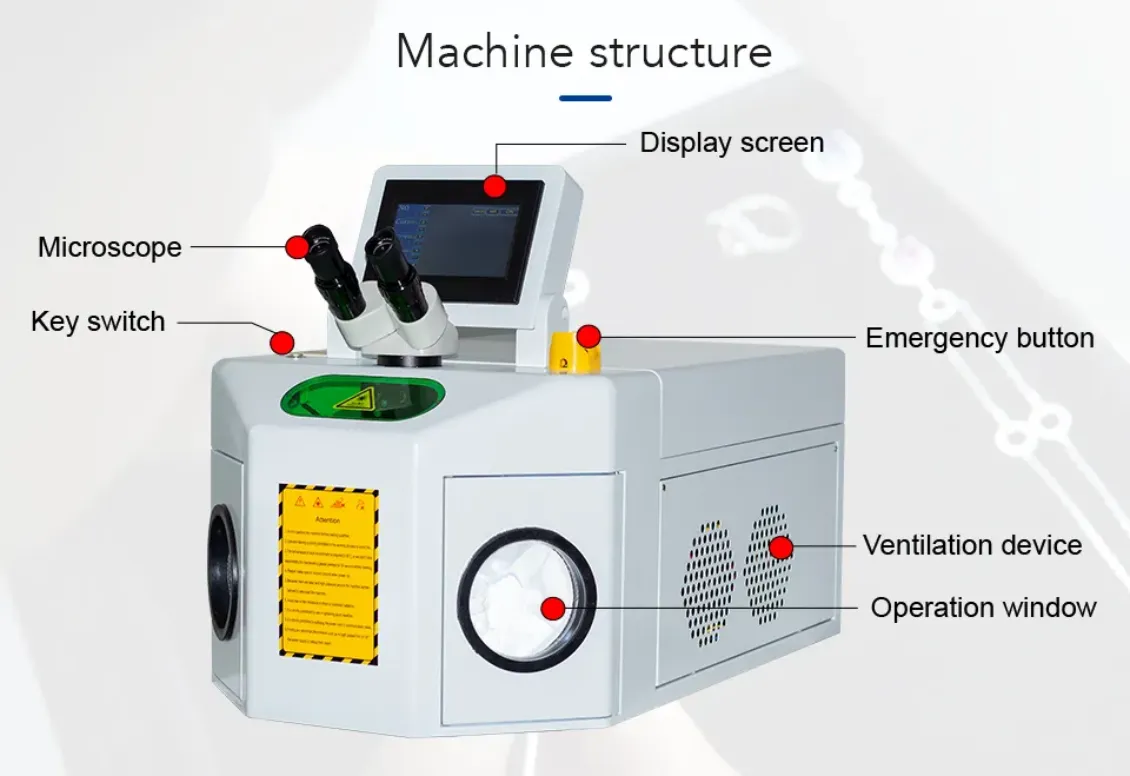

| HD microscope HD microscope observation operation,small parts at a glance. LCD interface,current, pulse width, frequency display function, dial to adjust the work table,more convenient for operation. Red light quickly find the right solder joint, can be installed with CCD visual observation (workbench welding). |
LCD screen Device is equipped with high-definitionCCD and red double-positioningsystems, higher positioning accuracy.This color screen and system supportseveral different language, which canmeet many different countries clientneeds. |
|

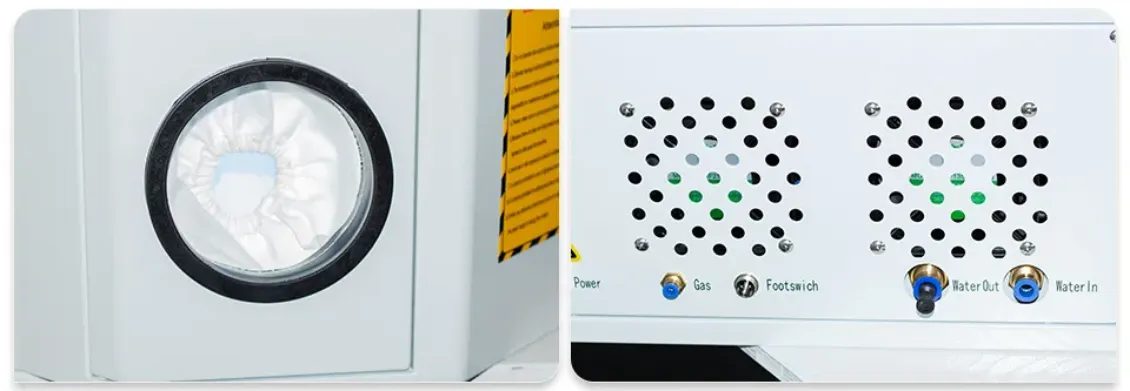

Operating window Jewelry welding area can be equippedwith lifting platform |
Interface panel Exquisite design technology simple andbeautiful |
| The jewelry laser welding machine is suitable for precision casting and welding of multi heavy metals and their alloy materials such as gold, silver, platinum, stainless steel, titanium, and small hardware composed of various metal materials. It can be widely used in industries such as jewelry, dentures, clocks, medical, instrumentation, electronics, mechanical mold processing, and automobiles. It is particularly suitable for repairing holes in gold and silver jewelry, spot welding sand holes, repairing seam patterns, and welding claw feet of embedded components. |
| Compared with other welding processes, laser welding can realize the welding of many materials, which has advantages in comparison. The thermal deformation of welding components is small and the joint quality is higher. Laser welding has the advantage of being able to achieve local heating characteristics in a small range which is widely used with precision devices such as jewelry, batteries, automotive.aviation and other applications. This machine is especially suitable for jewelry industry,no special fixture is needed, can be hand-held, micromagnifying glass cross aiming positioning spot welding, filling material, filling sand holes, spot welding freely, that is, spot. |
| Wuhan Baike inteligent Technology Co, Ltd, a wholly-owned subsidiary of Wuhan Baike Times Laser Technology Co,Ltd, was founded in 2008 as a professional supplier of laser machine.Wuhan aike Inteligent Technology Co,Ltd, located in Optical vaey of china, has gathered the best R&D,production and marketing teamsin the domesti.laser industry. More than 100 kinds ofindustrial laser products,including pneumatic marking machine, laser marking machine,laser welding machine,lasercuting machine, developed by the company's technical team,have been widely used in 3C electronics, semiconductor, new energy including photovoltaic)metalorocessina. automoble manwtactunng, electc power, textle machne, aslon twc, medical devces, nstuments ang meters, iood processing aneother industries, The product auality and service have been highly praised by customers internationaly. We has achieved strategic cooperation with dozens of domestic top 500 manufacturing enterprises,We've been dedicated to provide our customers with thehighest quaity,the best cost performance,the most suitable laser equipment.f you have any needs, please cal/mallus directly, All you need to do is just telus what you need, we'll provide the most professional services. |
|
1.What types of jewelry can be made or repaired using a laser welder?
Answer:Laser welders are suitable for a variety of jewelry materials, including gold, silver, platinum, and some alloys. They can be used to create intricate designs, join broken pieces, and add decorative elements to rings, necklaces, earrings, bracelets, and more.
|
|
2.What safety precautions should be taken when using a laser welder for jewelry?
Answer: Safety is paramount when using a laser welder. Always wear appropriate eye protection, such as laser-safe goggles, and ensure the work area is well-ventilated to avoid inhalation of fumes. Additionally, follow all operating instructions and keep flammable materials away from the machine.
|
|
3.Can a beginner use a jewelry laser welder, or does it require specialized training?
Answer: While laser welding can be learned by beginners, it does require some technical knowledge and practice to master. It's advisable to take a training course or watch tutorial videos to understand the fundamentals of operation, safety procedures, and best practices.
|
|
4.How much maintenance does a jewelry laser welder require?
Answer: Like any high-precision equipment, a laser welder requires regular maintenance to ensure optimal performance. This includes cleaning the lens, checking the laser tube and other components for wear, and performing software updates as needed.
|
| 5.How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
| 6. Will the package be damaged during transportation? Answer:Our package is considerate all the damage factors and make it to be safe, and our shipping agent have fullexperienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry,you will receive the parcel in good condition. |
| 7. How to instill and run the machine? Answer: Our technician has installed the machine before shipping. For some small parts installation, we will senddetail training video, user's manual along with the machine. 95% customers can learn by themselves. |
| 8.How can l do if the machine goes wrong? Answer: If confronted with such problems, online service is offered, you could contact our sales. Besides ,we offerengineer delivery service. Please contact us asap and don't try to fix the machine by yourself or someoneelse. We will respond within 12 hours as quick as wo can to solve it for you. |
