BKH10-1440 (500RP Plus)【FOB】
Model：BKH10-1440 (500RP Plus)
Robot Arm ： Payload 10Kg， 1440mm Max Working Radius
MIG Welder Model： MIG-500RP
$9,450.00 USD
$10,395.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description

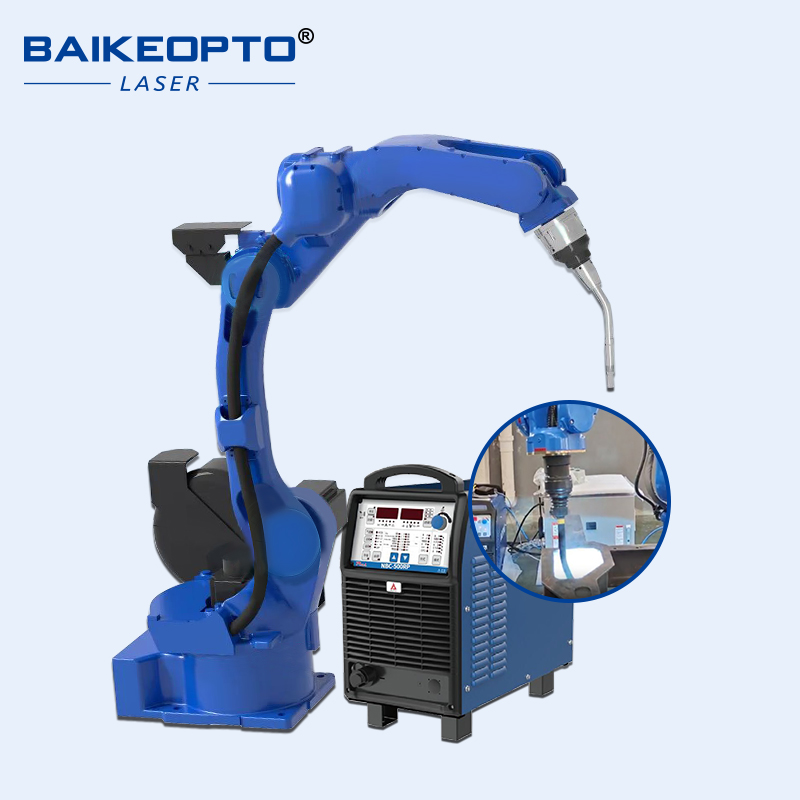

| Baiketech 6 Axis 10KG 1440mm Automatic Robotic Arm Integrate MIG Welding Machine！ |
| Key Features: |
1. Non-contact welding, The workpiece deformation is small without mechanical stress
2. High degree of flexibility, Any process path for any workpiece is controlled by the program
3. Fast welding speed, High production efficiency
4. Good welding quality,The welding surface is smooth and no post-processing is required
5. Sustainable and stable operation, tens of thousands of hours of super long service life
6. Green and environmental protection processing,Almost no consumables, high yield and no pollutants
7. Good welding flexibility, Spatial three-dimensional image arbitrary welding without manual adjustment of Angle.
8. High welding precision ,Laser spot small and narrow incision up to ±0.05mm high economic benefit
| Application: |
| It has an advanced and cost-effective Welding tool developed and trial-produced in small batches easily realizes high-speed hole cutting and arc cutting of metal frame and special-shaped pipe. |
| Parameters of Machine: |
|
Model
|
TH H10-1600 Robot Arm
|
|
|
Stucture
|
Articulated construction
|
|
|
Number of axis
|
6
|
|
|
Drive system
|
AC servo system
|
|
|
Max. working range |
J1
|
±170°
|
|
J2
|
+75 to -135°
|
|
|
J3
|
+175 to -75°
|
|
|
J4
|
±180°
|
|
|
J5
|
+15 to -195°
|
|
|
J6
|
±360°
|
|
|
Axis max. speed |
J1
|
148°/s, 2.58rad/s
|
|
J2
|
148°/s, 2.58rad/s
|
|
|
J3
|
297°/s, 5.18rad/s
|
|
|
J4
|
450°/s, 7.85rad/s
|
|
|
J5
|
450°/s, 7.85rad/s
|
|
|
J6
|
450°/s, 7.85rad/s
|
|
|
Payload
|
Wrist
|
10kg
|
|
Allowable static load torque for wrist |
J4
|
20N·m
|
|
J5
|
20N·m
|
|
|
J6
|
10N·m
|
|
|
Maximum allowable moment of inertia of the wrist |
J4
|
0.625kg·m3
|
|
J5
|
0.625kg·m3
|
|
|
J6
|
0.2kg·m3
|
|
|
Max. reach
|
1510mm
|
|
|
Position repeatability
|
±0.05mm
|
|
|
Air piping (Option)
|
φ8*1
|
|
|
Noise
|
70dB(A)
|
|
|
Rate power
|
4.35KW
|
|
|
Rate voltage
|
220V/110V
|
|
|
Length of cable between body and cabinet
|
3m
|
|
|
Installation
|
Floor mounted
|
|
|
Environmental performance
|
IP65
|
|
|
Weight
|
160kg
|
|
|
MIG WELDER
|
||
|
Model
|
MIG-350R welder
|
MIG-500R welder
|
|
Rated input voltage/frequency (V/Hz)
|
3 phase AC380V士10%, 50Hz
|
|
|
Rated maximum input current (A)
|
27
|
44.6
|
|
Output no-load voltage (V)
|
70
|
70
|
|
Output current range (A）
|
40-350
|
40-500
|
|
Output voltage range (V）
|
16-31.5
|
16-39
|
|
Rated load duration (%)
|
35%
|
35%
|
|
Welding wire diameter (mm)
|
0.8\1.0\1.2
|
08/1.1/1.2/1.6
|
|
Shell protection level
|
IP21S
|
|
|
Insulation level
|
F
|
|
|
External dimensions LxWxH (mm)
|
600*310*630
|
|
|
Weight (Kg)
|
37
|
42.6
|
