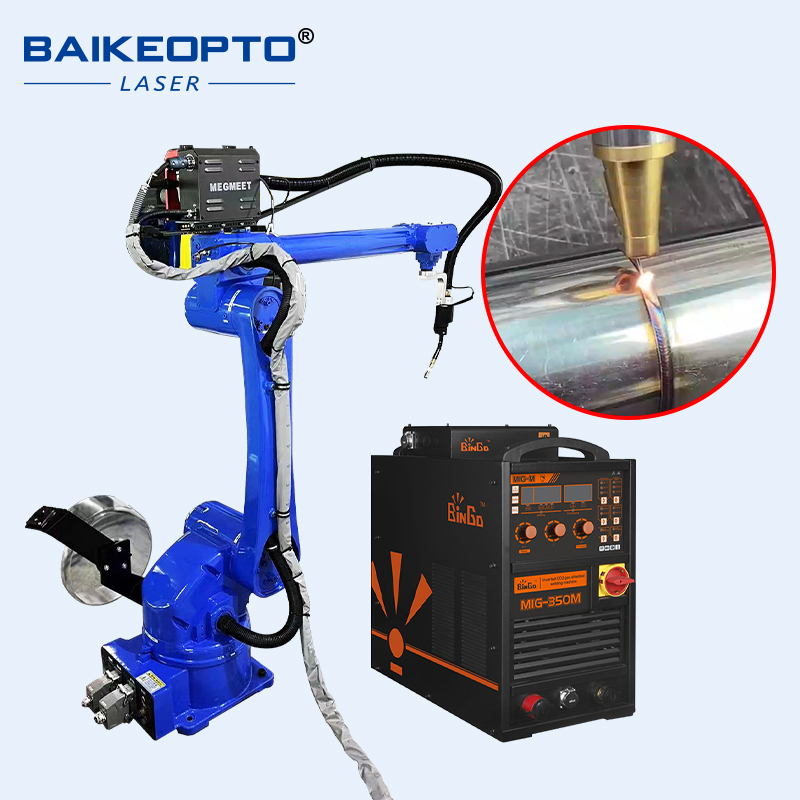

BKH10-1600 (350M)【FOB】
Model：BKH10-1600 (350)

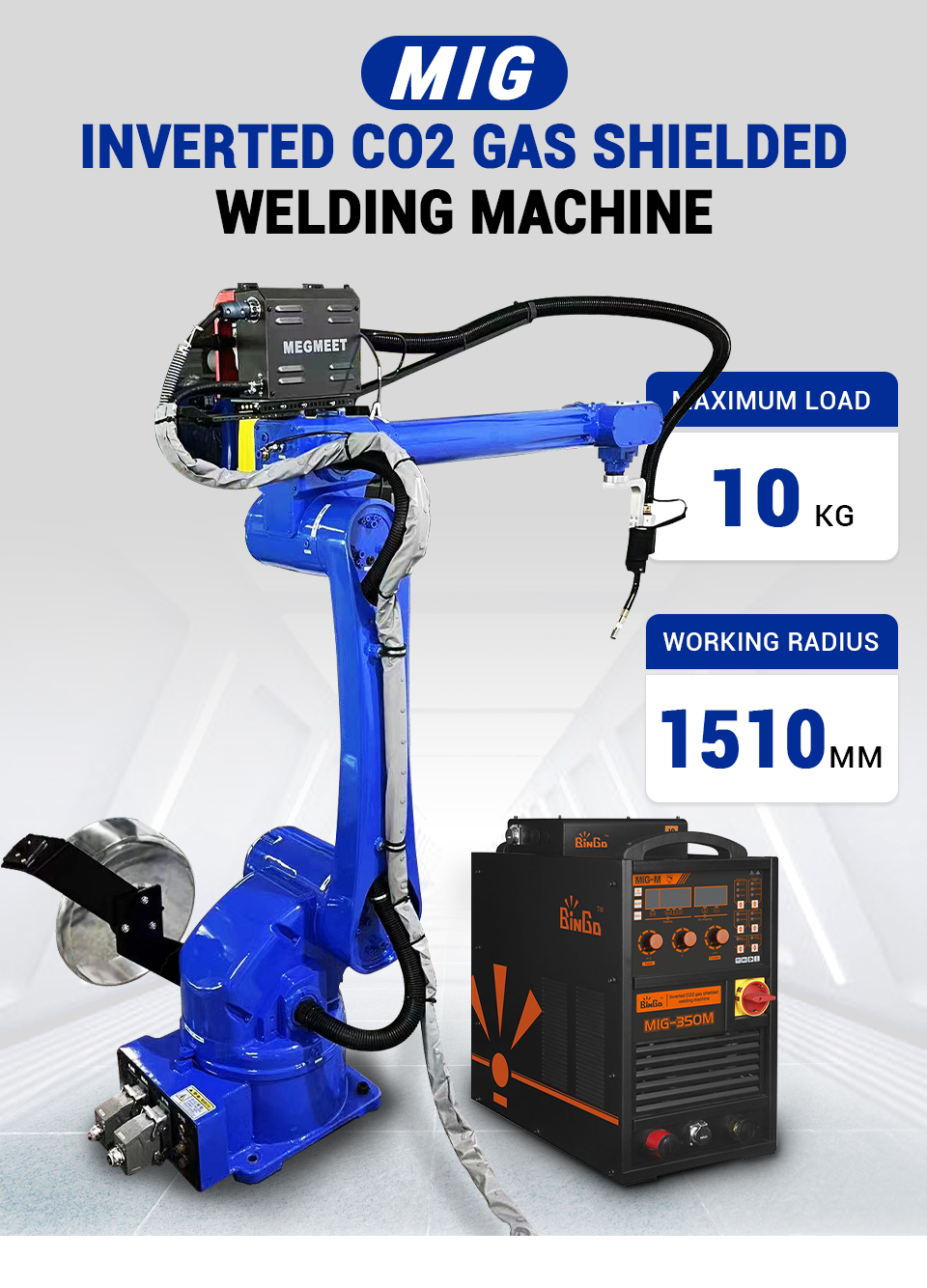

Robot Arm ： Payload 10Kg， 1510mm Max Working Radius

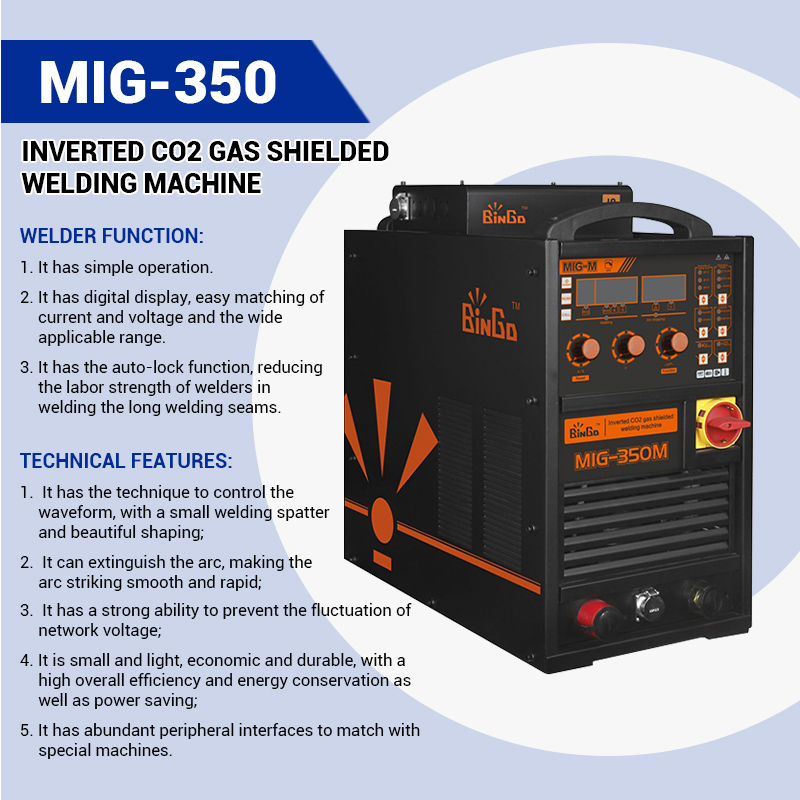

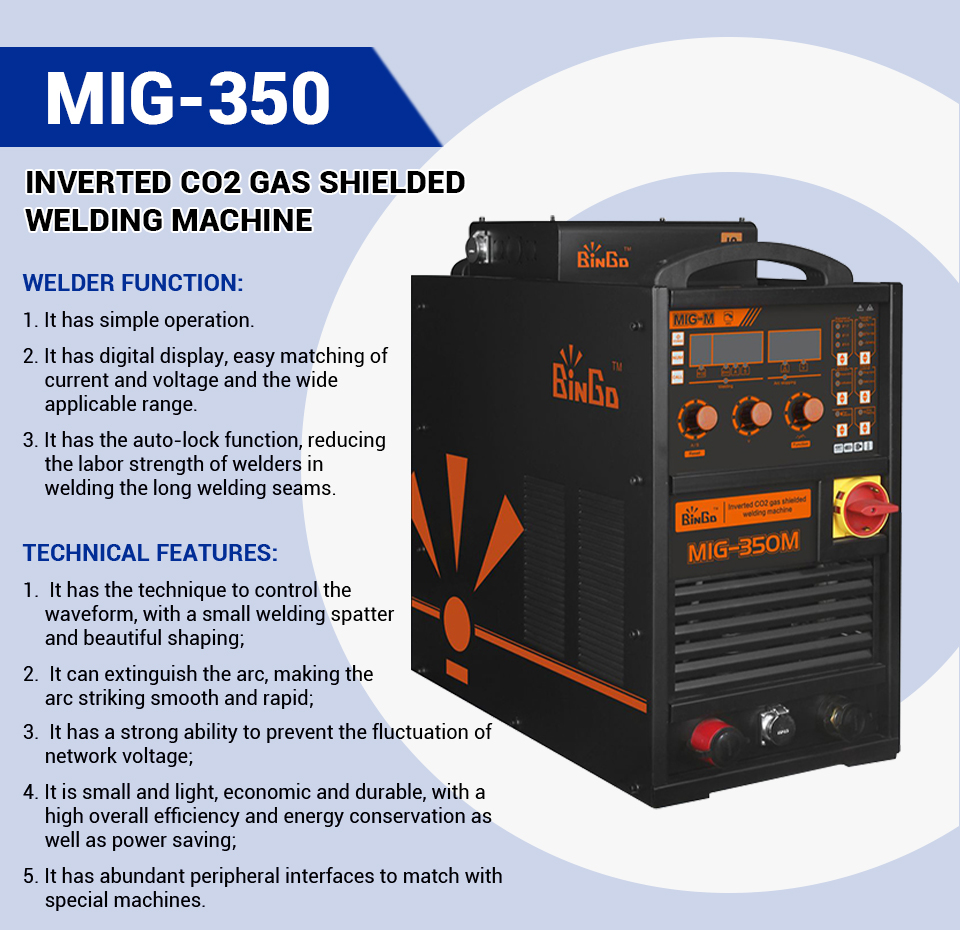

MIG Welder Model：Bingo MIG-350M
$9,350.00 USD
$10,285.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description

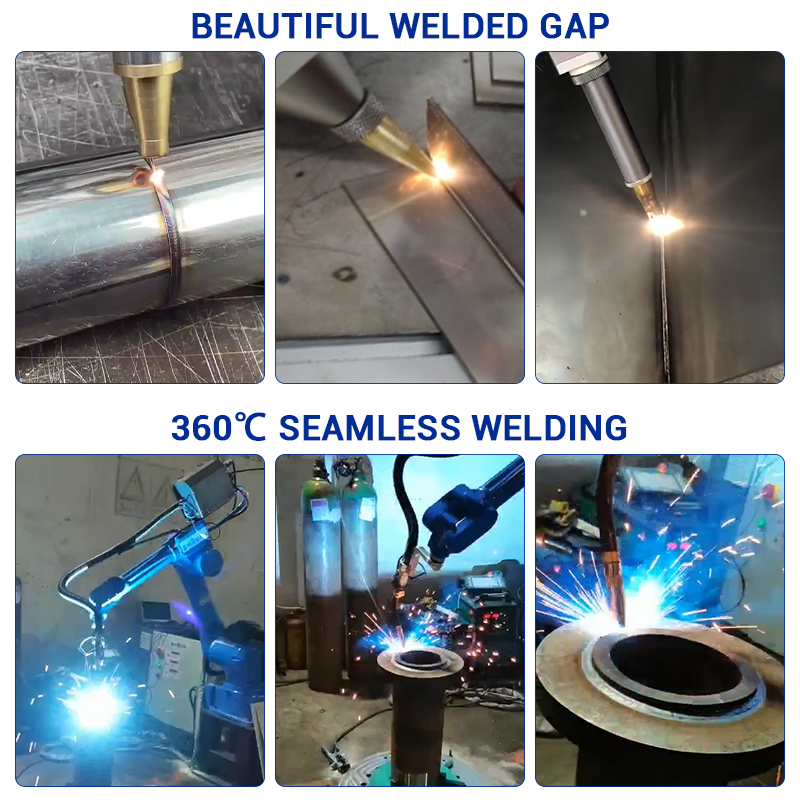

| Baiketech 6 Axis 10KG 1510mm Automatic Robotic Arm Integrate MIG Welding Machine！ |
 |
  |
| Key Features: |
1. Non-contact welding, The workpiece deformation is small without mechanical stress
2. High degree of flexibility, Any process path for any workpiece is controlled by the program
3. Fast welding speed, High production efficiency
4. Good welding quality,The welding surface is smooth and no post-processing is required
5. Sustainable and stable operation, tens of thousands of hours of super long service life
6. Green and environmental protection processing,Almost no consumables, high yield and no pollutants
7. Good welding flexibility, Spatial three-dimensional image arbitrary welding without manual adjustment of Angle.
8. High welding precision ,Laser spot small and narrow incision up to ±0.05mm high economic benefit

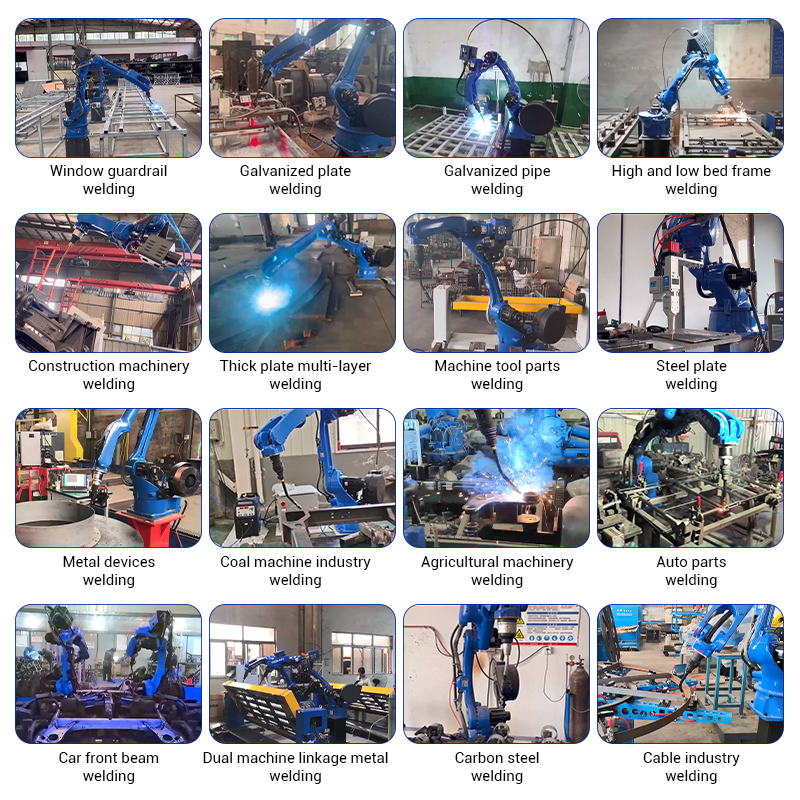

| Application: |
| It has an advanced and cost-effective Welding tool developed and trial-produced in small batches easily realizes high-speed hole cutting and arc cutting of metal frame and special-shaped pipe. |
| Parameters of Machine: |
|
Model
|
TH H10-1600 Robot Arm
|
|
|
Stucture
|
Articulated construction
|
|
|
Number of axis
|
6
|
|
|
Drive system
|
AC servo system
|
|
|
Max. working range |
J1
|
±170°
|
|
J2
|
+75 to -135°
|
|
|
J3
|
+175 to -75°
|
|
|
J4
|
±180°
|
|
|
J5
|
+15 to -195°
|
|
|
J6
|
±360°
|
|
|
Axis max. speed |
J1
|
148°/s, 2.58rad/s
|
|
J2
|
148°/s, 2.58rad/s
|
|
|
J3
|
297°/s, 5.18rad/s
|
|
|
J4
|
450°/s, 7.85rad/s
|
|
|
J5
|
450°/s, 7.85rad/s
|
|
|
J6
|
450°/s, 7.85rad/s
|
|
|
Payload
|
Wrist
|
10kg
|
|
Allowable static load torque for wrist |
J4
|
20N·m
|
|
J5
|
20N·m
|
|
|
J6
|
10N·m
|
|
|
Maximum allowable moment of inertia of the wrist |
J4
|
0.625kg·m3
|
|
J5
|
0.625kg·m3
|
|
|
J6
|
0.2kg·m3
|
|
|
Max. reach
|
1510mm
|
|
|
Position repeatability
|
±0.05mm
|
|
|
Air piping (Option)
|
φ8*1
|
|
|
Noise
|
70dB(A)
|
|
|
Rate power
|
4.35KW
|
|
|
Rate voltage
|
220V/110V
|
|
|
Length of cable between body and cabinet
|
3m
|
|
|
Installation
|
Floor mounted
|
|
|
Environmental performance
|
IP65
|
|
|
Weight
|
160kg
|
|
|
Model
|
MIG-350MR
|
MIG-500MR
|
MIG-630MR
|
|
|
Rated input voltage / frequency
|
Three- phase380V（+ / -）10% 50Hz
|
|||
|
Rated input capacity（KVA）
|
17.1
|
27.6
|
36
|
|
|
Rated input current（A）
|
26
|
42
|
54
|
|
|
Rated output voltage（V）
|
31.5
|
39
|
44
|
|
|
Rated load sustainability（%）
|
100
|
100
|
100
|
|
|
Output no-load voltage（V）
|
70
|
85
|
86
|
|
|
Output current range（A）
|
20~350
|
20~500
|
20-630
|
|
|
Output voltage range（V）
|
14~40
|
14~50
|
14~50
|
|
|
Welding wire diameter（mm）
|
0.8、1.0、1.2
|
1.0、1.2、1.6
|
1.2、1.6、2.0
|
|
|
Welding wire type
|
Constant voltage characteristic
|
CO₂ carbon steel、carbon steel、carbon steel flux-core
|
||
|
Wire feeding type
|
Push/Push-pull
|
|||
|
Cooling mode
|
Water cooling / Air cooling
|
|||
|
Shell protection grade
|
IP21S
|
|||
|
Insulation grade
|
H/B
|
|||

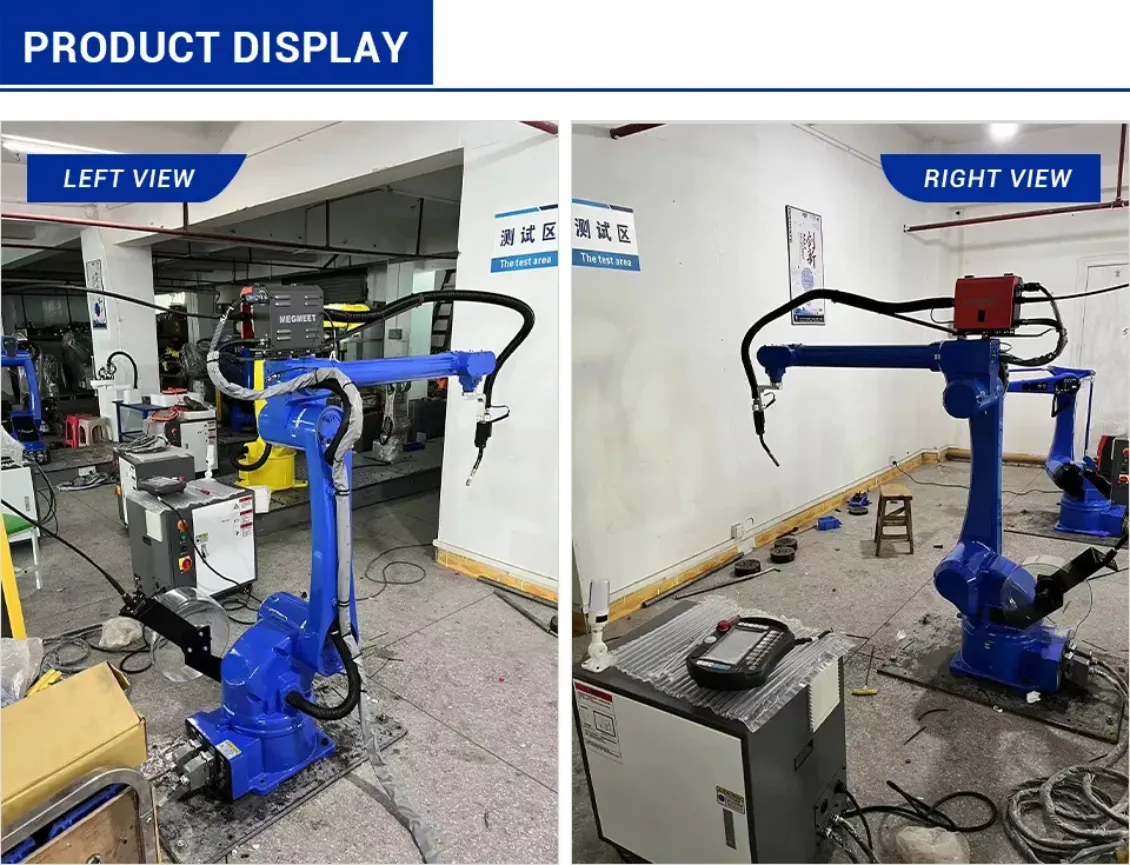

| Machine Introduction: |
|
 |

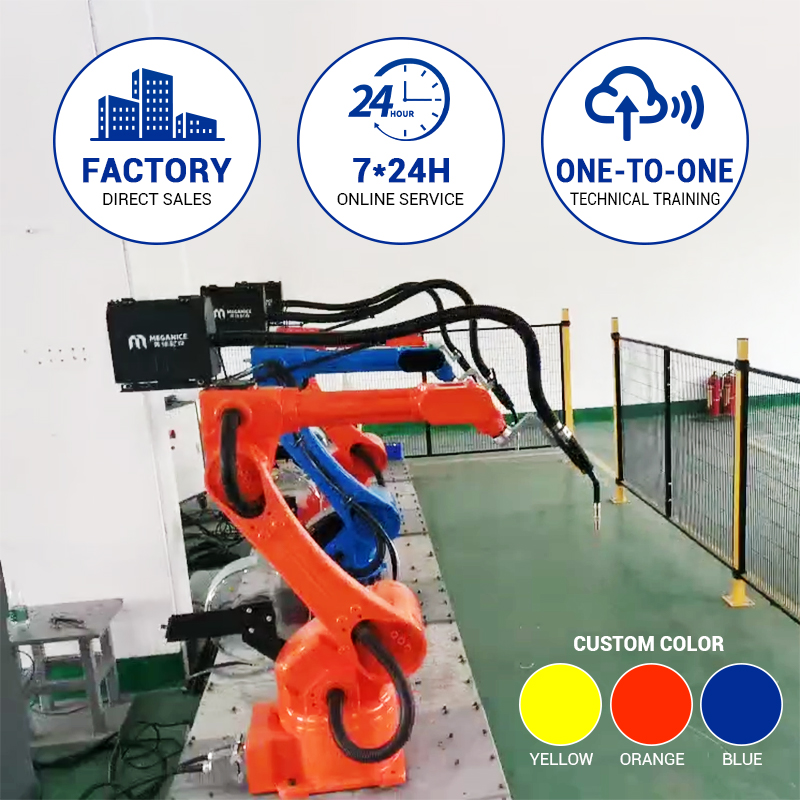

| More Choices for Customization: |
| We support customization according to your requirements. |
| Advantages： |
| Delivery: |
| Company Information: |
Thank You For Your Attention And Choice.
Machine Working Video
Wuhan Baike Times Laser Technology Co., Ltd., has a wholly-owned subsidiary, Wuhan Baike Intelligent Technology Co., Ltd.The picture on the right shows the video of machine work in the factory.
For more application videos, see the product videos or application videos in the Application column.
