BKH25-1900【FOB】
Model：BKH25-1900

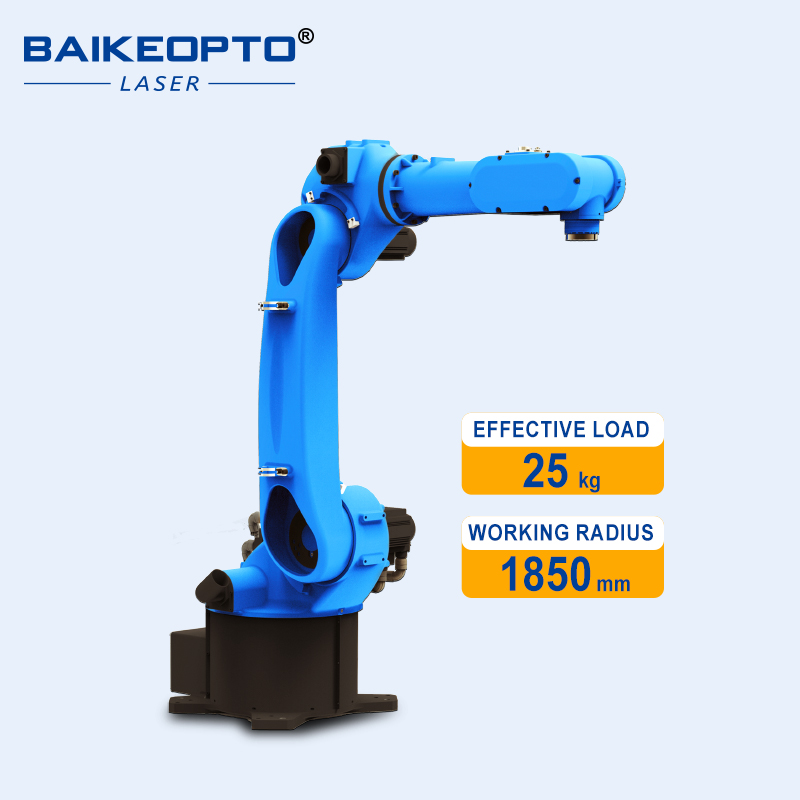

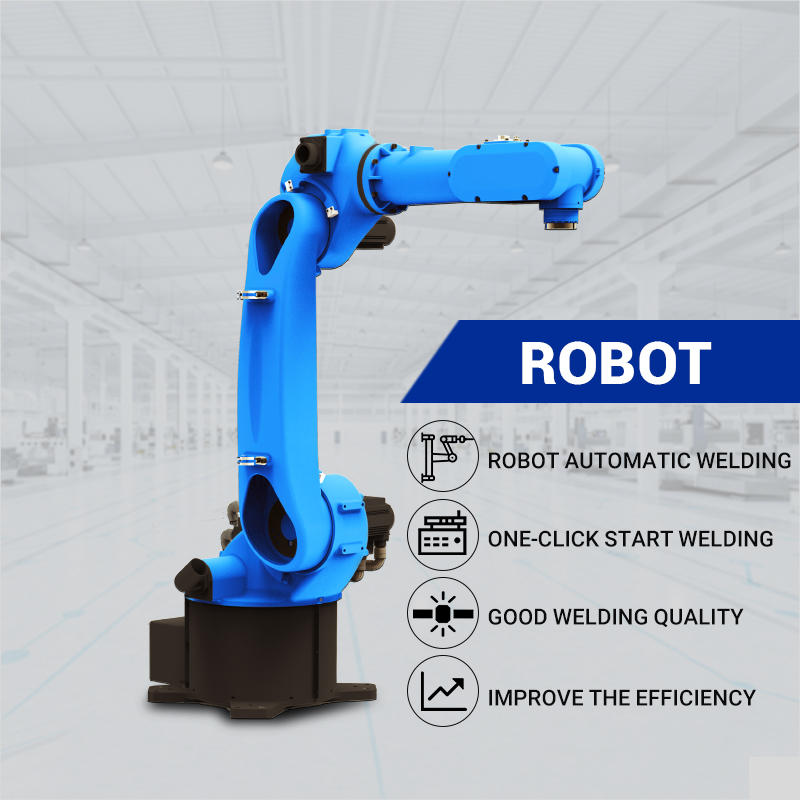

Robot Arm ： Payload 25Kg， 1850mm Max Working Radius
MIG Welder Model：MIG-350R
$11,500.00 USD
$12,650.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description

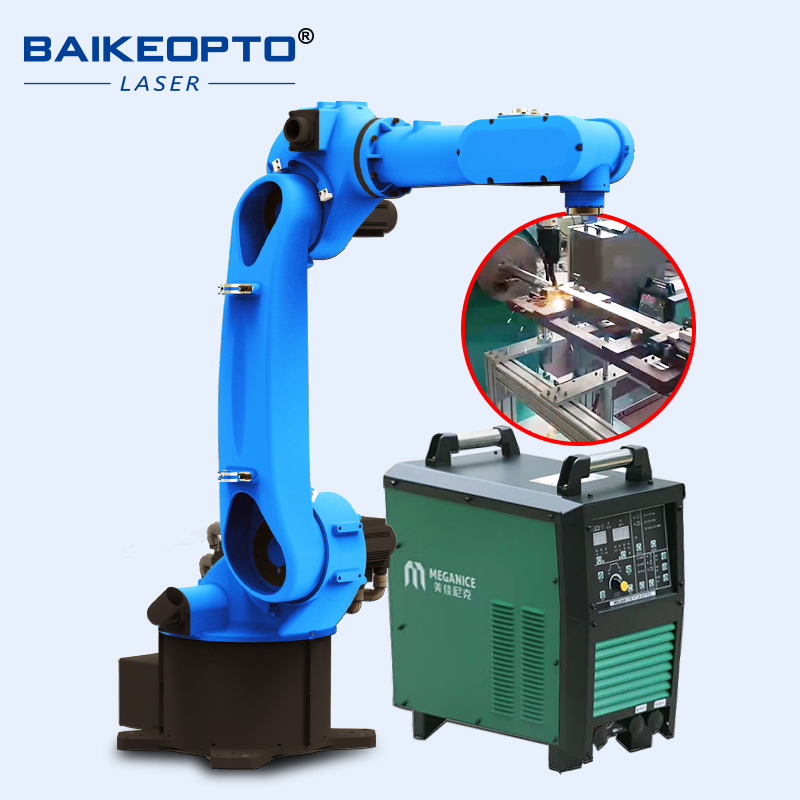

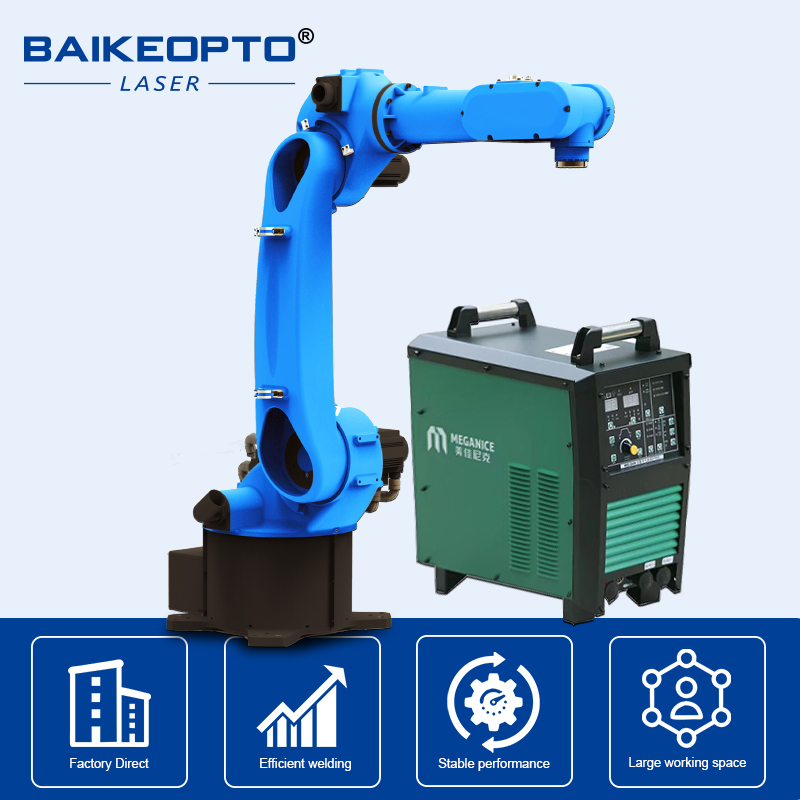

| Baiketech 6 Axis 25KG 1850mm Automatic Robotic Arm Integrate MIG Welding Machine！ |
| Key Features: |
1. Non-contact welding, The workpiece deformation is small without mechanical stress
2. High degree of flexibility, Any process path for any workpiece is controlled by the program
3. Fast welding speed, High production efficiency
4. Good welding quality,The welding surface is smooth and no post-processing is required
5. Sustainable and stable operation, tens of thousands of hours of super long service life
6. Green and environmental protection processing,Almost no consumables, high yield and no pollutants
7. Good welding flexibility, Spatial three-dimensional image arbitrary welding without manual adjustment of Angle.
8. High welding precision ,Laser spot small and narrow incision up to ±0.05mm high economic benefit
| Application: |
| It has an advanced and cost-effective Welding tool developed and trial-produced in small batches easily realizes high-speed hole cutting and arc cutting of metal frame and special-shaped pipe. |
| Parameters of Machine: |
|
Model
|
TH H6-2000
|
|
|
Degree of freedom
|
6-axis
|
|
|
Maximum payload
|
6KG
|
|
|
Repeated positioning accuracy
|
+0.08mm
|
|
|

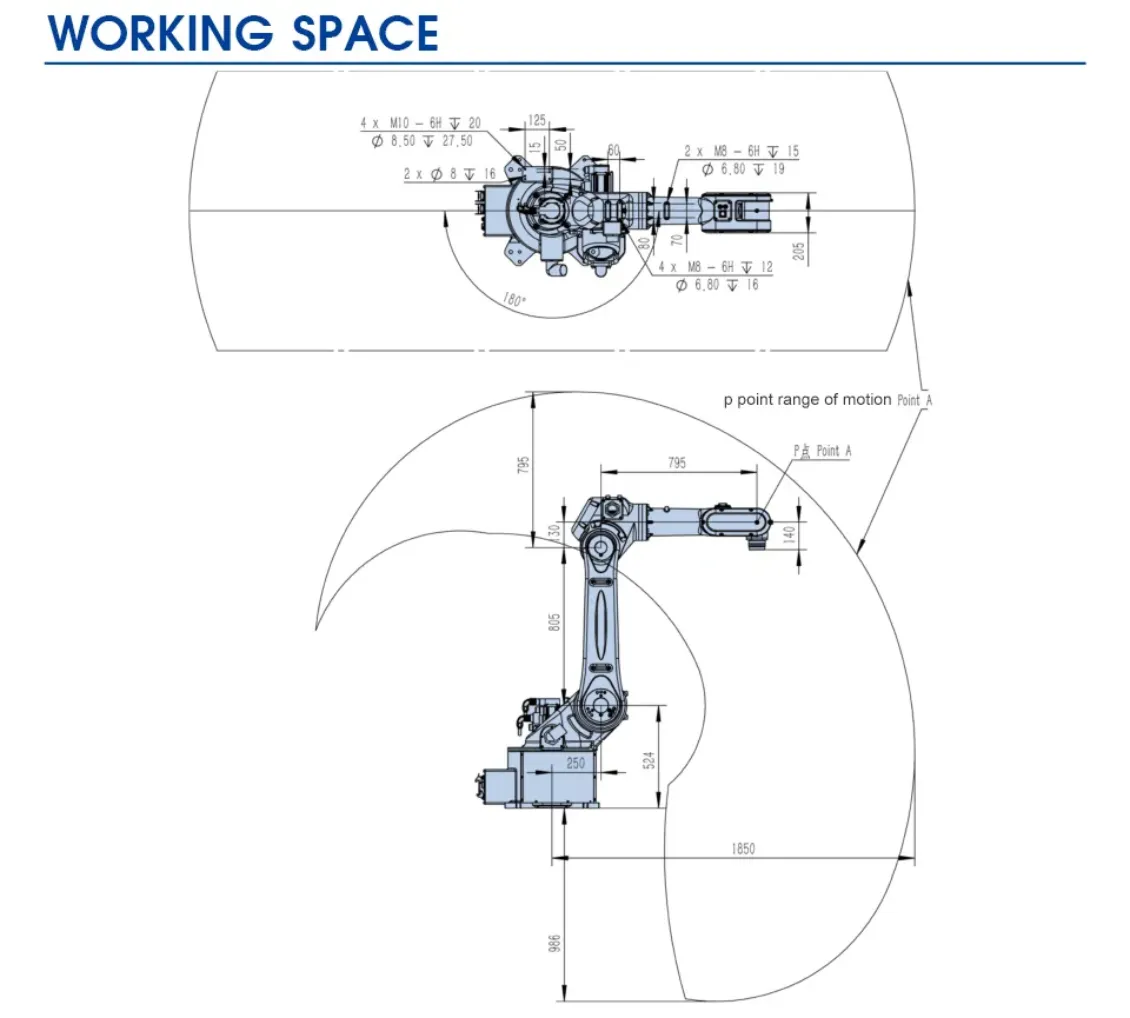

Maximum reaching distance
|
2012mm
|
|
|
Robot body weight
|
291KG
|
|
|
Installation mode
|
Cround,upside down mounting,wall mounting
|
|
|
Maximum travel
|
Axis 1
|
Ground/upside down mounting: -165°~-165°，wall mounting: -30°~30°
|
|
Axis 2
|
-150°~100°
|
|
|
Axis 3
|
-165°~245°
|
|
|
Axis 4
|
-190°~190°
|
|
|
Axis 5
|
-105°~105°
|
|
|
Axis 6
|
-210°~210°
|
|
|
Maximum speed
|
Axis1
|
160°/S
|
|
Axis 2
|
160°/S
|
|
|
Axis 3
|
169°/S
|
|
|
Axis 4
|
301°/S
|
|
|
Axis 5
|
338°/S
|
|
|
Axis 6
|
535°/S
|
|
|
Allowable torque
|
Axis 4
|
16N.m
|
|
Axis 5
|
16N.m
|
|
|
Axis 6
|
13N.m
|
|
|
Allowable moment of inertia
|
Axis 4
|
0.55kg.m2
|
|
Axis 5
|
0.55kg.m2
|
|
|
Axis 6
|
0.2kg.m2
|
|
|
Installation environment
|
ambient temperature
|
0~45°C
|
|
relative humidity
|
20-80%(No condensation)
|
|
|
vibration
|
Under 0.5 G
|
|
|
Others
|
Robot installation must be away from: Flammable or corrosive liquids or gases, electrical sources of interference
|
|
|
lP level
|
Body IP54, Wrist IP67
|
|
|
Advantage features
|
Compact structure,high speed,high precision.high expansibility and easy operation
|
|
|
Application
|
Welding,cutting,assembly,handling,marking.grinding
|
|
|
Weight
|
160kg
|
|
|
MIG WELDER
|
|
|
Model
|
ET-350R
|
|
Power Voltage
|
3 Phrase AC380V±10%
|
|
Supply frequency
|
50Hz
|
|
Rated maximum input current
|
21.5 A
|
|
Floating voltage
|
62 V
|
|
current output
|
40-300 A
|
|
Output voltage regulation
|
16-29 V
|
|
Duty cycle
|
35%
|
|
Wire diameter
|
0.8/1.0/1.2 mm
|
|
insulation grade
|
F
|
|
Enclosure protection class
|
IP21S
|
|
Main engine weight
|
33.5 Kg
|
|
Main engine dimensions
|
550*310*600 mm
|
|
Weight (Kg)
|
55
|

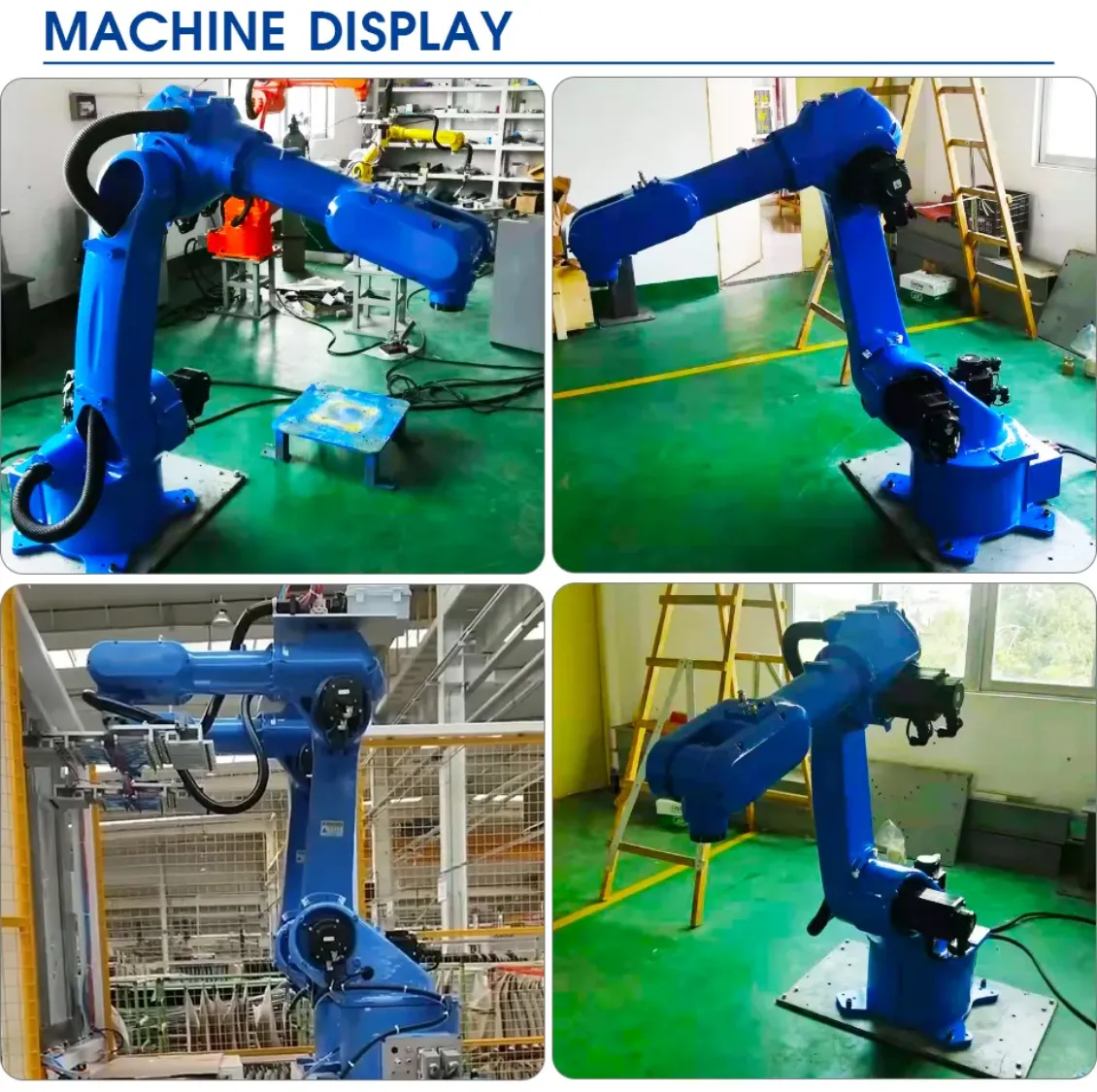

| Machine Introduction: |
| More Choices for Customization: |
| We support customization according to your requirements. |
| Advantages： |
| Delivery: |

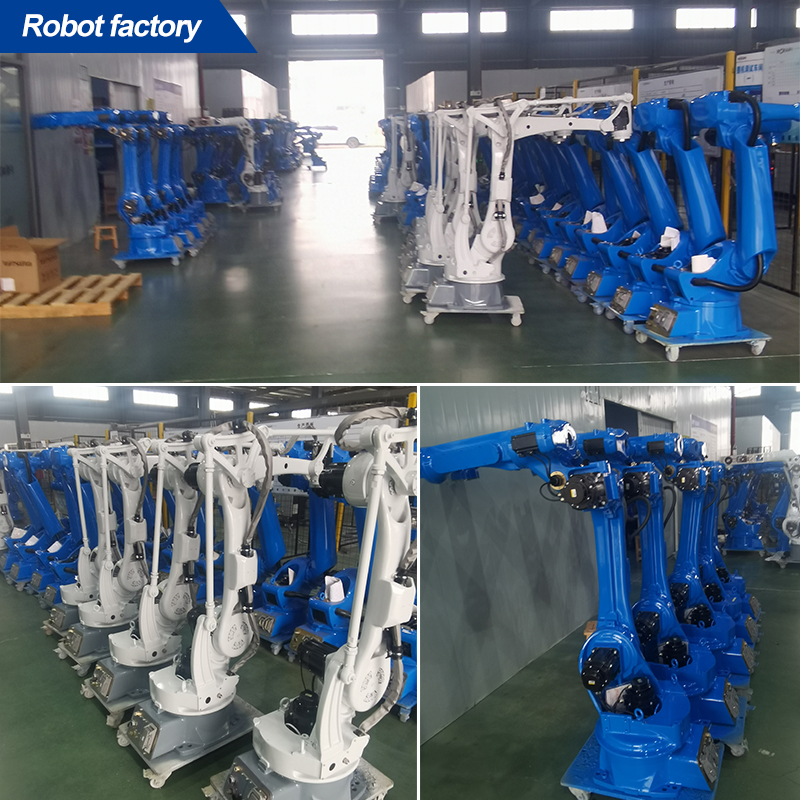

| Company Information: |
Thank You For Your Attention And Choice.
Machine Working Video
Wuhan Baike Times Laser Technology Co., Ltd., has a wholly-owned subsidiary, Wuhan Baike Intelligent Technology Co., Ltd.The picture on the right shows the video of machine work in the factory.
For more application videos, see the product videos or application videos in the Application column.
