BKH6-2000【FOB】
Model：BKH6-2000
Robot Arm ： Payload 6Kg， 2012mm Max Working Radius
MIG Welder Model：MIG-350
$9,799.00 USD
$10,799.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description

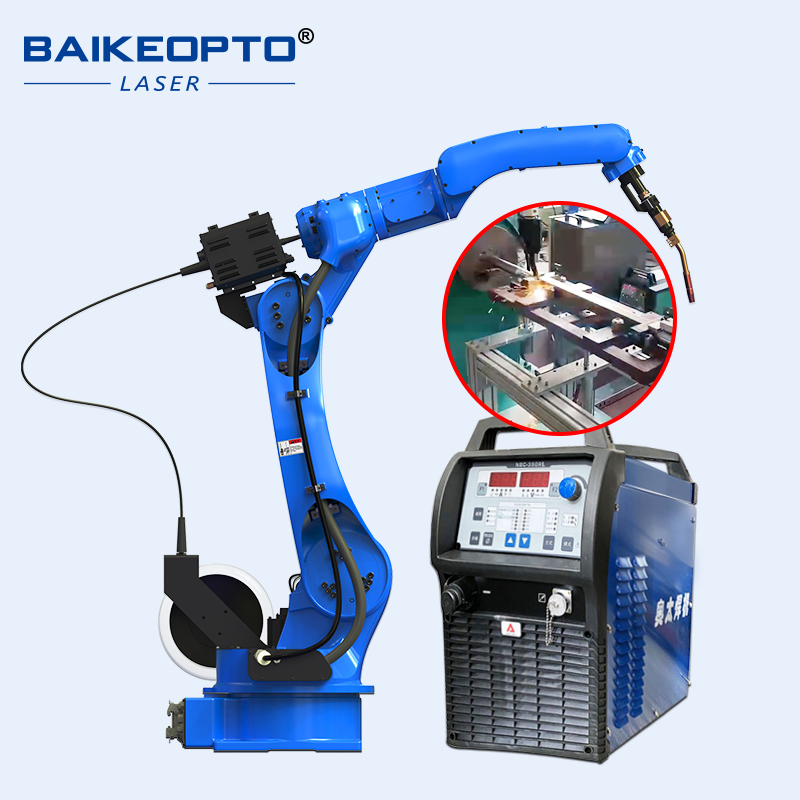

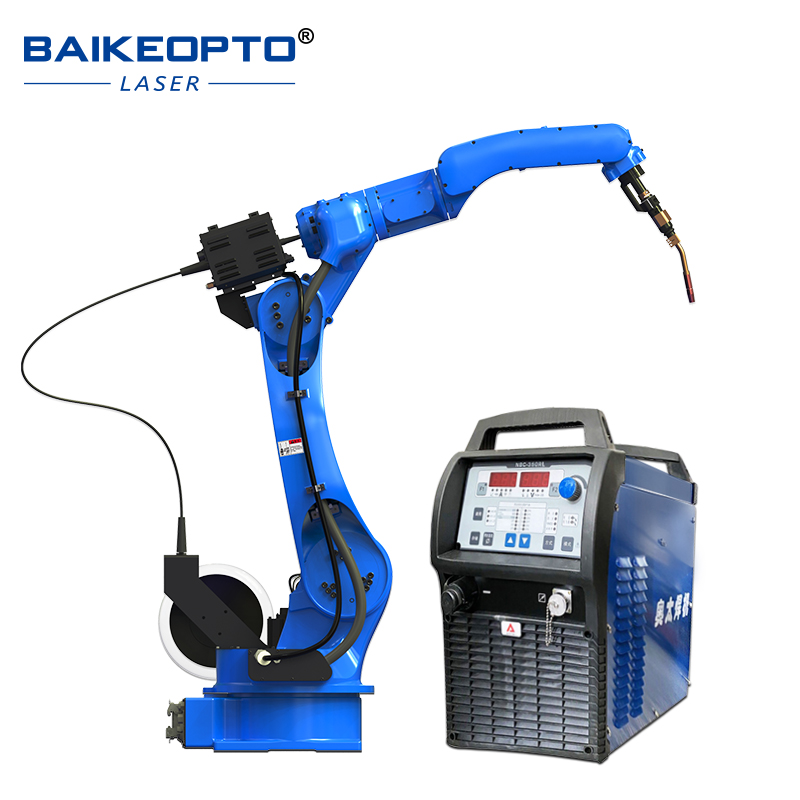

| Baiketech 6 Axis 6KG 2012mm Automatic Robotic Arm Integrate MIG Welding Machine！ |
| Key Features: |
1. Non-contact welding, The workpiece deformation is small without mechanical stress
2. High degree of flexibility, Any process path for any workpiece is controlled by the program
3. Fast welding speed, High production efficiency
4. Good welding quality,The welding surface is smooth and no post-processing is required
5. Sustainable and stable operation, tens of thousands of hours of super long service life
6. Green and environmental protection processing,Almost no consumables, high yield and no pollutants
7. Good welding flexibility, Spatial three-dimensional image arbitrary welding without manual adjustment of Angle.
8. High welding precision ,Laser spot small and narrow incision up to ±0.05mm high economic benefit
| Application: |
| It has an advanced and cost-effective Welding tool developed and trial-produced in small batches easily realizes high-speed hole cutting and arc cutting of metal frame and special-shaped pipe. |
| Parameters of Machine: |
|
Model
|
TH H6-2000
|
|
|
Degree of freedom
|
6-axis
|
|
|
Maximum payload
|
6KG
|
|
|
Repeated positioning accuracy
|
+0.08mm
|
|
|
Maximum reaching distance
|
2012mm
|
|
|
Robot body weight
|
291KG
|
|
|
Installation mode
|
Cround,upside down mounting,wall mounting
|
|
|
Maximum travel
|
Axis 1
|
Ground/upside down mounting: -165°~-165°，wall mounting: -30°~30°
|
|
Axis 2
|
-150°~100°
|
|
|
Axis 3
|
-165°~245°
|
|
|
Axis 4
|
-190°~190°
|
|
|
Axis 5
|
-105°~105°
|
|
|
Axis 6
|
-210°~210°
|
|
|
Maximum speed
|
Axis1
|
160°/S
|
|
Axis 2
|
160°/S
|
|
|
Axis 3
|
169°/S
|
|
|
Axis 4
|
301°/S
|
|
|
Axis 5
|
338°/S
|
|
|
Axis 6
|
535°/S
|
|
|
Allowable torque
|
Axis 4
|
16N.m
|
|
Axis 5
|
16N.m
|
|
|
Axis 6
|
13N.m
|
|
|
Allowable moment of inertia
|
Axis 4
|
0.55kg.m2
|
|
Axis 5
|
0.55kg.m2
|
|
|
Axis 6
|
0.2kg.m2
|
|
|
Installation environment
|
ambient temperature
|
0~45°C
|
|
relative humidity
|
20-80%(No condensation)
|
|
|
vibration
|
Under 0.5 G
|
|
|
Others
|
Robot installation must be away from: Flammable or corrosive liquids or gases, electrical sources of interference
|
|
|
lP level
|
Body IP54, Wrist IP67
|
|
|
Advantage features
|
Compact structure,high speed,high precision.high expansibility and easy operation
|
|
|

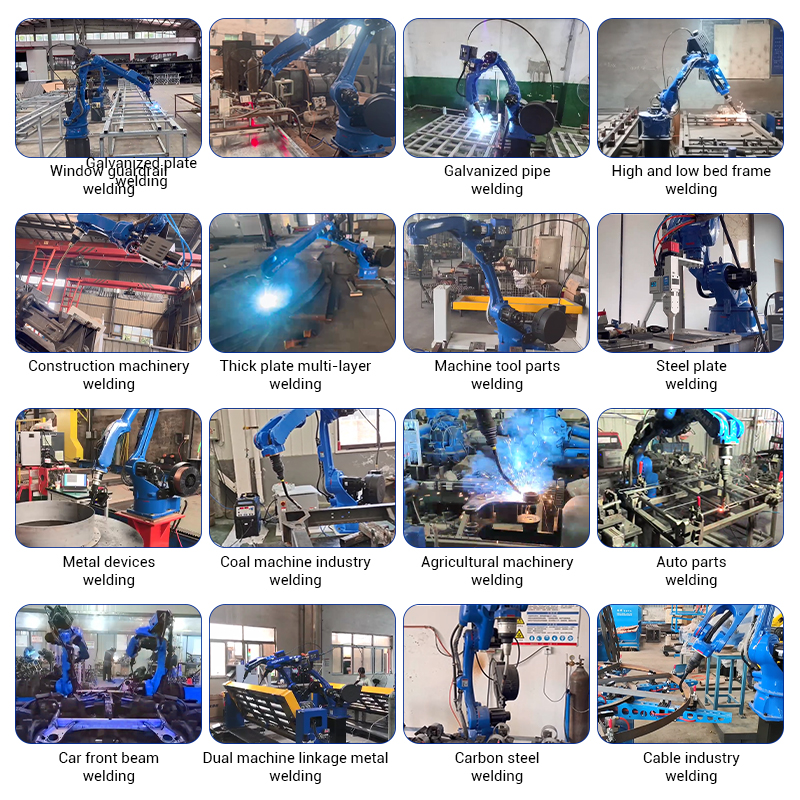

Application
|
Welding,cutting,assembly,handling,marking.grinding
|
|
|
Weight
|
160kg
|
|
|

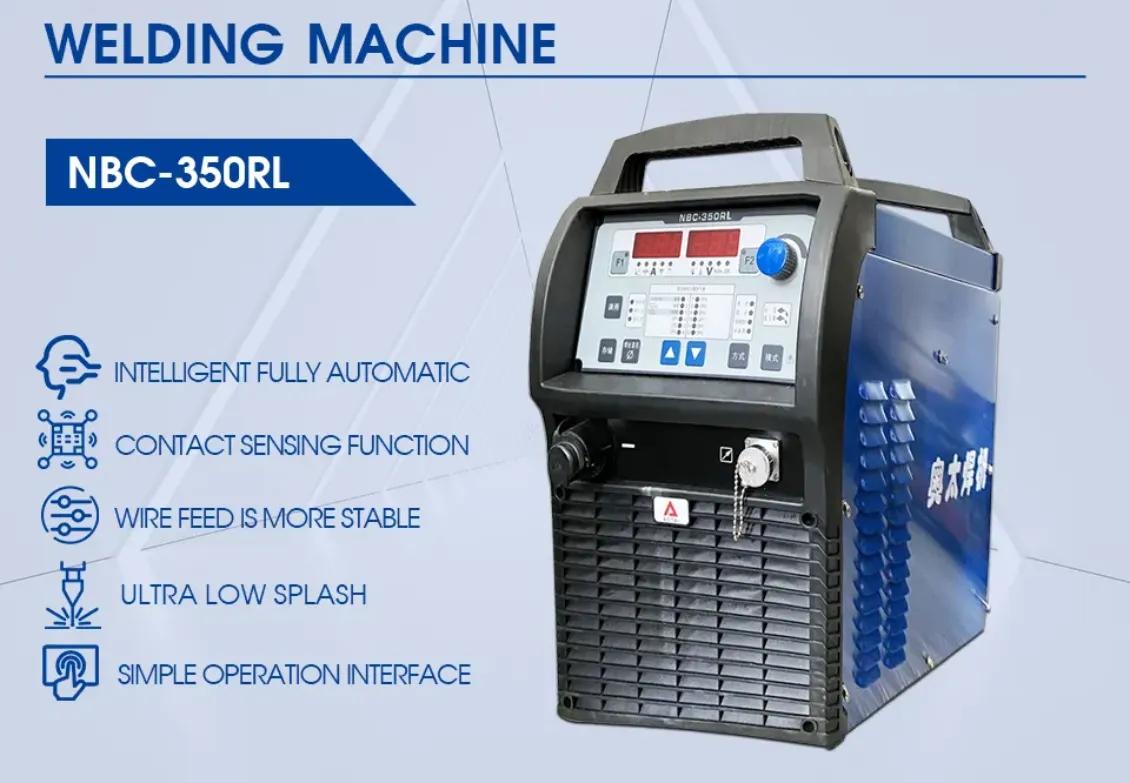

Model
|
NBC-350RL MIG Welder
|
|
Rated input voltage/frequency （V/Hz）
|
3 phase AC380V士10%, 50Hz
|
|
Rated input capacity (KVA)
|
14
|
|
Rated Input Current (A)
|
21
|
|
Rated output voltage (V)
|
31.5
|
|
Rated load duration (%)
|
60
|
|
Output no-load voltage (V)
|
96
|
|
Output current/voltage range (A/V)
|
60/17-350/31.5
|
|
Welding wire diameter (mm)
|
0.8\1.0\1.2
|
|
Gas flow rate (L/min)
|
15~20
|
|
Welding gun cooling method
|
Air Cooling
|
|
Shell protection level
|
IP23
|
|
Insulation level
|
H
|
|
External dimensions LxWxH (cm)
|
66x32x56
|
|
Weight (Kg)
|
55
|
| Machine Introduction: |
| More Choices for Customization: |
| We support customization according to your requirements. |
| Advantages： |
| Delivery: |
| Company Information: |
Thank You For Your Attention And Choice.
