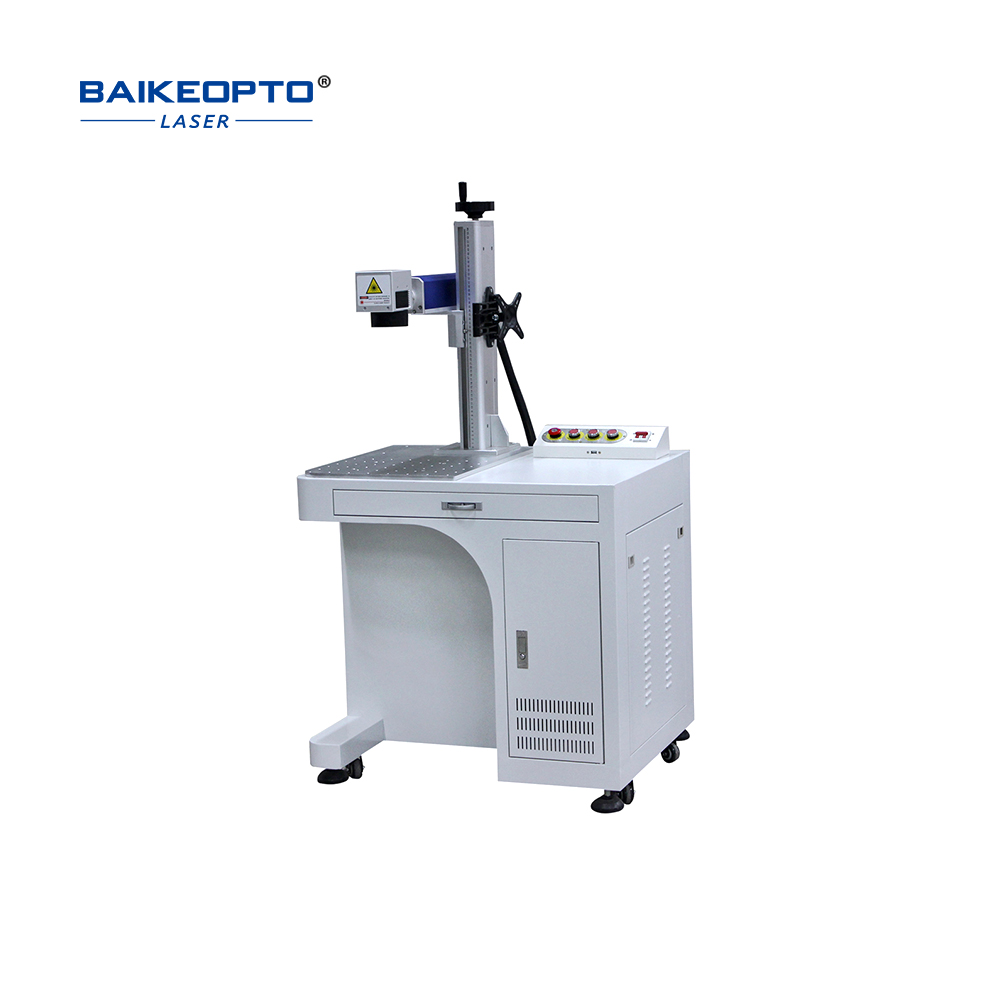

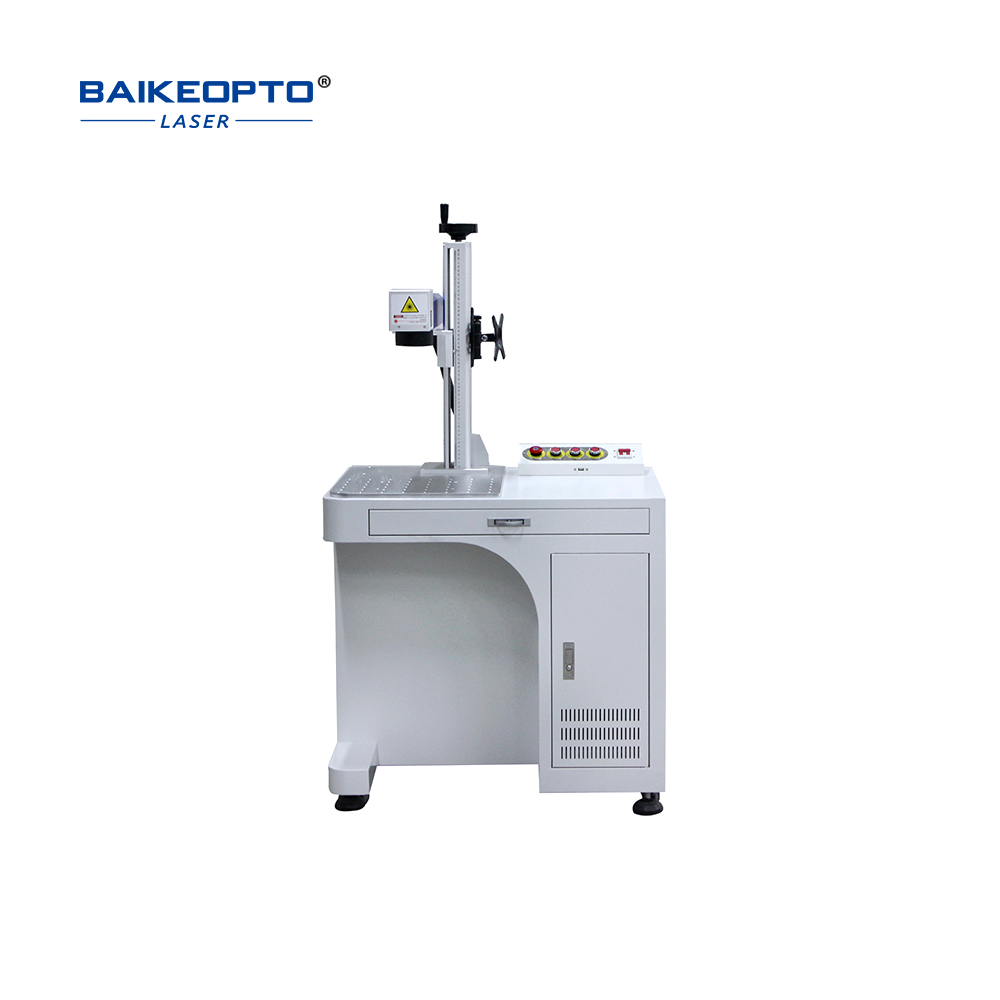

FM-400Plus-Ⅰ-20W【FOB】
Product details
Galvanometer
The galvabometer is an important factor to determine the marking quality.The small size of the galvanometer is suitable for harsh enviroment.
Worktable
Standard positioning hole, convenient for fast positioning,adjustable position can achieve a variety of combinations ,multi-station printing with software to improve work efficiency.
Field lens
The field lens scanning system adopts new technology,new materials,new technique and new working principle to design and manufacture.
Scale
Specially set humanized scale to improve the accuracy of adjustment and make complex procedures easy and simple.
Lifting wheel
Adjust the height of the galvanometer through the rotation of the lifting shaft to achieve the required height of marking to make the picture clearer.
Main Component Diagram
Technical Data
| Model: | FM-400Plus-Ⅰ |
| Laser Power： | 20W/30W/50W/70W/100W |
| Laser wavelength： | 1064nm |
| Laser quality: | M2＜1.4 |
| Output frequency: | 20KHZ-80KHZ |
| Marking area: | 70*70/110*110/150*150/175*175/200*200/300*300(mm) |
| Min line width： | 0.01mm |
| Repetition accuracy: | ±0.0001mm |
| Electrical requirement: | AC 90-250V/50HZ 5A |
| Marking speed： | 0-5000mm/s |
| Cooling system: | Air-cooling |
| N.W.： | 158KGS |
| G.W.： | 208KGS |
| machine size(mm): | 800*650*1350(MM) |
Thank You For Your Attention And Choice.
