Product Details Display

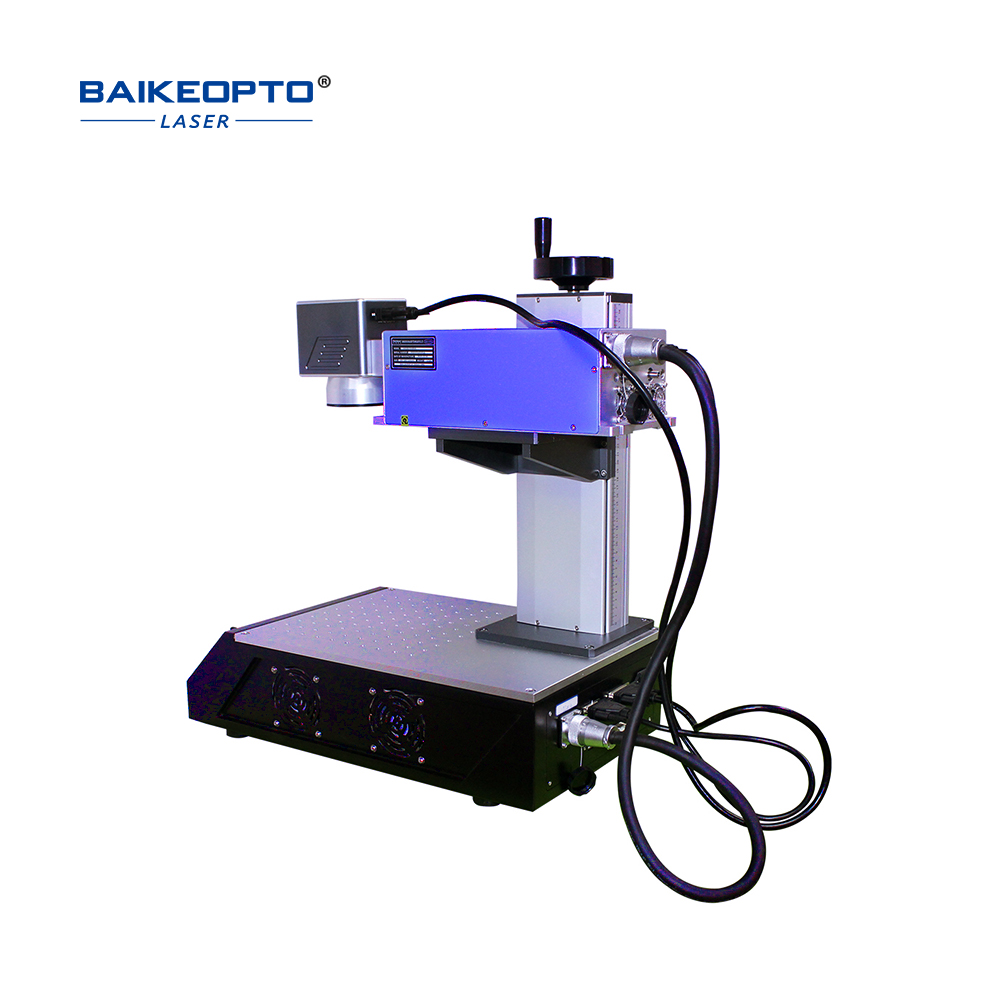

BK-UVM-3【FOB】
Product details
High precision lifting table
High-precision lifting section wheel ,flexible and adjustable processing direction ,free operation .
Large working platform
The design of super-large work surface makes the working area large and effectively improves work efficiency and workload.
Field lens
The field lens scanning system adops new technology ,new materials,new technique and new working principle to desigh and manufacture .
Galvanometer
High-speed galvanometer ,working speed of tens of thousands of millimeters per second ,greatly improve work efficiency,marking accuracy is high and distortion-free.
Scale
Specially set humanized scale to improve the accuracy of adjustment and make complex procedures easy and simple.
Main Component Diagram
Technical Data
| Model: | UVM-3/UVM-5 |
| Laser Power： | 3W/5W/10W |
| Laser wavelength： | 1064nm |
| Laser quality: | M2＜1.4 |
| Output frequency: | 20KHZ-80KHZ |
| Marking area: | 100*100/150*150/200*200(mm) |
| Min line width： | 0.01mm |
| Repetition accuracy: | ±0.0001mm |
| Electrical requirement: | AC 90-250V/50HZ 5A |
| Marking speed： | 0-5000mm/s |
| Cooling system: | Air-cooling |
| machine size（mm）： | 880*550*1370（MM） |
Thank You For Your Attention And Choice.
