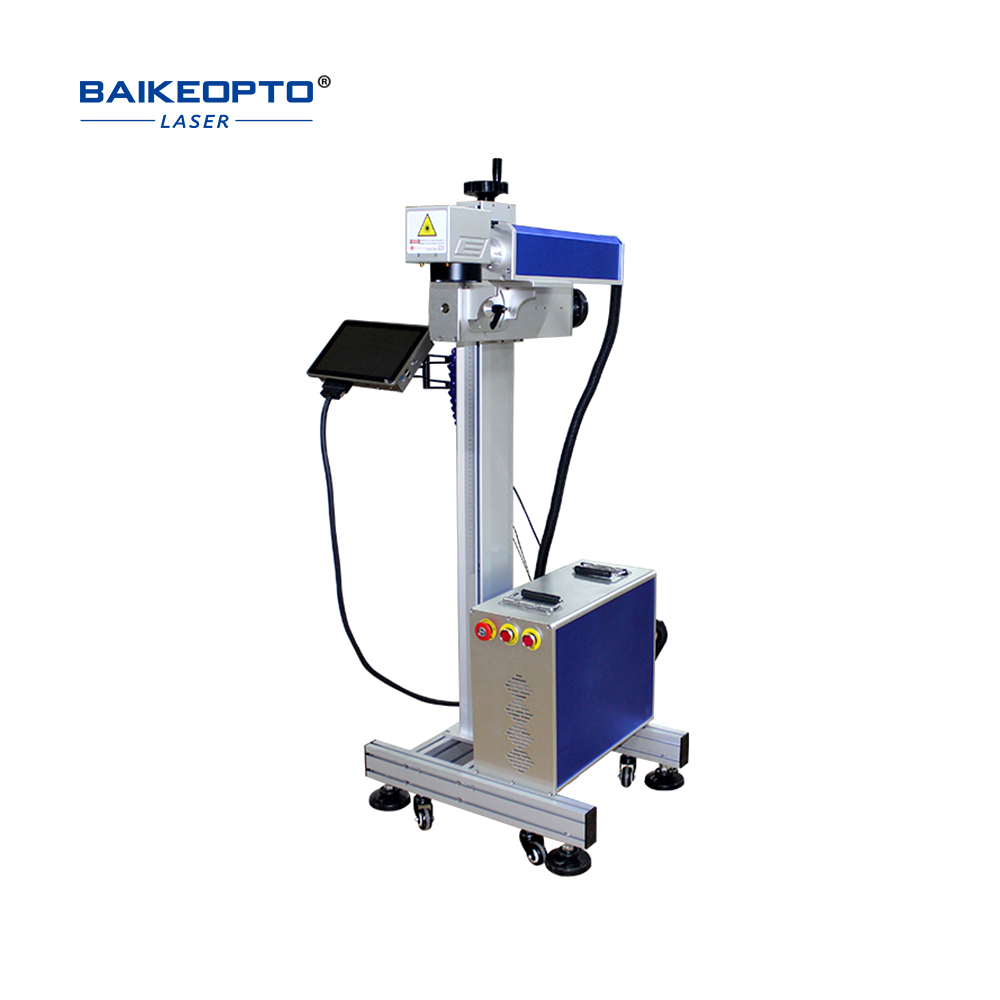

FM-600-30W【FOB】
Product details
Galvanometer
The galvanometer is an important factor to determine the marking quality .The samll size of the galvanometer is suitable for harsh environment .
control switch
Humanized control system ,control switch,power switch,power switch,laser switch,USB interface with leakage protection .
Field lens
The field lens scanning system adops new technology ,new materials,new technique and new working principle to desigh and manufacture .
Scale
Specially set humanized scale to improve the accuracy of adjustment and make complex procedures easy and simple.
Lifting wheel
Adjust the height of the galvanometer through the rotation of the lifting shaft to achieve the required height of marking to make the picture clearer.
Main Component Diagram
Technical Data
| Model: | FM-600 |
| Laser Power： | 10W/20W/30W |
| Laser wavelength： | 1064nm |
| Laser quality: | M2＜1.4 |
| Output frequency: | 20KHZ-80KHZ |
| Marking area: | 110*110/150*150（mm） |
| Min line width： | 0.01mm |
| Repetition accuracy: | ±0.0001mm |
| Electrical requirement: | AC 90-250V/50HZ 5A |
| Marking speed： | 0-5000mm/s |
| Cooling system: | Air-cooling |
| machine size（mm） | 880*550*1370（MM） |
Thank You For Your Attention And Choice.
