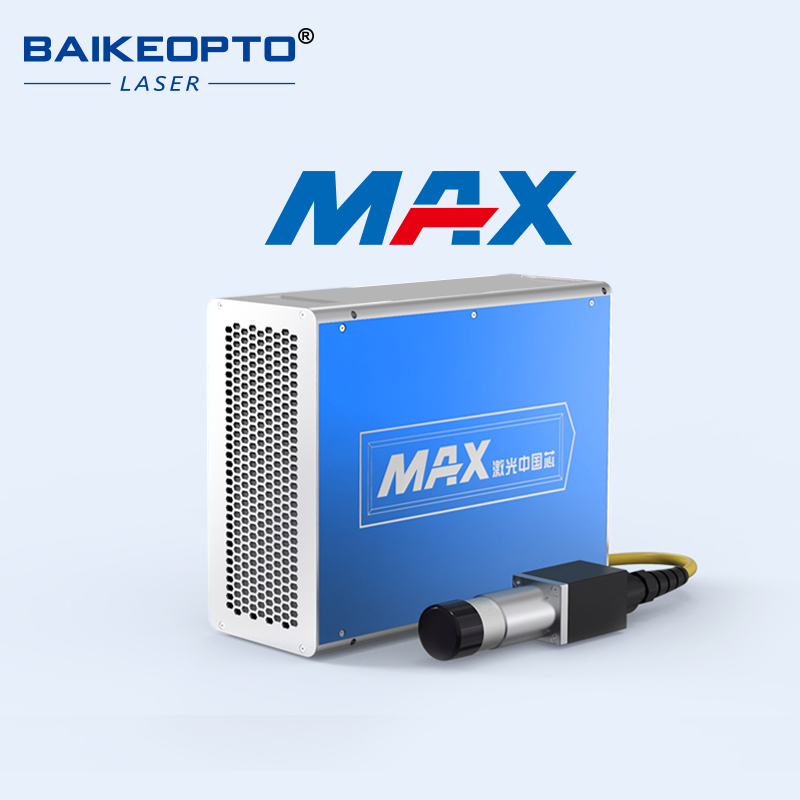

MFP-30W【FOB】
Model：MFP-30W
Laser Power：30W
Supply Voltage: 24 VDC
Excellent Light Beam Quality
High reliability
Maintenance-free operation
$1,000.00 USD
$1,200.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description
| Max MFP-30W 30W SMALL CASE Q-SWITCH PULSED FIBER LASER for Marking Engraving |
 |
 |
| Features: |
|
1.Excellent Single Pulse Energy Higher single pulse energy makes our laser applicable to more types of materials and applications 2. New Compact and Rugged Design >40% reduction in volume Higher flexibility when integrated into system 3. Wide Application Even with Highly Reflective Material High performance isolator effectively reduces reflection damage to the laser source Smoothly marking on aluminum, copper and brass etc. 4.High Level Vertical Integration All key components are designed and produced in house Strict quality control, high consistency and reliability |
| Application: |
| Q-switch series pulsed fiber laser is designed based on Q-switch oscillator and MOPA. The laser is transmitted by fiber and isolator, and is controlled through a 25-pin interface. The Q-switched pulse fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc. |
| Parameters: |
| Models | MFP-30W |
| OPTICAL SPECIFICATIONS | |
| Nominal Power | 30W |
| Mode of Operation | Pulsed |
| Polarization | Random |
| Power Tunability | 10 to 100% |
| Wavelength | 1064 ± 5 nm |
| Power Stability | ≤3 % |
| Laser Beam Quality M2 | 1.6 |
| Pulse Energy | 1 mJ |
| Pulse Duration | 80~100 ns |
| Repetition Rate | 29~81 kHz |
| FIBER DELIVERY SYSTEM | |
| Length | 1.9~3m standard, other lengths optional |
| Beam Diameter | 6~8mm |
| Beam Ellipticity | 90% |
| ELECTRICAL RATINGS | |
| Supply Voltage | 24 VDC |
| OTHER SPECIFICATIONS | |
| Operating Temperature | +10 to +42℃ |
| Storage Temperature | -10 to +60℃ |
| Humidity | 10 to 95% |
| Cooling Method | Air Cooling |
| Dimension | 287×219×94.61 mm (W×D×H) |
| Weight | 6±0.5 kg |
