MFSC-1500C【FOB】

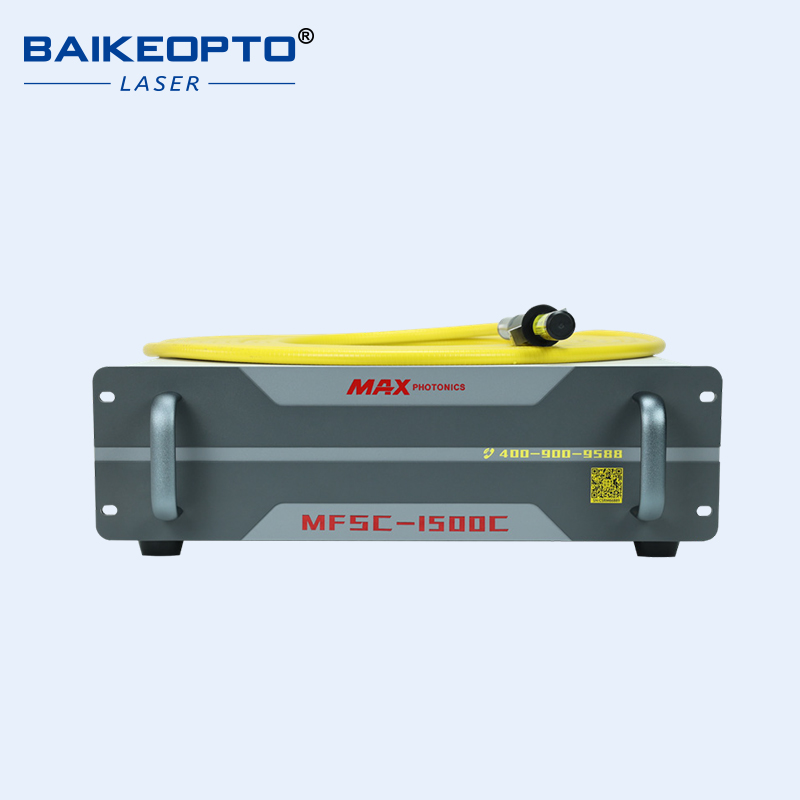

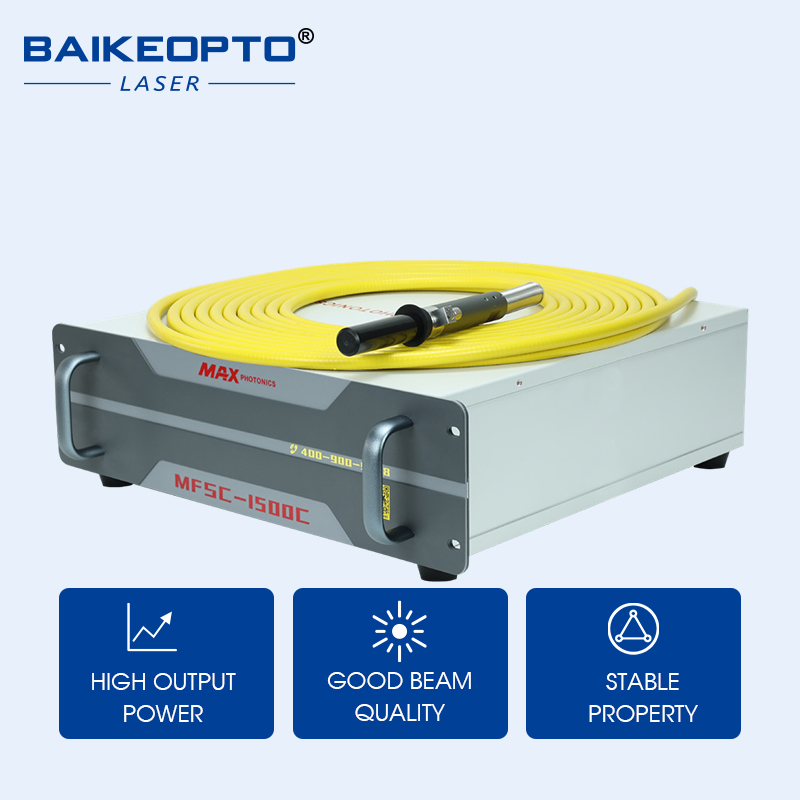

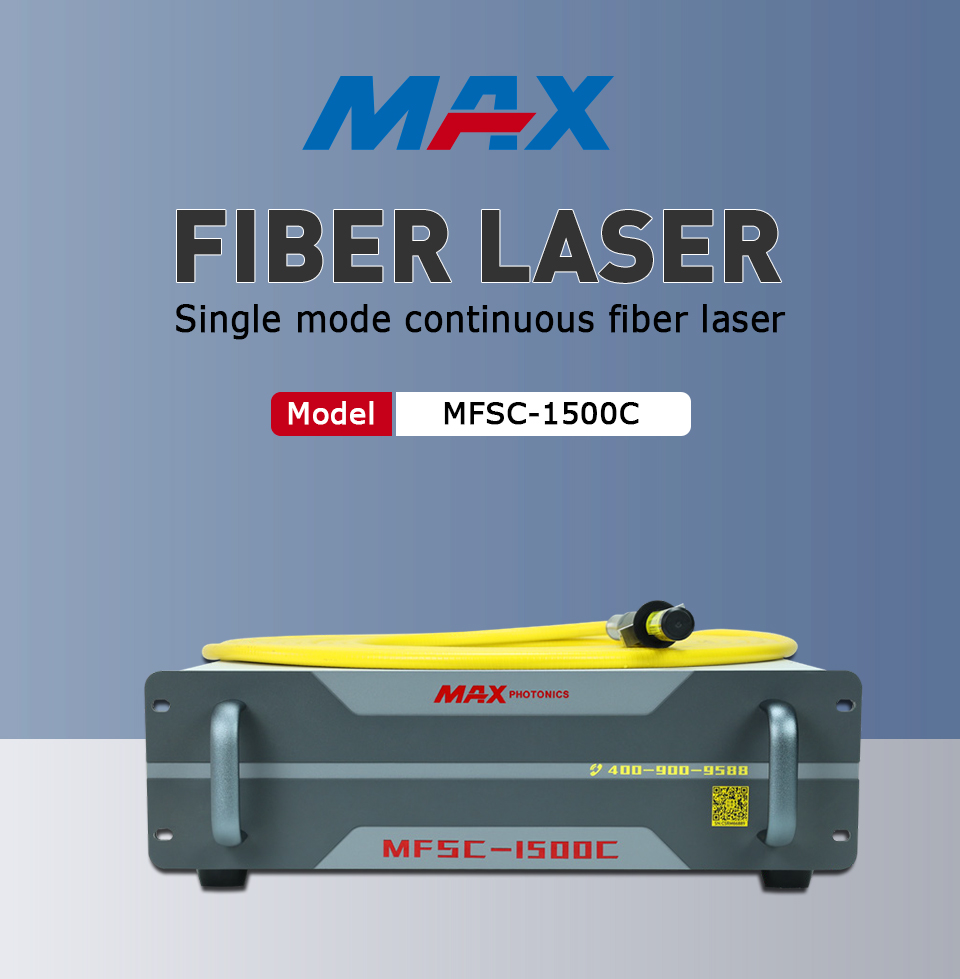

| Max MFSC-1500C 1500W Single Module CW Fiber Laser Source for Laser Welding Machine |
 |
  |
| Features: |
|

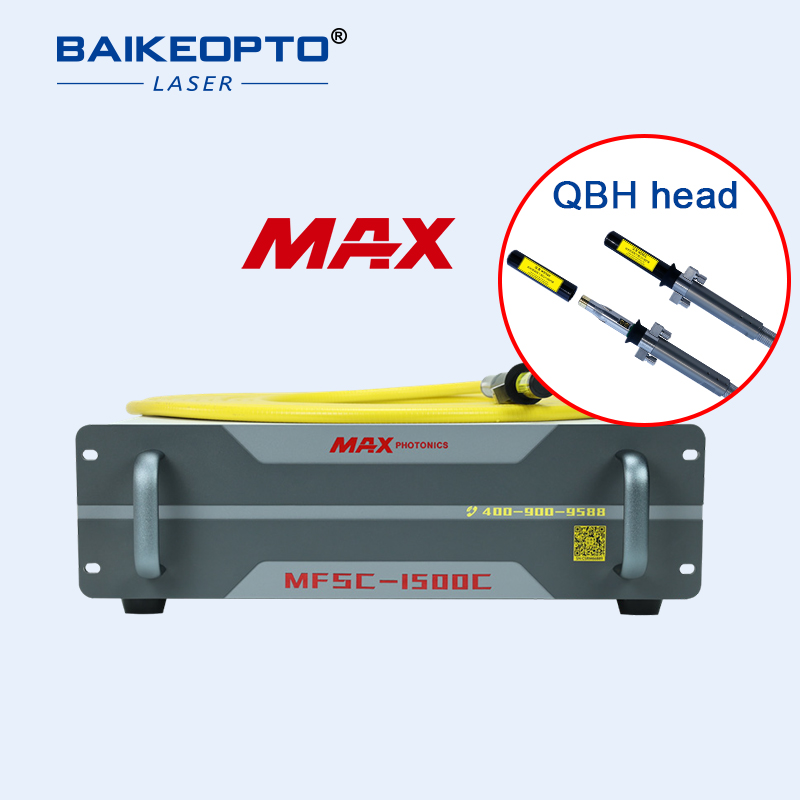

1. High Power Density with Flat-top Distribution 2.High Beam Spot Concentricity Suitable for laser welding and cladding stereolithography Reduce process commissioning time 3.Fiber Core Diameter Optional 800um, 1000um customized options Wider fiber core diameter range makes our laser applicable to more applications such as cladding and hardening 4.QBH or LOE Output Stronger anti-reflective ability with LOE output 5.High Level Vertical Integration All key components are designed and produced in house Strict quality control, high consistency and reliability |
| Application: |
| Max Laser sources are widely used in multiple industries. such as maunfacturing industry, Automative industry , Aerospace, Petrochemical Industry, Rail Traffic, 3C Electrinic , Sheet metal working , Advertising Sign, Kitchen industry, Househeld appliance, fitness equipment, precision Machinery,etc. |
| Parameters: |
| Models | MFSC-1500C | MFSC-2000C | |
| OPTICAL SPECIFICATIONS | |||
| Nominal Power | 1500W | 2000W | |
| Mode of Operation | CW/Modulated | ||
| Polarization | Random | ||
| Power Tunability | 10 to 100% | ||
| Wavelength | 1080 ± 10 nm | ||
| Power Stability | ±1 % | ||
| Laser Beam Quality, BPP | ≤0.5 mm x mrad (20μm QBH) | ≤0.7 mm x mrad (20μm QBH) | |
| Modulation Frequency | ≤20 kHz | ||
| Preview Red Light Power | 200 μW | ||
| FIBER DELIVERY SYSTEM | |||

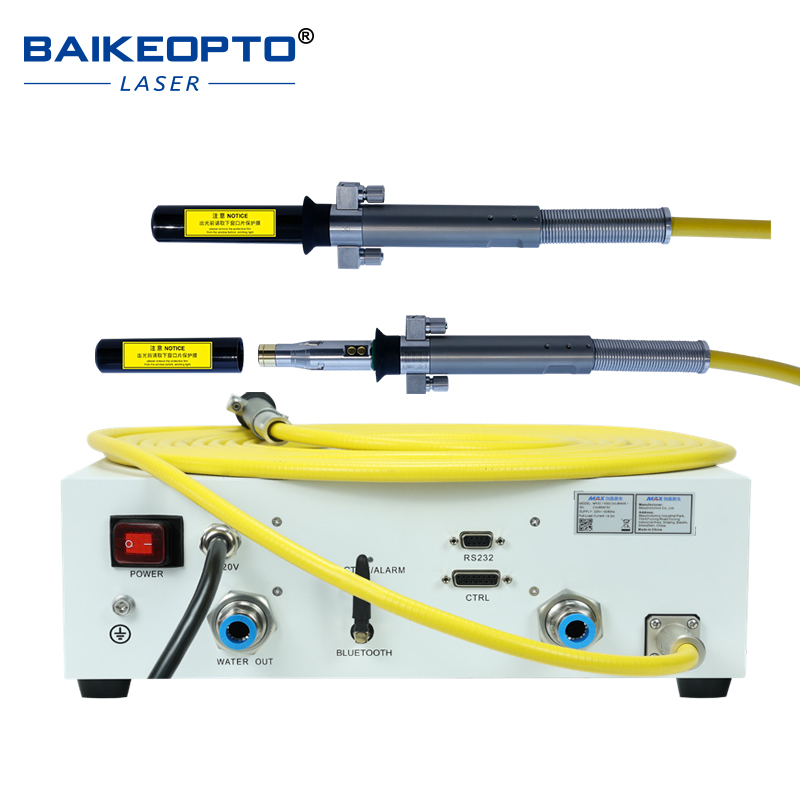

| Interface | QBH (LOC) | ||
| Length | 10m standard, other lengths optional | ||
| Diameter | 20 μm | 30 μm | |
| Bending Radius | 200 mm | ||
| ELECTRICAL RATINGS | |||
| Supply Voltage | 220VAC (-15% to +10%) Single-phase | ||
| OTHER SPECIFICATIONS | |||
| Operating Temperature | +10 to +40℃ | ||
| Storage Temperature | -10 to +60℃ | ||
| Humidity | 10 to 85% | ||
| Cooling Method | Water Cooling | ||
| Cooling Medium | Distilled water/ Glycol Antifreeze | ||

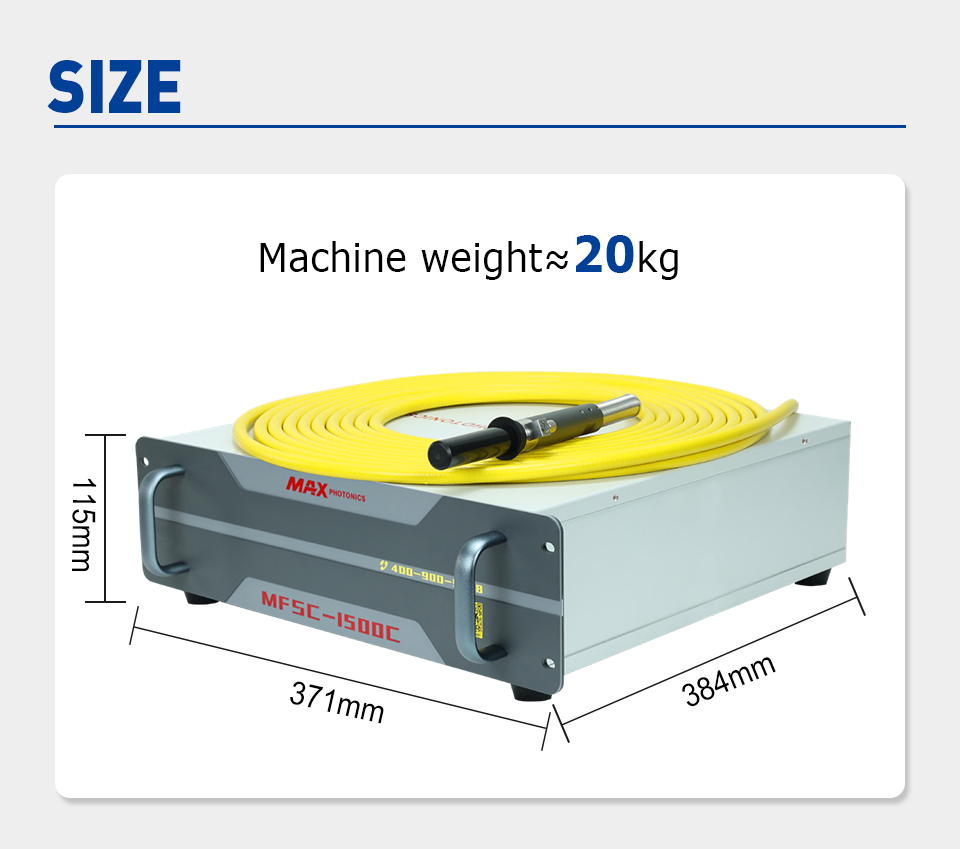

| Dimension | 371×384×115mm (W×D×H) | 410×467×124mm (W×D×H) | |
| Weight | 20(±2) kg | 25(±2) kg | |
| Details: |
 |
01. Good Beam Quality We excellent beam quality, the laser beam can be focused closed to the diffraction limit to achieve precision processing. |
|
02. Optimize Processing Quality There are two qworking modes available: continuous and modulated pulse, which can effectively reduce the processing heat-affected zone. |
 |
 |
03. Reliable Performance Reliable performance , modular all- fiber design, all optoelectronic devices are packaged in a sturdy chassis, able to withstand harsh industrial application conditions. |
|
04. Professional Technical Support We have professional laser application engineers dedicated to providing you with high-quality laser sstem solutions
|
 |
 |

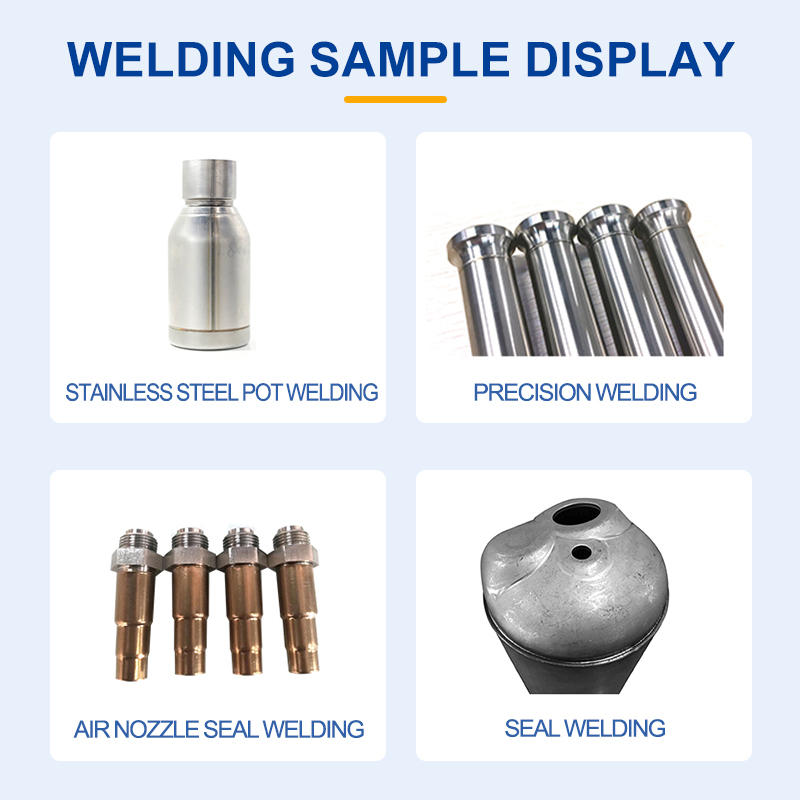

05. Wide Application It can be widely used in precisoin machining, 3D printing, sheet metal processing, lithium electric processing, and can process various steel materials, aluminum-based and nickel-based alloys, titanium alloys, alumina ceramics, etc. |
