MFSC-1500M【FOB】
Model：MFSC-1500M
Laser Power：1500W
Supply Voltage: 48 VAC Single-phase
Continuously adjustable power, fast switching response
High reliability, excellent beam quality
Small size, light weight
High photoelectric conversion efficiency
$3,250.00 USD
$3,550.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description
| Max MFSC-1500M 1500W Single Moudle CW Air Cooling Laser Source |
 |
  |
| Features: |
|
1. Excellent Single Pulse Energy Higher single pulse energy makes our laser applicable to more types of materials and applications 2. New Compact and Rugged Design >40% reduction in volume Higher flexibility when integrated into system 3. Wide Application Even with Highly Reflective Material High performance isolator effectively reduces reflection damage to the laser source Smoothly marking on aluminum, copper and brass etc. 4. High Level Vertical Integration All key components are designed and produced in house Strict quality control, high consistency and reliability |
| Application: |
| SINGLE MODULE CW FIBER LASER is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free. It also takes into account the high-speed cutting of thin plates and the bright surface cutting of medium and thick plates, which greatly improves the perforation and cutting. Process quality such as welding, mainly used in metal drilling, cutting, welding and other fields such as new energy, 3C, precision machining. |
| Parameters: |
| Models | MFSC-800M | MFSC-1200M | MFSC-1500M |
| OPTICAL SPECIFICATIONS |
|||
| Nominal Power | 800W | 1200W | 1500W |
| Mode of Operation | Continuous | ||
| Polarization | Random | ||
| Power Tunability | 10 to 100% | ||
| Wavelength | 1080 ± 10 nm | ||
| Spectral bandwidth (3dB) | 3-4 nm | ||
| Light On time | ≤60 μs | ||
| Light off time | ≤15 μs | ||
| Laser Beam Quality M2 | 1.2 （20 μm-QBH Output） | ||
| Indicates red light power | 200 μW | ||
| Modulation frequency | 10 kHz | ||
| Output Method | standard QBH | ||
| FIBER DELIVERY SYSTEM |
|||
| Length | 10m standard （Customizable） | ||
| Beam Diameter | 20 μm （Customizable） | ||
| Fiber optic cable bending radius | 200 mm | ||
| ELECTRICAL RATINGS |
|||
| Supply Voltage | 48 VAC | ||
| Input Power | 2.7KW | 4KW | 4.5KW |
| OTHER SPECIFICATIONS |
|||
| Operating Temperature | +10 to +35℃ | ||
| Storage Temperature | -10 to +60℃ | ||
| Humidity | 10 to 80% | ||
| Cooling Method | Air Cooling | ||

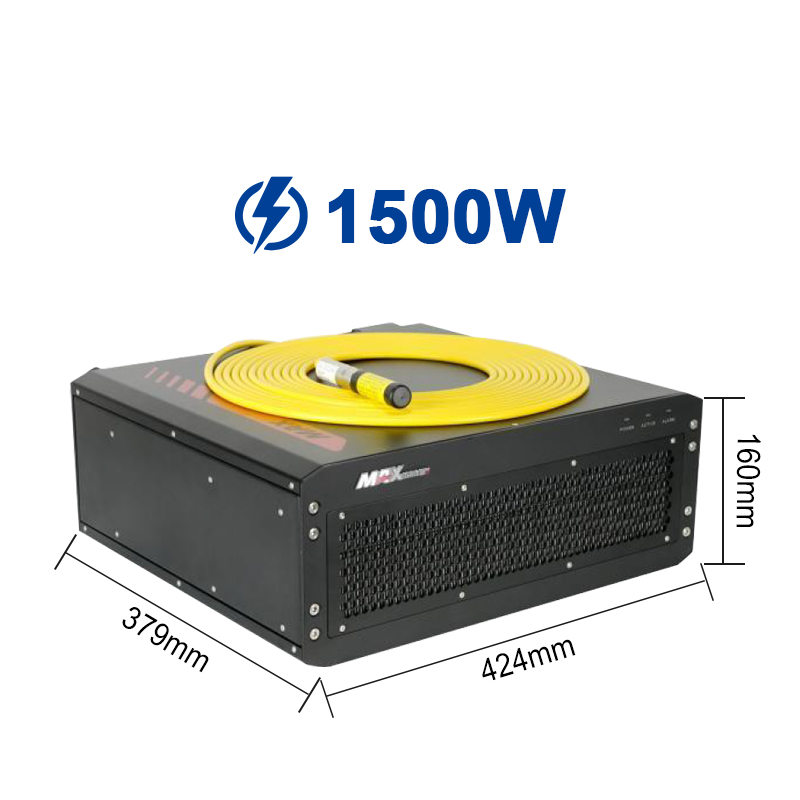

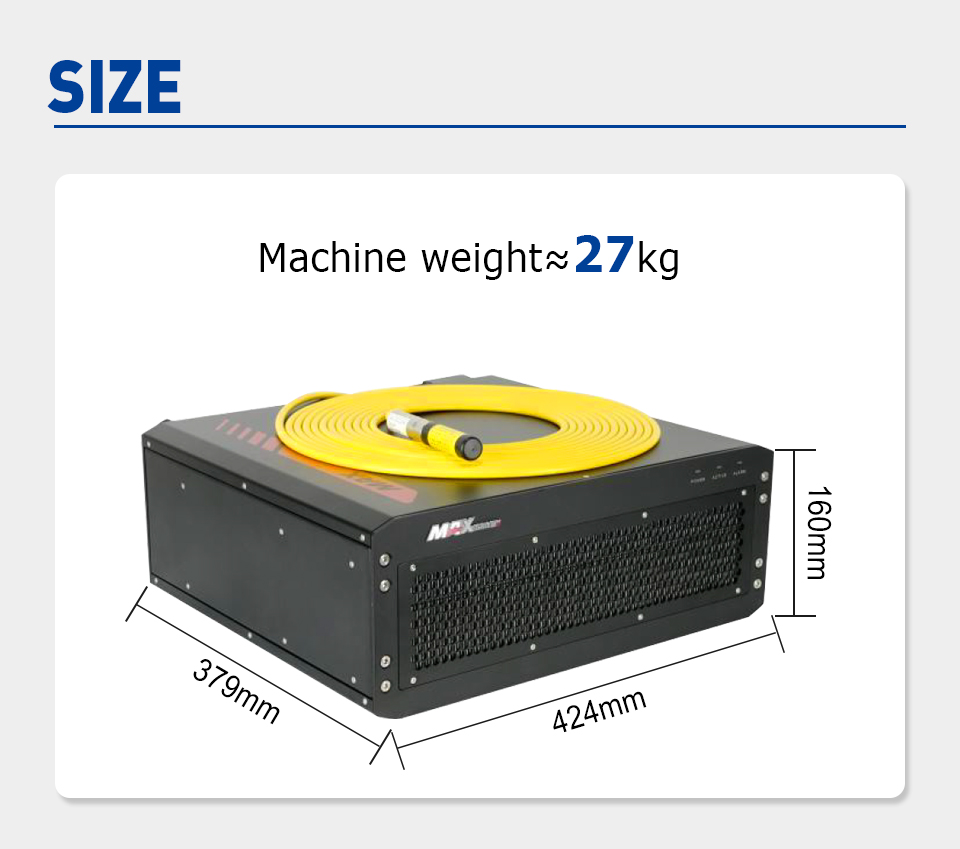

| Dimension | 424×379×160 mm | ||
| Weight |
25±2 kg |
27±2 kg |
27±2 kg |
