MFSC-2000X【FOB】
| Max MFSC-2000X 2000W Single Module CW Fiber Laser Source for Laser Cutting Machine |
 |
  |
| Features: |
|
MFSC 1000X-1500X Single Module CW Fiber Laser, based on modular design,has excellent beam quality and high stability, which structure is compact and water-cooling. The laser can be adjusted continuously, and the beam is transmitted be fiber and QBH connector, which is ideal for laser cutting, laser welding, etc . The laser is very suitable for system intergration with robot or machine tool, and is widely used for laser cutting, welding, 3D printing, electronics, automobile parts,aerospace, etc. |
| Application: |
| Max Laser sources are widely used in multiple industries. such as maunfacturing industry, Automative industry , Aerospace, Petrochemical Industry, Rail Traffic, 3C Electrinic , Sheet metal working , Advertising Sign, Kitchen industry, Househeld appliance, fitness equipment, precision Machinery,etc. |
| Parameters: |
| Models | MFSC-2000X |
| OPTICAL SPECIFICATIONS | |
| Nominal Power | 2000W |
| Mode of Operation | CW/Modulated |
| Polarization | Random |
| Power Tunability | 10 to 100% |
| Wavelength | 1080 ± 10 nm |
| Power Stability | ±1 % |
| Laser Beam Quality, BPP | ≤1.8 mm x mrad (50μm QBH) |
| Modulation Frequency | ≤20 kHz |
| Preview Red Light Power | 200 μW |
| FIBER DELIVERY SYSTEM | |

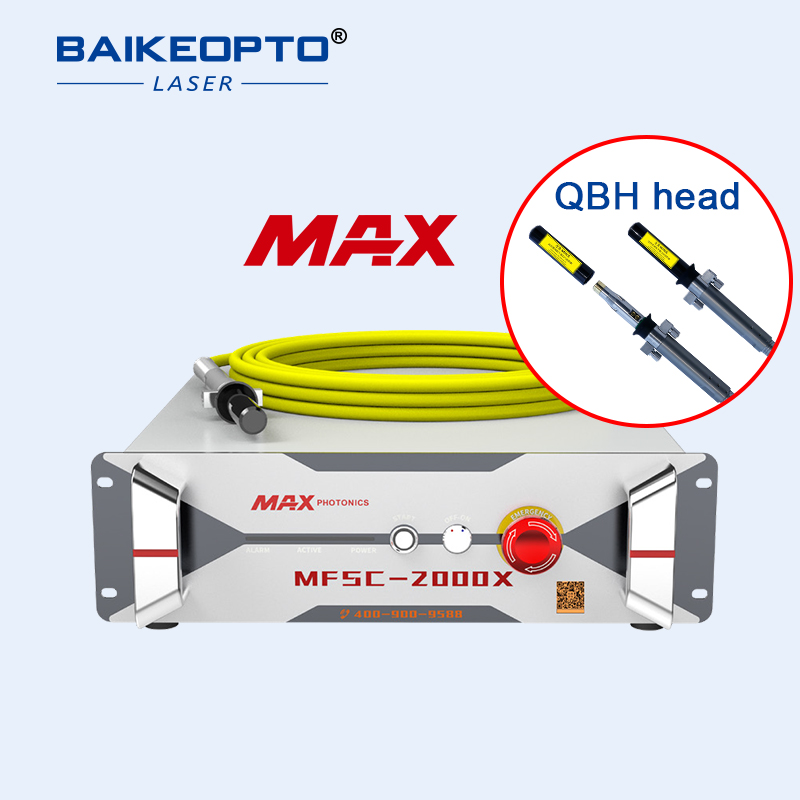

| Interface | QBH (LOC) |
| Length | 15m standard, other lengths optional |
| Diameter | 50 μm |
| Bending Radius | 200 mm |
| ELECTRICAL RATINGS | |
| Supply Voltage | 220VAC (-15% to +10%) Single-phase |
| OTHER SPECIFICATIONS | |
| Operating Temperature | +10 to +40℃ |
| Storage Temperature | -10 to +60℃ |
| Humidity | 10 to 85% |
| Cooling Method | Water Cooling |
| Cooling Medium | Distilled water/ Glycol Antifreeze |

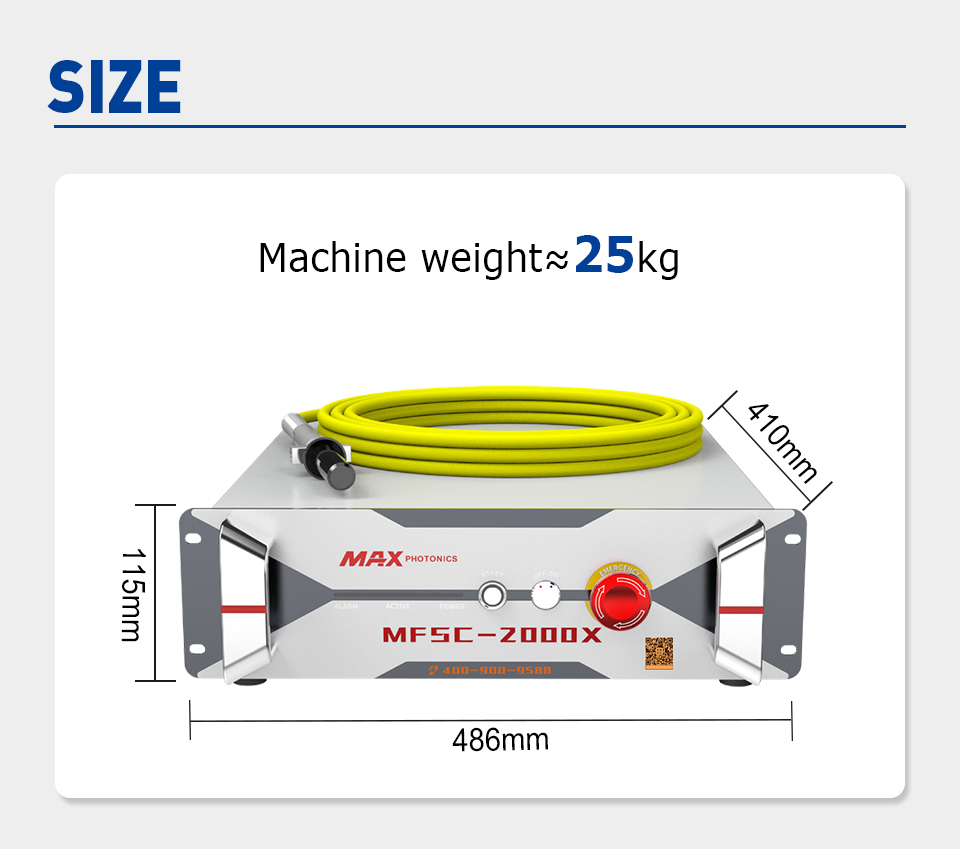

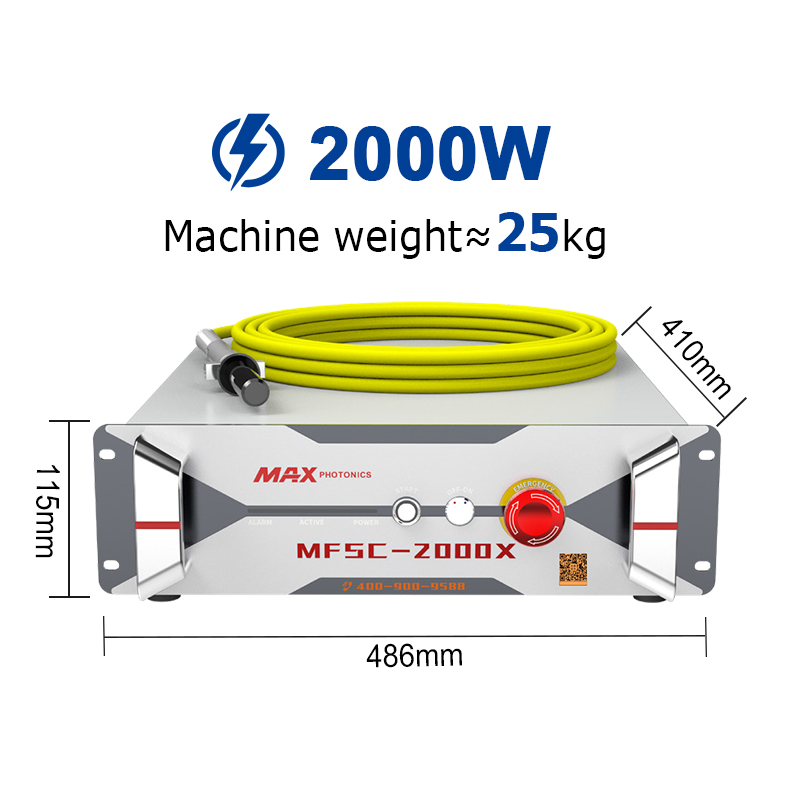

| Dimension | 486×410×115mm (W×D×H) |
| Weight | 25(±2) kg |
| Details: |
 |
01. Good Beam Quality We excellent beam quality, the laser beam can be focused closed to the diffraction limit to achieve precision processing. |
|
02. Optimize Processing Quality There are two qworking modes available: continuous and modulated pulse, which can effectively reduce the processing heat-affected zone. |
 |
 |
03. Reliable Performance Reliable performance , modular all- fiber design, all optoelectronic devices are packaged in a sturdy chassis, able to withstand harsh industrial application conditions. |
|
04. Professional Technical Support We have professional laser application engineers dedicated to providing you with high-quality laser sstem solutions
|
 |
 |
05. Wide Application It can be widely used in precisoin machining, 3D printing, sheet metal processing, lithium electric processing, and can process various steel materials, aluminum-based and nickel-based alloys, titanium alloys, alumina ceramics, etc. |
