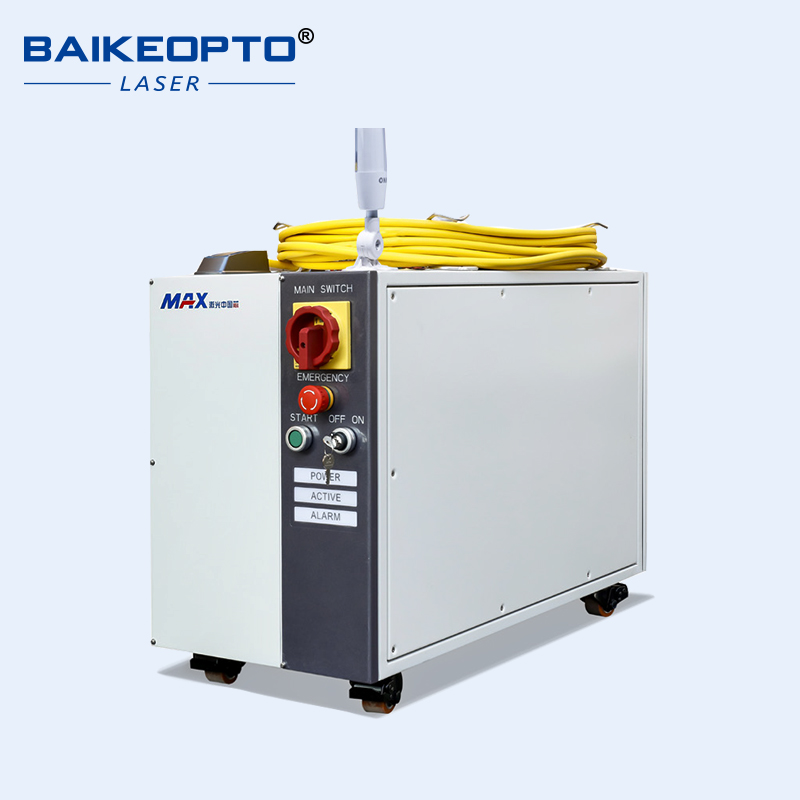

MFSC-6000M【FOB】
Model：MFSC-6000M
Laser Power：6000W
Supply Voltage: 360~440 VAC Three-phase

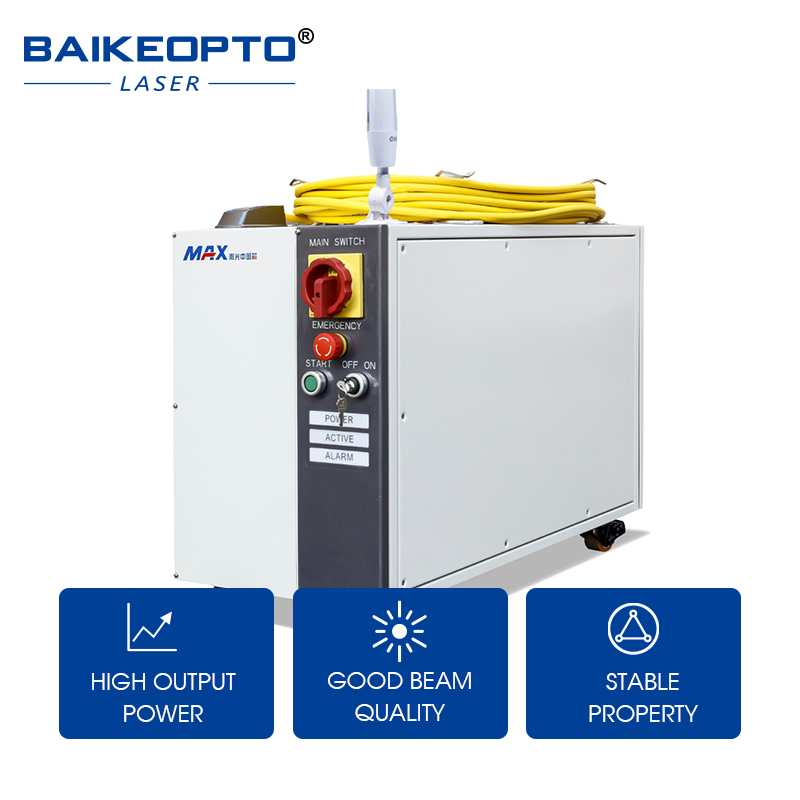

Excellent Light Beam Quality
High reliability
Maintenance-free operation
$11,000.00 USD
$11,500.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description

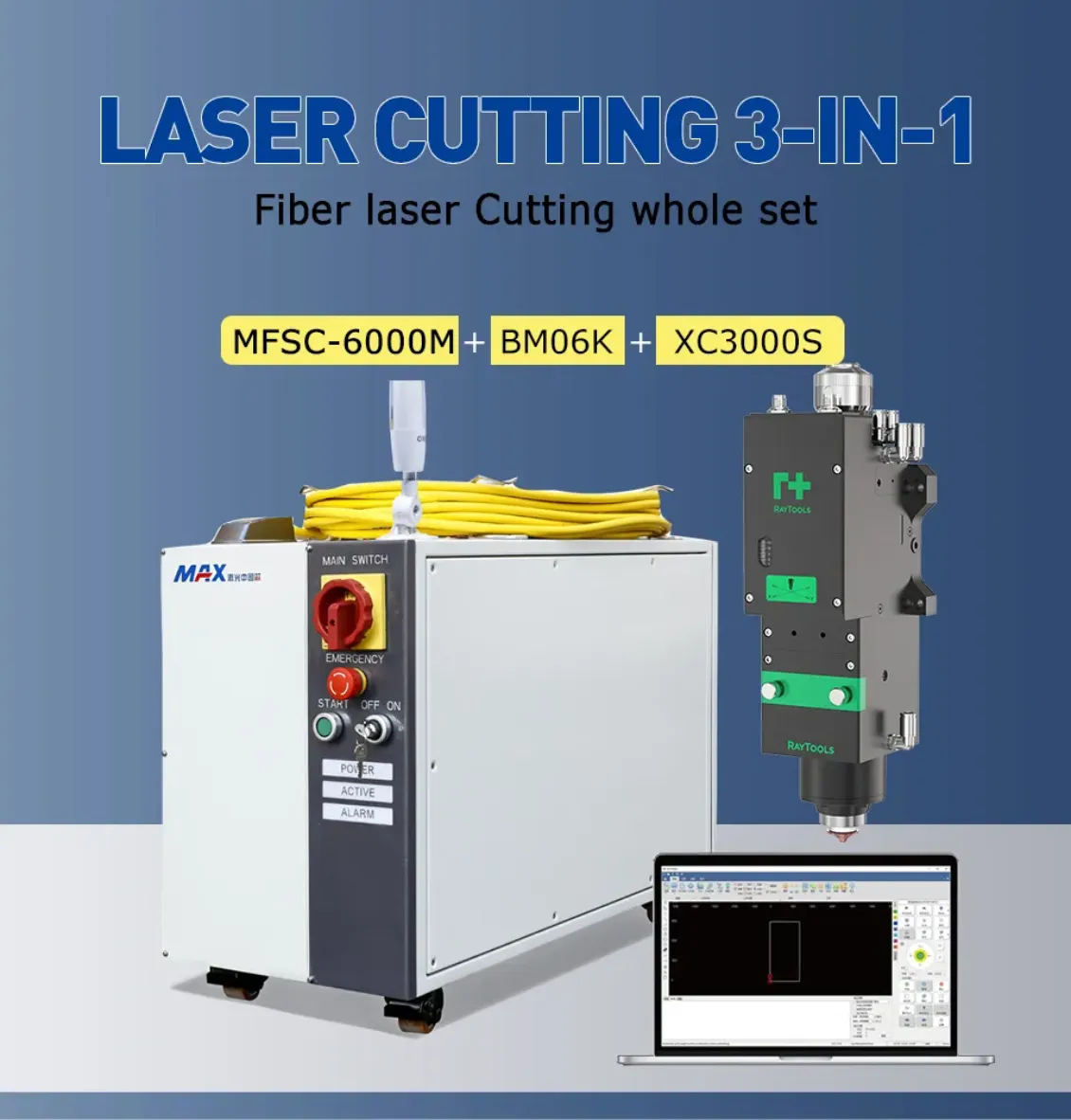

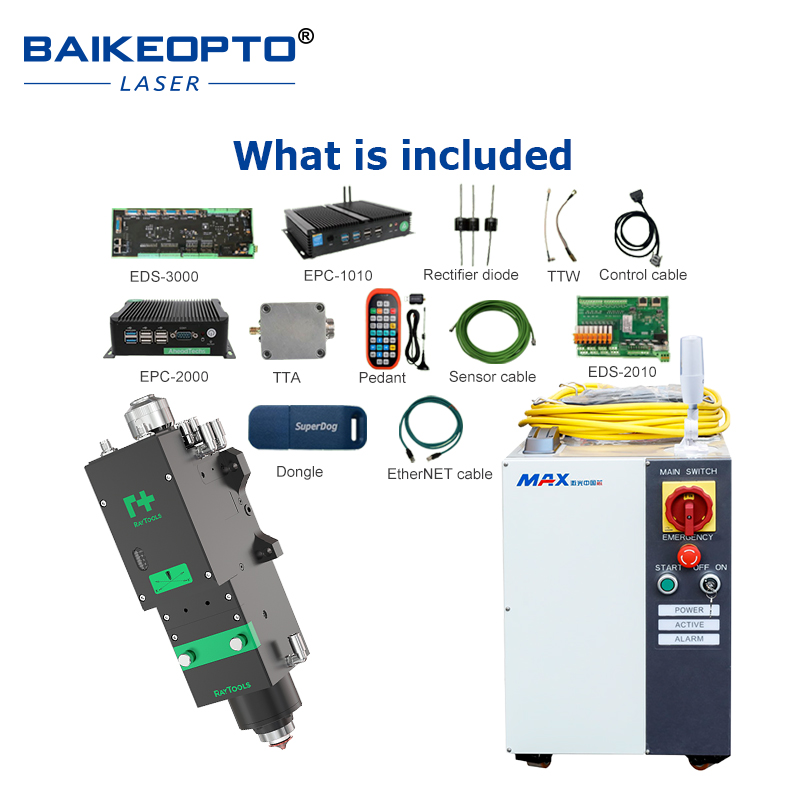

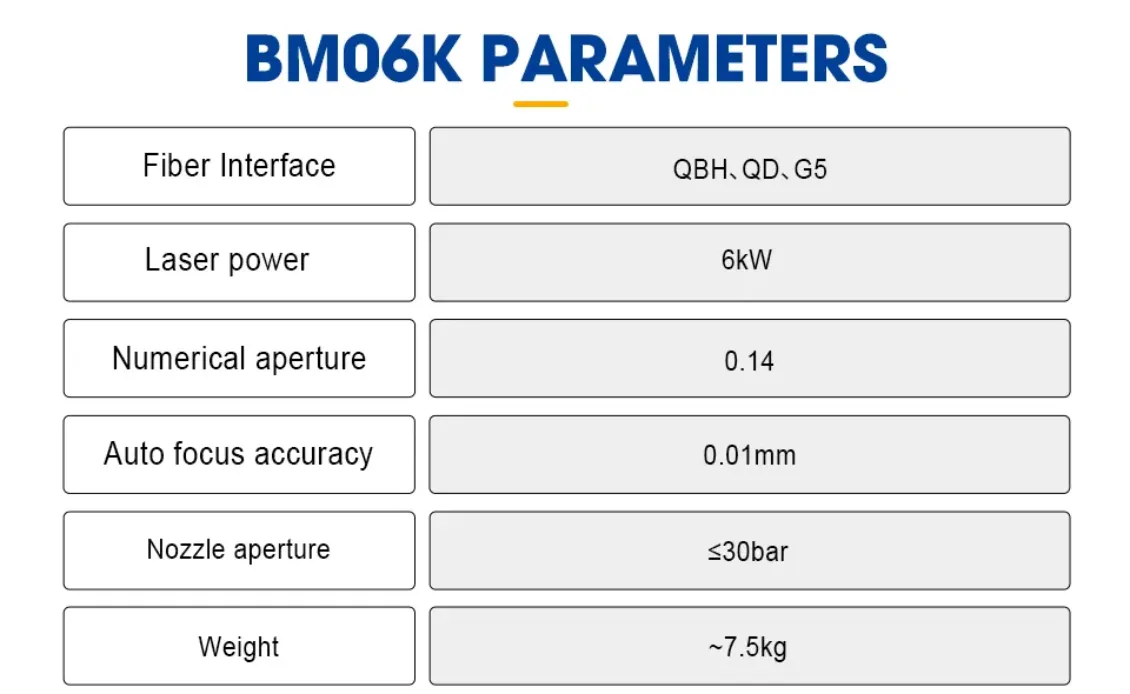

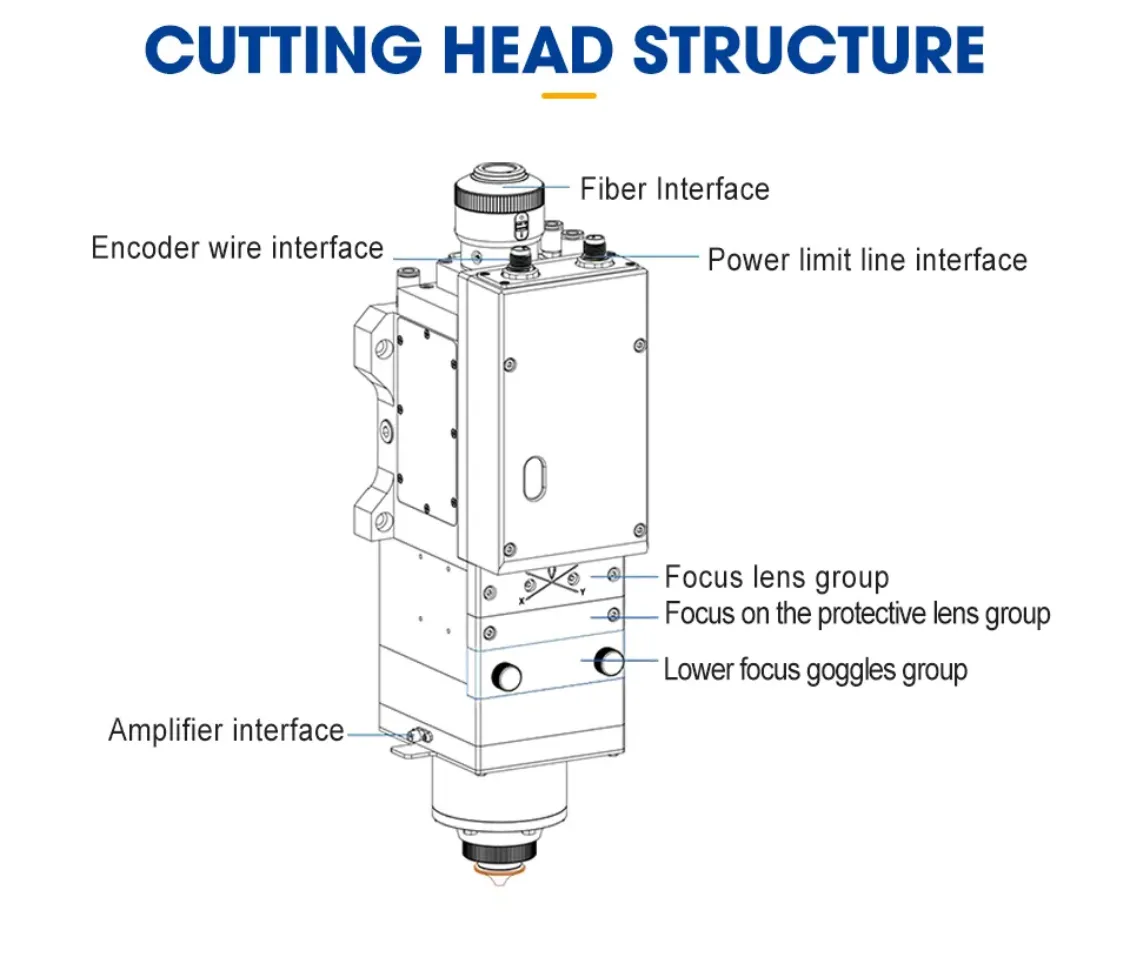

| Max MFSC-6000M 6000W Single Moudle CW Laser Source+BM06K Cutting Head+XC3000 System |
 |
  |
| Features: |
|
1.Up to 6KW Output From CW Single Module Series Better beam quality vs. multi module lasers Greatly improved efficiency 2.Excellent Material Processing Performance High speed in thin sheet cutting Strong capability in thick material processing 3.Compact Design, Maintenance Free Highly integrated system with modular design Easy maintenance significantly reduce TCO 4.Smaller Size with Higher Stability >60% reduction in volume Higher flexibility when integrated in to system 5.High Level Vertical Integration All key components are designed and produced in house Strict quality control, high consistency and reliability |
| Application: |
| Max Fiber Lasers which combined with high power, compact size, superior beam quality, and high light conversion efficiency. It can meet the requirements of precision processing, 3C product welding and high-reflective material cutting ability are significantly improved. It is suitable for remote processing, high-frequency laser cutting and clean surface cutting. It can be quickly and conveniently integrated into machine tool equipment and large-scale factory automation production line. |
| Parameters: |
| Models | MFSC-6000M |
| OPTICAL SPECIFICATIONS | |
| Nominal Power | 6000W |
| Mode of Operation | CW/pulse |
| Polarization | Random |
| Power Tunability | 10 to 100% |
| Wavelength | 1080 ± 10 nm |
| Power Stability | ±1 % |
| Laser Beam Quality, BPP | ≤3.8 mm x mrad (100μm QBH) |
| Modulation Frequency | ≤5 kHz |
| Preview Red Light Power | 200 μW |
| FIBER DELIVERY SYSTEM | |
| Interface | QBH (LOC) |
| Length | 20m standard, other lengths optional |
| Diameter | 100(150/200) μm |
| Bending Radius | 200 mm |
| ELECTRICAL RATINGS | |
| Supply Voltage | 400VAC (-15% to +10%) 3-phase |
| OTHER SPECIFICATIONS | |
| Operating Temperature | +10 to +40℃ |
| Storage Temperature | -10 to +60℃ |
| Humidity | 10 to 85% |
| Cooling Method | Water Cooling |
| Cooling Medium | Distilled water/ Glycol Antifreeze |

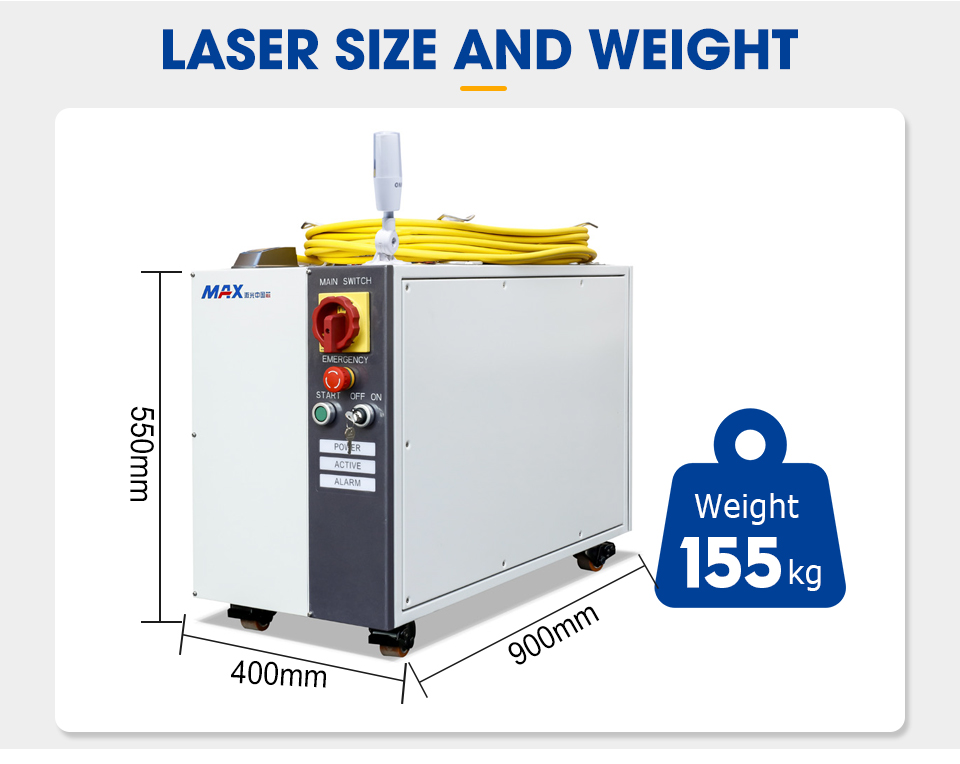

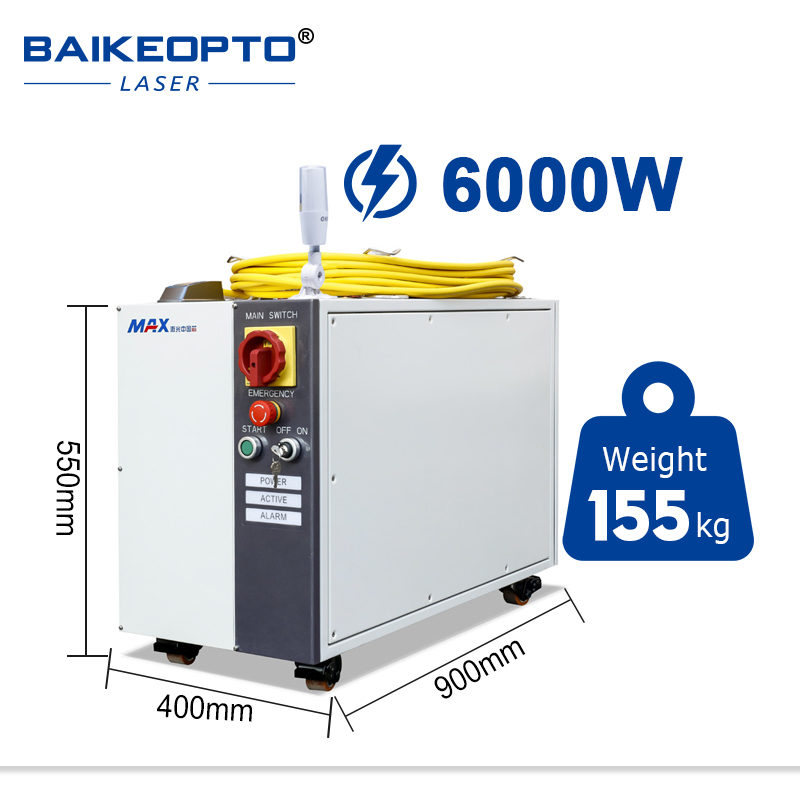

| Dimension | 400*900*550 MM（W*D*H） |
| Weight | 147(±5) kg |
