Product Details Display

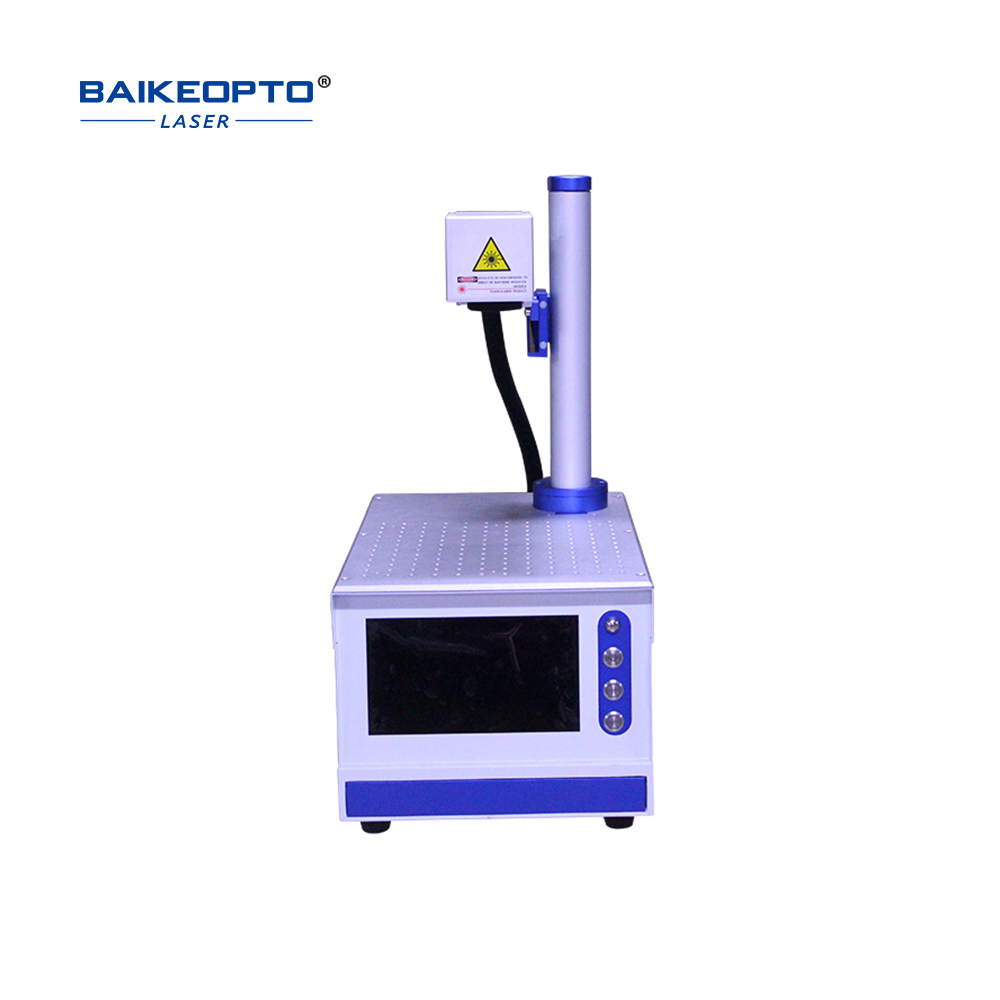

FM-450S-20W【FOB】
Product details
Galvanometer
The galvabometer is an important factor to determine the marking quality.The small size of the galvanometer is suitable for harsh enviroment.
control switch
Humanized control system ,control switch,power switch,power switch,laser switch,USB interface with leakage protection .
Field lens
The field lens scanning system adopts new technology,new materials,new technique and new working principle to design and manufacture.
Hidden mouse
Standard positioning hole,convenient and fast positioning ,Any adjustable position can realize multiple combinations,Cooperate with software multi-station printing to improve work effciency.
Worktable
Standard positioning hole, convenient for fast positioning,adjustable position can achieve a variety of combinations ,multi-station printing with software to improve work efficiency.
Large screen
30-inch large color screen ,more convenient to use,The operation is simpler and easier to get started.
Main Component Diagram
Technical Data
| Model: | FM-450S |
| Laser Power： | 20W/30W |
| Laser wavelength： | 1064nm |
| Laser quality: | M2＜1.4 |
| Output frequency: | 20KHZ-80KHZ |
| Marking area: | 110*110/150*150/170*170/200*200(mm) |
| Min line width： | 0.01mm |
| Repetition accuracy: | ±0.0001mm |
| Electrical requirement: | AC 90-250V/50HZ 5A |
| Marking speed： | 0-5000mm/s |
| Cooling system: | Air-cooling |
Thank You For Your Attention And Choice.
Machine Working Video
For more application videos, see the product videos or application videos in the Application column.
