RFL-C6000S【FOB】
Model：RFL-C1000/RFL-C1500/RFL-C2000/RFL-C3000/RFL-C4000/RFL-C6000/RFL-C12000/RFL-C20000/RFL-30000
Laser Power：1000W/1500W/2000W /3000W/4000W/6000W/12000W/20000W/30000W optional
Supply Voltage: VAC 220/380, 50/60Hz
$10,099.00 USD
$10,599.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description

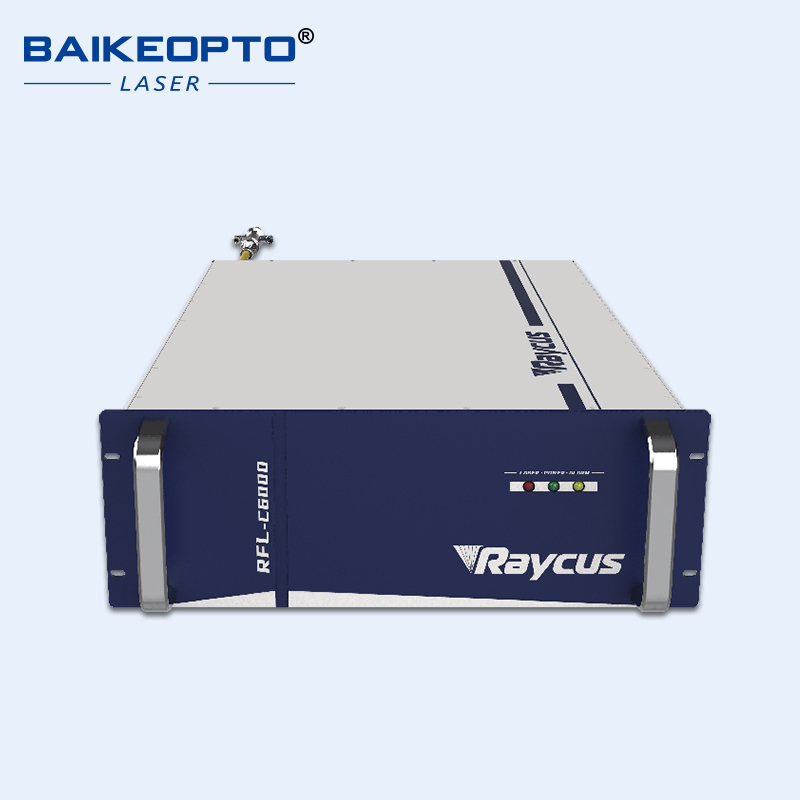

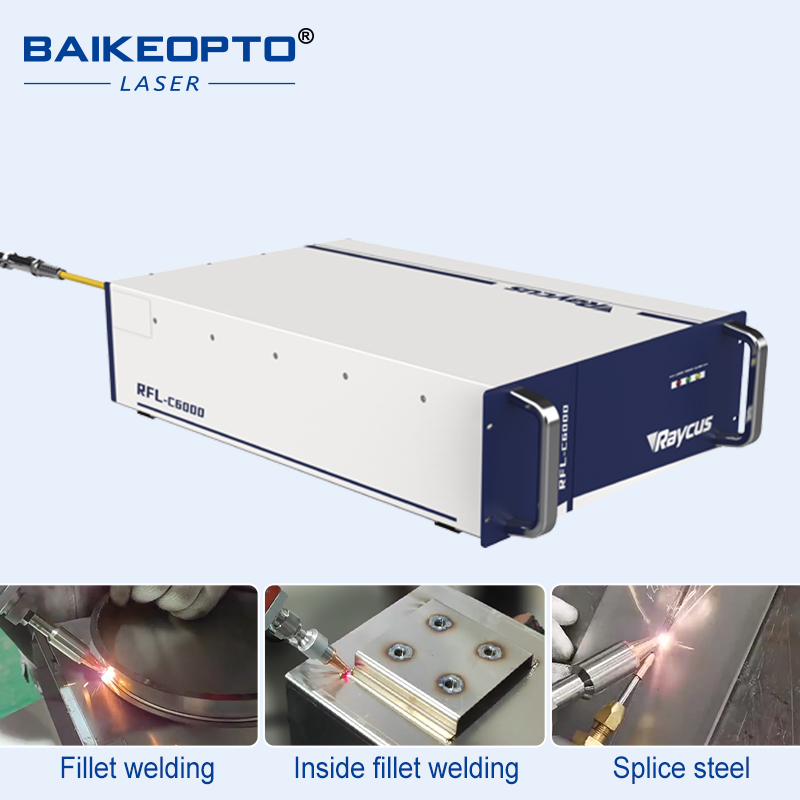

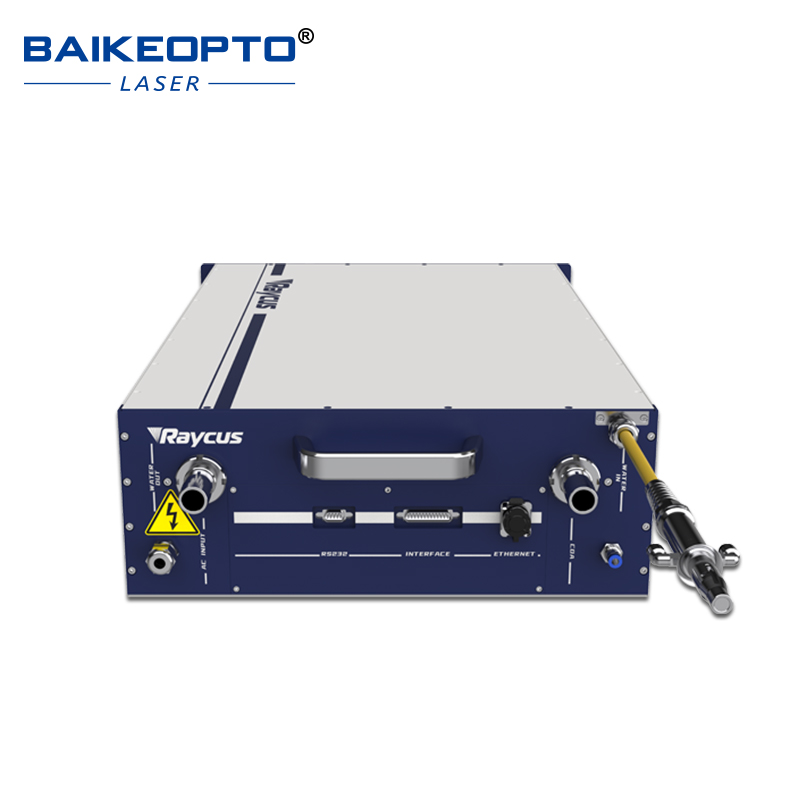

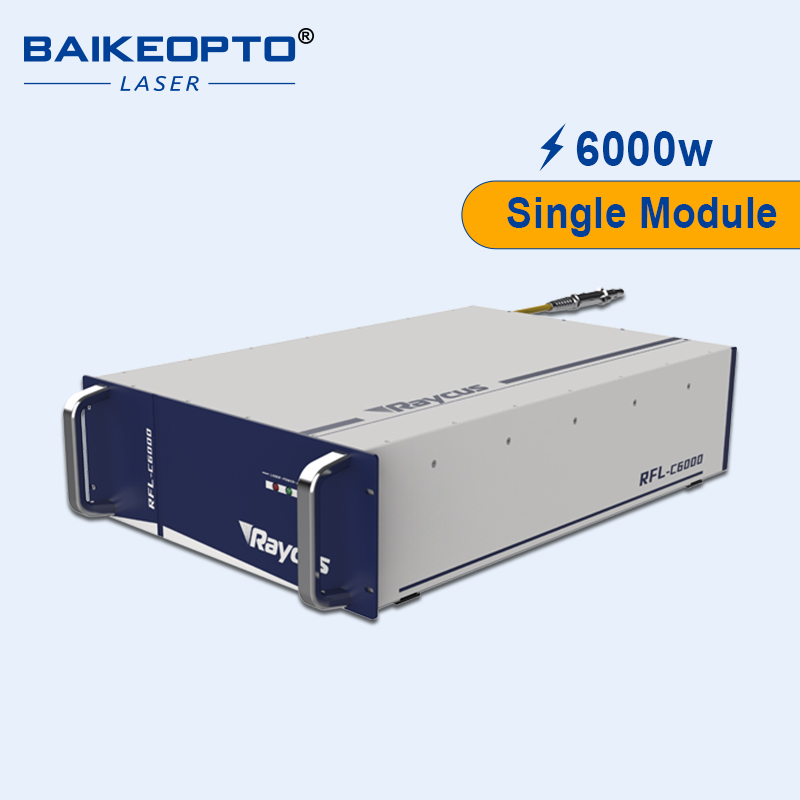

| Raycus 6000W Single Mocule CW Fiber Lasers for Welding RFL-C6000S |
| Features: |
| Raycus fiber laser is designed for industrial and scientific research applications with high pump conversion efficiency, low power consumption and eccellent beam quality. It is compact and ready to use. It can be used as a stand-alone unit or easily inserted into user's apparatus. |
| Application: |
| Raycus Laser sources are widely used in multiple industries. such as maunfacturing industry, Automative industry , Aerospace, Petrochemical Industry, Rail Traffic, 3C Electrinic , Sheet metal working , Advertising Sign, Kitchen industry, Househeld appliance, fitness equipment, precision Machinery,etc. |
| Parameters: |
|
Model
|
RFL-C3000S
|
RFL-C4000S
|
RFL-C6000S
|
|
Average output power: (W)
|
3000
|
4000
|
6000
|
|
Center wavelength: (nm)
|
1080±5
|
1080±5
|
1080±5
|
|
Maximum modulation frequency (kHz)
|
5
|
5
|
5
|
|
Output power instability
|
±1.5%
|
±1.5%
|
±1.5%
|
|
Red Laser
|
Yes
|
Yes
|
Yes
|
|
Output fiber core diameter（μm）
|
20 (customizable)
|
20 (customizable)
|
20 (customizable)
|
|
Output Connector
|
QBH (customizable)
|
IBQ (customizable)
|
QBH (customizable)
|
|
Beam quality BPP（mm*mrad）
|
1.4-2(50μm)
|
5-6（50μm）
|
2.7~3.1mm×mrad（50-70μm）
|
|

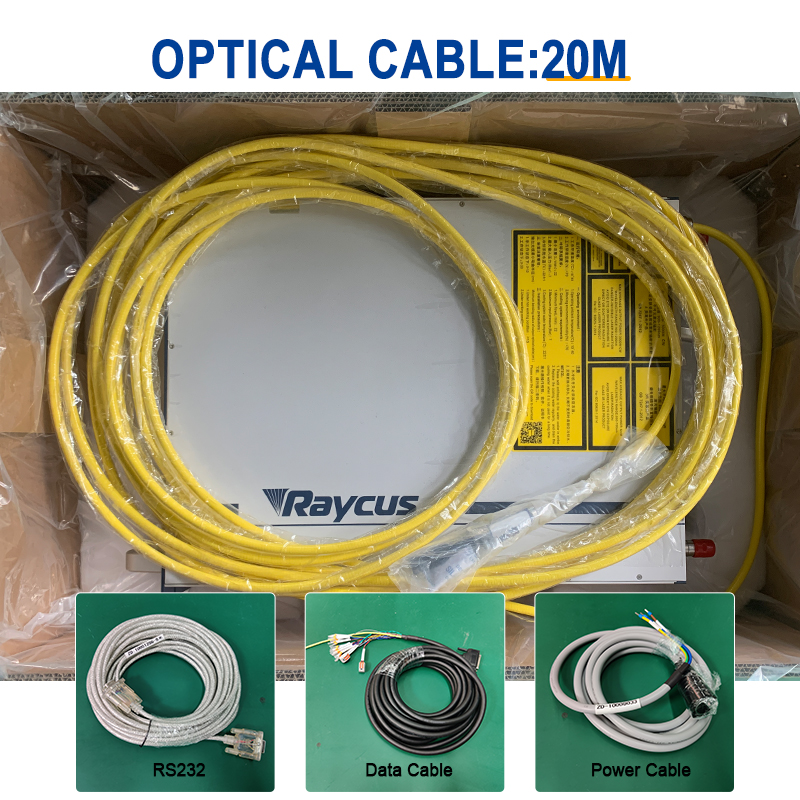

Output fiber length (m)
|
20(can be customized)
|
20 (can be customized)
|
20 (can be customized)
|
|
polarization state
|
Random
|
Random
|
Random
|
|
Input power (VAC)
|
380±10%, three-phase four-wire
|
380±10%, three-phase four-wire
|
380±15%, three-phase 50/60Hz
|
|
Power adjustment range (%)
|
10-100
|
10-100
|
10-100
|
|
Control mode
|
external RS232, external AD, Ethernet
|
external RS232, external AD, Ethernet
|
AD/RS-232/Ethernet
|
|

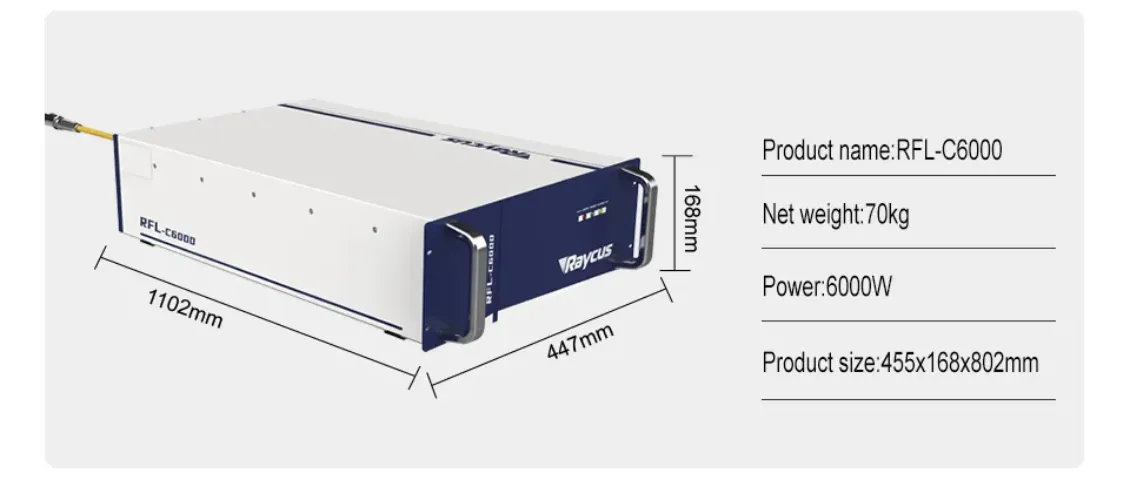

Dimensions (mm)
|
485*163.5*736(handle included)
|
447*250*1102 (with foot pads, handle)
|
455×802×168mm
|
|
Cooling method
|
Water-cooled
|
Water-cooled
|
Water-cooled
|
|
Working Temperature ( ℃ )
|
10-40
|
10-40
|
10-40
|
| Details: |
