RFL-P30MX【FOB】
Model：RFL-P30MX
Laser Power：20W/30W/100W /200W/300W optional
Supply Voltage: VAC 220, 50/60Hz
$3,850.00 USD
$4,500.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description

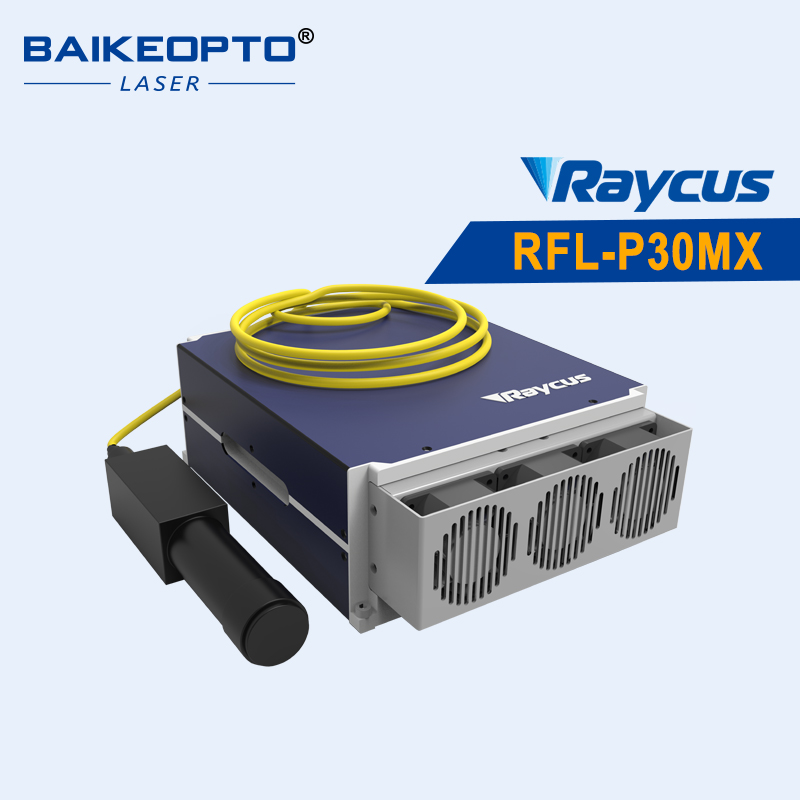

| Raycus RFL-P30MX 30W Mopa Pulse Fiber Laser Source for Cutting Cleaning Marking |
| Features: |
| 1. Brand-new appearance design, more compact size. 2. Greatly improve the laser repetition frequency, the lowest is as low as 1Khz, and the highest can reach 2Mhz. 3. The maximum single pulse energy is increased to 1mJ. 4. Added the first pulse available function, with faster laser build-up time and shutdown time, and the first pulse height can be adjusted using the matching host computer software. 5. Added continuous light output mode. 6. Greatly improved the linearity of light output power |
| Application: |
| Raycus Laser sources are widely used in multiple industries. such as maunfacturing industry, Automative industry , Aerospace, Petrochemical Industry, Rail Traffic, 3C Electrinic , Sheet metal working , Advertising Sign, Kitchen industry, Househeld appliance, fitness equipment, precision Machinery,etc. |
| Parameters: |
|
Model
|
RFL-P20MX
|
RFL-P30MX
|
RFL-P100M
|
RFL-P200S
|
|
Rated output power: (W)
|
20
|
30
|
100
|
200
|
|
Center wavelength: (nm)
|
1064±5
|
1064±5
|
1064±5
|
1064±5
|
|
Repetition frequency range (kHz)
|
1-2000
|
1-2000
|
20-1000
|
20-2000
|
|
Output power stability
|
＜3%
|
＜3%
|
＜3%
|
＜5%
|
|
Pulse width range (ns)
|
2-500
|
2-500
|
10-350
|
10-240
|
|
Output spot diameter (mm)
|
7±1
|
7±1
|
6.5±1
|
5-8
|
|
Beam quality M²
|
＜1.5
|
＜1.5
|
＜1.6
|
＜1.6
|
|
Maximum single pulse energy (mJ)
|
0.71
|
1
|
1
|
1
|
|
Output fiber length (m)
|
3(can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
|
Input power (VAC)
|
24
|
24
|
24
|
24
|
|
Power adjustment range (%)
|
0-100
|
0-100
|
0-100
|
0-100
|
|
Power consumption (W)
|
170
|
280
|
500
|
1000
|
|
Dimensions (mm)
|
286×215×95
|
286×215×95
|
360×390×123
|
400×460×121
|
|
Cooling method
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
| Details: |
