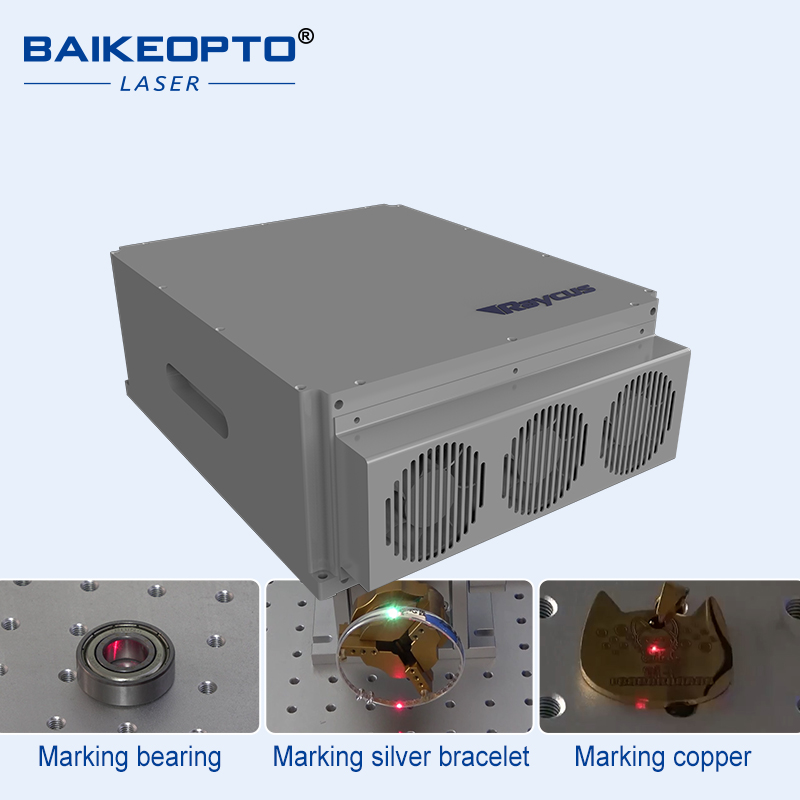

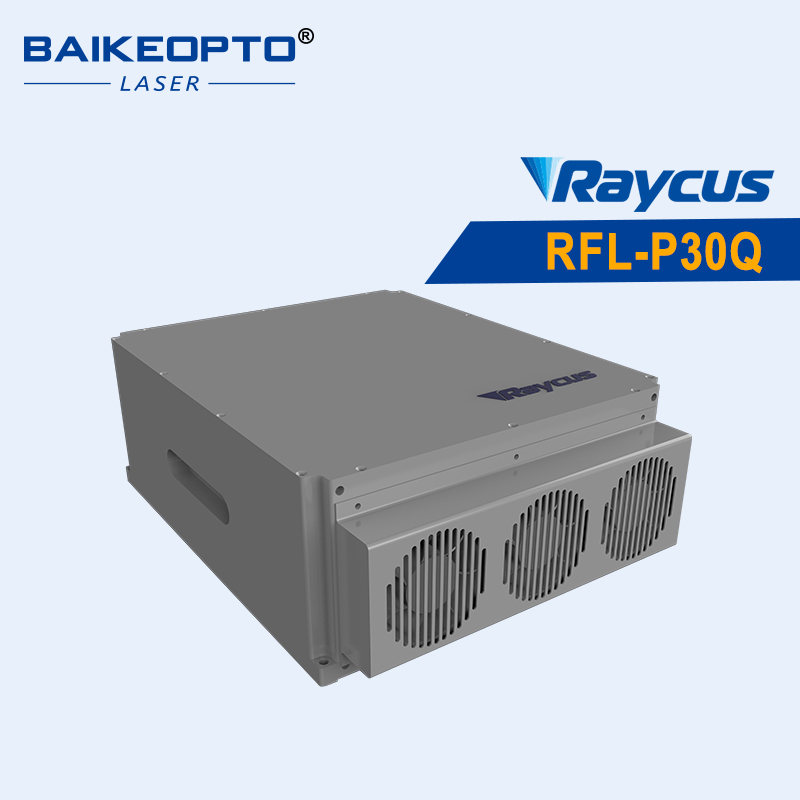

RFL-P30Q【FOB】
Model：RFL-P30Q
Laser Power：30W
Supply Voltage: VDC 24
High stability laser output
High single pulse energy
High marking efficiency
Short pulse build-up time
High reliability
Maintenance-free operation
$900.00 USD
$950.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description
| Raycus RFL-P30Q 30W Q-Switched Pulsed Fiber Laser Source for Precision Laser Marking Engraving Machine |
| Features: |
| The Q-switched pulse fiber laser series developed by Raycus Laser is an industrial-grade marking and micro-machining laser developed by Raycus Laser. This series of pulsed lasers has the characteristics of high peak power, high single pulse energy, and optional spot diameter. It can be widely used in the marking, precision machining, graphic engraving and other fields of non-metallic, high-reflective gold, silver, copper, aluminum and non-high-reflective stainless steel materials. Compared with traditional lasers, it has lower cost and more stable performance in marking application process. |
| Application: |
| Raycus Laser sources are widely used in multiple industries. such as maunfacturing industry, Automative industry , Aerospace, Petrochemical Industry, Rail Traffic, 3C Electrinic , Sheet metal working , Advertising Sign, Kitchen industry, Househeld appliance, fitness equipment, precision Machinery,etc. |
| Parameters: |
|
Model
|
RFL-P20QS
|
RFL-P30QS
|
RFL-P20QE
|
RFL-P30Q
|
RFL-P50QB
|
|
Rated output power: (W)
|
20
|
30
|
20
|
30
|
50
|
|
Center wavelength: (nm)
|
1064
|
1064
|
1064
|
1064
|
1064
|
|
Repetition frequency range (kHz)
|
30-60
|
40-60
|
30-60
|
30-60
|
50-100
|
|
Output power stability
|
＜3%
|
＜3%
|
＜3%
|
＜3%
|
＜3%
|
|
Pulse width range (ns)
|
120-150
|
130-160
|
120-150
|
120-150
|
120-150
|
|
Output spot diameter (mm)
|
5.7-8
|
5.7-8
|
5.7-8
|
5.7-8
|
5.7-8
|
|
Beam quality M²
|
＜1.5
|
＜1.5
|
＜1.5
|
＜1.6
|
＜1.6
|
|
Maximum single pulse energy (mJ)
|
0.67
|
0.75
|
0.67
|
1
|
1
|
|
Output fiber length (m)
|
3(can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
|
Input power (VDC)
|
24
|
24
|
24
|
24
|
24
|
|
Power adjustment range (%)
|
0-100
|
0-100
|
0-100
|
0-100
|
0-100
|
|
Working Temperature ( ℃ )
|
0-40
|
0-40
|
0-40
|
0-40
|
0-40
|
|
Dimensions (mm)
|
215*290*95
|
215*290*95
|
260*340*120
|
260*340*120
|
260*340*120
|
|
Cooling method
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Air-Cooled
|
